Oil, Gas & Marine Cable Solutions
Oil, Gas & Marine Cable Solutions for Offshore, Petrochemical and Vessel Applications
TEBAOFLEX supports cable selection for offshore platforms, FPSOs, drilling systems, refineries, petrochemical plants and marine vessels. Construction is reviewed against the circuit function, installation route, fire-performance requirement and exposure to oil, drilling fluids, chemicals, moisture and marine conditions.
Selection framework
Four Inputs That Define the Cable Construction
Oil, gas and marine cable selection begins with the installation context rather than a product name. These four inputs establish the first engineering boundary before voltage, conductor size, materials and approvals are confirmed.
Route and Service
Fixed tray, enclosed area, exposed deck, flexible connection, portable equipment or tubing-encapsulated route.
Actual Exposure
Oil, drilling mud, saltwater, humidity, UV, chemicals, temperature and mechanical loading.
Circuit Function
General power, fire-critical power, control, instrumentation, communication or integrated services.
The application defines the environment. The circuit function defines the cable construction.
Operating environments
Cable Solutions by Oil, Gas and Marine Operating Environment
Use the operating environment to narrow the route, hazard and material requirements. The same facility may require several cable constructions because normal power, instrumentation and emergency circuits have different duties.
Offshore
Offshore Oil & Gas
Fixed platforms, FPSOs, drilling units and production facilities exposed to saltwater, humidity, vibration, oil, mud, UV and fire-safety requirements.
Explore Offshore Applications ↓
Onshore
Oil, Gas & Petrochemical
Refineries, gas processing plants, tank farms, pipeline stations and process equipment with hydrocarbon, chemical, signal-integrity and fire considerations.
Explore Petrochemical Applications ↓
Marine
Marine & Vessel
Shipboard distribution, engine rooms, deck machinery, lighting, emergency circuits and vessel control systems in humid and mechanically demanding routes.
Explore Marine Applications ↓
Offshore facilitiesPower Safety Signals Equipment

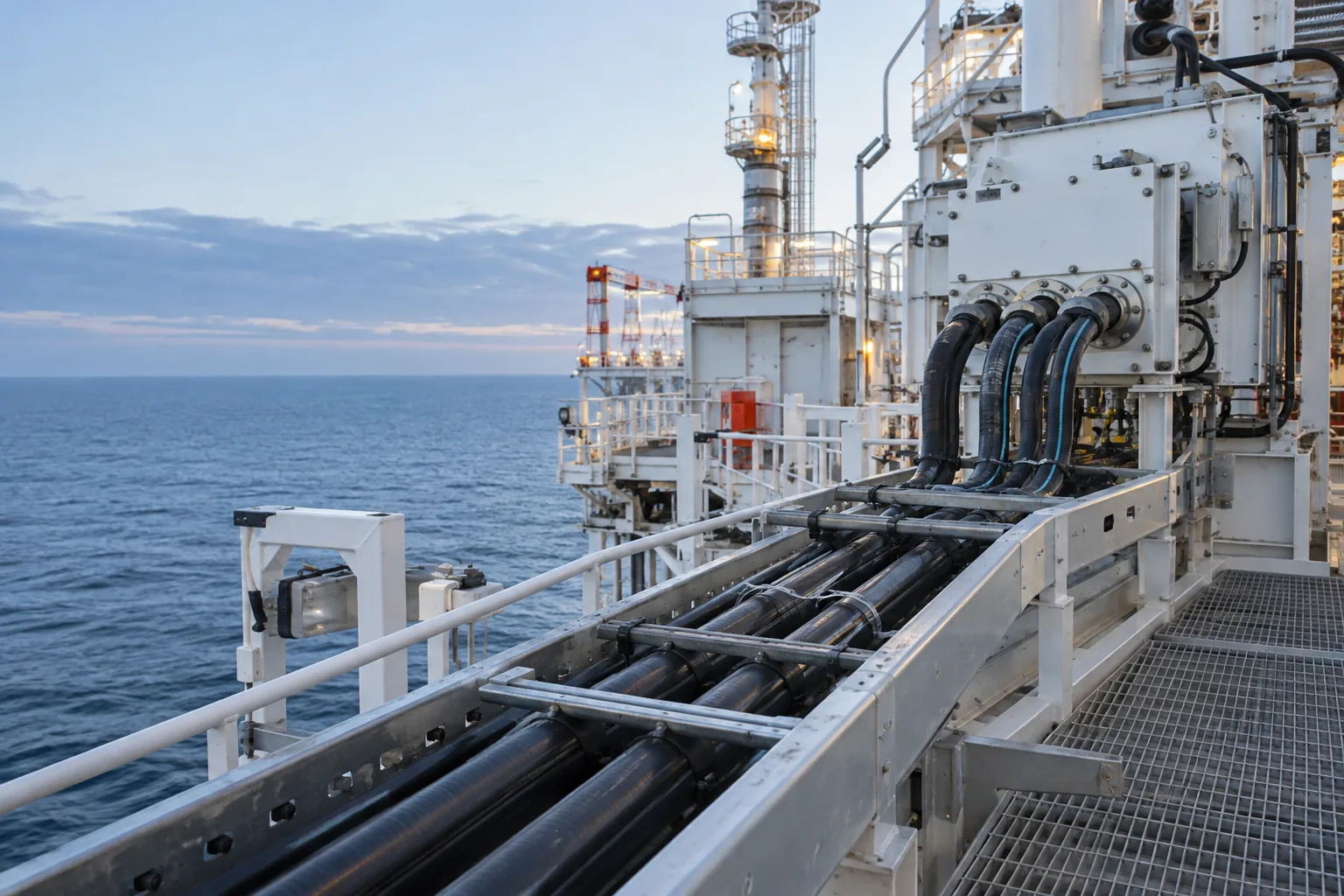

Cable Solutions for Offshore Oil & Gas Facilities
Fixed platforms, FPSOs, jack-up rigs, semi-submersible units and production systems combine process power, safety circuits, monitoring and exposed deck routes. A project may therefore need normal-operation cable families together with fire-resistant, screened or mechanically protected constructions.
General Distribution
Switchgear, motors, pumps, compressors, HVAC, utilities and lighting. RFOU and other offshore power cable constructions are reviewed against the confirmed route and project standard.
Emergency Circuits
Fire pumps, emergency lighting, generators, ESD and alarm circuits may require verified circuit integrity during fire, making BFOU-type construction relevant where specified.
Control & Instrumentation
Process monitoring, sensors and control loops require core identification, screening and EMC performance matched to signal type and installation geometry.
Drilling Systems
Drill-floor, mud-handling and portable equipment can add oil, mud, bending and mechanical loads that must be separated from fixed-installation assumptions.
FPSO application
Cable Systems for FPSO Power, Control and Safety Circuits
An FPSO combines marine movement, production modules, storage and offloading functions. Cable selection must coordinate the electrical duty with route, fire zone, deck exposure and project documentation.
Power Distribution
Feeders for switchboards, motors, pumps, HVAC, utilities and production equipment.
Process Control
Multicore and screened cables for sensors, control systems, instrumentation and monitoring.
Emergency Systems
Fire pump, emergency lighting, alarm, shutdown and essential circuits requiring project-defined fire performance.
Onshore process plants

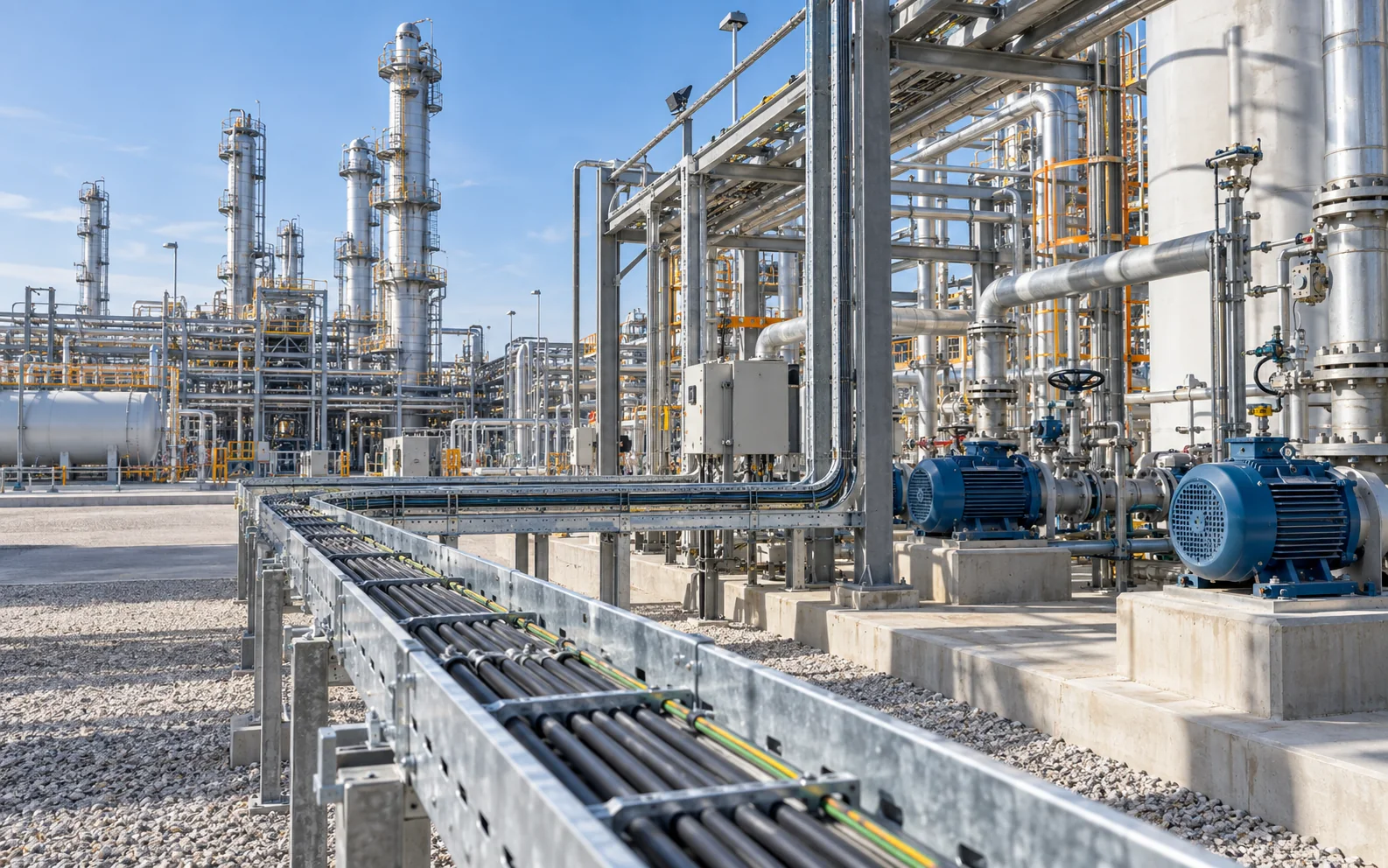

Cable Solutions for Refineries and Petrochemical Plants
Refineries, gas-processing plants, pipeline stations and tank farms place the emphasis on hydrocarbons, chemicals, temperature, flame propagation, fixed industrial routing and signal integrity. Offshore claims should not automatically be transferred to an onshore product without checking its own specification.
- Process power: motors, pumps, compressors and auxiliaries.
- Control and instrumentation: PLC/DCS signals, sensors and transducers with suitable screening.
- Ignition and flare systems: high-temperature and high-voltage cable selected for the confirmed ignition circuit.
- Emergency systems: shutdown, alarm and fire-safety circuits with documented fire-performance requirements.
Shipboard systems

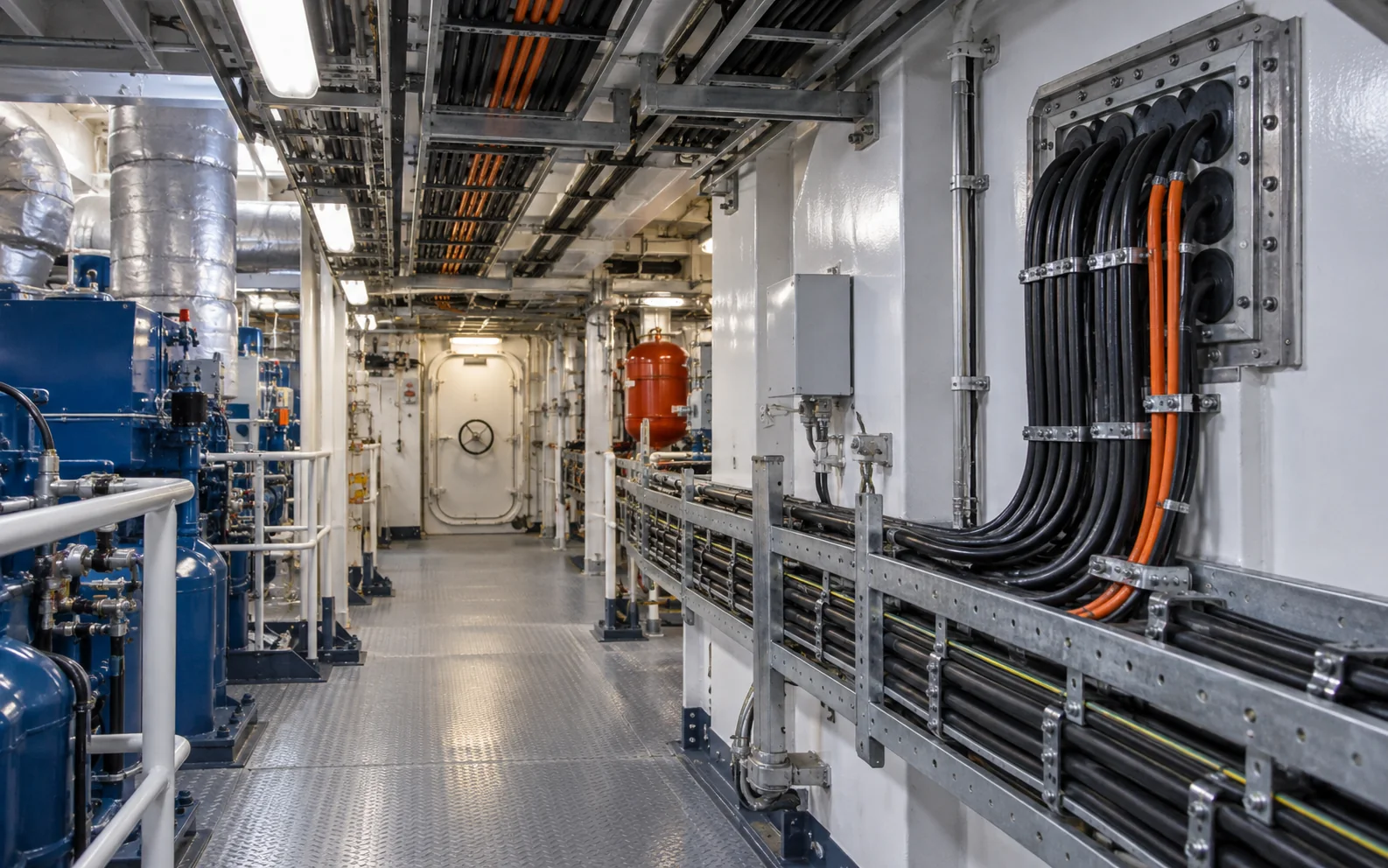

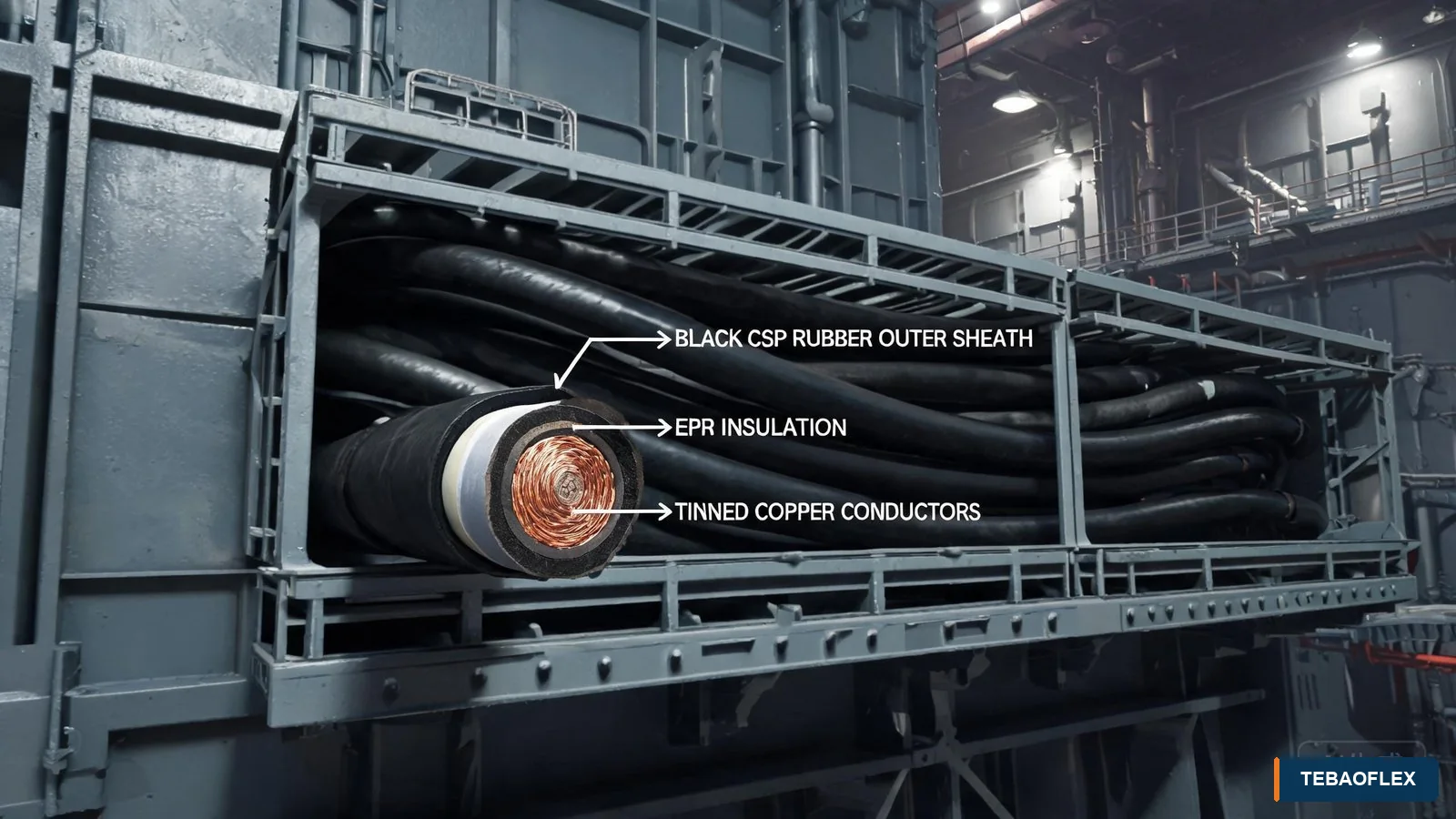

Marine Cable Solutions for Ships and Offshore Vessels
Commercial vessels, offshore support vessels and workboats require coordinated cable systems for the main switchboard, engine room, accommodation areas, deck machinery and emergency services. Fixed shipboard circuits and frequently flexing deck connections must be specified separately.
- Shipboard power: distribution to motors, HVAC, lighting and vessel services.
- Emergency power: essential and safety circuits where verified fire resistance is required.
- Deck machinery: winches, mooring equipment and exposed routes with mechanical and weather loads.
- Control and instrumentation: monitored systems requiring clear core organization and signal protection.
Electrical function
Match the Cable to the Electrical Function
The table is a selection map, not a universal product approval. Final construction, voltage, conductor size, installation conditions, fire performance and documentation must be confirmed for each project.
| Circuit Function | Typical Application | Main Requirement | Starting Cable Family |
|---|---|---|---|
| General power | Pumps, motors, HVAC and lighting | Voltage, ampacity, oil/moisture exposure and flame performance | RFOU / marine power cable |
| Fire-critical power | Fire pump, emergency lighting and ESD | Documented circuit integrity during fire | BFOU |
| Control | Process equipment and machine control | Multicore organization and screening where required | Screened or unscreened control cable |
| Instrumentation | Sensors, monitoring and process signals | Signal integrity, pair/triad layout and EMC | Instrumentation cable |
| Marine heavy-duty power | Offshore machinery and vessel equipment | Mechanical protection and marine routing | Type P |
| Downhole monitoring | Well sensors and gauges | Pressure, temperature, chemicals and metal-tube construction | TEC cable |
| Specialized subsea systems | ROV and underwater equipment | Water pressure, tensile load and integrated services | Subsea / umbilical cable |
Fire duty
General Power vs Fire-Critical Offshore Circuits
RFOU and BFOU may appear in the same project but serve different requirements. Selection should follow the circuit safety function and the documentation specified by the project.
Comparison
RFOU
BFOU
Primary use
General offshore and marine power
Fire-critical power circuits
Fire role
Flame-retardant construction as specified
Fire-resistant construction for circuit integrity as specified
Typical circuits
Motors, HVAC, lighting and utilities
Fire pumps, emergency power, ESD and alarms
Selection basis
Normal operating duty and route exposure
Safety function, fire test and project acceptance
Representative cable families
Recommended TEBAOFLEX Oil, Gas & Marine Cable Families
These products are starting points for technical discussion. Product marking, voltage, core arrangement, materials, fire tests, approvals and installation limits must be checked against the selected model and purchase specification.
General power

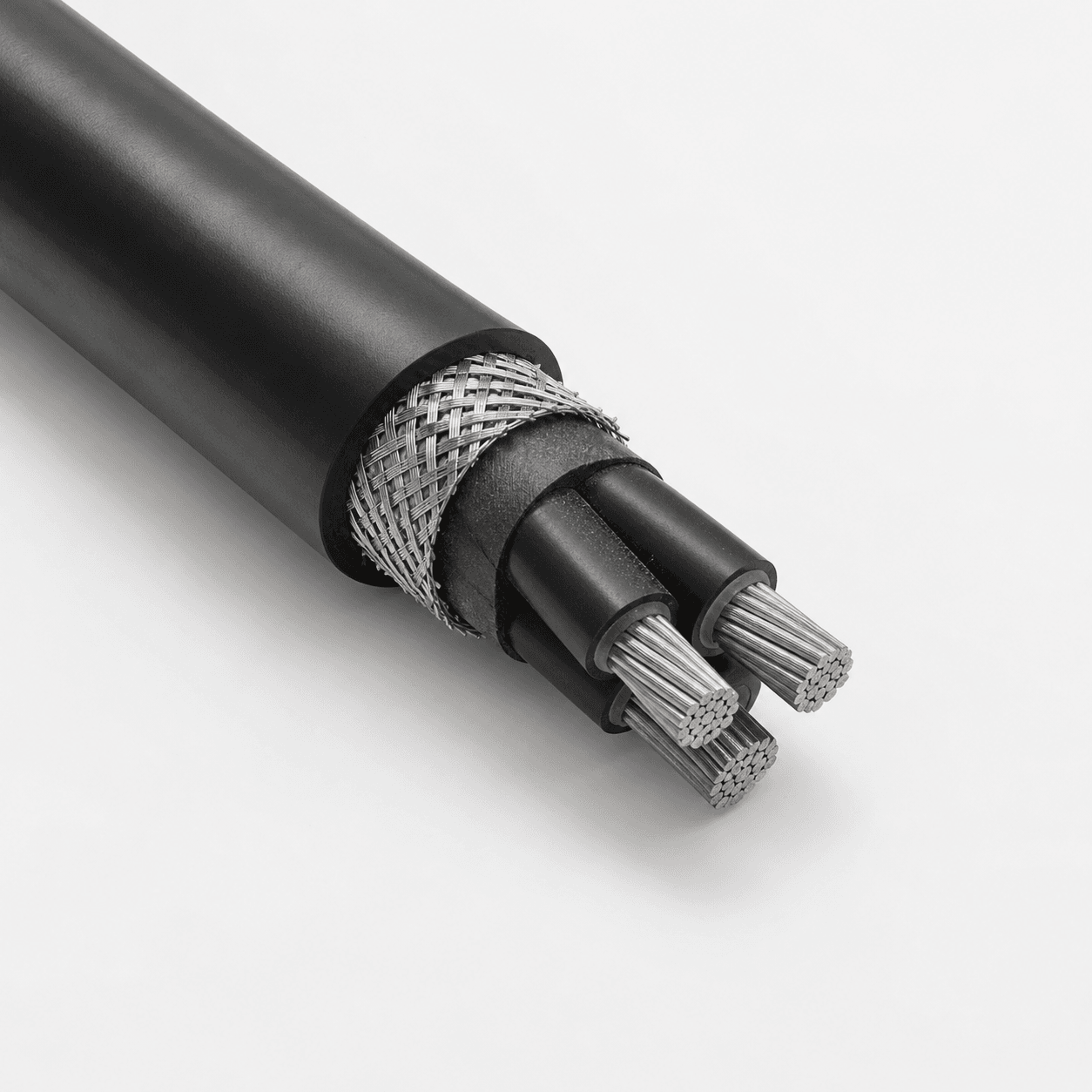

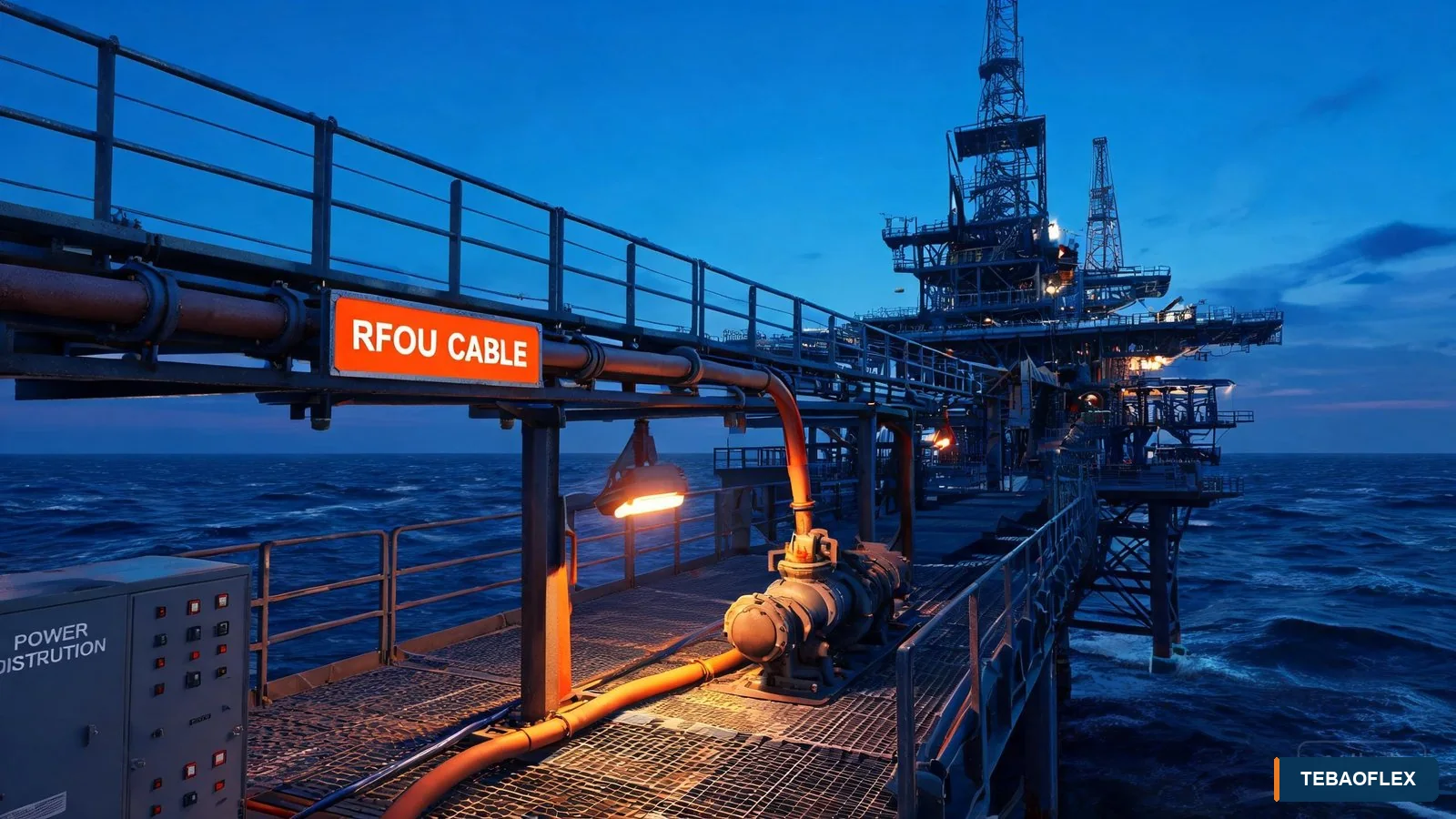

RFOU 0.6/1 kV
For suitable fixed offshore and marine power-distribution routes where the confirmed specification calls for an RFOU construction.
View RFOU cable →
Fire-critical power
BFOU 0.6/1 kV
Fire-resistant offshore power cable for applicable emergency and safety circuits requiring verified circuit integrity.
View BFOU cable →
Marine power

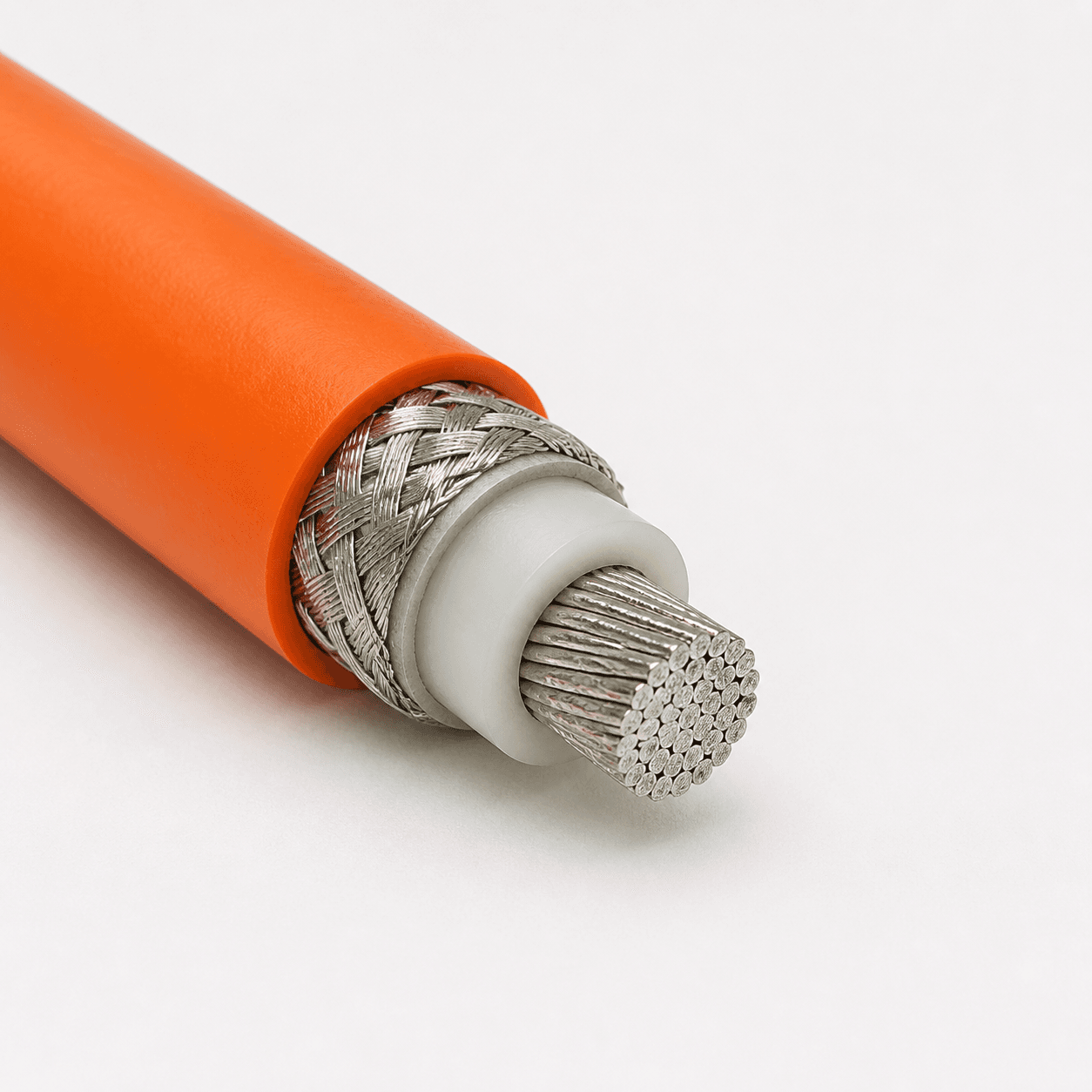

Type P 2 kV Armored
Single-conductor marine and offshore power cable for project routes requiring the confirmed Type P voltage and armour design.
View Type P cable →
Instrumentation

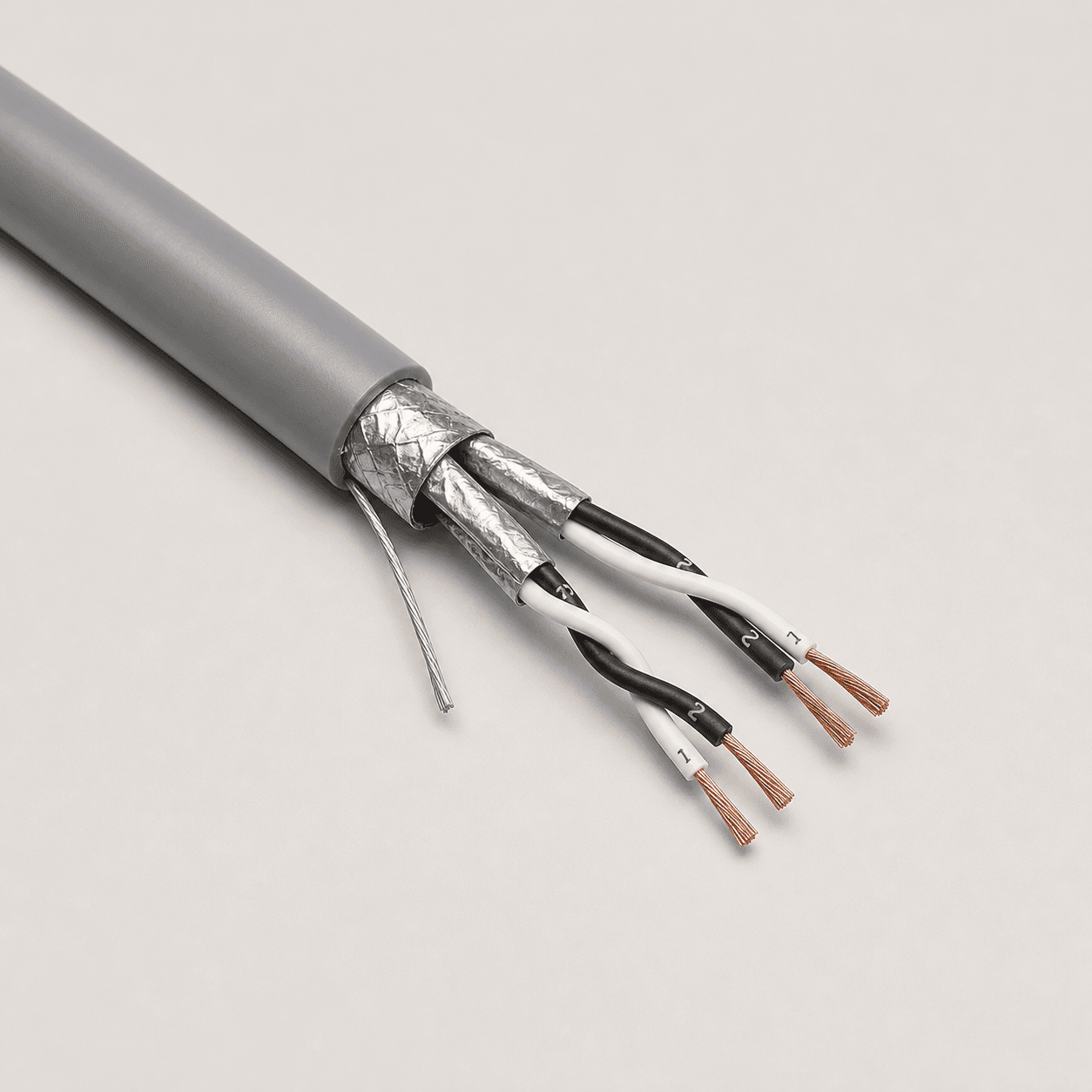

IS / OS / IS+OS
Screened instrumentation construction for applicable process signals, sensors and monitoring circuits.
View instrumentation cable →
Ignition systems
25 kV Flare Stack Cable
High-voltage ignition cable for confirmed flare and industrial ignition system requirements.
View flare stack cable →
Downhole

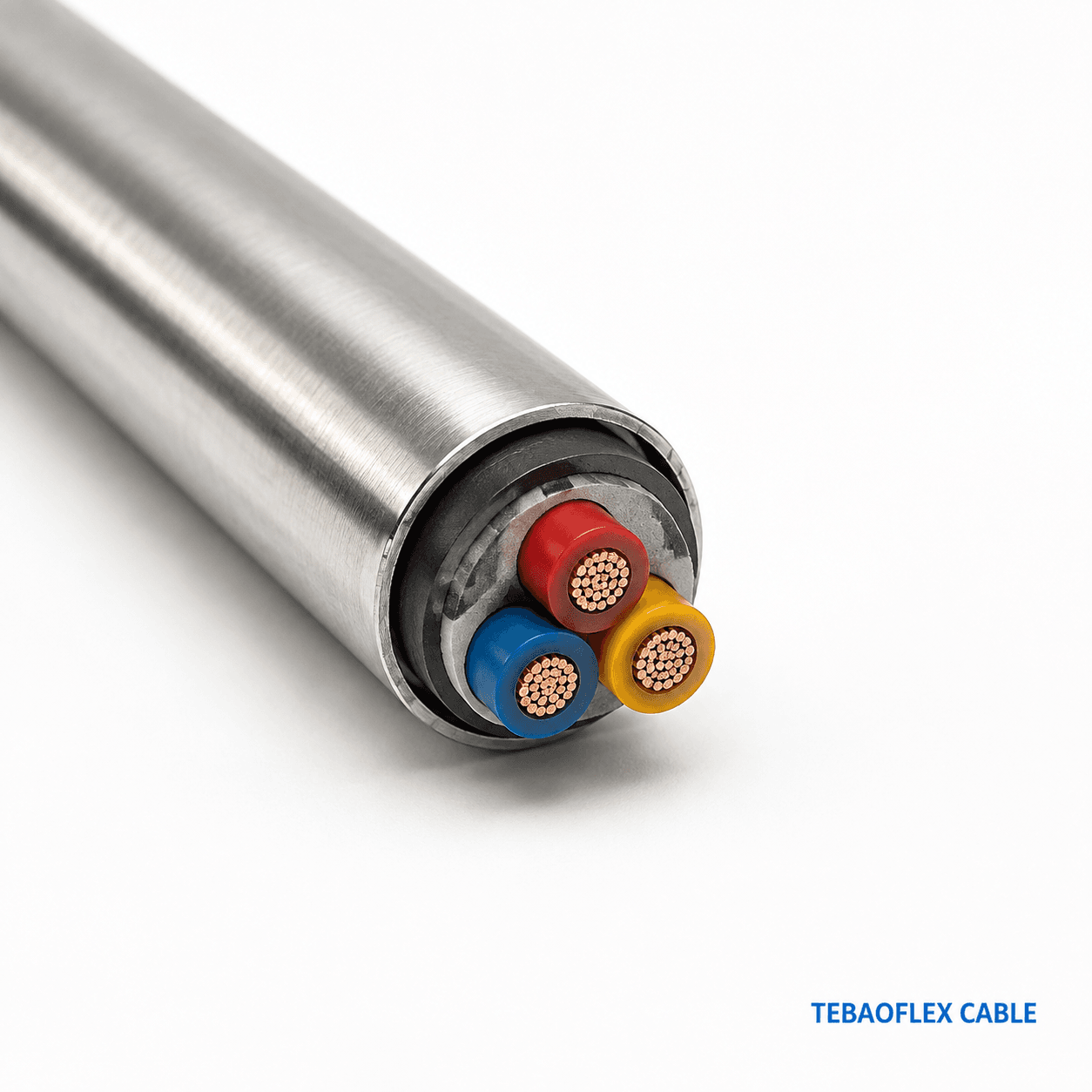

Multi-Conductor TEC
Metal-tube cable for defined downhole instrumentation and power functions subject to confirmed well conditions.
View TEC cable →
Integrated services
Composite Umbilical
Project-specific integration of power, signal, fibre-optic or hose elements for specialized offshore and subsea systems.
View composite umbilical →Environmental duty
What Oil, Gas & Marine Cables Must Withstand
The required cable construction depends on the actual exposure and circuit function. These conditions are specification inputs—not blanket performance claims for every product.
Oil & Hydrocarbons
Confirm the fluid type, contact duration, temperature and applicable material test.
Drilling Mud
State the drilling-fluid environment and required test or project standard.
Saltwater & Humidity
Review sheath, armour, glands and routing for the marine exposure.
UV & Weather
Identify exposed-deck routes, solar loading and ambient conditions.
Flame & Fire
Distinguish flame propagation from circuit-integrity requirements.
Mechanical Stress
Define vibration, crush, impact, tension, bending and protection needs.
Chemical Exposure
Provide the chemical medium, concentration and service temperature.
EMC & Signal Integrity
Specify signal type, pair/triad layout, screen and grounding concept.
Standards and approvals
Offshore & Marine Cable Standards and Project Requirements
Standard references define different aspects of construction, selection or fire testing. Applicability must be confirmed for the specific cable, voltage, installation and destination project; a standard mentioned here does not mean every TEBAOFLEX product carries every approval.
| Standard / Requirement | How It Relates to the Project | Confirmation Needed |
|---|---|---|
| IEC 60092-350 | General construction and test methods for shipboard and offshore power, control and instrumentation cables for fixed electrical systems within its scope. | Cable type, voltage, route and applicable edition. |
| IEC 61892-4 | Cable selection for fixed electrical systems on mobile and fixed offshore units within its defined scope. | Unit type, fixed-system status and project design basis. |
| NEK TS 606 | Offshore cable requirements where the project specification calls for this technical specification. | Project-specified edition, cable designation and documentation. |
| IEC 60331 series | Fire-test methods for circuit integrity under defined conditions and cable scope. | Required part, cable size, test condition and acceptance evidence. |
| IEC 60332 series | Flame-propagation test methods for single cables or bunched cables, depending on the specified part. | Exact part/category and product test report. |
| Project / class requirement | DNV, ABS, LR, BV or other class and owner requirements when explicitly specified. | Selected product approval scope and destination acceptance. |
Applicable standards, approvals and certification scope must be confirmed for the selected cable type and destination project.
Selection workflow
How to Select an Oil, Gas & Marine Cable
A useful enquiry connects the electrical duty with environmental and documentary requirements. The sequence below reduces avoidable revisions before quotation.
Facility / Equipment
Identify platform, FPSO, refinery, vessel, process equipment or downhole system.
Circuit Function
Define power, control, instrumentation, emergency, ignition or integrated service.
Electrical Data
Provide voltage, conductor size, cores, load information and signal arrangement.
Installation
State fixed tray, exposed deck, flexible route, portable duty or metal-tube installation.
Environmental Exposure
List oil, mud, saltwater, chemicals, UV, temperature and mechanical conditions.
Fire Requirement
Separate flame-retardant needs from fire-resistant circuit-integrity requirements.
Screening / EMC
Confirm signal type, screen arrangement, grounding plan and interference environment.
Standard
Name the required IEC, NEK, owner or project specification and edition.
Documentation
List datasheets, drawings, tests, class documents and inspection requirements.
Project-specific construction

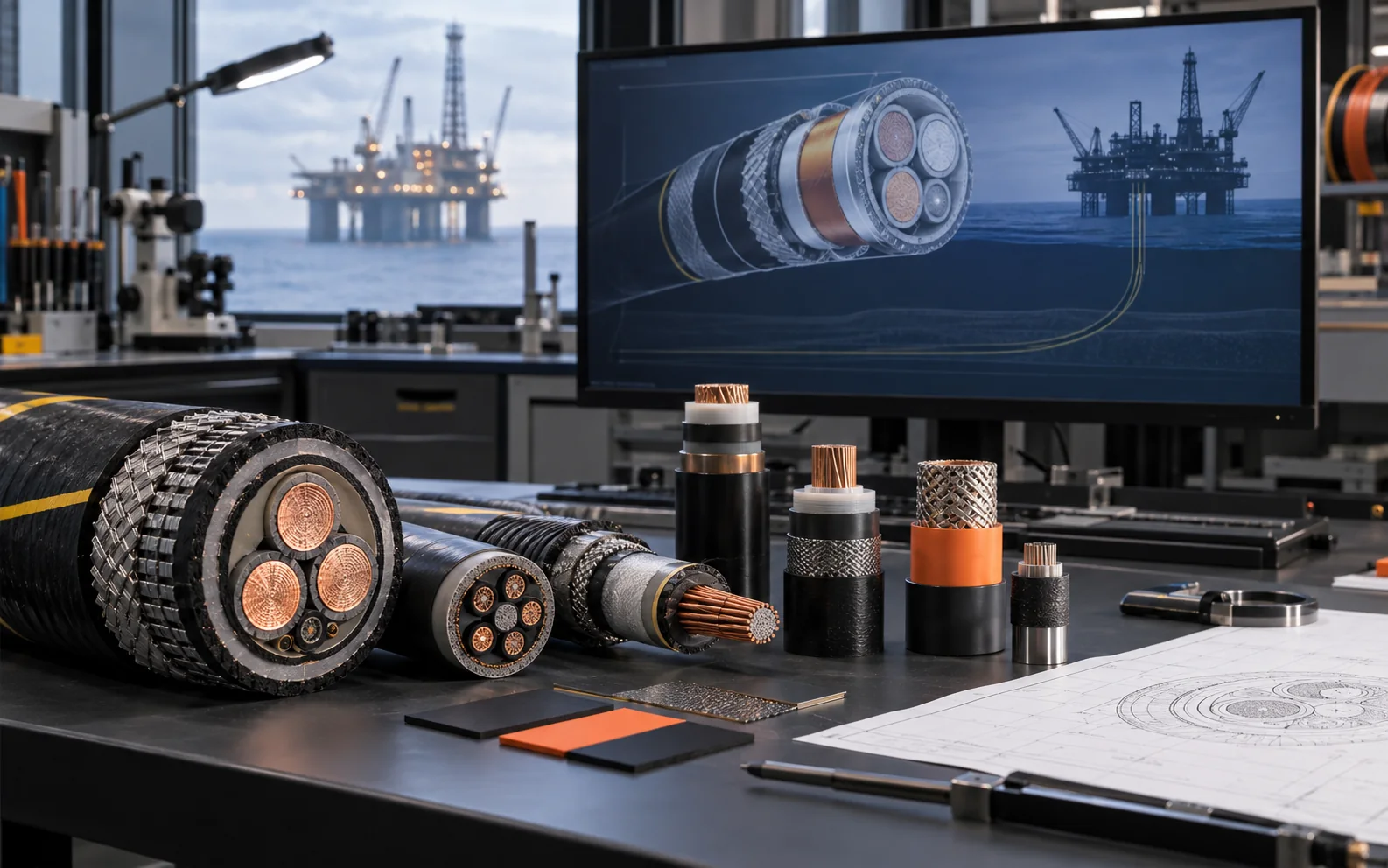

Custom Cable Engineering for Offshore and Marine Projects
Customization should solve a defined electrical, environmental or installation problem. TEBAOFLEX can review the following construction areas after the application data and required standard are provided.
Core Configuration
Power, control, auxiliary and grounding functions organized for the circuit.
Power + Control Integration
Composite arrangements considered where system architecture justifies integration.
Screening / EMC
Individual or overall screening reviewed against signal and grounding requirements.
Fire-Resistant Construction
Fire barrier and test requirement aligned with the specified circuit-integrity duty.
Sheath and Protection
Oil, mud, weather, armour and mechanical protection selected for actual exposure.
Fibre and Marking
Fibre-optic elements and project cable marking reviewed when required.
Project documentation
Testing and Documentation for Cable Review
Documentation is tied to the selected construction and order specification. Submit the required document list early so feasibility, test scope and approval status can be reviewed before production.
Technical Datasheet
Confirmed construction, electrical data, dimensions and material information.
Construction Drawing
Core layout, screen, armour, sheath and marking configuration as applicable.
Test Evidence
Relevant routine, type or project tests for the selected model and requirement.
Compliance Review
Cross-check of cited standards against product scope and purchase specification.
Inspection Plan
Inspection, witness and reporting requirements agreed before manufacture.
Packing Information
Drum length, identification, protection and export packing based on the order.
Technical resources
Oil, Gas & Marine Cable Technical Resources
Use these guides for deeper product-level explanation. The application page remains focused on system selection, while each guide covers a narrower cable family or operating question.
BFOU Cable Applications Guide
Read the guide →RFOU Cable Applications Guide
Read the guide →RFOU Specifications Guide
Review specifications →TEC Cable Selection Guide
Read the guide →H07RN-F Applications Guide
Read the guide →Engineering FAQ
Oil, Gas & Marine Cable FAQ
Short answers for project buyers and engineers. Product suitability still depends on the confirmed datasheet, route, circuit duty and required standard.
What cables are used on offshore oil and gas platforms?
Typical systems include fixed power, fire-resistant power, control and instrumentation cables. RFOU, BFOU, marine power and screened signal families may be considered, but the final type depends on circuit function, voltage, installation and project requirements.
What is the difference between BFOU and RFOU cables?
RFOU is commonly considered for general offshore power distribution, while BFOU adds a fire-resistant construction for applicable safety circuits. Confirm the exact product specification and fire-test requirement rather than selecting by name alone.
Which cable is suitable for FPSO power distribution?
General feeders may start with an offshore or marine power-cable family such as RFOU, while emergency circuits may require BFOU or another fire-resistant construction. Voltage, ampacity, route, fire zone and class/project rules determine the final selection.
When is a fire-resistant offshore cable required?
It is relevant when the project requires a circuit to maintain integrity during a defined fire test, such as for emergency power, fire pumps, alarms or shutdown functions. The specified standard, duration and test scope must be confirmed.
What cable is suitable for oil, drilling mud and marine exposure?
Select a sheath and construction whose documented test scope matches the actual fluid, temperature and exposure. No single material claim should be applied to every oil, mud, chemical and seawater condition.
What standards apply to offshore and marine cables?
Projects may reference IEC 60092, IEC 61892, NEK TS 606, IEC 60331, IEC 60332 and owner or class requirements. Applicability depends on cable type, circuit, installation and the edition specified by the project.
What information is required for an oil and gas cable quotation?
Provide facility, circuit function, voltage, cores and conductor size, installation, environmental exposure, fire requirement, standard, approval needs, length, quantity, destination and any datasheet or drawing.
Can TEBAOFLEX customize offshore power, control and instrumentation cables?
Project-specific core configuration, screening, protection, sheath, fire-performance construction, integrated elements and marking can be reviewed when the technical requirement and applicable standard are supplied.
Project enquiry
Request an Oil, Gas & Marine Cable Recommendation
Send the facility type, cable function, voltage, conductor size, installation route, fire requirement, environmental exposure, required standard, length, quantity and destination. TEBAOFLEX will review a suitable starting construction for quotation.
