BFOU Cable Applications Overview
The BFOU cable is the standard fire-resistant power cable for offshore oil platforms, ships, and marine installations where circuit integrity during fire is mandatory. Its unique construction with mica glass tape fire barrier, LSZH sheath, and steel wire armour makes it essential for critical safety systems. This guide covers the primary applications and installation practices for BFOU cables in offshore and marine environments.

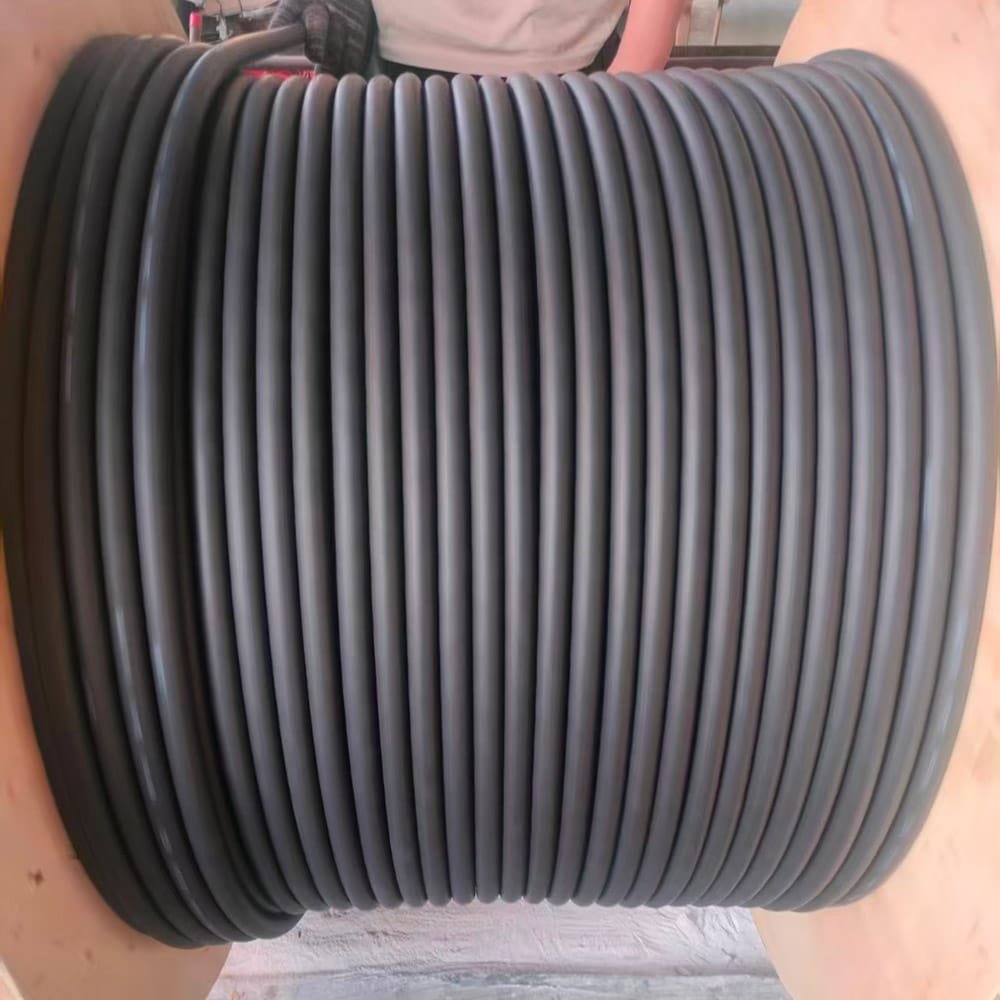

View our BFOU 0.6/1kV fire resistant cable product page for specifications.

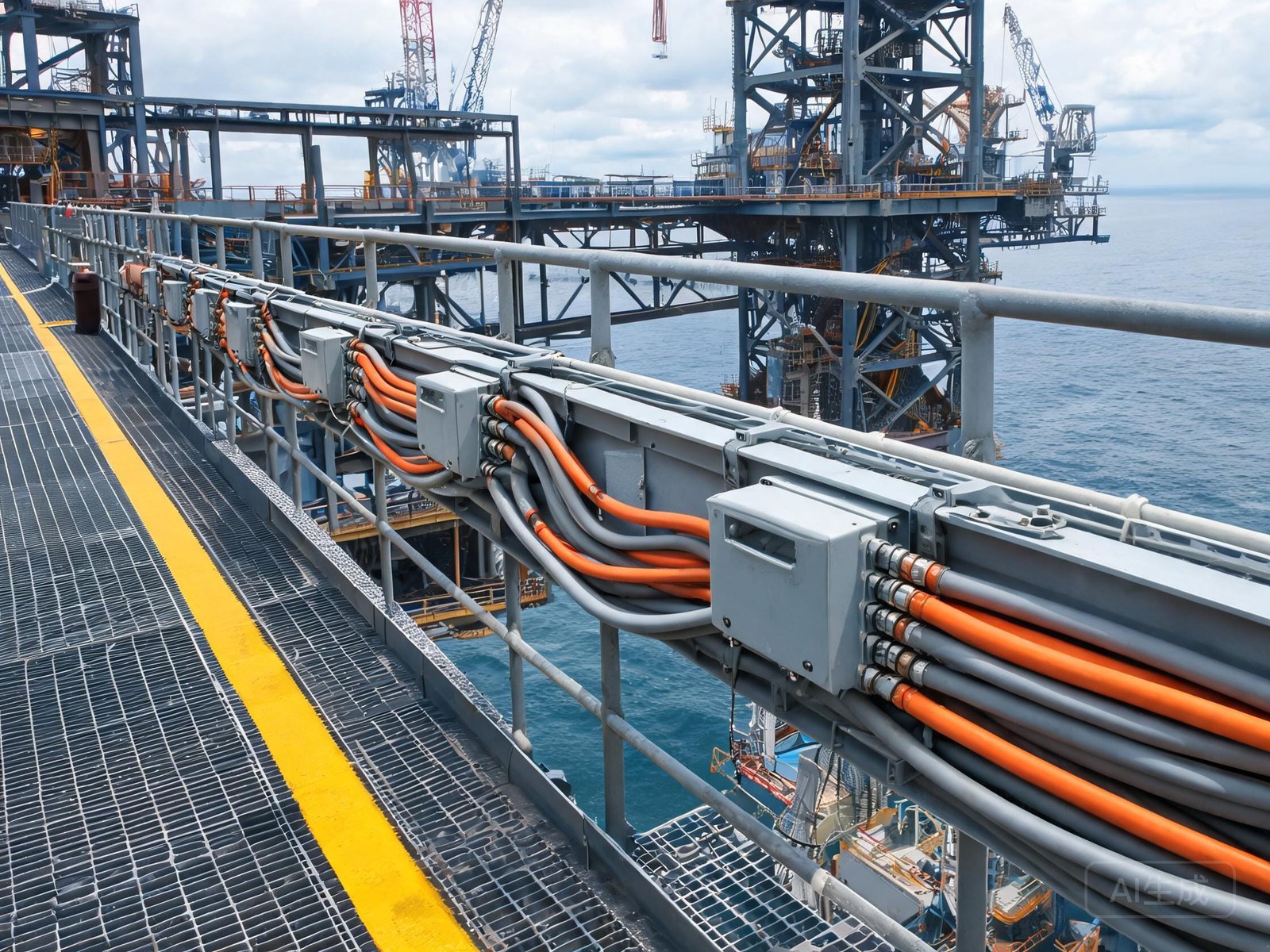

Offshore Oil Platform Power Distribution
On offshore oil and gas platforms, BFOU cable is used for:
- Emergency power distribution: Power supply to emergency switchgear and emergency generators
- Fire pump power: Electric fire pump power supply — must remain operational during fire
- Emergency lighting: Illumination of escape routes, muster areas, and lifeboat stations
- Control and shutdown systems: Emergency shutdown (ESD) system power and signal cables
- Communication systems: PA systems, alarm systems, and emergency communication
- HVAC fire dampers: Control power for fire dampers and smoke extraction fans
The IEC 60331 fire resistance rating ensures these critical systems remain powered during fire, allowing safe evacuation and emergency response.

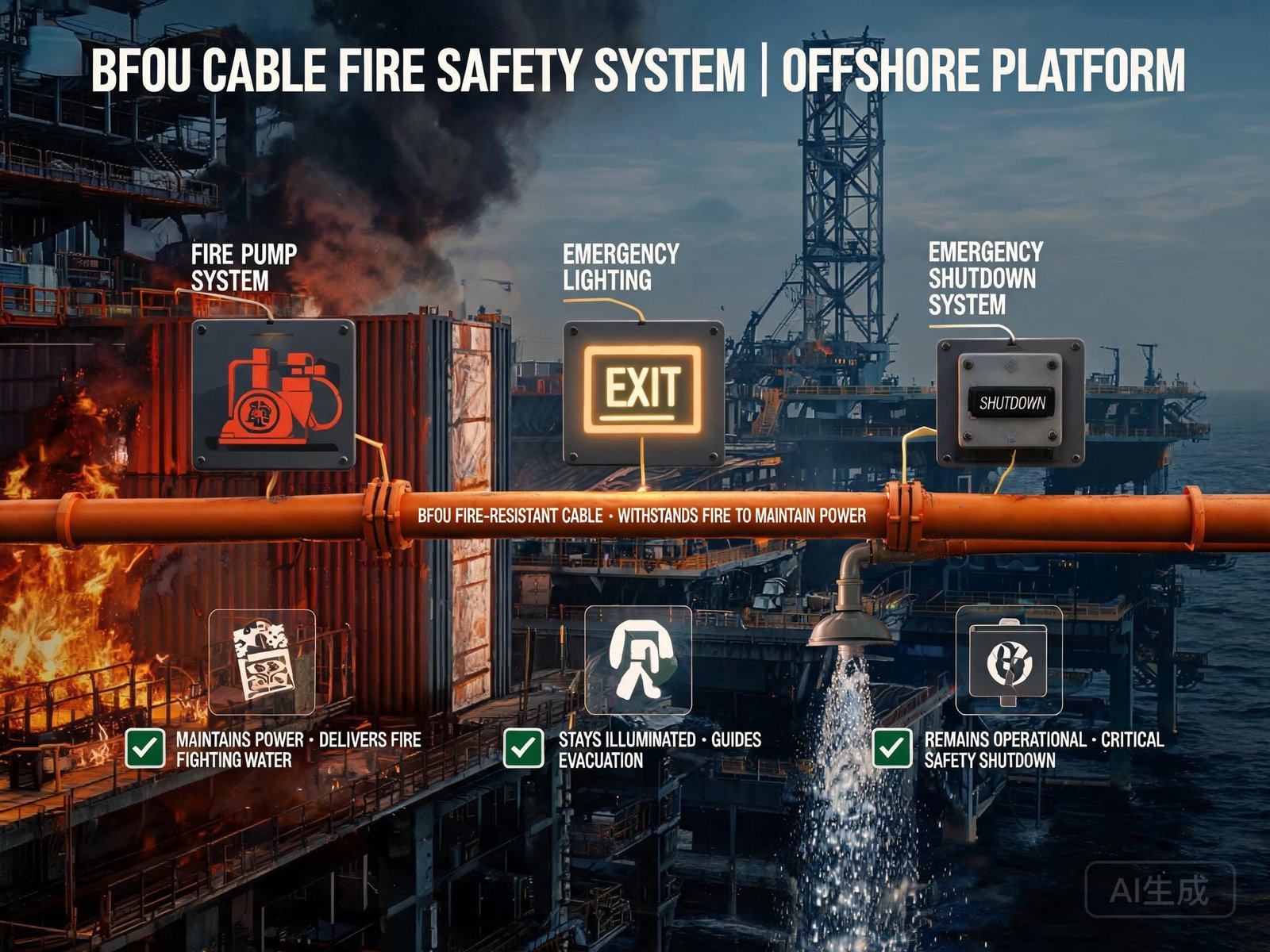

Fire Safety and Emergency Systems
BFOU cable is specifically engineered for fire-critical applications:
- Fire pump circuits: Must deliver power to fire pumps throughout the duration of a fire event — BFOU maintains circuit integrity at 750-950°C per IEC 60331
- Emergency shutdown: ESD systems require reliable power to safely shut down processes — BFOU ensures power continuity during emergency
- Escape route lighting: Emergency lighting along escape stairways and corridors must remain lit — BFOU cable powers these circuits
- Fire detection: Fire alarm and detection system power supply requires fire-survivable cable
- Pressurization fans: Stairwell pressurization fan power to maintain smoke-free escape routes

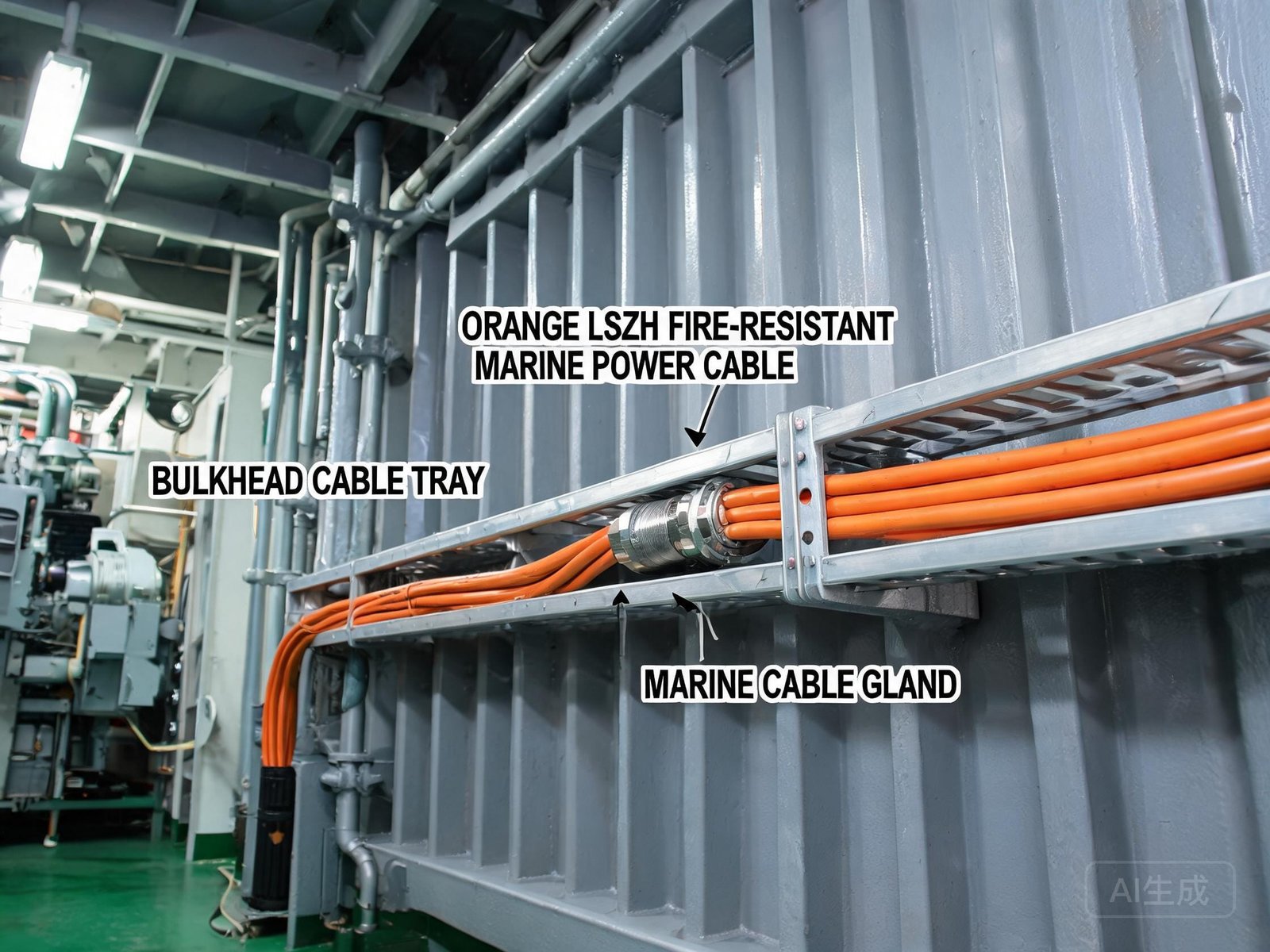

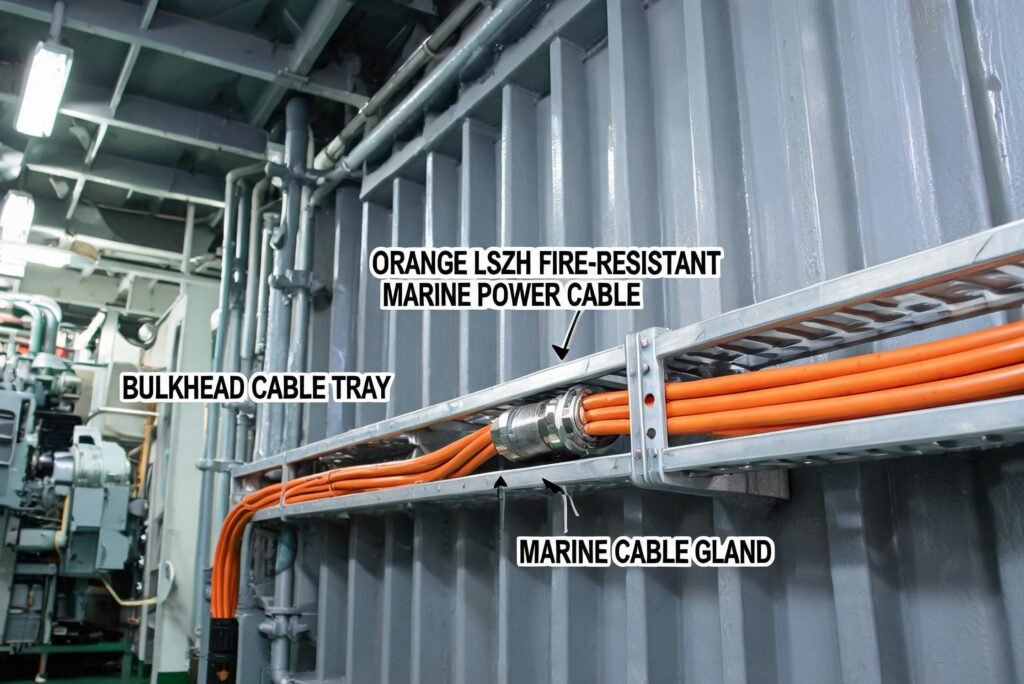

Marine and Shipboard Installations
BFOU cable is used on ships and vessels for:
- Engine room wiring: High-temperature fire-prone areas require fire-resistant cable
- Shipboard emergency systems: Emergency lighting, fire pumps, and alarm systems
- Bulkhead penetrations: Fire-rated bulkhead cable transit systems
- Shore power connections: Ship-to-shore power supply connections
- Deck equipment: Powered mooring and deck machinery
Classification society approvals (DNV, ABS, LR, BV) are typically required for marine installations.
BFOU Application Selection Matrix
| Application | Recommended Config | Typical Size | Key Requirement |
|---|---|---|---|
| Fire pump power | 3C + E | 4-25mm² | IEC 60331-31 (950°C) |
| Emergency lighting | 2C / 3C | 1.5-2.5mm² | IEC 60331-21 (750°C) |
| ESD system power | 3C + E | 2.5-6mm² | IEC 60331-21 |
| Emergency generator | 3C + E / 1C | 35-95mm² | IEC 60331-31 |
| Alarm/PA system | Multi-core | 1.5mm² | IEC 60331-21 |
| HVAC fire damper | 3C + E | 1.5-2.5mm² | IEC 60331-21 |
| Engine room wiring | 3C + E | 2.5-10mm² | DNV/ABS certified |
Installation Best Practices for BFOU
- Cable tray selection: Use perforated trays for ventilation and heat dissipation
- Bulkhead penetrations: Use fire-rated transit seals (MCT) that match cable fire rating
- Bending radius: Minimum 8× OD for fixed, 10× during installation
- Cable glands: Use weatherproof brass glands rated for LSZH sheath and IP66+ protection
- Separation: Maintain separation from non-fire-rated cables per SOLAS and classification rules
- Support spacing: Horizontal: max 0.6m; Vertical: max 1.0m on platforms
- Joints: Use fire-rated cable splice kits — maintain fire resistance rating of original cable
When to Use BFOU vs Other Offshore Cables
| Cable Type | Fire Resistance | Best For |
|---|---|---|
| BFOU | IEC 60331 (circuit integrity in fire) | Fire-critical: pumps, emergency systems, ESD |
| RFOU | IEC 60332 (flame retardant only) | General offshore power distribution |
| BS6883 | Flame retardant, optional fire resistance | UK-spec offshore and submersible |
See our BFOU vs RFOU comparison guide for detailed differences.
Why Choose TEBAOFLEX for BFOU Cable?
- Full IEC 60331 fire resistance compliance with mica glass tape barrier
- LSZH sheath meeting IEC 61034 and IEC 60754 standards
- DNV, ABS, LR, BV classification society certification support
- Complete range: 1.5mm² to 400mm², 1 to 48 cores
- Orange ST1 sheath for easy identification in safety circuits
- Global offshore project experience across 4 continents
