H07RN-F Cable Applications Overview
The H07RN-F cable is one of the most versatile industrial power cables available, suitable for a remarkably wide range of applications. Its combination of rubber insulation, polychloroprene (neoprene) sheath, and fine-stranded flexible conductors makes it ideal for environments where PVC cables would fail. This guide covers the primary application areas for H07RN-F and provides selection guidance for each.
TEBAOFLEX manufactures H07RN-F to EN 50525-2-21 for global industrial projects. Contact us for application-specific recommendations.

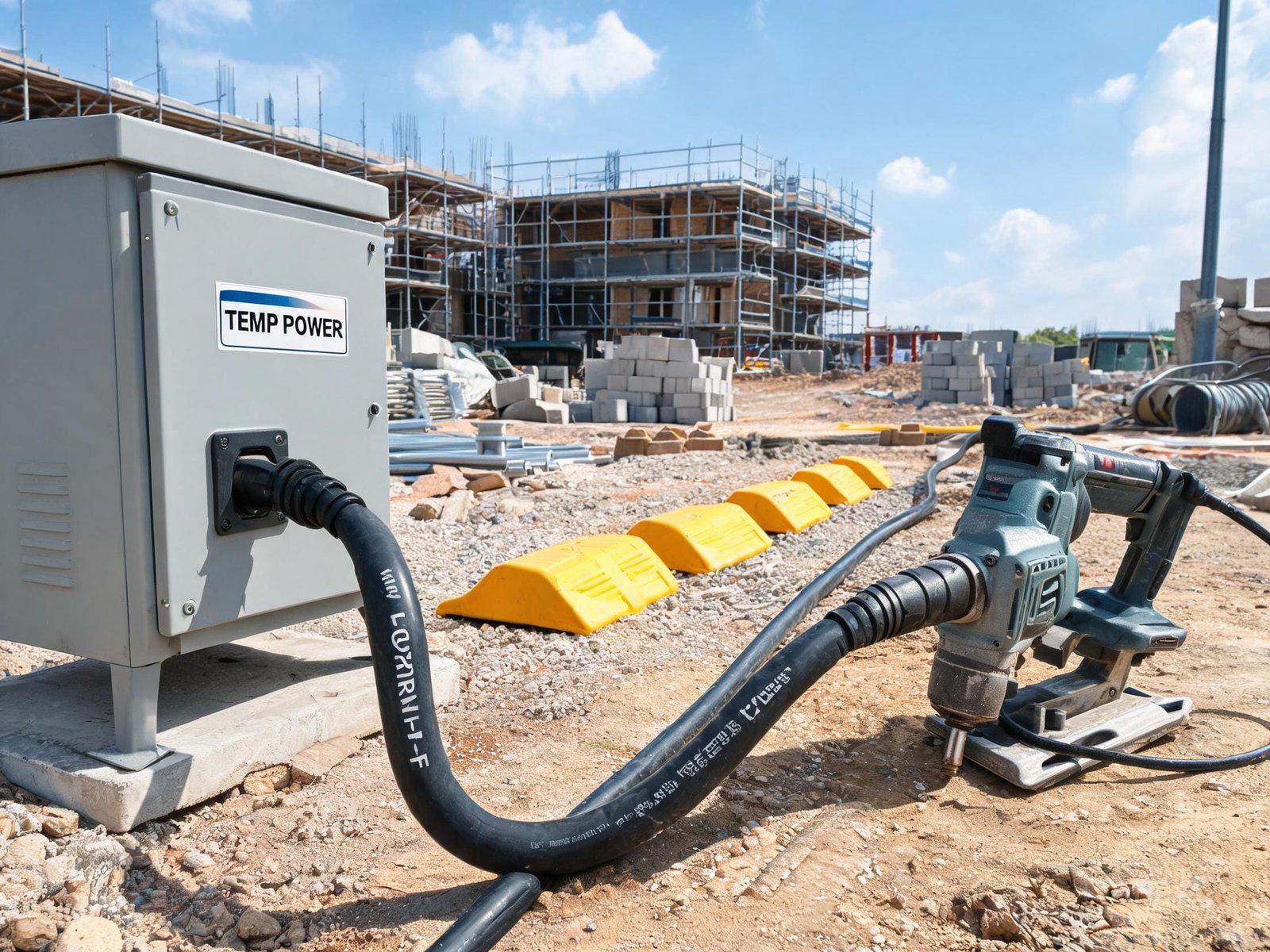

Construction Site Power Distribution
H07RN-F is the standard cable for construction site temporary power distribution across Europe and many international markets. The neoprene sheath provides:
- Abrasion resistance: Withstands being dragged across rough concrete, gravel, and rebar without jacket failure
- Weather resistance: UV-stable black sheath withstands months of outdoor exposure
- Oil and chemical resistance: Resists contact with diesel fuel, hydraulic oil, and cement slurry
- Flexibility: Class 5 conductor allows repeated coiling and uncoiling as work areas change
- Flame retardancy: Self-extinguishing per IEC 60332-1, critical for construction fire safety
Typical configurations: 3G×2.5mm² for 16A circuits, 3G×6mm² for 32A distribution, 5G×16mm² for 63A three-phase sub-distribution.

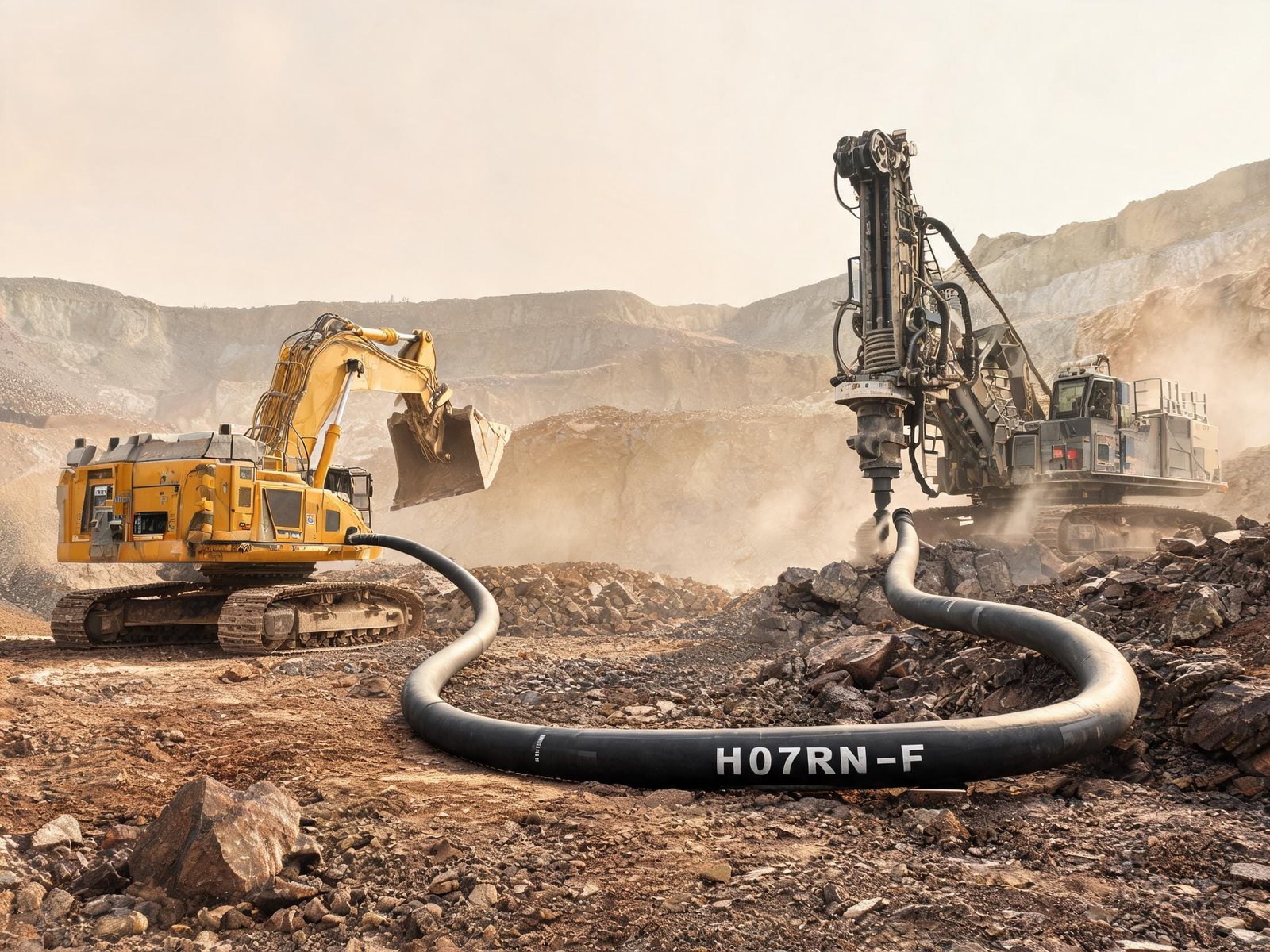

Mining Equipment Power Supply
In mining applications, H07RN-F serves as the LV power cable for portable and mobile equipment:
- Surface mining: Power supply to conveyors, crushers, and auxiliary equipment
- Underground mining: LV distribution to lighting, pumps, and ventilation fans (where MV trailing cables are not required)
- Quarry operations: Power to drilling rigs, screening plants, and material handlers
- Safety advantage: CR rubber sheath is flame retardant and self-extinguishing, critical in mining environments
For heavy-duty mining applications requiring MV power, see our mining cable products including (N)TSCGEWOEU and Type W series.

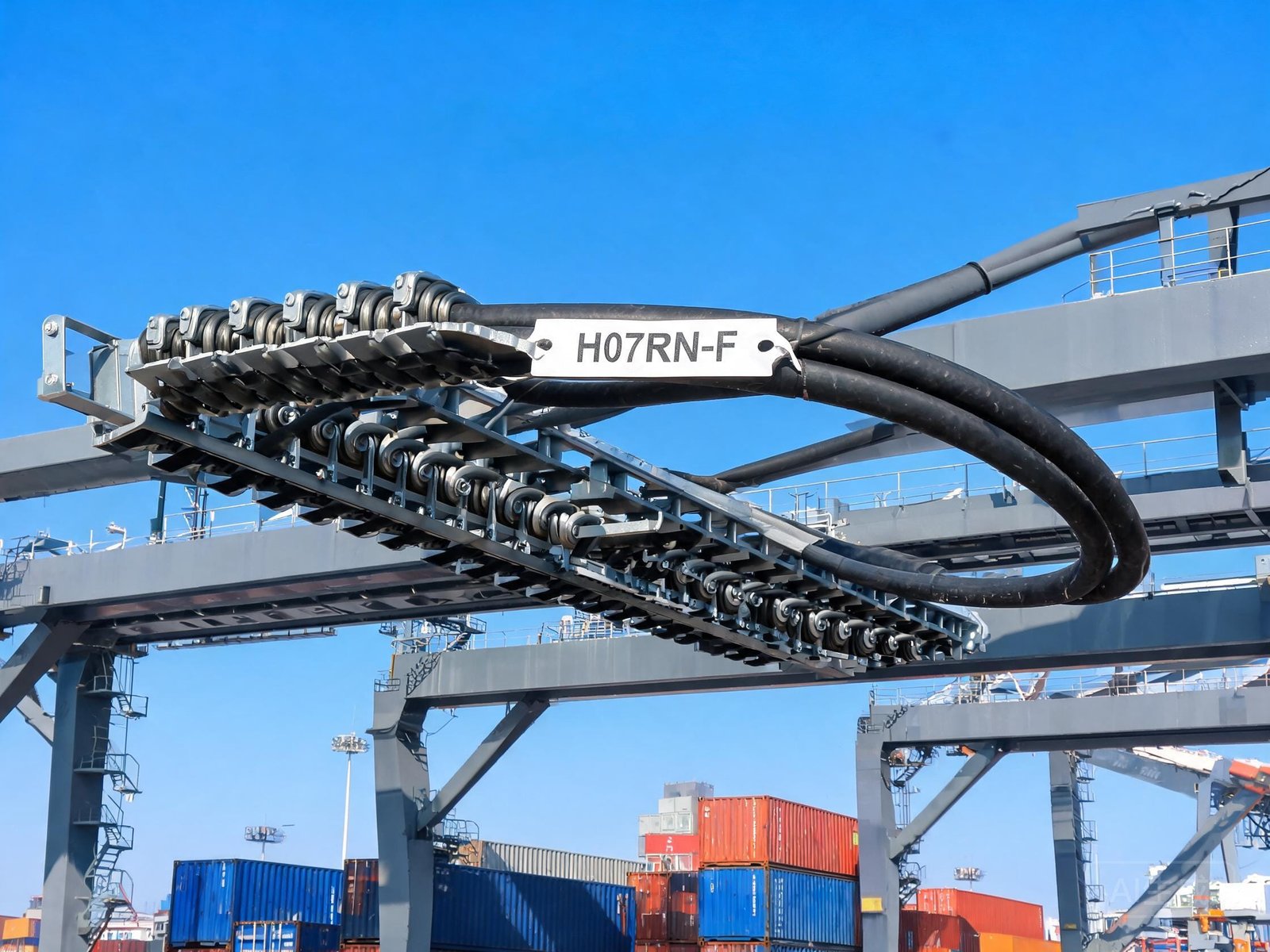

Port Crane and Festoon Systems
Port cranes rely on H07RN-F for power and control cable runs along festoon track systems:
- Festoon cables: Horizontal travel power supply for gantry cranes, container handlers, and ship-to-shore cranes
- Hoist and trolley: Flexible power supply to lifting mechanisms with repeated flexing
- Spreader cables: Power and control to container spreader bars
- Reeling drums: For lower-duty reeling applications (heavy-duty uses require PUR cables like BUFLEX-M)
The cable’s flexibility, weather resistance, and abrasion resistance make it suitable for the dynamic movements and outdoor exposure of port crane operations.
Manufacturing and Industrial Machinery
- Machine tool wiring: Internal and external wiring of CNC machines, presses, and production equipment
- Robotics power supply: Power to robotic cells and automation equipment (for continuous flexing, consider PUR cables)
- Production line equipment: Conveyor drives, packaging machines, and material handling systems
- Maintenance and repair: Portable power tools and equipment connection cables
Marine and Shipbuilding
- Shore power connections: Ship-to-shore power supply cables
- Deck equipment: Winches, capstans, and mooring equipment power supply
- Non-permanent installations: Temporary wiring during shipbuilding and repair
- Dock and harbor: Loading and unloading equipment power supply
For permanent marine installations, dedicated marine cables like BFOU or RFOU types may be required per classification society rules.
Agriculture and Outdoor Installations
- Farm equipment: Power to irrigation pumps, grain augers, and livestock equipment
- Outdoor lighting: Temporary and semi-permanent outdoor lighting installations
- Renewable energy: Temporary power during construction of solar and wind installations
- Water management: Pump stations and water treatment equipment
H07RN-F Application Selection Matrix
| Application | Recommended Cores | Typical Size | Key Requirement |
|---|---|---|---|
| Construction 16A circuit | 3G | 2.5mm² | Abrasion, weather |
| Construction 32A circuit | 3G | 6mm² | Abrasion, oil |
| Construction 63A distribution | 5G | 16mm² | Mechanical strength |
| Mining LV equipment | 3G/4G | 4-10mm² | Flame retardant |
| Port crane festoon | 3G/4G/5G | 2.5-10mm² | Flexing, weather |
| Machine tool wiring | 4G/7G/12G | 1.5-2.5mm² | Flexibility, oil |
| Marine deck equipment | 3G/4G | 2.5-6mm² | Weather, salt spray |
| Agriculture pumps | 3G/4G | 2.5-6mm² | UV, water |
When NOT to Use H07RN-F
- Continuous flexing / drag chains: Use PUR cable (H07BQ-F or BUFLEX-M) instead — PUR has superior flex life
- High temperature (>60°C): Use silicone insulated cable (up to 180°C)
- Public buildings / transport: Use LSZH cable (H07ZZ-F) for low smoke, zero halogen requirements
- Submersion: Use H07RN8-F (enhanced water-resistant version) or dedicated submersible cable
- Long-term UV exposure (20+ years): Consider H07BN4-F (CSM/Hypalon sheath) for superior weathering
Installation Best Practices for H07RN-F
- Respect minimum bending radius: 6D (fixed) or 10D (flexing)
- Use weatherproof cable glands rated for rubber sheath
- Support at maximum 0.5m intervals for horizontal runs
- Protect from vehicular traffic with cable ramps or conduit
- Do not install in temperatures below -15°C to avoid sheath cracking
- Use rubber cable splice kits for any joints — maintain IP rating
For detailed guidance, see our cable installation best practices guide and H07RN-F specifications guide.
