BFOU 0.6/1kV Fire Resistant Power Cable | TEBAOFLEX
TEBAOFLEX BFOU 0.6/1kV Power Cable is a fire-resistant, halogen-free and mud-resistant offshore power cable for fixed installation in marine, oil and gas, shipboard and emergency distribution systems.
BFOU 0.6/1kV Fire Resistant Power Cable for Marine and Offshore Systems
BFOU 0.6/1kV power cable is designed for fixed power distribution where circuit integrity, low-smoke halogen-free performance and mud-resistant sheathing are required. TEBAOFLEX supplies this cable for offshore platforms, marine vessels, drilling-related electrical systems, emergency lighting, critical power circuits and electromechanical equipment installed in dry, wet, oily or muddy environments.
The cable structure uses a Class 2 stranded tinned copper conductor, mica glass fire barrier, halogen-free EPR insulation, halogen-free bedding, tinned copper wire braid screen and black SHF2 MUD elastomer sheath. Class 5 flexible conductor construction can be discussed for projects requiring improved installation flexibility.
Key Features
- Fire-resistant construction with mica glass tape for critical marine power circuits.
- Halogen-free EPR insulation and SHF2 MUD sheath for offshore and shipboard environments.
- Tinned copper wire braid screen for electrical protection in power distribution routes.
- Suitable for fixed installation in emergency systems, lighting systems and electromechanical equipment.
- TEBAOFLEX supports customized core count, conductor size and project documentation for marine and offshore cable procurement.
Technical Characteristics
| Parameter | Specification |
|---|---|
| Rated voltage Uo/U | 0.6/1kV |
| Test voltage | 3.5kV |
| Temperature rating | -40C to +90C |
| Minimum bending radius | 8 x overall diameter |
| Conductor | Class 2 stranded tinned copper conductor |
| Fire barrier | Mica glass tape |
| Insulation | Halogen-free EPR |
| Bedding | Halogen-free compound |
| Screen | TCWB tinned copper wire braid |
| Outer sheath | Black SHF2 MUD halogen-free elastomer |
Standards and Fire Performance
This BFOU marine power cable is specified around recognized shipboard and offshore cable requirements, including IEC 60092-353 for rated voltage 1kV shipboard power cables and NEK 606 offshore cable practice. Relevant fire, flame and halogen-free references include IEC/EN 60331, IEC/EN 60332-3-22, IEC/EN 60332-1-2, IEC/EN 61034-2 and IEC/EN 60754-1/2. Final compliance documents should be confirmed against the requested project specification.
BFOU Cable Size Options
| Cores | Nominal cross section | Approx. overall diameter | Approx. cable weight |
|---|---|---|---|
| 1 core | 1.5 mm2 | 9.3 mm | 150 kg/km |
| 1 core | 2.5 mm2 | 9.8 mm | 170 kg/km |
| 1 core | 4 mm2 | 10.4 mm | 200 kg/km |
| 1 core | 6 mm2 | 10.9 mm | 230 kg/km |
| 1 core | 10 mm2 | 11.9 mm | 290 kg/km |
| 1 core | 16 mm2 | 13 mm | 380 kg/km |
| 1 core | 25 mm2 | 15.4 mm | 550 kg/km |
| 1 core | 35 mm2 | 16.6 mm | 670 kg/km |
| 1 core | 50 mm2 | 18.1 mm | 860 kg/km |
| 1 core | 70 mm2 | 20.1 mm | 1110 kg/km |
| 1 core | 95 mm2 | 22.4 mm | 1420 kg/km |
| 1 core | 120 mm2 | 24.4 mm | 1710 kg/km |
| 1 core | 150 mm2 | 26.5 mm | 2050 kg/km |
| 1 core | 185 mm2 | 28.8 mm | 2480 kg/km |
| 1 core | 240 mm2 | 31.6 mm | 3160 kg/km |
| 1 core | 300 mm2 | 35 mm | 3850 kg/km |
| 2 core | 1.5 mm2 | 14.2 mm | 320 kg/km |
| 2 core | 2.5 mm2 | 15.2 mm | 380 kg/km |
| 2 core | 4 mm2 | 16.4 mm | 450 kg/km |
| 2 core | 6 mm2 | 17.5 mm | 530 kg/km |
| 2 core | 10 mm2 | 19.5 mm | 720 kg/km |
| 2 core | 16 mm2 | 21.7 mm | 890 kg/km |
| 2 core | 25 mm2 | 25.5 mm | 1280 kg/km |
| 2 core | 35 mm2 | 28 mm | 1580 kg/km |
| 2 core | 50 mm2 | 31 mm | 2050 kg/km |
| 3 core | 1.5 mm2 | 14.9 mm | 360 kg/km |
| 3 core | 2.5 mm2 | 16 mm | 430 kg/km |
| 3 core | 4 mm2 | 17.3 mm | 520 kg/km |
| 3 core | 6 mm2 | 18.4 mm | 620 kg/km |
| 3 core | 10 mm2 | 20.7 mm | 820 kg/km |
| 3 core | 16 mm2 | 23 mm | 1070 kg/km |
| 3 core | 25 mm2 | 27.2 mm | 1850 kg/km |
| 3 core | 35 mm2 | 29.8 mm | 1960 kg/km |
| 3 core | 50 mm2 | 33.1 mm | 2580 kg/km |
| 3 core | 70 mm2 | 38.3 mm | 3450 kg/km |
| 3 core | 95 mm2 | 43.2 mm | 4480 kg/km |
| 3 core | 120 mm2 | 48 mm | 5650 kg/km |
| 3 core | 150 mm2 | 52.4 mm | 6800 kg/km |
| 3 core | 185 mm2 | 57.5 mm | 8400 kg/km |
| 3 core | 240 mm2 | 64 mm | 10810 kg/km |
| 4 core | 1.5 mm2 | 16.1 mm | 430 kg/km |
| 4 core | 2.5 mm2 | 17.3 mm | 510 kg/km |
| 4 core | 4 mm2 | 18.7 mm | 620 kg/km |
| 4 core | 6 mm2 | 20 mm | 740 kg/km |
| 4 core | 10 mm2 | 22.6 mm | 1000 kg/km |
| 4 core | 16 mm2 | 25.1 mm | 1320 kg/km |
| 4 core | 25 mm2 | 29.8 mm | 1960 kg/km |
| 4 core | 35 mm2 | 32.7 mm | 2450 kg/km |
Conductor Resistance
| Nominal cross section | Class 2 max resistance at 20C | Class 5 max resistance at 20C |
|---|---|---|
| 0.5 mm2 | 36.7 ohm/km | 40.1 ohm/km |
| 0.75 mm2 | 24.8 ohm/km | 26.7 ohm/km |
| 1 mm2 | 18.2 ohm/km | 20 ohm/km |
| 1.5 mm2 | 12.2 ohm/km | 13.7 ohm/km |
| 2.5 mm2 | 7.56 ohm/km | 8.21 ohm/km |
| 4 mm2 | 4.7 ohm/km | 5.09 ohm/km |
| 6 mm2 | 3.11 ohm/km | 3.39 ohm/km |
| 10 mm2 | 1.84 ohm/km | 1.95 ohm/km |
| 16 mm2 | 1.16 ohm/km | 1.24 ohm/km |
| 25 mm2 | 0.734 ohm/km | 0.795 ohm/km |
| 35 mm2 | 0.529 ohm/km | 0.565 ohm/km |
| 50 mm2 | 0.391 ohm/km | 0.393 ohm/km |
| 70 mm2 | 0.27 ohm/km | 0.277 ohm/km |
| 95 mm2 | 0.195 ohm/km | 0.210 ohm/km |
| 120 mm2 | 0.154 ohm/km | 0.164 ohm/km |
| 150 mm2 | 0.126 ohm/km | 0.132 ohm/km |
| 185 mm2 | 0.1 ohm/km | 0.108 ohm/km |
| 240 mm2 | 0.0762 ohm/km | 0.0817 ohm/km |
| 300 mm2 | 0.0607 ohm/km | 0.0654 ohm/km |
Current Carrying Capacity
| Nominal cross section | Single core | 2 core | 3 and 4 core | 5 core |
|---|---|---|---|---|
| 1 mm2 | 18 A | 15 A | 13 A | 11 A |
| 1.5 mm2 | 23 A | 20 A | 16 A | 13 A |
| 2.5 mm2 | 30 A | 26 A | 21 A | 18 A |
| 4 mm2 | 40 A | 34 A | 28 A | 23 A |
| 6 mm2 | 52 A | 44 A | 36 A | 30 A |
| 10 mm2 | 72 A | 61 A | 50 A | 42 A |
| 16 mm2 | 96 A | 82 A | 67 A | 56 A |
| 25 mm2 | 127 A | 108 A | 89 A | 74 A |
| 35 mm2 | 157 A | 133 A | 110 A | 92 A |
| 50 mm2 | 196 A | 167 A | 137 A | 115 A |
| 70 mm2 | 242 A | 206 A | 169 A | 142 A |
| 95 mm2 | 293 A | 249 A | 205 A | 171 A |
| 120 mm2 | 339 A | 288 A | 237 A | 198 A |
| 150 mm2 | 389 A | 331 A | 273 A | 227 A |
| 185 mm2 | 444 A | 377 A | 311 A | 260 A |
| 240 mm2 | 522 A | 444 A | 366 A | 305 A |
| 300 mm2 | 601 A | 511 A | 420 A | 351 A |
Marine and Offshore Application Images

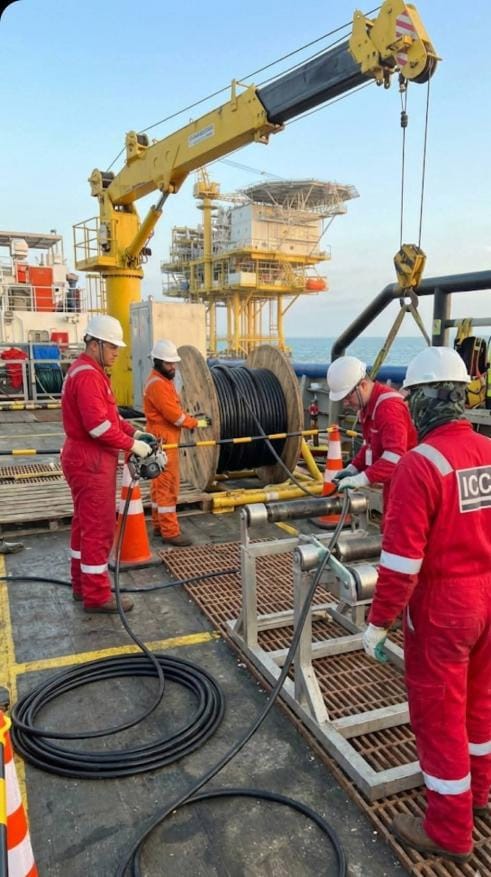

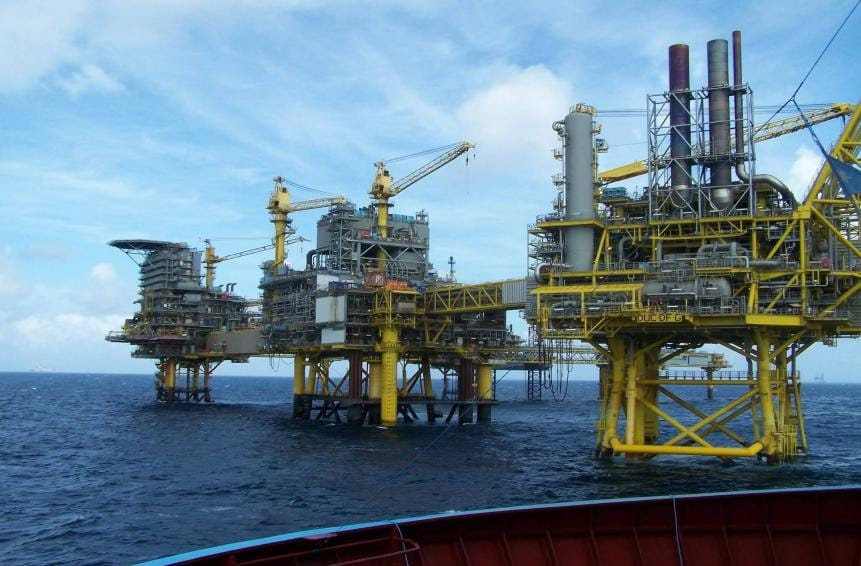

These application images show the type of offshore and marine environments where BFOU 0.6/1kV fire resistant power cable is commonly specified for fixed power distribution, emergency circuits and critical equipment routes.
How to Select a BFOU Cable
For quotation, share the required core count, conductor size, installation environment, applicable project standard, required documents and expected delivery schedule. TEBAOFLEX can review the cable route, voltage rating and fire-performance requirements before confirming the final construction. Contact TEBAOFLEX technical support to request technical information for a BFOU 0.6/1kV power cable.
| Product Model | BFOU 0.6/1kV Power Cable |
|---|---|
| Rated Voltage | 0.6/1kV |
| Conductor | Class 2 stranded tinned copper conductor |
| Insulation | Halogen-free EPR |
| Screen | TCWB tinned copper wire braid |
| Sheath Material | SHF2 MUD halogen-free elastomer |
| Temperature Range | -40C to +90C |
| Application | Marine and offshore fixed power distribution |
