Distributed Clean Electricity
Factory-rooftop distributed photovoltaic arrays supplement grid electricity across copper drawing, braiding, and extrusion halls, paired with permanent-magnet and variable-frequency motor upgrades.
Quality Control, EHS Governance & Sustainable Cable Manufacturing
TEBAOFLEX operates under audited ISO 9001, ISO 14001, and ISO 45001 management systems—combining 100% drum-level production inspection reports, rooftop solar power generation, over 90% insulation scrap recovery, and Low-Smoke Zero-Halogen (LSZH) cable engineering for global mining, port, offshore, and industrial EPC buyers.
100% Drum FAT
Batch production inspection & routine electrical test reports
> 90% Recovery
Closed-loop insulation compound recovery & water recirculation
ISO 14001 & 45001
Certified environmental & occupational health safety governance
4-Stage Quality Control & Production Inspection Reports
Every confirmed TEBAOFLEX production batch undergoes four documented inspection checkpoints—from incoming copper and elastomer verification through continuous vulcanization monitoring and 100% finished-drum electrical testing—accompanied by a signed production inspection and Factory Acceptance Test (FAT) report before dispatch.
| Production Checkpoint | Inspected Engineering Parameters | Verification Method & Standard | Issued Quality Record |
|---|---|---|---|
| STAGE 01 Incoming Material & Spectrum Check | Oxygen-free/tinned copper purity, EPR/PCP/PUR/LSZH elastomer batch lot numbers, and benchmark infrared spectrum curves. | Conductor purity & compound physical check against IEC 60228 and IEC 60811 baseline formulations. | Raw Material Batch & Compound Lot Log |
| STAGE 02 Stranding, Extrusion & Vulcanization | Lay-length pitch, insulation wall eccentricity, continuous vulcanization (CV) temperature/pressure profile, and spark test events. | Online laser diameter monitoring and in-line spark testing across extrusion and anti-torsion braiding lines. | In-Process Production Inspection Sheet |

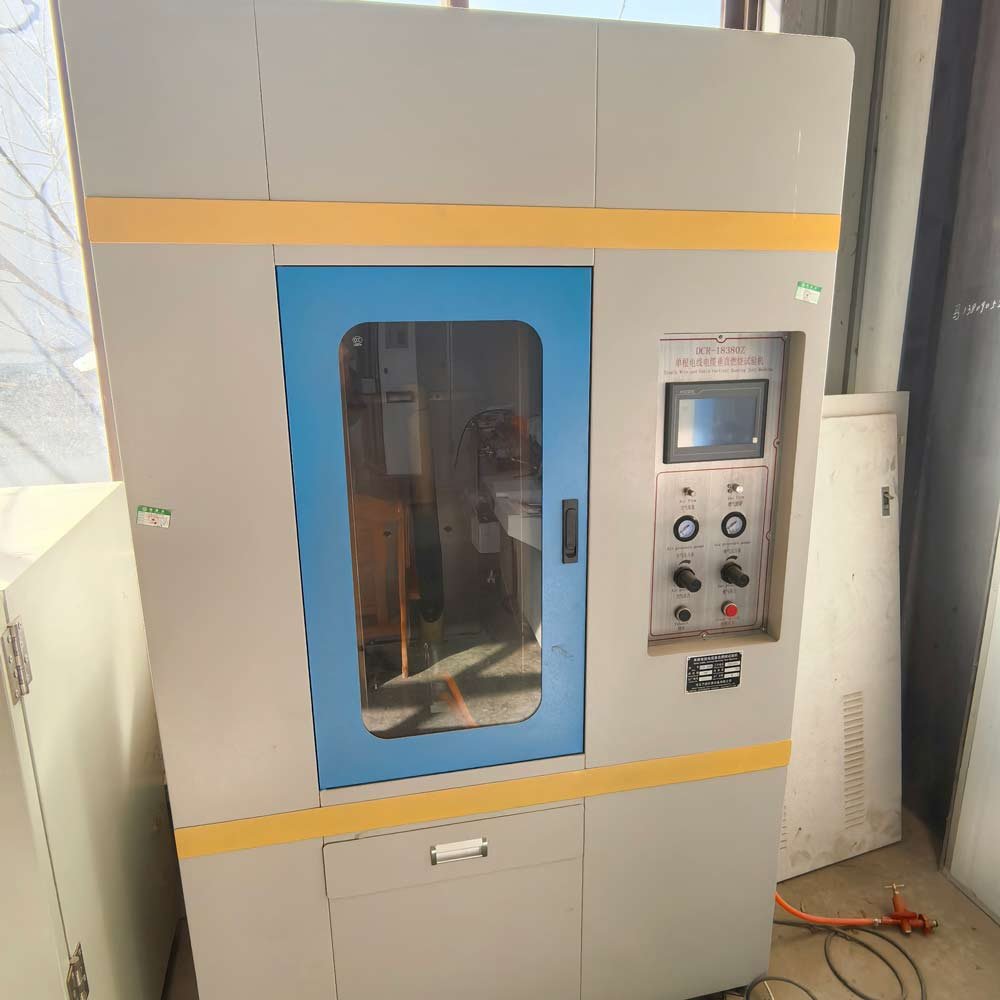

| STAGE 03 100% Finished-Drum Electrical Testing | 20°C conductor DC resistance, AC high-voltage withstand, insulation resistance, and medium-voltage partial discharge (pC). | Tested per IEC 60245, IEC 60502, or DIN VDE 0250-813/814 in shielded HV test hall. | Routine Electrical & Dielectric Test Data |
| STAGE 04 Signed FAT Report & Sample Archive | Sheath outer diameter, minimum wall thickness, sequential length marking, drum flange serial ID, and sealed reference sample. | Synchronized with export packing list and retained factory batch samples for contract warranty verification. | Signed Production Inspection Report (FAT) |
Resource Efficiency & Low-Carbon Factory Operations

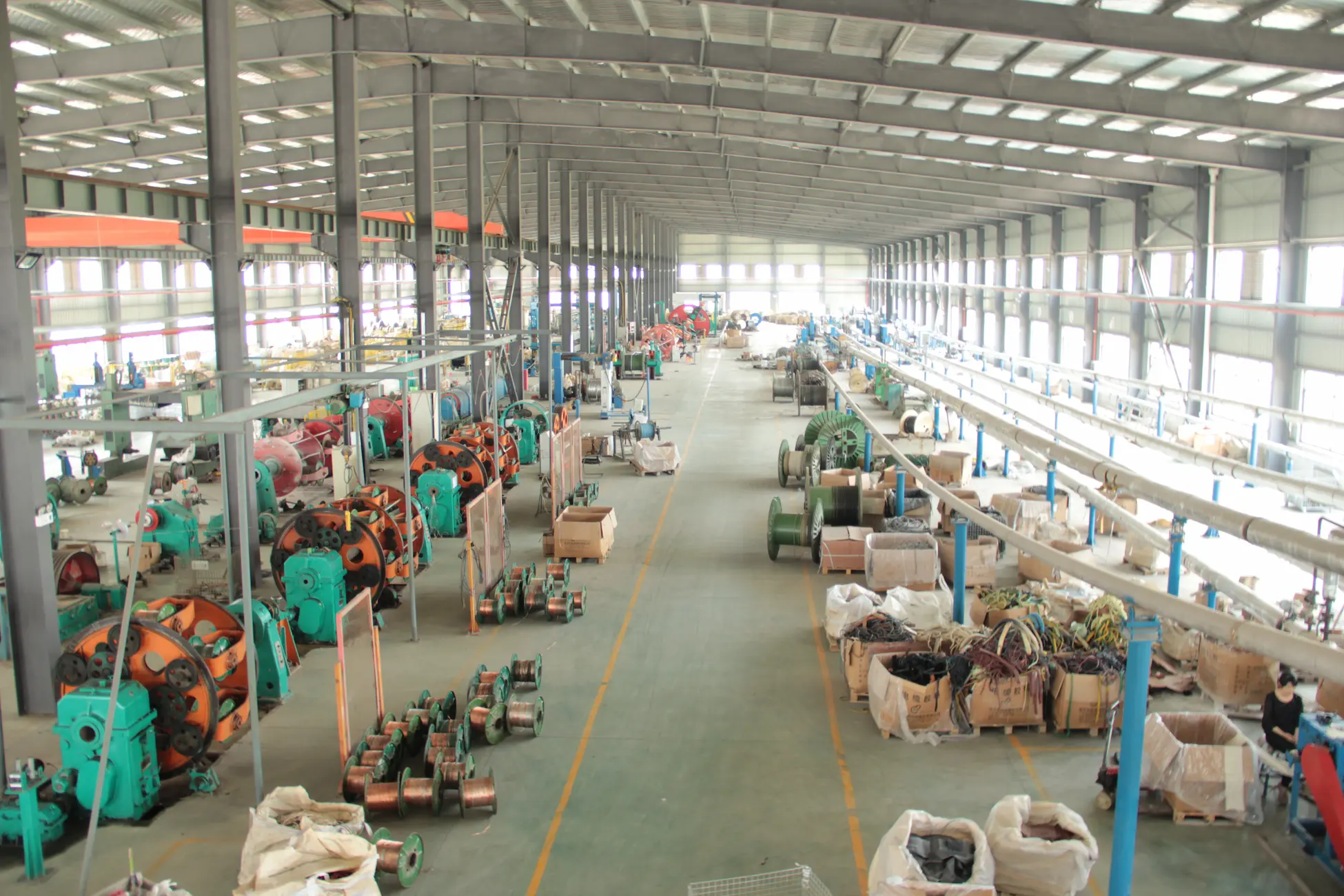

Operating under an ISO 14001 certified environmental management system, TEBAOFLEX reduces manufacturing carbon intensity and industrial waste through rooftop solar generation, closed-loop cooling water recirculation, thermal energy recovery, and systematic polymer scrap reclamation.
ISO 14001 Audited Emissions & Export Packaging Control
Compounding and vulcanization exhaust streams are captured and treated to meet environmental regulatory limits, while all wooden export cable drums undergo certified ISPM-15 heat treatment to protect international port ecosystems.
Water Circulation & Heat Recovery
Closed-circuit cooling troughs recirculate process water across extrusion cooling zones, while waste-heat recovery units capture thermal energy from continuous vulcanization lines.
Insulation Scrap Reclamation
Clean setup purge and non-crosslinked insulation trimmings are segregated by polymer family, achieving over 90% material recovery and minimizing industrial landfill disposal.
Sustainable Export Reel Options

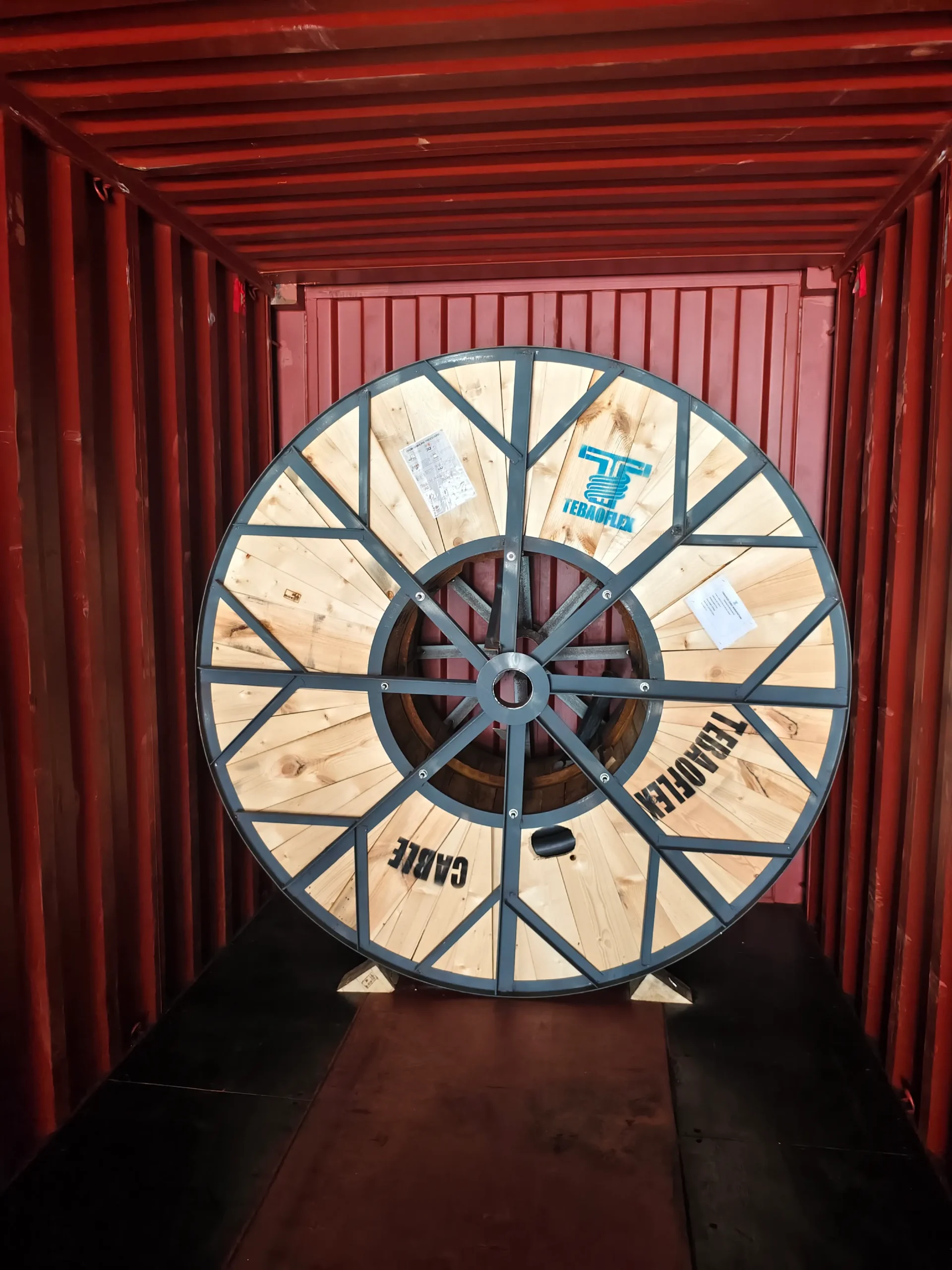

International shipments use fumigated ISPM-15 compliant timber reels or heavy-duty returnable/reusable steel drums sized to maximize 20GP/40HQ container utilization.
Safer Material Formulations: LSZH & Clean-Energy Cables

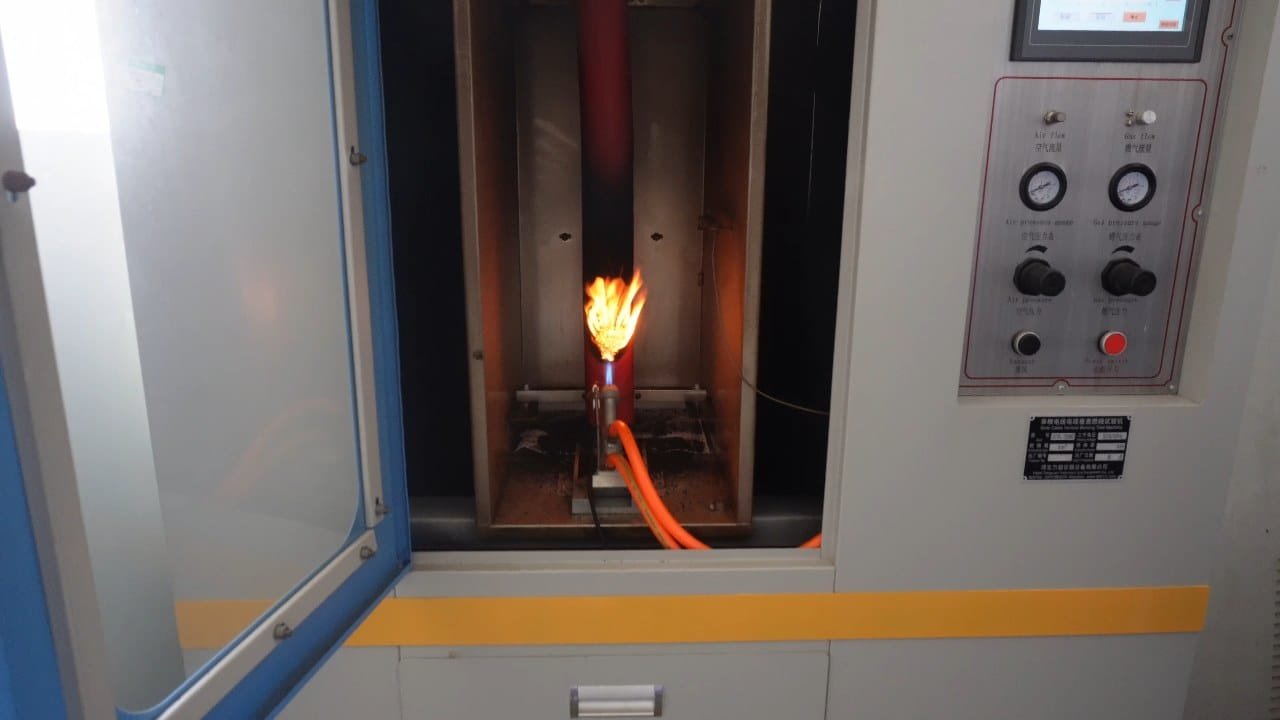

To protect personnel and sensitive electronics in confined tunnels, offshore platforms, port cranes, and renewable power assets, TEBAOFLEX formulates Low-Smoke Zero-Halogen (LSZH / SHF2) and flame-retardant elastomer cables verified against international IEC fire-safety standards.
| Safety / Sustainability Focus | Applicable International Standards | Representative TEBAOFLEX Cable Lines |
|---|---|---|
| Offshore Fire-Resistant & Mud-Resistant LSZH | IEC 60331 (fire circuit integrity), IEC 60332-3-22, IEC 60754-1/2 (zero halogen), IEC 61034-2 (low smoke), NEK 606 SHF2 | |
| Halogen-Free Tunneling & Port Reeling MV | DIN VDE 0250-813 / 814 with halogen-free outer sheath (IEC 60754 / IEC 61034) for underground TBM & indoor cranes | |
| Renewable Wind Turbine Torsion Cables | Medium-voltage flexible loop torsion design (12/20 kV to 36/69 kV), cold-resistant down to −40°C / −55°C | |
| Certified Industrial & OEM Wiring | TÜV Rheinland J 50687206 (IEC 60245-4), UL/cUL E556567 (UL 758), EU LVD 2014/35/EU (CE) |
Workplace Safety, Technical Training & Global Project Accountability
Reliable specialty cables depend on disciplined people and transparent post-delivery governance. TEBAOFLEX pairs ISO 45001 workplace protections and structured operator training with contract-backed international technical support.
Occupational Health & Machine Guarding
Heavy stranding, steel-wire braiding, continuous vulcanization, and high-voltage dielectric testing carry strict mechanical and electrical controls under our ISO 45001 management system.
- Interlocked Faraday safety gates on 35 kV HV test halls

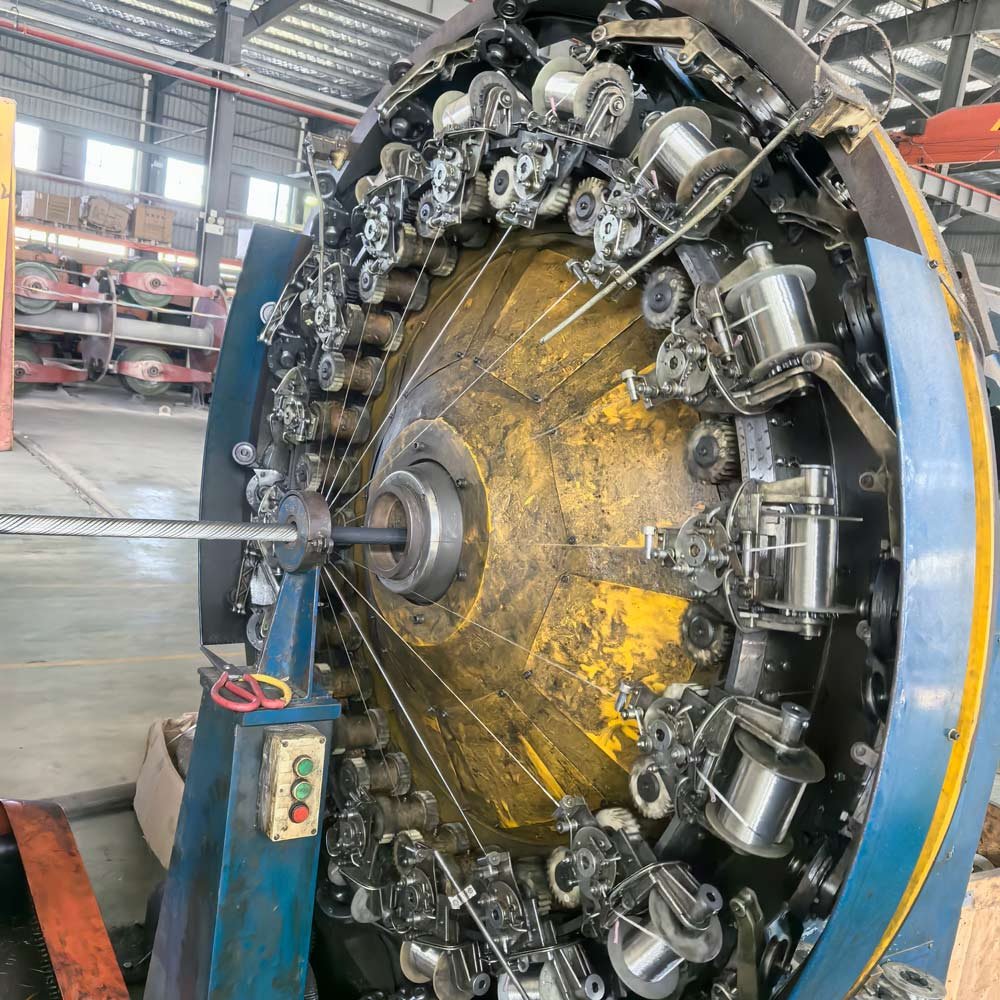

- Enclosed rotating cages on multi-spindle wire braiders
- Local fume extraction & occupational health monitoring
Technical Apprenticeships & Electrical Safety
With over 15 years of elastomer R&D heritage, TEBAOFLEX partners with vocational and engineering institutes for structured internships, operator certification drills, and community electrical-safety initiatives.
- Regular skills assessment for extrusion & QA technicians
- University-industry elastomer formulation internships
- Industrial electrical-safety & energy-saving outreach
Witness Inspections & Warranty Resolution
International OEM and EPC buyers receive transparent engineering support from pre-bid specification review through post-shipment warranty protection.
- 24-hour cross-time-zone engineering desk response
- Open factory access for SGS, BV, Intertek & TÜV witness FAT
- Contract-backed replacement or claim resolution via Custom OEM Services
Frequently Asked Questions on Inspection Reports, EHS & ESG
Direct answers for international vendor-qualification auditors, HSE managers, and procurement engineers evaluating TEBAOFLEX as an approved cable supplier.
Which management system certifications govern TEBAOFLEX's quality, environmental, and safety operations?
TEBAOFLEX's manufacturing facility is audited and certified to ISO 9001 (Quality Management), ISO 14001 (Environmental Management), and ISO 45001 (Occupational Health and Safety Management), alongside National High-Tech Enterprise recognition. Official certificate scans can be viewed directly on this page or in our Certifications Registry.
What production inspection and routine test reports are supplied with TEBAOFLEX cable orders?
Every finished cable order is accompanied by a signed production inspection and Factory Acceptance Test (FAT) report covering 20°C conductor DC resistance (IEC 60228), AC high-voltage withstand, insulation resistance, sheath wall dimensions, and partial discharge records for medium-voltage cables, matched to each cable drum serial number.
Can TEBAOFLEX supply Low-Smoke Zero-Halogen (LSZH) cables and RoHS / REACH test documentation?
Yes. TEBAOFLEX manufactures halogen-free offshore (BFOU, RFOU) and medium-voltage reeling/tunneling cables ((N)TSCGEWÖU-ZH, (N)TSCGECECWÖU-ZH) engineered to IEC 60754-1/2 and IEC 61034-2. When specified in your purchase contract, we provide model-specific compound declarations or third-party RoHS, REACH SVHC, and fire-test verification via SGS, BV, or TÜV.
Do you welcome customer ESG audits and third-party pre-shipment witness inspections?
Yes. International OEM and EPC clients—or appointed agencies including SGS, Bureau Veritas (BV), Intertek, and TÜV—are welcome to audit our ISO 9001/14001/45001 manufacturing lines and witness conductor DC resistance, AC high-voltage withstand, and partial discharge testing prior to container dispatch.
How are export packaging compliance and post-delivery quality claims handled for overseas buyers?
All wooden export cable drums comply with ISPM-15 heat-treatment phytosanitary standards (with reusable steel drums optional). Every production batch includes retained reference samples; if a verified quality discrepancy occurs, TEBAOFLEX executes root-cause investigation, replacement, or commercial resolution strictly in accordance with agreed contract warranty terms.
