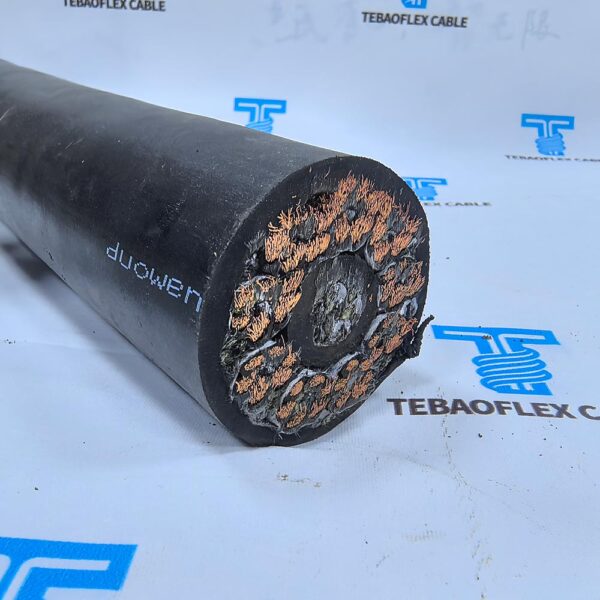

TEBAOFLEX Port Crane Spreader Basket Cable is designed for container crane spreader systems and collector basket cable routes, where the cable moves vertically with the spreader during lifting and lowering operations.
In port crane applications, the cable must handle more than ordinary bending. It may be exposed to cable weight, tensile load, wind movement, repeated vertical travel, oil, moisture and outdoor port conditions. A suitable spreader basket cable helps maintain stable power and control transmission between the crane trolley and the container spreader.

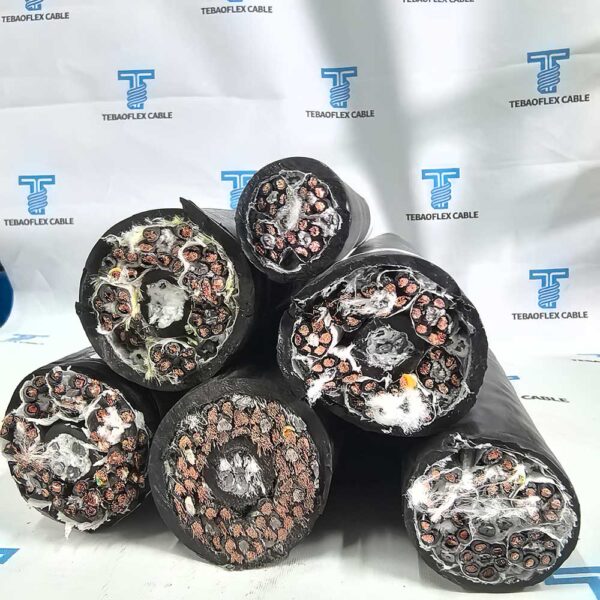

This cable can be designed with power cores, control cores, signal pairs, shielding or fiber optic elements according to the crane system requirements. For harsh port environments, TEBAOFLEX can provide rubber, PUR or special compound sheath options to improve abrasion resistance, flexibility and service life.
Typical Construction
- Conductor: Flexible stranded copper conductor
- Core design: Power cores, control cores or combined structure
- Signal option: Twisted pairs or shielded signal units
- Fiber optic option: Available on request
- Strength member: Aramid yarn or central reinforcement, depending on load
- Outer sheath: Rubber, PUR or customized heavy-duty compound
- Cable design: Suitable for vertical hanging and collector basket operation
- Sheath color: Black, orange or customized
Technical Parameters
| Item | Typical Option |
|---|---|
| Product type | Port Crane Spreader Basket Cable |
| Rated voltage | 300/500V, 450/750V, 0.6/1kV or customized |
| Conductor | Flexible copper conductor |
| Core number | Customized |
| Signal unit | Optional twisted pair or shielded pair |
| Fiber optic | Optional |
| Outer sheath | Rubber, PUR or heavy-duty compound |
| Temperature range | Approx. -35°C to +80°C, material dependent |
| Bending radius | Subject to cable size and movement design |
| Tensile support | Customized according to hanging length and cable weight |
| Application | Container crane spreader, collector basket, vertical hanging route |
Final cable structure should be confirmed according to spreader type, lifting height, cable basket design, travel speed, tensile load, bending route and required signal function.
Applications
TEBAOFLEX Port Crane Spreader Basket Cable is suitable for:
- STS container crane spreader systems
- RTG and RMG crane equipment
- Collector basket cable systems
- Vertical hanging crane cable routes
- Port container handling equipment
- Spreader power and control connection
- Crane signal and data transmission
- Heavy-duty outdoor port machinery
For other crane and port cable options, you can also review Port, Crane & Festoon Cables, NGRDGOU Rubber Festoon Cable and KYFLCY Flat EMC Festoon PVC Cable.
FAQ
What is a port crane spreader basket cable used for?
It is used to supply power, control signals or data between the crane trolley and the container spreader in vertical hanging or collector basket cable systems.
Can the cable include power, signal and fiber optic elements?
Yes. TEBAOFLEX can design a composite spreader basket cable with power cores, control cores, signal pairs, shielding and optional fiber optic units.
What should be confirmed before selecting this cable?
Key details include lifting height, cable weight, basket design, tensile load, bending radius, travel speed, outdoor environment and required power or signal functions.
Project Selection Support
To select the TEBAOFLEX Port Crane Spreader Basket Cable, confirm the operating conditions, conductor configuration, installation route and required performance criteria. Request a Quote
