Crane 2ST Pendant Cable is a flexible PVC control cable for suspended crane control and pendant applications where a support element is required. TEBAOFLEX configures the core count, conductor size and cable length to suit the equipment and installation.
Applications
- Suspended crane pendant control circuits
- Hoists, lifting equipment and moving machinery
- Control connections requiring an integrated steel support element

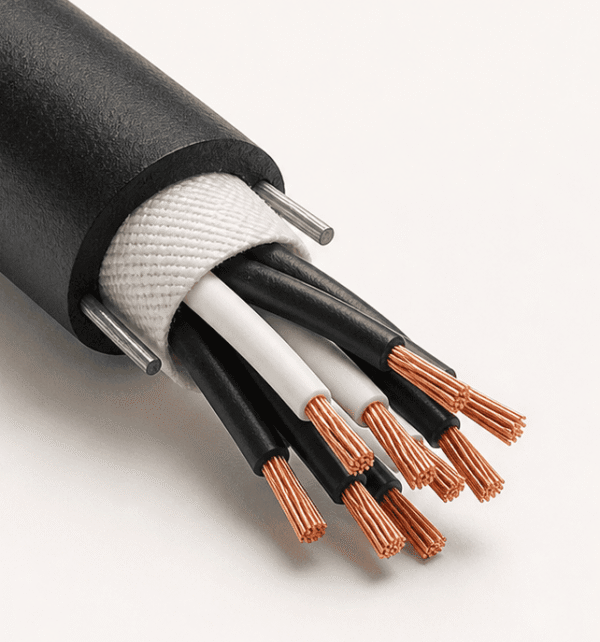

Construction
- Extra-fine stranded bare copper conductors
- Special PVC-based core insulation and outer sheath
- Textile wrapping to support sliding movement between cores and sheath
- Opposing integrated steel support elements
Technical Data
| Parameter | Specified value |
|---|---|
| Rated voltage U0/U | 300/500 V |
| Test voltage | 4000 V |
| Conductor stranding | Extra-fine wire, Class 6 |
| Minimum bending radius | 20 × outer diameter (flexible use) |
| Flexible operating temperature | -15 °C to +70 °C |
| Reference standard | VDE 0250 |
| Flame retardance | IEC 60332-1-2 |
Available Core Configurations
| Core configuration | Cable diameter | Distance between strain wires | Copper index | Weight |
|---|---|---|---|---|
| 8G1.5 mm² | 13.6 mm | 19 mm | 115 kg/km | 430 kg/km |
| 12G1.5 mm² | 15.5 mm | 21 mm | 172.8 kg/km | 510 kg/km |
| 20G1.5 mm² | 20.0 mm | 25 mm | 288 kg/km | 720 kg/km |
Specify Your Requirements
Send TEBAOFLEX your crane type, suspended length, preferred core configuration and installation details so we can confirm a suitable pendant cable construction. Explore our crane and festoon cable range, or contact our technical sales team for a quotation.
