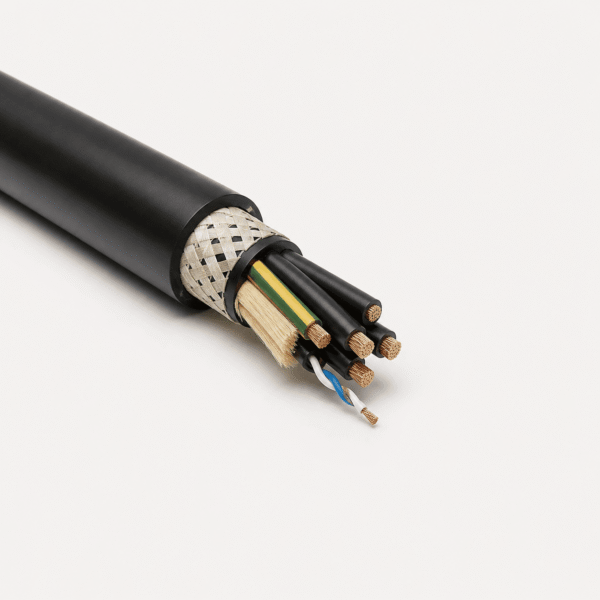

(N)SHT11Y PUR Vertical Reeling Cable is a 0.6/1kV low-voltage cable engineered for vertical reeling duties on mobile harbour cranes and spreader basket systems. It combines exceptionally fine-stranded copper conductors, a self-supporting aramid element, braid reinforcement, and a black polyurethane outer sheath to address repeated movement, tensile loading, and harsh port environments.
TEBAOFLEX supplies special cables for demanding crane and port applications. Share the operating height, reeling arrangement, travel speed, and required control or data elements to confirm the appropriate construction.
Why Choose (N)SHT11Y for Vertical Reeling
- Self-supporting design: aramid reinforcement supports suspended vertical cable lengths.
- High dynamic durability: polyester braid reinforcement and torsion protection support repeated reeling cycles.
- Harsh-environment resistance: the black polyurethane sheath is specified as UV-, oil-, ozone-, and water-resistant.
- System integration: constructions can combine power conductors with control or data elements such as CAN-BUS pairs.
Verified Technical Characteristics
| Parameter | Specification |
|---|---|
| Rated voltage | Uo/U 0.6/1kV |
| Maximum permitted operating voltage | 1.2kV in three-phase systems |
| Test voltage | 3.5kV |
| Standard reference | DIN VDE 0250-814 |
| Maximum conductor temperature | 90°C |
| Maximum short-circuit conductor temperature | 250°C |
| Operating speed | Up to 160 m/min |
| Suspension height | Up to 90 m |
| Breaking load | 20 kN |
Cable Construction
| Component | Verified material or feature |
|---|---|
| Conductor | Bare copper, Class FS exceptionally fine stranded |
| Insulation | ETFE |
| Inner sheath | Polyurethane |
| Armour | Polyester braid |
| Self-supporting element | Aramid |
| Torsion protection | Synthetic braid; ±50°/m |
| Outer sheath | Black polyurethane |
Installation Conditions
- Fixed installation temperature: -50°C to +80°C.
- Moving application temperature: -35°C to +80°C.
- Minimum distance between S-type directional changes: 20 × cable diameter.
- Minimum bending radius: 4 × cable diameter for a single bend and 5 × cable diameter for moving applications.
Documented Reference Configuration
| Configuration | Resistance at 20°C | Current in air at 30°C | Outer diameter | Dynamic tensile strength | Net weight |
|---|---|---|---|---|---|
| 37 × 2.5 mm² + 1 × CAN-BUS pair | 7.98 Ω/km | 30 A | 30 mm | 4,500 N | 1,575 kg/km |
Applications and Selection Support
This vertical reeling cable is designed for mobile harbour cranes, spreader basket operations, and other systems subject to high dynamic loads. Select the cable only after evaluating suspension height, routing geometry, load, acceleration, and electrical system requirements.
Send Your Requirements and Request a Quote to discuss a TEBAOFLEX cable construction for your port crane system.
