TEBAOFLEX YSLTOE-J (YSLTÖ-J) is a compact, torsion-balanced 300/500 V halogen-free PUR spreader basket control cable designed for gravity-fed collector baskets on high-speed STS (ship-to-shore), RMG, ASC, and RTG container cranes. Unlike concentric-lay control cables that twist and birdcage during rapid hoist deceleration, YSLTOE-J arranges 24 to 60 flexible copper control cores into reverse-twist multi-core sub-bundles around a high-modulus synthetic aramid and optional weighted ballast center so loops drop cleanly at speeds up to 160-240 m/min.
1. Application Scope & Spreader Basket Family Comparison

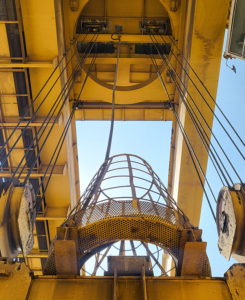

YSLTOE-J is purpose-built for container spreaders where 24 V DC, 110 V AC, or 230 V AC control, twistlock proximity sensors, telescopic beam limit switches, corner flipper valves, and twin-lift I/O signals are consolidated into a single slim vertical basket cable:
- Ship-to-Shore (STS) Quay Cranes: High-lift vertical loops (
50-85 mfree suspension from trolley/headblock to vessel cell guides) requiring high tensile safety margin and wind-stable gravity coiling. - Intermodal RMG & Automated Stacking Cranes (ASC): Continuous 24/7 yard stacking cycles where compact
300/500 Vcable diameter maximizes coil capacity inside narrow spreader collector baskets. - RTG Cranes & Straddle Carriers: Outdoor marine terminals exposed to hydraulic oil mist, salt spray, tropical UV radiation, and sub-zero winter operation down to
-40°C.
| TEBAOFLEX Spreader Series | Voltage Class | Core & Data Architecture | Primary Spreader Basket Selection |
|---|---|---|---|
| YSLTOE-J (This Page) | 300/500 V | 24G-60G × 1.5 / 2.5 mm² slim thermoplastic + PUR | Pure control, solenoid & sensor spreader harnesses |
| Port Spreader Basket Hub | 0.6/1 kV | Multi-core & composite 4×16/25 + control + bus | Electric/hydraulic pump motor + control spreaders |
| 3GSLTOE Spreader Cable | 0.6/1 kV | 3GI3 EPR rubber bundle cores + heavy PUR/PCP | Heavy European DIN VDE 0.6/1 kV spreader replacements |
| SYSLTOE-J FO Hybrid | 0.6/1 kV | 24-48 copper cores + 6-24 single/multimode fibres | Automated cranes with OCR cameras, LiDAR & Profinet FO |
2. Cable Construction (Verified Against 42G Factory Cross-Section)

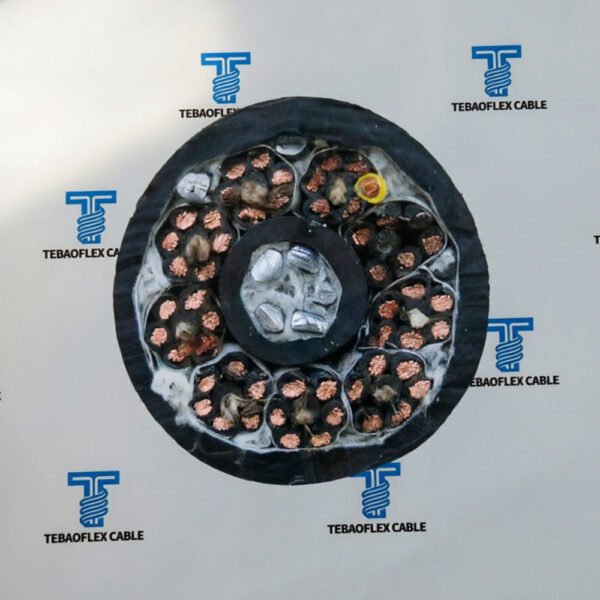

As shown in our factory macro cross-section photograph, YSLTOE-J eliminates internal stranding torque by grouping individual control conductors into symmetrical sub-bundles around a dedicated load-bearing and ballast core:
3,000 N to 12,000 N), available with an encapsulated lead-bead / weighted elastomer ballast core so lightweight control cables drop rapidly into the collector cone in high winds.-40°C.YSLTOE-O without PE available).5-core or 6-core sub-bundles around soft textile fillers, then cabled in a counter-balanced short lay around the central support core with non-woven gliding tape.3. Technical & Collector Basket Design Parameters
Electrical, mechanical, and crane installation parameters for YSLTOE-J spreader basket cables:
| Parameter | Engineering Specification | Spreader System Design Note |
|---|---|---|
| Rated Voltage (U0/U) | 300 / 500 V | DIN VDE 0250-405 / VDE 0281 adapted control design |
| AC Test Voltage | 2,000 V AC (50 Hz, 5 min) | Routine factory spark and water-bath dielectric test |
| Operating Temperature | -40°C to +80°C (flexing) | -50°C to +80°C fixed; +80°C / +90°C conductor rating |
| Vertical Hoist & Coiling Speed | Up to 160 m/min standard | Up to 240 m/min on weighted/ballasted high-speed STS builds |
| Collector Basket Diameter | ≥ 25 – 30 × overall cable OD | Minimum inner cone diameter ≥ 12 – 15 × cable OD |
| Coiling Lay Direction | Torsion-free, counter-clockwise standard | Match directional lay arrow printed on outer PUR jacket |
| Environmental Resistance | Halogen-free, oil/UV/saltwater resistant | EN 60811-404 oil immersion; IEC 60332-1-2 flame; IEC 60754-1 |

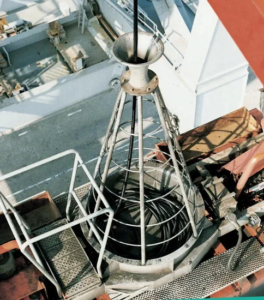

Pre-Tension Relaxation & Basket Laying Rule: Never pull YSLTOE-J off the side flange of a flat-lying reel, as each coil injects 360° of permanent twist. Always pay off tangentially from a rotating drum stand, suspend the cable freely from the headblock for 12-24 hours before locking the lower basket stocking grip, and verify the collector basket rim diameter exceeds 25-30 × OD.
4. Specification & SKU Schedule (24G to 60G Control Configurations)
Representative non-ballasted and weighted-core YSLTOE-J spreader basket schedules (exact OD and linear mass are tuned to your crane hoist speed and wind-load specification):
| Part No. / SKU | Core Schedule (mm²) | Bundle Geometry | Nominal OD Range (mm) | Min. Basket Rim Dia. 30×OD (mm) | Nominal Tensile Rating (N) | Approx. Weight Std / Weighted (kg/km) |
|---|---|---|---|---|---|---|
YSLTOEJ-24G1.5 | 24 G 1.5 | 6 × 4-core bundles | 20.5 – 22.8 | 685 | 3,500 | 640 / 980 |
YSLTOEJ-30G1.5 | 30 G 1.5 | 6 × 5-core bundles | 22.4 – 24.8 | 745 | 4,000 | 790 / 1,180 |
YSLTOEJ-36G1.5 | 36 G 1.5 | 6 × 6-core bundles | 24.2 – 26.8 | 805 | 4,500 | 930 / 1,360 |
YSLTOEJ-42G1.5 | 42 G 1.5 | 7 × 6-core bundles | 26.5 – 29.2 | 880 | 5,000 | 1,090 / 1,560 |
YSLTOEJ-48G1.5 | 48 G 1.5 | 8 × 6-core bundles | 28.8 – 31.6 | 950 | 5,500 | 1,260 / 1,780 |
YSLTOEJ-24G2.5 | 24 G 2.5 | 6 × 4-core bundles | 23.8 – 26.4 | 795 | 4,500 | 920 / 1,320 |
YSLTOEJ-30G2.5 | 30 G 2.5 | 6 × 5-core bundles | 25.8 – 28.6 | 860 | 5,500 | 1,140 / 1,590 |
YSLTOEJ-36G2.5 | 36 G 2.5 | 6 × 6-core bundles | 28.0 – 31.0 | 930 | 6,500 | 1,350 / 1,850 |
YSLTOEJ-42G2.5 | 42 G 2.5 | 7 × 6-core bundles | 30.6 – 33.8 | 1,015 | 7,500 | 1,580 / 2,140 |
YSLTOEJ-48G2.5 | 48 G 2.5 | 8 × 6-core bundles | 33.2 – 36.5 | 1,095 | 8,500 | 1,820 / 2,420 |
YSLTOEJ-60G2.5 | 60 G 2.5 | 10 × 6-core bundles | 36.8 – 40.2 | 1,210 | 10,000 | 2,260 / 2,940 |
Need integrated screened CANbus/Profibus pairs or horizontal boom festoon cables? Explore our Port, Crane & Festoon Cables catalog or pair YSLTOE-J with (N)GRDGÖU 0.6/1 kV Rubber Festoon Cable on the trolley beam.
5. Frequently Asked Questions (YSLTOE-J Selection & Basket Commissioning)
When should crane engineers specify 300/500 V YSLTOE-J instead of 0.6/1 kV 3GSLTOE spreader cable?
Specify 300/500 V YSLTOE-J when the telescopic spreader operates on hydraulic power packs located on the headblock or uses low-voltage 24 V / 110 V / 230 V control, twistlock proximity sensors, flipper solenoids, and twin-lift I/O (24 to 60 cores). Its thin-wall thermoplastic core insulation reduces overall cable diameter and basket fill volume by 18-25% compared with 0.6/1 kV EPR-insulated 3GSLTOE Spreader Cable.
What is the purpose of the central weighted ballast core visible inside the YSLTOE-J cross-section?
High-core-count 300/500 V PUR control cables are lighter per meter than thick rubber power cables. Integrating a central high-modulus aramid tensile core with an optional encapsulated lead-bead ballast increases linear mass-to-diameter ratio so the cable drops cleanly into the conical collector basket against 20-25 m/s coastal crosswinds without loop blow-out during 160-240 m/min empty-spreader hoists.
How should YSLTOE-J be coiled into the spreader collector basket during commissioning?
Unreel YSLTOE-J axially from a rotating cable drum without pulling loops over a stationary flange. Hang the cable over the full crane hoist height for 12-24 hours to relax handling stress before clamping the bottom basket grip, then feed coils into the collector basket in the natural lay direction (typically counter-clockwise, matching sheath lay arrows). Recommended collector basket outer diameter is 25 to 30 times cable OD.
What does the -J suffix mean in YSLTOE-J (câble YSLTOE-J)?
In DIN VDE control cable nomenclature, -J indicates that one conductor in the outer bundle is a continuous green/yellow protective earth (PE) core, while all remaining control cores are black with white sequential numbers. YSLTOE-O (without green/yellow core) is also available upon request.
Configure YSLTOE-J for Your STS, RMG or RTG Spreader Basket
Share your core count (30G2.5, 36G2.5, 42G2.5, 48G2.5, or custom), vertical drop height, hoist speed, collector basket inner/outer cone diameters, and weighted vs. standard aramid center preference.
