(N)GRDGÖU 0.6/1kV Rubber Festoon Cable | TEBAOFLEX

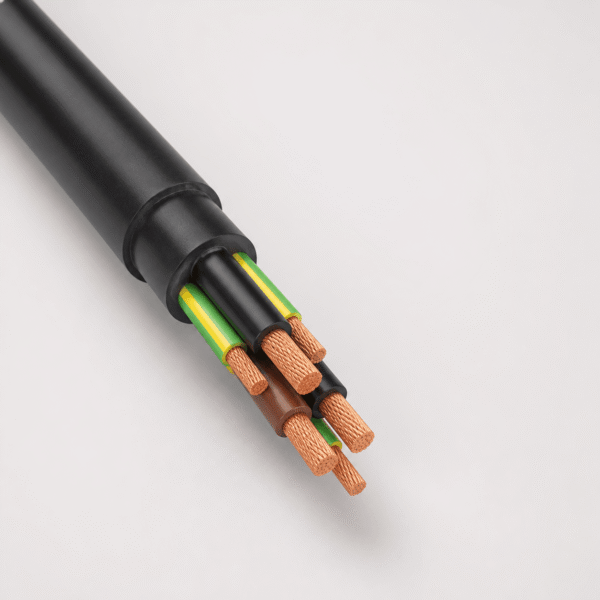

TEBAOFLEX (N)GRDGÖU is a low-voltage rubber flexible cable for festoon systems, chain systems, cranes and material handling equipment. With flexible copper conductors, EPDM rubber insulation and a tough 5GM3 outer sheath, it is built for frequent bending in dry, damp, wet, indoor and outdoor industrial environments.
(N)GRDGÖU Rubber Festoon Cable for Moving Equipment
TEBAOFLEX (N)GRDGÖU is a heavy-duty round rubber flexible cable designed for festoon systems, cable trolleys, hoists, travelling cranes and material handling equipment. It is built for repeated bending, mobile operation and reliable power or control connection in demanding industrial environments.
This cable type is also searched as NGRDGOU, N-GRDGOU or (N)GRDGOU rubber chain cable in crane and festoon system projects.
The cable is suitable for dry, damp and wet locations, including port crane systems, overhead gantries, workshops, logistics handling lines and heavy industrial plants. For projects involving medium-voltage reeling or mining power supply, you may also compare it with our (N)TSCGEWÖU MT MV reeling cable and other Mining & Tunneling Cables.
Technical Parameters
| Product type | Round rubber flexible festoon cable |
| Model | (N)GRDGÖU-J / (N)GRDGÖU-O |
| Rated voltage | 0.6/1kV |
| AC test voltage | 3kV, or according to project specification |
| Conductor | Class 5 flexible stranded copper conductor, acc. to IEC 60228 / DIN VDE 0295 |
| Insulation | EPR / EPDM rubber compound, 3GI3 type |
| Inner sheath | Rubber compound, GM1b type |
| Outer sheath | Black heavy-duty rubber compound, 5GM3 type |
| Core identification | -J version with green-yellow earth core; -O version without green-yellow earth core |
| Max. conductor temperature | +90°C in operation; +250°C during short circuit |
| Ambient temperature | Fixed installation: down to -40°C / -50°C to +80°C; mobile operation: typically down to -35°C to +80°C |
| Minimum bending radius | According to DIN VDE 0298-3; commonly 4D-5D for moving operation, 5D on drums, 7.5D on deflection pulleys |
| Torsional stress | Up to ±25°/m, depending on installation conditions |
| Tensile load | Up to 15N/mm² on conductor cross-section |
| Travel speed | Up to 240m/min for festoon systems; project review recommended for higher speeds |
| Resistance | Oil, UV, ozone, moisture and weather resistant |
| Flame performance | Flame retardant according to IEC 60332-1-2 / EN 60332-1-2 |
| Typical sizes | Single-core, 4-core, 5-core and multi-core control versions available on request |
Cable Construction
- Flexible copper conductor for continuous bending and mobile power supply
- EPR / EPDM rubber insulation for electrical stability and flexibility
- Rubber inner sheath for core protection and round cable stability
- Black 5GM3 rubber outer sheath for abrasion, oil, ozone and outdoor resistance
- Available as -J type with earth core or -O type without earth core
Typical Applications
(N)GRDGÖU cable is used in festoon systems, crane cable trolleys, overhead travelling cranes, gantry cranes, hoists, lifting platforms, container handling systems and general material handling equipment. It is also suitable for heavy-duty industrial applications where a flexible rubber cable needs to work under repeated movement.
For more crane and mobile equipment cable options, visit the TEBAOFLEX Port, Crane & Festoon Cables category or compare with our Rubber & Flexible Cables range.
Why Choose TEBAOFLEX
TEBAOFLEX focuses on flexible cable solutions for mining, crane, marine, oil and gas, submersible and industrial applications. For (N)GRDGÖU cable selection, our team can support the right conductor size, core arrangement and sheath design according to bending radius, travel speed, cable length, tensile load and working environment.
Frequently Asked Questions
What is (N)GRDGÖU cable mainly used for?
It is mainly used as a flexible power or control cable for festoon systems, cable trolleys, cranes, hoists and material handling equipment where the cable moves frequently during operation.
How should the bending radius be selected?
The bending radius depends on cable diameter and installation method. For moving applications, drum operation or deflection pulleys, the installation should follow DIN VDE 0298-3 guidance and the final TEBAOFLEX technical datasheet.
Can TEBAOFLEX supply customized (N)GRDGÖU cable sizes?
Yes. Core number, conductor cross-section, sheath marking, packing length and project-specific requirements can be discussed. Sharing the equipment type, travel distance, speed and bending radius will help us recommend the right design.
| Brand | TEBAOFLEX |
|---|---|
| Cable Model | (N)GRDGÖU-J, (N)GRDGÖU-O |
| Rated Voltage | 0.6/1kV |
| Test Voltage | 3kV |
| Conductor | Class 5 flexible stranded copper conductor |
| Insulation | EPR / EPDM rubber compound |
| Inner Sheath | Rubber compound |
| Outer Sheath | Black 5GM3 heavy-duty rubber sheath |
| Core Identification | -J with green-yellow earth core, -O without green-yellow earth core |
| Temperature Range | Mobile: -35°C to +80°C, Fixed: -40°C to +80°C |
| Bending Radius | According to DIN VDE 0298-3 |
| Cable Type | Rubber Festoon Cable, Chain Cable, Flexible Crane Cable |
| Resistance | Oil resistant, UV resistant, Ozone resistant, Weather resistant |
| Application | Festoon systems, Cable trolleys, Cranes, Hoists, Material handling equipment |
