Direct Engineering Answer: Gas and oil resistant solid pair, stranded pair, and triad cables (rated 150/250V to 300/500V per EN 50288-7, BS 5308, PAS 5308, and IEC 60092-376) protect 4–20 mA, HART, and RTD instrumentation loops against hydrocarbons, sour gas (H2S), and chemical splash. Choose Class 1 solid conductors (0.5–1.5 mm²) for static onshore trays and Class 2/Class 5 stranded conductors for vibrating offshore skids.
This guide helps engineering, maintenance, and procurement teams compare solid pair, stranded pair, and triad constructions and prepare a complete installation and verification record before ordering. For dedicated fixed-circuit selection criteria, see our solid pair cable selection guide for oil and gas and our shielded instrumentation cable product specifications.
Solid Pair vs. Stranded Pair vs. Triad Cables for Oil & Gas
In refinery, LNG, and petrochemical instrumentation schedules, conductor stranding, core grouping (pair vs. triad), and sheath barrier design must match the mechanical vibration level and hydrocarbon exposure zone.
| Configuration | Conductor Class & Sizes | Screening Options | Typical Jacket / Barrier | Primary Oil & Gas Duty |
|---|---|---|---|---|
| Solid Pair Cable (1P to 50P) | Class 1 Solid Copper 0.5, 0.75, 1.0, 1.5 mm² (20–16 AWG) | Collective Screen (OS) or Individual + Overall (PiMF / IS+OS) | Oil-resistant PVC, PE/PVC, or LSZH + SWA (BS 5308 / EN 50288-7) | Fixed onshore refinery cable trays, conduits, and marshalling cabinets with zero equipment vibration |
| Solid / Stranded Triad Cable (1T to 24T) | Class 1 Solid or Class 2 (7-wire) 0.5, 0.75, 1.0, 1.5 mm² (20–16 AWG) | Individual Triad Screen (TiMF) + Overall Al/PET Tape & Drain Wire | XLPE/EPR insulation + Oil/Gas-resistant PVC, LSZH, or FEP/PFA | 3-wire Pt100 RTD temperature transmitters and hydrocarbon process monitoring (view 200°C RTD cable) |
| Stranded Pair Cable (1P to 36P) | Class 2 Stranded (7-wire) 0.5 to 2.5 mm² (20–14 AWG) | IS+OS Aluminum/Mylar tape or Tinned Copper Braid | SHF2, SHF Mud (NEK 606), or Polyamide + PVC/LSZH | Offshore platforms, FPSOs, and petrochemical pipe racks with moderate structural vibration |
| Flexible Control & Pair Cable | Class 5 Fine Stranded 0.5 to 4.0 mm² (20–12 AWG) | Tinned Copper Braid Screen (≥80% coverage) | Cross-linked Elastomer (EPR/PCP) or Polyurethane (PUR) | Wellhead skids, mud pumps, mobile drilling equipment, and gasoline/oil splash zones |
Start with the exposure and installation route
Describe where the cable will run and what it can contact during normal operation, maintenance, and foreseeable upset conditions. Separate continuous immersion, splash or drip exposure, occasional solvent cleaning, and hydrocarbon vapour exposure. Also identify whether the route is fixed in tray or conduit, installed in a multi-cable transit, direct-buried with a moisture/hydrocarbon barrier, exposed to solar UV, or mounted on vibrating machinery.
Cable schedule information to confirm
| Project input | Engineering specification to verify | Why it matters |
|---|---|---|
| Circuit function & voltage | 150/250V, 300V, or 300/500V instrumentation vs. 0.6/1kV control | Distinguishes 4–20 mA / HART / RTD pair/triad loops from power and ESD control circuits. |
| Conductor & core geometry | Class 1 solid vs. Class 2/5 stranded; Pair (2C), Triad (3C), or Quad (4C) | Prevents work-hardening breakage of solid conductors on vibrating skids and ensures proper terminal clamping. |
| Screening & earth continuity | Collective Al/PET tape (OS), Individual Pair Screen (PiMF / IS+OS), or Copper Braid | Eliminates electromagnetic interference (EMI) and inter-pair crosstalk near VFD motors and power feeders. |
| Hydrocarbon & gas exposure | IR2 / IRM 902 mineral oil, diesel, drilling mud (NEK 606), aromatic fuels, H2S | Determines whether standard oil-resistant PVC/LSZH suffices or a polyamide barrier / SHF Mud / fluoropolymer sheath is needed. |
| Mechanical duty & armouring | Unarmoured tray, Galvanized Steel Wire Armour (SWA), or Steel Wire Braid (SWB) | Sets minimum bending radius (typically 6× to 12× OD) and crush protection in hazardous zones. |
| Governing standards | EN 50288-7, BS 5308 Part 1/2, IEC 60092-376, IEC 60332-3, IEC 60331 | Aligns factory test reports, flame/fire survival ratings, and drum markings with project acceptance rules. |
Use the approved cable schedule and equipment documentation as the source of truth. If the cable is a replacement, record the existing jacket marking, termination details, route photographs, and any recurring failure location before selecting a new construction.
Installation checks before pulling or terminating
- Confirm that the cable drum, label, conductor class (solid vs. stranded), and pair/triad count match the approved project schedule.
- Check the planned route for sharp tray edges, unsupported spans, standing hydrocarbon liquid, crushing points, and multi-cable transit constraints.
- Verify the minimum bending radius and maximum pulling tension against the exact product datasheet—solid-conductor and armoured cables require larger bend radii than flexible stranded cords.
- Confirm that Ex-rated cable glands, lugs, foil drain wires, overall screens, and armour earthing clamps match the cable outer diameter and hazardous-area enclosure classification.
- Keep handling and megger/continuity inspection records with the installation package so the route can be audited prior to commissioning.
Inspection, testing and documentation
Testing requirements depend on the project, cable type, and governing specification. Do not treat a generic continuity or insulation-resistance check as proof that a cable is suitable for aromatic hydrocarbons, sour gas, fire survival, or offshore mud exposure. Confirm the required factory acceptance tests (FAT) and site acceptance tests (SAT) against the project specification.
| Document or test record | Verification purpose before release or energization |
|---|---|
| Approved cable datasheet & drawing | Confirms conductor stranding (Class 1/2/5), insulation thickness, pair lay length, mutual capacitance, L/R ratio, and operating temperature. |
| Project cable schedule | Matches each drum length to the exact loop tag, hazardous zone classification, and termination cabinet. |
| Factory test report (FAT) | Verifies conductor DC resistance, spark test, high-voltage dielectric test, and applicable IEC 60332-3 / IEC 60331 / oil-immersion compliance. |
| Site inspection & SAT record | Documents post-pull insulation resistance (IR), pair-to-pair continuity, screen drain-wire isolation, and Ex gland torque checks. |
For a material-focused review of elastomer and polymer oil resistance, read our oil resistant cable guide. For petrochemical pair selection, see instrumentation pair cables for petrochemical plants and our oil, gas and marine cable solutions.
Do not substitute product families by name alone

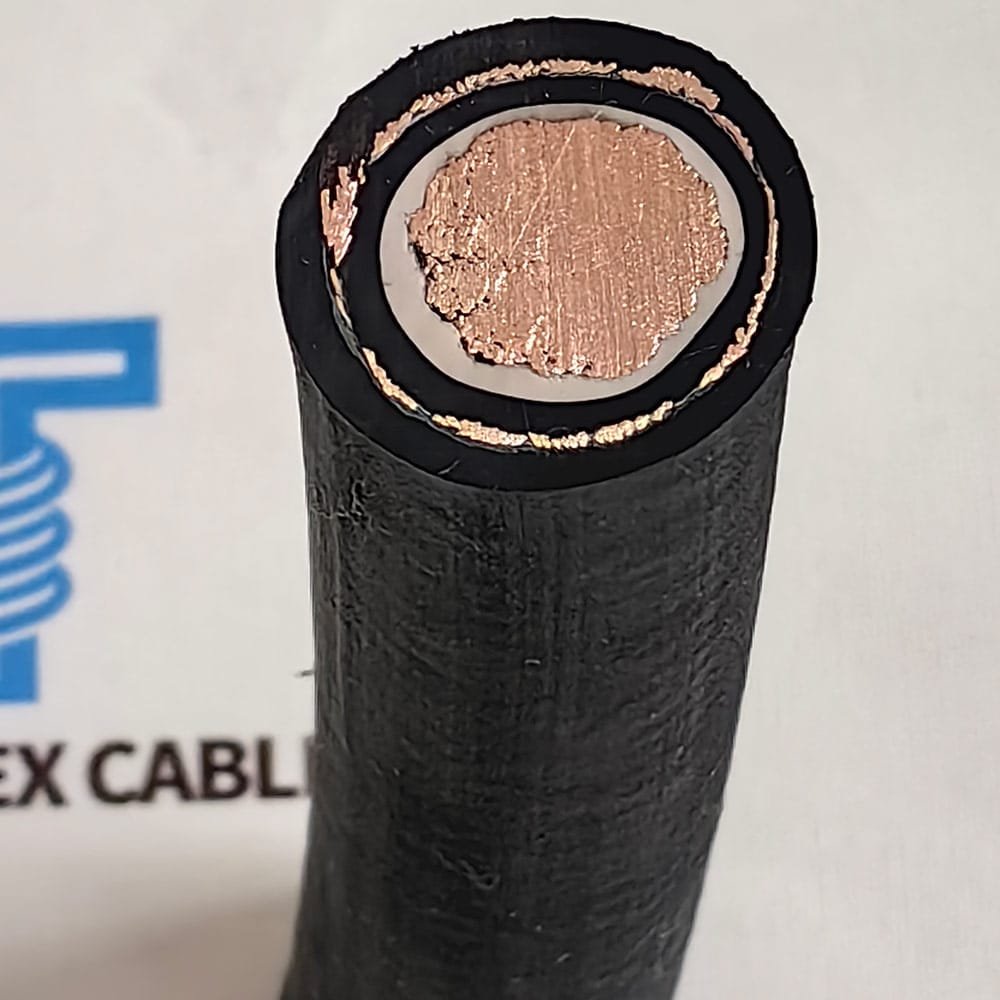

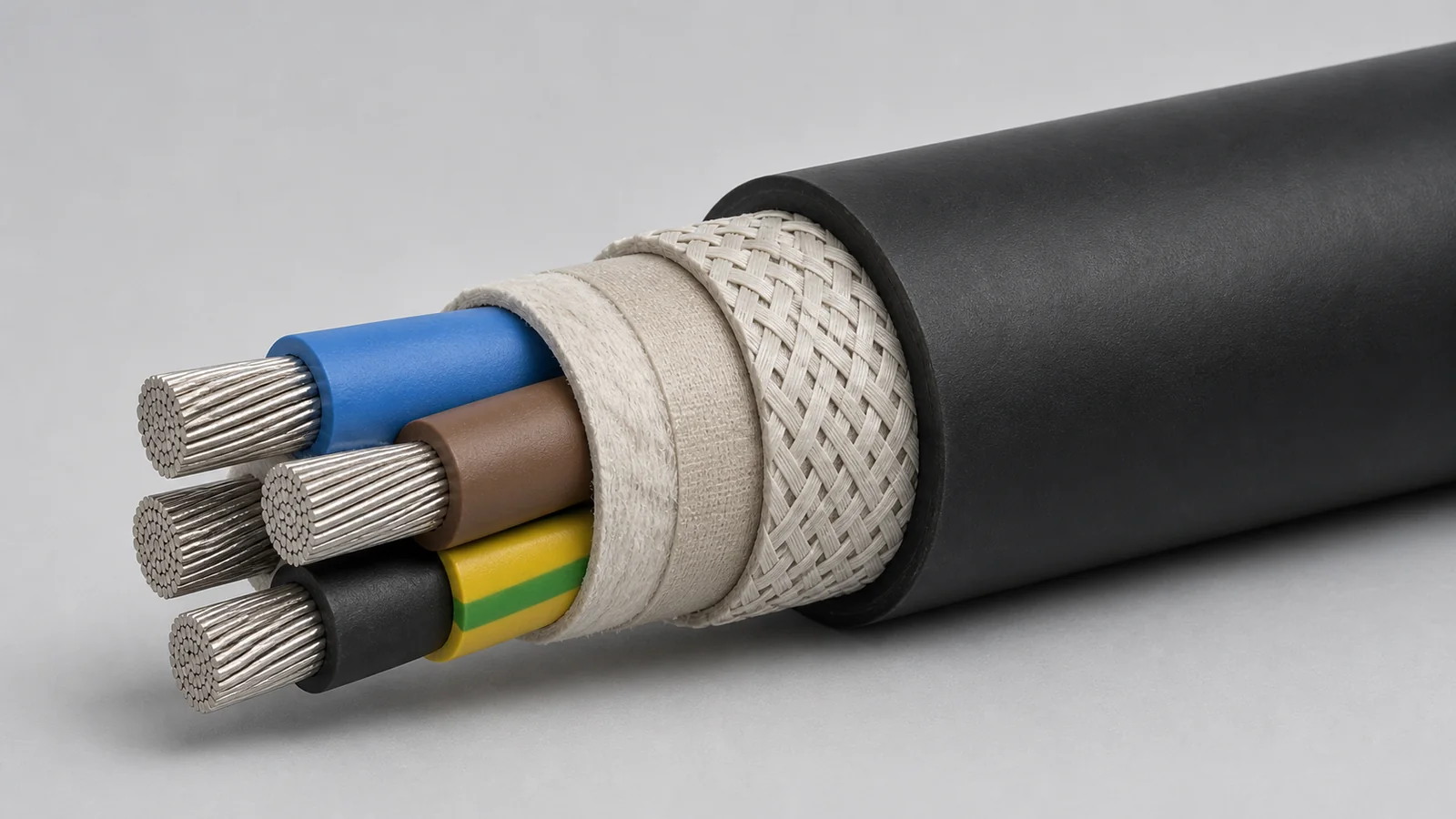

Offshore power cables, marine control cables, and instrumentation pair cables often run on adjacent racks, but they cannot be interchanged without engineering verification. BFOU and RFOU (0.6/1kV) are offshore power and control families; if your specification calls for NEK 606 offshore instrumentation, specify the corresponding 250V paired/triad construction (BFOU(i) / RFOU(i) or BUOU / RUOU). Review our BFOU vs RFOU offshore cable comparison when comparing fire-resistant versus flame-retardant offshore cables.
Frequently Asked Questions
When should solid pair vs stranded pair cables be used in oil and gas plants?
Class 1 solid pair and triad cables (0.5 mm² to 1.5 mm² per EN 50288-7 / BS 5308) are specified for fixed onshore refinery trays, conduits, and marshalling cabinets with no mechanical vibration. Class 2 stranded (7-wire) or Class 5 flexible pairs are selected for compressor skids, offshore topsides, and pump units exposed to continuous vibration or periodic maintenance movement.
How do gas and oil resistant pair cables prevent hydrocarbon and H2S degradation?
Hydrocarbon and sour-gas resistant instrumentation cables combine XLPE or EPR core insulation with an oil-, mud-, and aliphatic-hydrocarbon-resistant outer jacket (such as SHF2, PUR, PVC/NBR, or a polyamide barrier under BS 5308 Part 1 Type 2 / EN 50288-7) plus optional galvanized steel wire armour (SWA) or tinned copper braid.
What is the difference between pair and triad instrumentation cables?
A twisted pair (2 cores) carries 4–20 mA analog loops, HART signals, or RS-485 fieldbus circuits, while a triad (3 twisted cores) connects 3-wire RTD temperature sensors (such as Pt100) to compensate for lead-wire resistance over long petrochemical tray runs.
Can BFOU or RFOU offshore power cables substitute for screened solid-pair instrumentation cables?
No. BFOU and RFOU are 0.6/1kV power and control cable families under NEK 606. Instrumentation loops require twisted pair or triad geometry with individual and overall foil screening (PiMF/OS, 250V–500V) to control capacitance, L/R ratio, and electromagnetic interference.
