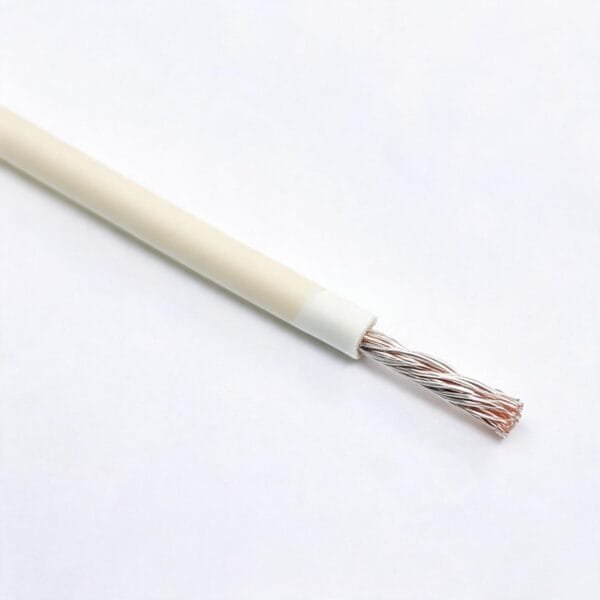

UL 1584 PTFE High Temperature Wire is a premium 1000V-rated wire featuring PTFE (polytetrafluoroethylene) insulation and a wide operating temperature range from -65 degrees C to +250 degrees C. This high-temperature wire is available with multiple conductor options including bare copper, tinned copper, nickel-plated copper, and silver-plated copper, in both stranded and solid constructions across AWG 32 through AWG 10. Approved under UL 758 with VW-1 and FT1 flame ratings, this wire delivers exceptional UV resistance, chemical resistance, and mechanical strength for demanding high-voltage, high-temperature applications.
Construction
| Component | Specification |
|---|---|
| Conductor Options | Bare copper, tinned copper, nickel-plated copper, or silver-plated copper |
| Conductor Constructions | Stranded (flexible) and solid options available |
| Insulation | PTFE (Polytetrafluoroethylene) |
| Insulation Wall Thickness | 0.022 in (0.56 mm) — uniform across all AWG sizes |
| Operating Temperature | -65 degrees C to +250 degrees C |
| Rated Voltage | 1000V |
| Test Voltage | 3000V |
| Available Sizes | AWG 32, 30, 28, 26, 24, 22, 20, 18, 17, 16, 14, 12, 10 |
| Flame Rating | Horizontal flame, FT1, VW-1 (per UL approval) |
| UL Standard | UL 758 (Appliance Wiring Material) |
| Brand | TEBAOFLEX |
Applications
- Internal cabling for electrical appliances and electronic appliances
- Cabling for industrial machines
- Cabling for rotating machines and electromechanical equipment
- Cabling for household electrical heating appliances
- High-temperature wiring in oven, furnace, and heater applications
- UV-exposed outdoor wiring installations
- Chemical environment wiring
Key Features
- Wide temperature range — -65 degrees C to +250 degrees C, suitable for both extreme cold and extreme heat applications
- 1000V voltage rating — higher voltage capacity than standard 300V and 600V high temperature wires
- PTFE insulation — excellent thermal stability, chemical resistance, and dielectric properties
- Multiple conductor options — bare copper, tinned copper, nickel-plated copper, and silver-plated copper to meet diverse application needs
- Stranded or solid construction — flexibility options for different installation and application requirements
- Broad size range — AWG 32 through AWG 10 for diverse current-carrying and space requirements
- UL 758 approved — meets Appliance Wiring Material standards with VW-1 and FT1 flame ratings
- Excellent UV resistance — suitable for outdoor and UV-exposed applications
- Superior chemical resistance — withstands aggressive chemical environments
- Excellent humidity resistance — reliable performance in high-humidity conditions
- Excellent mechanical strength — durable for demanding industrial applications
- Uniform wall thickness — 0.022 inch (0.56 mm) consistent across all sizes for predictable electrical performance
Product Specifications — Full AWG Range
| AWG | Construction | Cond. Dia. (in) | Cond. Dia. (mm) | Wall Thick. (in) | Wall Thick. (mm) | Final O.D. (in) | Final O.D. (mm) | Weight (lb/kft) | Weight (kg/km) |
|---|---|---|---|---|---|---|---|---|---|
| 10 | 37 strands | 0.119 | 3.01 | 0.022 | 0.56 | 0.163 | 4.13 | 42.74 | 63.60 |
| 12 | 19 strands | 0.096 | 2.45 | 0.022 | 0.56 | 0.141 | 3.57 | 28.90 | 43.00 |
| 14 | 19 strands | 0.073 | 1.85 | 0.022 | 0.56 | 0.117 | 2.97 | 19.42 | 24.40 |
| 16 | 19 strands | 0.059 | 1.50 | 0.022 | 0.56 | 0.103 | 2.62 | 13.91 | 16.40 |
| 17 | 19 strands | 0.051 | 1.30 | 0.022 | 0.56 | 0.095 | 2.42 | — | 14.80 |
| 18 | 19 strands | 0.045 | 1.15 | 0.022 | 0.56 | 0.089 | 2.27 | 11.16 | 13.10 |
| 20 (stranded) | 19 strands | 0.037 | 0.95 | 0.022 | 0.56 | 0.081 | 2.07 | 8.27 | 12.30 |
| 20 (solid) | 1 solid | 0.031 | 0.80 | 0.022 | 0.56 | 0.076 | 1.92 | 7.46 | 11.10 |
| 22 (stranded) | 19 strands | 0.031 | 0.80 | 0.022 | 0.56 | 0.076 | 1.92 | 6.23 | 9.27 |
| 22 (solid) | 1 solid | 0.026 | 0.65 | 0.022 | 0.56 | 0.070 | 1.77 | 5.45 | 8.11 |
| 24 (stranded) | 7 strands | 0.024 | 0.60 | 0.022 | 0.56 | 0.068 | 1.72 | 4.91 | 7.30 |
| 24 (solid) | 1 solid | 0.020 | 0.50 | 0.022 | 0.56 | 0.064 | 1.62 | 4.43 | 6.59 |
| 26 (stranded) | 7 strands | 0.019 | 0.48 | 0.022 | 0.56 | 0.063 | 1.60 | 4.03 | 6.00 |
| 26 (solid) | 1 solid | 0.016 | 0.40 | 0.022 | 0.56 | 0.060 | 1.52 | 3.64 | 5.41 |
| 28 (stranded) | 7 strands | 0.014 | 0.36 | 0.022 | 0.56 | 0.058 | 1.48 | 3.28 | 4.88 |
| 28 (solid) | 1 solid | 0.013 | 0.32 | 0.022 | 0.56 | 0.057 | 1.44 | 3.09 | 4.60 |
| 30 (stranded) | 7 strands | 0.012 | 0.30 | 0.022 | 0.56 | 0.056 | 1.42 | 2.87 | 4.27 |
| 30 (solid) | 1 solid | 0.010 | 0.254 | 0.022 | 0.56 | 0.054 | 1.374 | 2.69 | 4.01 |
| 32 (stranded) | 7 strands | 0.009 | 0.24 | 0.022 | 0.56 | 0.054 | 1.36 | 2.59 | 3.86 |
| 32 (solid) | 1 solid | 0.008 | 0.20 | 0.022 | 0.56 | 0.052 | 1.32 | 2.49 | 3.70 |
All dimensions are nominal. Wall thickness is uniform 0.022 inch (0.56 mm) across all AWG sizes. Both stranded and solid conductor options available for most sizes. Special requirements available upon consultation.
Why Choose TEBAOFLEX UL 1584 PTFE Wire?
TEBAOFLEX UL 1584 PTFE high temperature wire stands out with its 1000V voltage rating and broad -65 degrees C to +250 degrees C temperature range, making it an excellent choice for high-voltage, high-temperature applications where standard 300V or 600V wires fall short. With four conductor options (bare copper, tinned copper, nickel-plated copper, and silver-plated copper) and both stranded and solid constructions across AWG 32 through AWG 10, this wire offers unmatched versatility. Backed by UL 758 approval, VW-1 flame rating, and exceptional UV, chemical, and humidity resistance, it delivers reliable performance in appliance wiring, industrial machinery, rotating equipment, and household heating applications.
