H07G-U solid EVA rubber cable is designed for dependable electrical connections where its conductor construction, insulation system and stated temperature capability match the application.
Applications
H07G-U is a single-core cable for dry, clean internal installations that require a 450/750 V rating and a solid copper conductor. It is suited to fixed wiring applications within its specified installation conditions.
Construction

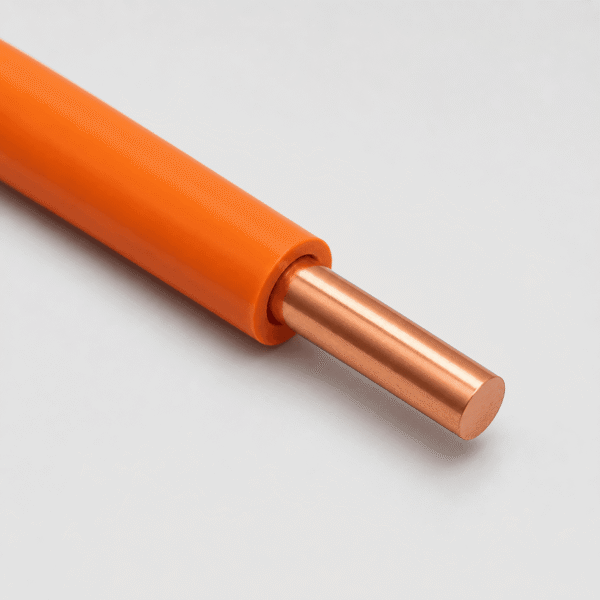

Class 1 solid bare copper conductor with EVA (ethylene vinyl acetate) rubber EI8 type insulation. Standard insulation colours include black, blue, grey, green/yellow, orange, red, pink, yellow, violet, brown and white.
Technical Parameters
| Parameter | Value |
|---|---|
| Rated voltage | 450/750 V |
| Conductor | Class 1 solid copper |
| Insulation | EVA rubber EI8 type |
| Maximum operating temperature | +110°C |
| Maximum conductor short-circuit temperature | 250°C |
| Minimum installation temperature | +5°C |
| Flame retardant | IEC/EN 60332-1-2 |
Selected Size Options
| Nominal cross-sectional area (mm²) | Minimum overall diameter (mm) | Maximum overall diameter (mm) | Nominal weight (kg/km) |
|---|---|---|---|
| 1.5 | 2.8 | 3.5 | 25 |
| 2.5 | 3.4 | 4.3 | 38 |
| 4 | 4.0 | 5.0 | 57 |
| 6 | 4.5 | 5.6 | 79 |
| 10 | 5.7 | 7.1 | 129 |
Dimensions and weights are nominal values. Confirm conductor size, colour and installation conditions before ordering.
