UL 1199 600V 200°C PTFE High-Temperature Wire
UL 1199 PTFE wire is a 600 V single-core high-temperature wiring option for equipment that requires a 200°C conductor temperature class. It helps procurement and engineering teams distinguish a genuine high-temperature requirement from a general 600 V wire requirement, especially where heat, dielectric stress and compact internal routing must be considered together.
TEBAOFLEX can review conductor size, stranding, insulation build, color, printing and packing to suit the project. Consequently, the quoted construction can reflect the equipment environment and installation method rather than only a catalogue description.
Solve the 200°C 600 V Wiring Selection Problem
When 150°C is not enough
Higher-temperature assemblies may need a 200°C conductor temperature class. UL 1199 gives buyers a distinct selection route when the equipment specification exceeds the UL 1198 150°C class.
Heat and dielectric margin in one construction
Extruded PTFE is selected for demanding insulation environments. The final wall thickness, conductor size and stranding must still be matched to the required voltage, installation route, termination process and complete system design.
Clear requirements for quotation
To avoid an unsuitable build, customers should provide the AWG, maximum conductor temperature, routing space, chemical or oil exposure, color, length and required approval documentation. Then TEBAOFLEX can assess the construction before production.
Construction

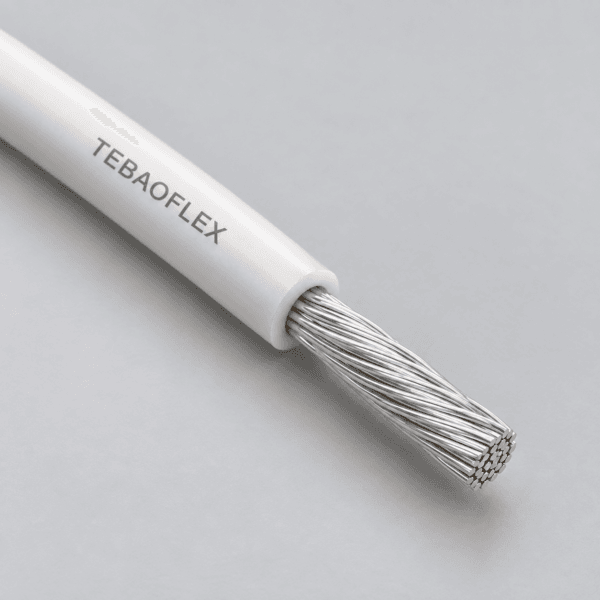

The proposed UL 1199 construction uses silver-plated copper and extruded PTFE insulation. This page describes a high-temperature internal wiring solution; it does not claim suitability for immersion, unrestricted outdoor use or dynamic cable-track service without a separate engineering review.
Technical Overview
| Item | Specification |
|---|---|
| Product model | UL 1199 |
| Rated voltage | 600 V |
| Temperature rating | 200°C conductor rating; confirm system limits separately |
| Conductor | Silver-plated copper; stranding confirmed by AWG and application |
| Insulation | Extruded PTFE |
| Proposed size range | 30 AWG to 8 AWG, subject to final construction review |
| Color and marking | Color, tracer and printing options reviewed with the order |
| Compliance scope | Final marking and project documentation confirmed before production |
Typical Applications
UL 1199 600 V 200°C PTFE wire can be evaluated for high-heat appliances, industrial heating equipment, thermal-process machinery, instruments and protected internal electrical assemblies. The customer should confirm the conductor temperature, local ambient temperature, connection hardware and applicable installation standard as part of the engineering review.
UL 1199 versus UL 1198
Use UL 1199 when the design calls for a 200°C temperature class. If the specified conductor temperature is up to 150°C, see UL 1198 600V 150°C PTFE high-temperature wire. This distinction gives customers a faster, more defensible starting point for high-temperature wire selection.
Request a Quote
Need a 600 V PTFE wire for a 200°C equipment requirement? Send Your Requirements with AWG, temperature, environment, length, quantity and documentation requirements.
