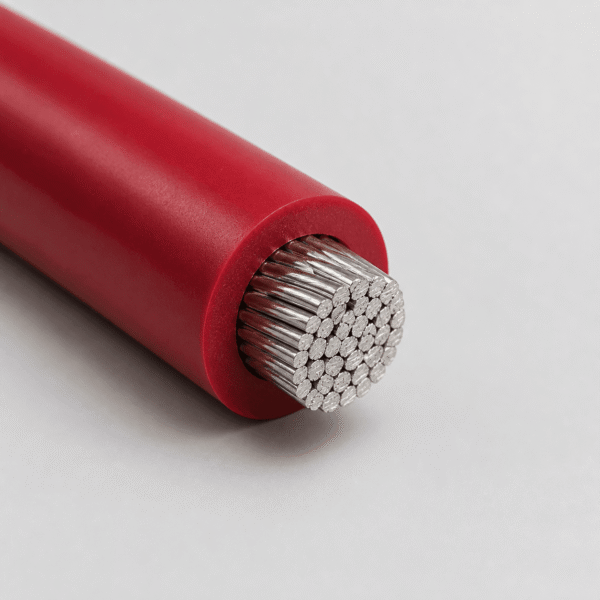

Type P 2kV-HD Single Conductor Unarmored Marine Power Cable is a heavy-wall 2,000 V AC single-core cable for large-gauge shipboard, offshore and industrial power circuits. The HD construction uses a thicker irradiated XLPO insulation wall while retaining a flexible soft-annealed tinned copper conductor.
Marine, Offshore and Industrial Applications
This single-conductor Type P cable is intended for fixed or floating marine facilities, shipboard power systems, land-based installations and oilfield equipment. It is suitable for cabinet and raceway installations when the selected configuration and installation rules are verified for the project.
Construction and Material Performance
- Flexible soft-annealed tinned copper conductors provide reliable termination and flexibility.
- Irradiated cross-linked polyolefin insulation is selected for dielectric performance and resistance to oil, drilling fluids, moisture, abrasion and UV exposure.
- The unarmoured construction supports installations where a compact, single-core power cable is required.
- Final compliance, approvals and ampacity must be confirmed against the selected size and project specification.
Technical Parameters
| Parameter | Value |
|---|---|
| Rated voltage | 2,000 V AC, phase-to-phase |
| Conductor range | 4/0 AWG to 1111 kcmil |
| Conductor | Flexible soft-annealed tinned copper |
| Insulation | Heavy-wall irradiated cross-linked polyolefin (XLPO), Type P |
| Maximum insulation operating temperature | 125°C |
| Typical continuous temperature reference | 110°C, subject to the applicable installation standard |
| Design references | 46 CFR Parts 110 & 111; API RP-14F/FZ; IEEE 45.8; IEC 61892-4; IEC 60092-350/353/360 |
| Construction | Single conductor, unarmoured, heavy-wall insulation |
Representative Size Data
| Conductor Size | Nominal Area | Overall Diameter | Approx. Weight | Ampacity at 45°C |
|---|---|---|---|---|
| 4/0 AWG | 113 mm² | 20.11 mm | 1296 kg/km | 351 A at 100°C |
| 262 kcmil | 132 mm² | 21.56 mm | 1506 kg/km | 407 A at 100°C |
| 444 kcmil | 227 mm² | 26.46 mm | 2464 kg/km | 588 A at 100°C |
| 600 kcmil | 303 mm² | 31.07 mm | 3334 kg/km | 678 A at 100°C |
| 777 kcmil | 394 mm² | 33.61 mm | 4180 kg/km | 822 A at 100°C |
| 1111 kcmil | 562 mm² | 38.61 mm | 5533 kg/km | 1025 A at 100°C |
Specification Support
Provide the conductor size, routing, maximum temperature, installation method and required documentation. TEBAOFLEX can help determine whether the heavy-wall 2kV-HD construction is appropriate for the application.
