What Is (N)TSCGEWOEU Cable?
The (N)TSCGEWOEU cable is a medium voltage reeling and trailing cable designed for heavy-duty mining and industrial applications, manufactured to VDE 0250-813 standard. Rated for voltages from 3.6/6kV up to 18/30kV, it features EPR insulation, copper wire screening, polyester anti-torsion braid, and a rugged rubber outer sheath. The “(N)” designation indicates neoprene (polychloroprene) rubber sheath, “TSCG” indicates mining cable type with screened construction, and “EWOEU” denotes EPR insulation with copper wire screen and rubber sheath.
TEBAOFLEX manufactures the complete (N)TSCGEWOEU cable family including standard MT, compact MT PLUS, VFD-optimized EMV FC, heavy-duty TR, and fibre optic integrated variants. View our (N)TSCGEWOEU 3+3 trailing cable product page for detailed specifications.
(N)TSCGEWOEU Cable Construction

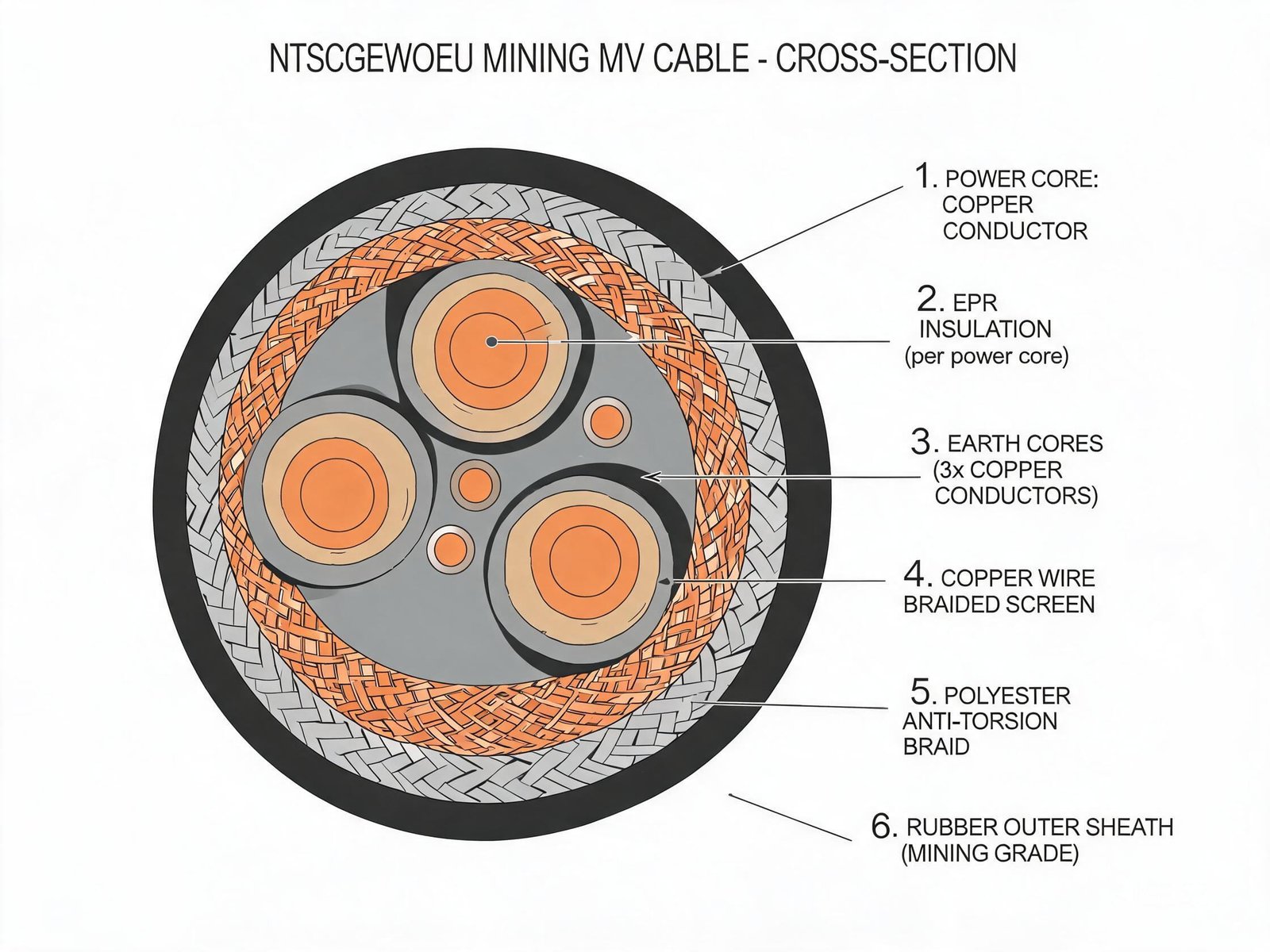

The (N)TSCGEWOEU features a robust multi-layer construction engineered for the extreme mechanical and electrical demands of medium voltage mining operations:
Conductor
- Material: Tinned copper (Class 5 per IEC 60228 / VDE 0295)
- Type: Fine-stranded flexible copper conductor for repeated flexing
- Configuration: 3 power cores + 3 earth cores (3+3 design) for balanced impedance
- Sizes: 35mm² to 240mm² per core
Insulation
- Material: EPR (ethylene propylene rubber) — high dielectric strength and thermal stability
- Rating: 3.6/6kV to 18/30kV depending on variant
- Insulation thickness: Per VDE 0250-813, varies by voltage level (typically 2.5mm to 5.5mm)
Screening
- Conductor screen: Semi-conductive layer over each power core for uniform electrical field distribution
- Core screen: Copper wire braid over each insulated core
- Overall screen: Copper wire braided screen over the laid-up cores
Anti-Torsion Layer
- Material: High-tenacity polyester braid
- Function: Provides torsional stability during reeling/unreeling cycles, prevents cable twist damage
Outer Sheath
- Material: Heavy-duty PCP (polychloroprene) or CSM rubber compound
- Color: Red (standard MT), Black (TR version), or custom per request
- Properties: Exceptional abrasion resistance, UV resistant, oil resistant, flame retardant
- Temperature range: -25°C to +80°C
Technical Specifications
| Parameter | Specification |
|---|---|
| Standard | VDE 0250-813 |
| Voltage Rating | 3.6/6kV to 18/30kV (U0/U) |
| Conductor | Class 5 tinned fine-stranded copper per IEC 60228 |
| Insulation | EPR (ethylene propylene rubber) |
| Screen | Copper wire braid over each core + overall |
| Anti-Torsion | Polyester braid |
| Sheath | PCP/CR or CSM rubber |
| Max Conductor Temperature | 90°C (EPR insulation) |
| Min Operating Temperature | -25°C |
| Min Bending Radius | 8× OD (fixed), 12× OD (reeling) |
| Flame Retardancy | IEC 60332-1-2 (self-extinguishing) |
| Core Configuration | 3+3 (3 power + 3 earth) |
| Conductor Sizes | 35mm² to 240mm² |

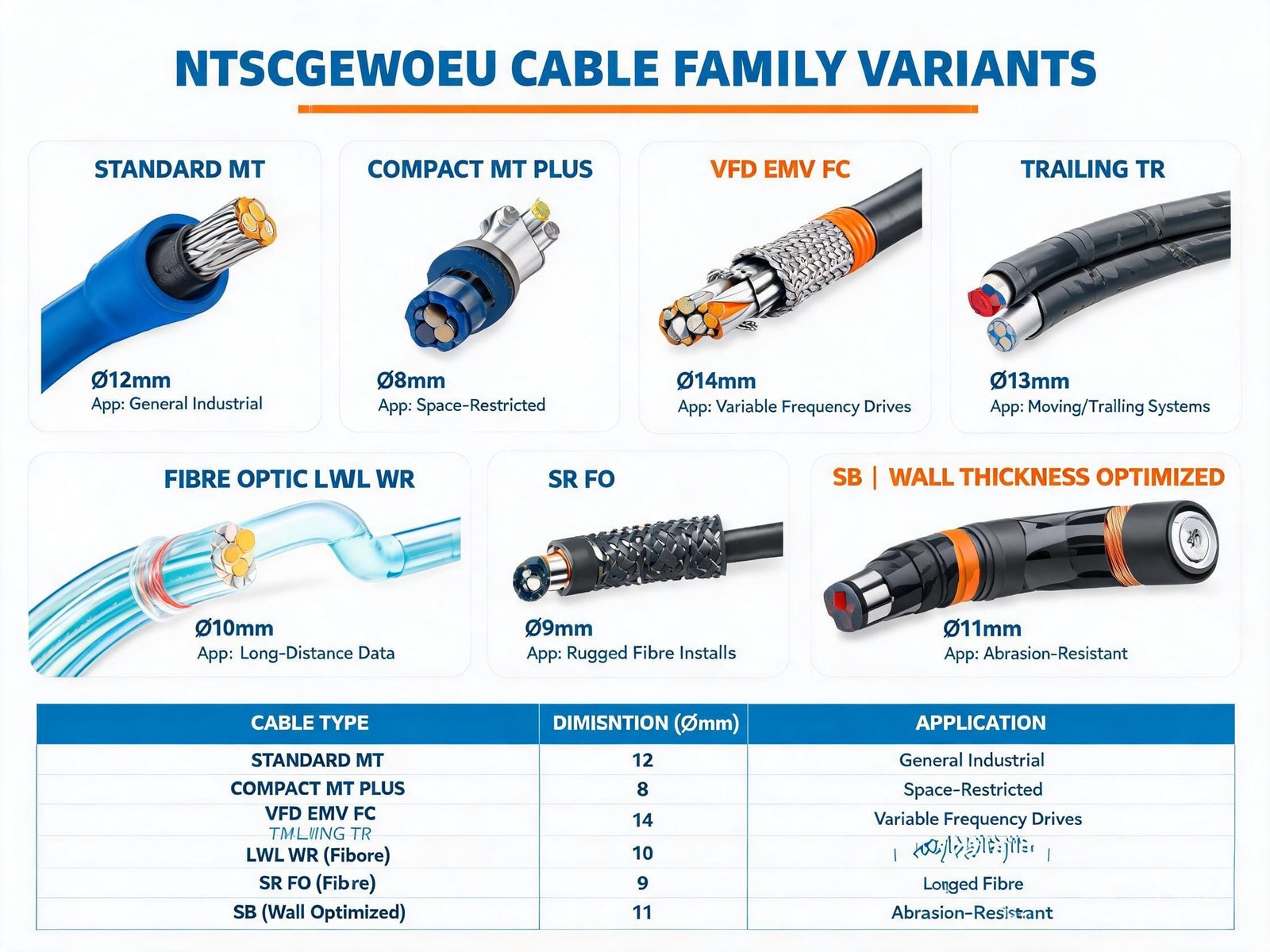

(N)TSCGEWOEU Cable Family Variants
TEBAOFLEX manufactures multiple (N)TSCGEWOEU variants for different mining applications:
| Variant | Voltage | Key Feature | Product Page |
|---|---|---|---|
| (N)TSCGEWOEU MT | 3.6/6kV – 12/20kV | Standard MV reeling cable | View → |
| (N)TSCGEWOEU MT PLUS | 3.6/6kV – 12/20kV | Compact: reduced weight & diameter | View → |
| (N)TSCGEWOEU EMV FC | 3.6/6kV – 12/20kV | VFD optimized EMC reeling cable | View → |
| (N)TSCGEWOEU-TR | 3.6/6kV – 18/30kV | Heavy-duty trailing for open-pit | View → |
| (N)TSCGEWOEU LWL WR | 3.6/6kV – 12/20kV | Integrated fibre optics | View → |
| (N)TSCGEWOEU-SR FO | 3.6/6kV – 12/20kV | Heavy-duty with fibre optics | View → |
| (N)TSCGEWOEU SB | 6/10kV | Optimized wall thickness | View → |
Available Configurations
| Core Config | Conductor Size | Voltage | Typical Application |
|---|---|---|---|
| 3+3 (3 power + 3 earth) | 35mm² | 3.6/6kV | Small excavators, loaders |
| 3+3 (3 power + 3 earth) | 50mm² | 3.6/6kV – 6/10kV | Medium mining equipment |
| 3+3 (3 power + 3 earth) | 70mm² | 3.6/6kV – 12/20kV | Large excavators, shovels |
| 3+3 (3 power + 3 earth) | 95mm² | 6/10kV – 12/20kV | Heavy draglines |
| 3+3 (3 power + 3 earth) | 120mm² | 6/10kV – 18/30kV | Very heavy equipment |
| 3+3 (3 power + 3 earth) | 150mm² | 12/20kV – 18/30kV | Ultra-heavy mining |
| 3+3 (3 power + 3 earth) | 185mm² | 12/20kV – 18/30kV | High-power shovels |
| 3+3 (3 power + 3 earth) | 240mm² | 12/20kV – 18/30kV | Maximum power excavators |
Standards and Certifications
- VDE 0250-813: German standard for mining cables with rated voltages up to 30kV
- IEC 60228 / VDE 0295: Conductor standards (Class 5 fine-stranded)
- IEC 60332-1-2: Flame retardancy test
- IEC 60754: Gas evolution and acidity test
- Coal Mine Safety: Chinese mining safety certification available
- ISO 9001: Quality management system certified
(N)TSCGEWOEU Selection Guide
- Determine voltage: 3.6/6kV, 6/10kV, 12/20kV, or 18/30kV based on equipment rating
- Calculate current: Full-load current of mining equipment
- Choose variant: MT (standard), MT PLUS (compact), EMV FC (VFD), TR (heavy-duty), or fibre optic version

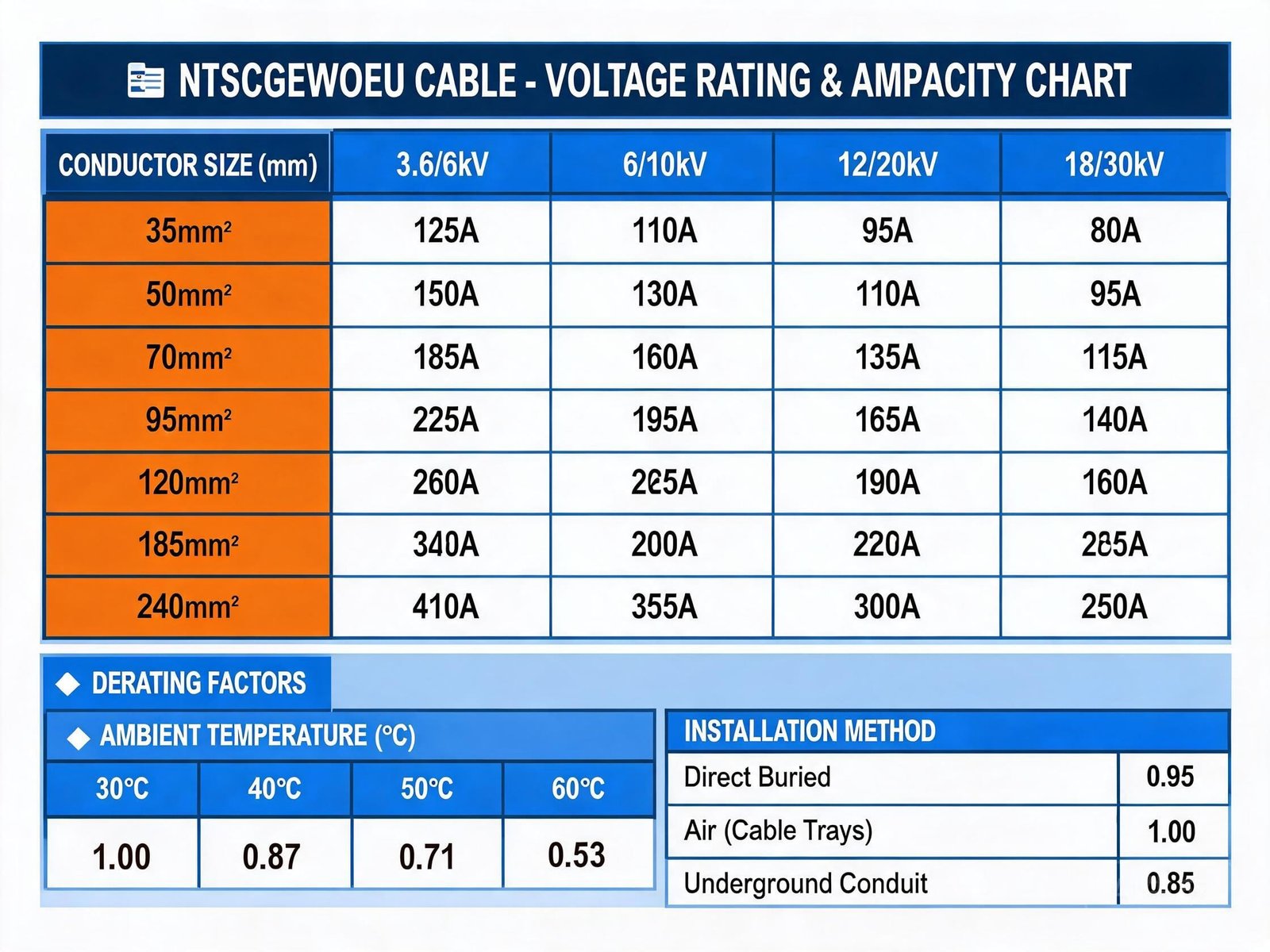

- Select conductor size: Based on ampacity with derating for temperature and grouping
- Verify bending radius: Ensure cable drum and routing accommodate 12× OD minimum for reeling
- Confirm standard: VDE 0250-813 compliance for project specification
Why Choose TEBAOFLEX?
- Complete (N)TSCGEWOEU family: 7 variants from standard to fibre optic
- VDE 0250-813 compliant manufacturing
- 3+3 configuration for superior earth fault protection
- Premium EPR insulation for 90°C operation
- Polyester anti-torsion braid for extended flex life
- Global mining project experience across 4 continents
- Factory-direct competitive pricing
Contact TEBAOFLEX for technical support and pricing on (N)TSCGEWOEU cable.
