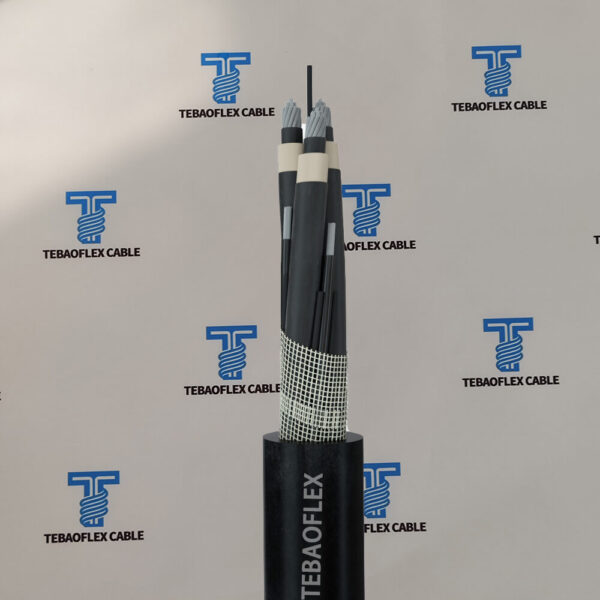

  1. (N)TSCGEWOEU-TR medium voltage trailing cable with black 5GM5 sheath for open-pit mining by TEBAOFLEX

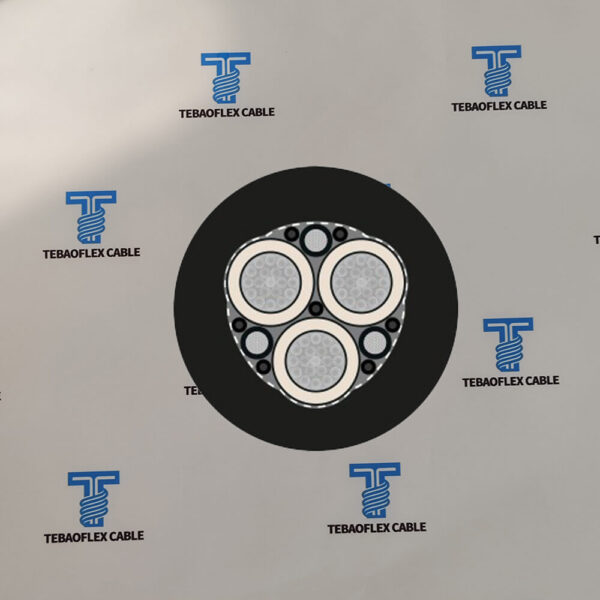

  2. Cross section of (N)TSCGEWOEU-TR showing 3 power cores, 3 earth cores and bonded 5GM5 sheath system

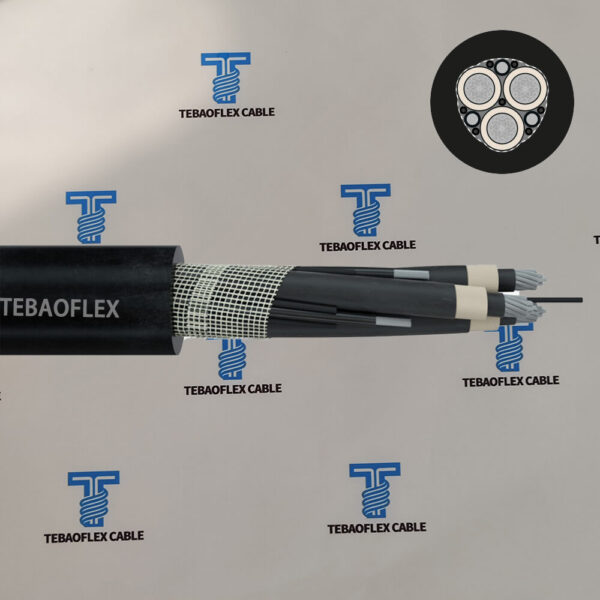

  3. Black UV-resistant 5GM5 outer sheath of (N)TSCGEWOEU-TR trailing cable

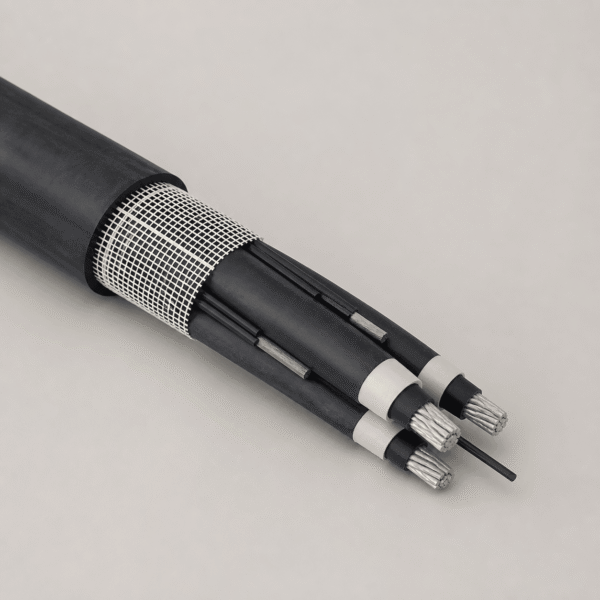

(N)TSCGEWOEU-TR 3.6/6kV – 18/30kV MV Trailing Cable | Heavy-Duty Open-Pit Mining

(N)TSCGEWOEU-TR is a heavy-duty medium voltage trailing cable specifically designed for open-pit mining equipment operating under extreme mechanical stress, abrasion, and tear during continuous trailing over rough terrain. Manufactured by TEBAOFLEX to VDE 0250-813, the TR variant features enhanced 5GM5 inner and outer sheath system with improved tear and abrasion resistance, bonded sheath construction, and a black outer sheath optimized for UV and wear resistance. Rated from 3.6/6kV to 18/30kV with a 3+3 core configuration, it is the preferred cable for draglines, excavators, mobile crushers, and dumpers where the cable is dragged across rock, gravel, and soil surfaces.

Categories: , Tags: ,

(N)TSCGEWOEU-TR — TEBAOFLEX MV Trailing Cable for Open-Pit Mining

What TR Means

TR designates the Trailing variant, specifically engineered for cables that are dragged behind mobile equipment across open-pit mine floors. Unlike reeling cables that wind onto drums in controlled layers, trailing cables are subjected to continuous abrasion against rock, gravel, and soil, impact from falling debris, and potential crushing by heavy vehicle tracks. The TR variant addresses these conditions through reinforced sheath design and optimized compound selection.

Key Differences from Standard (N)TSCGEWOEU

Feature Standard (N)TSCGEWOEU (N)TSCGEWOEU-TR
Primary Operation Reeling / Festoon Trailing / Drag
Outer Sheath Compound 5GM3 or 5GM5 5GM5 enhanced, improved tear/abrasion
Inner Sheath Double layer EPR 5GM5 bonded construction
Sheath Bonding Separate layers Inseparably bonded inner and outer
Sheath Colour Red Black
Abrasion Resistance High Very High (trailing-optimized)
Core Configuration 3 power + 3 earth 3 power + 3 earth
Voltage Range 3.6/6kV – 12/20kV 3.6/6kV – 18/30kV
Tensile Load 20 N/mm² 20 N/mm²
Primary Customer Crane / Festoon systems Open-pit mining operations

Construction

Layer Material
Phase Conductor Extra-fine stranded tinned copper, Class 5 / FS (VDE 0295)
Inner Semi-Conductive Layer Extruded semi-conductive rubber compound
Insulation HEPR compound (at least 3GI3 per VDE 0207-20)
Outer Semi-Conductive Layer Extruded semi-conductive rubber, cold strippable (Easy Strip)
Earth Conductors 3 x tinned copper Class 5 / FS, in core interstices
Central Filler Conductive compound on textile polyester support
Inner Sheath 5GM5 special compound, improved tear resistance
Anti-Torsion Braid Reinforced polyester thread braid, vulcanized bonded
Outer Sheath 5GM5 special compound, inseparably bonded to inner sheath, black

Core Configuration: 3 Power + 3 Earth

Technical Specifications

Parameter Value
Rated Voltage (Uo/U) 3.6/6kV — 6/10kV — 8.7/15kV — 12/20kV — 14/25kV — 18/30kV
Design Standard Based on DIN VDE 0250-813
Conductor Standard VDE 0295 / IEC 60228 Class 5 / FS
Max Conductor Temperature +90°C
Max Short Circuit Temperature +250°C
Ambient Temperature (Fixed) -50°C to +80°C
Ambient Temperature (Mobile) -35°C to +80°C
Min Bending Radius Acc. to DIN VDE 0298-3
Max Torsional Stress ±25°/m
Max Tensile Load 20 N/mm²
Dynamic Tensile (acceleration) Up to 30 N/mm²
Flame Retardant IEC 60332-1-2 / EN 60332-1-2
Oil Resistance DIN EN 60811-404
Abrasion Resistance Enhanced (trailing-optimized 5GM5)
Weather Resistance Unrestricted outdoor, UV, ozone, moisture resistant
Outer Sheath Colour Black
Sheath System Inseparably bonded inner and outer 5GM5

Dimensional Data — 3.6/6 kV

Cross Section (mm²) OD min-max (mm) Weight (kg/km) Tensile max (N)
3×25 + 3×10/3E 37-40 2,280 2,200
3×35 + 3×10/3E 40-43 2,750 3,100
3×50 + 3×10/3E 44-47 3,400 4,300
3×70 + 3×16/3E 47-50 4,100 5,100
3×95 + 3×16/3E 52-56 5,450 7,000
3×120 + 3×25/3E 56-60 6,650 8,500

Dimensional data for 6/10kV, 8.7/15kV, 12/20kV and higher grades available on request.

Why TR is Essential for Open-Pit Trailing

Hazard Standard Cable Risk TR Solution
Dragging over sharp rock Outer sheath cuts through, moisture ingress Enhanced 5GM5 tear resistance + bonded sheath prevents delamination
Repeated impact from falling debris Core deformation, conductor breakage Double 5GM5 sheath system absorbs impact energy
UV exposure in continuous sunlight Sheath cracking, reduced service life Black 5GM5 with superior UV stabilisation
Oil and fuel spills from mining equipment Sheath swelling, loss of mechanical properties Oil-resistant 5GM5 compound per EN 60811-404
Extreme temperature variation Sheath embrittlement in cold, softening in heat -50°C to +80°C fixed rating
Vehicle track crushing Permanent core damage Reinforced anti-torsion braid distributes crush load

Why Choose TEBAOFLEX (N)TSCGEWOEU-TR

TEBAOFLEX manufactures the TR variant with bonded 5GM5 sheath technology in our ISO 9001 certified facility. Each cable is tested for conductor resistance, high voltage withstand, and sheath integrity before dispatch. For open-pit mining operations where trailing cables are replaced every 6-18 months due to wear, the TR variant’s enhanced abrasion resistance provides measurably longer service life, reducing both cable replacement cost and operational downtime.

Standards and Certifications

Standard Scope
DIN VDE 0250-813 Cable design and testing
IEC 60228 / VDE 0295 Class 5 / FS Flexible conductor
IEC 60332-1-2 Flame retardant
DIN EN 60811-404 Oil resistance
RoHS Compliance
ISO 9001:2015 TEBAOFLEX quality management

Application Environments

Application Cable Role
Draglines and rope shovels Trailing power supply over pit floor, dragged behind machine movement
Mobile crushers and conveyors Power feed to semi-mobile processing plant, repositioned weekly
Excavators and backhoes Trailing cable dragged across bench surfaces
Dumpers and haul trucks Auxiliary power trailing for electric-drive trucks
Drilling rigs Power supply trailing behind tracked drill platforms
Open-pit mine dewatering pumps Submersible pump trailing cable on pit slope surfaces
