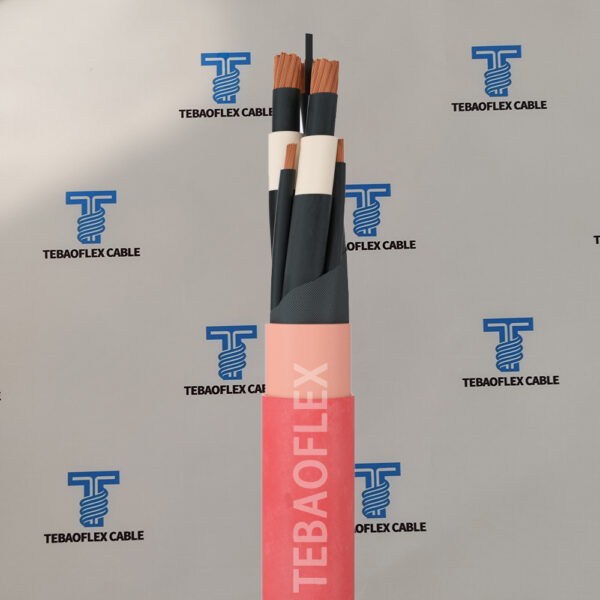

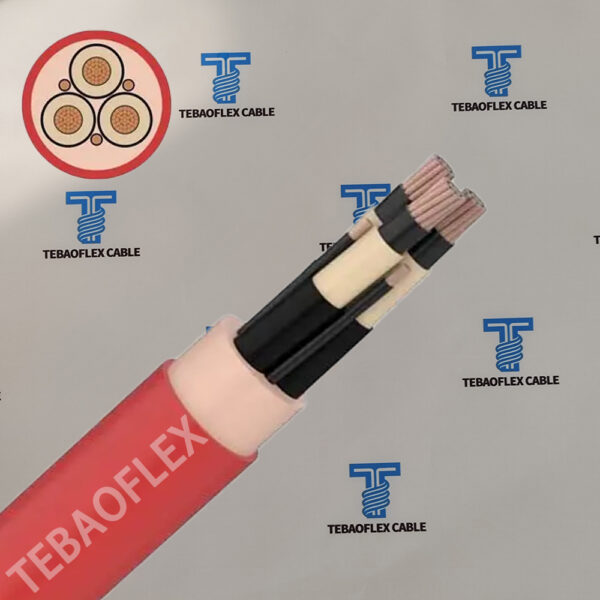

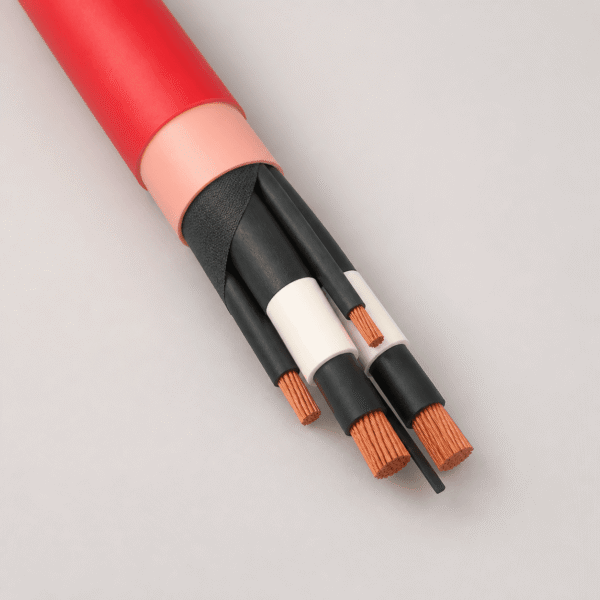

TEBAOFLEX (N)TSCGEWOEU SB is a flexible medium voltage mining cable designed for power supply in mines, tunnels and around large material-handling equipment.
The SB construction uses an optimized wall thickness to reduce the overall cable diameter and weight compared with standard designs. This can make handling, routing and installation easier, particularly where cable space is limited or equipment requires a compact medium voltage cable.
The cable is suitable for fixed energy distribution lines in mining areas and flexible power connections for mobile mining equipment. Its EPR insulation, semi-conductive layers, split earth conductor arrangement and heavy-duty rubber sheath provide reliable performance under mechanical stress, moisture, oil and demanding industrial conditions.
Typical Construction
- Conductor: Flexible stranded copper conductor, Class 5
- Conductor screen: Semi-conductive layer
- Insulation: EPR rubber insulation
- Insulation screen: Semi-conductive layer
- Earth conductors: Three split earth conductors arranged in the outer interstices
- Inner sheath: EPR or rubber compound
- Outer sheath: Heavy-duty rubber compound
- Cable design: 3 power cores + 3 earth conductors
- Outer sheath color: Red or customized
Technical Parameters
| Item | Typical Value |
|---|---|
| Product type | Flexible Medium Voltage Mining Cable |
| Model | (N)TSCGEWOEU SB |
| Rated voltage | 6/10kV |
| Maximum operating voltage | Up to 12kV in three-phase systems |
| Test voltage | Approx. 17kV |
| Conductor | Flexible copper, Class 5 |
| Insulation | EPR rubber compound |
| Core arrangement | 3 power cores + 3 split earth conductors |
| Outer sheath | Heavy-duty rubber |
| Cable design | Optimized wall thickness |
| Application | Mining, tunneling and material-handling equipment |
| Standard reference | DIN VDE 0250-813 style construction |
Final conductor cross-section, cable diameter, current capacity, temperature rating and sheath compound should be confirmed according to the selected TEBAOFLEX construction.
Applications
TEBAOFLEX (N)TSCGEWOEU SB is suitable for:
- Mining power distribution
- Tunnel equipment
- Mobile mining machinery
- Excavators and spreaders
- Material-handling equipment
- Conveyor and loading systems
- Fixed energy distribution near mining machinery
- Medium voltage industrial installations
For related products, you can link to Mining & Tunneling Cables, (N)TSCGEWOEU 3+3 Flexible MV Trailing Cable and Submersible & Underwater Cables.
FAQ
What is the SB version of TSCGEWOEU cable?
The SB version uses an optimized wall thickness to help reduce cable diameter and weight while maintaining the required medium voltage and mechanical performance.
What is the voltage rating of this cable?
This product is rated at 6/10kV. The maximum operating voltage in three-phase systems can reach approximately 12kV, subject to the selected construction.
Is this cable suitable for mobile mining equipment?
Yes. It is designed for mining power distribution and applications involving mobile equipment or material-handling machinery. The installation method and movement conditions should be checked before selection.
Project Selection Support
To select the TEBAOFLEX (N)TSCGEWOEU SB, confirm the operating conditions, conductor configuration, installation route and required performance criteria. Request a Quote
