PUR-HF Low Voltage Festoon Cable | TEBAOFLEX

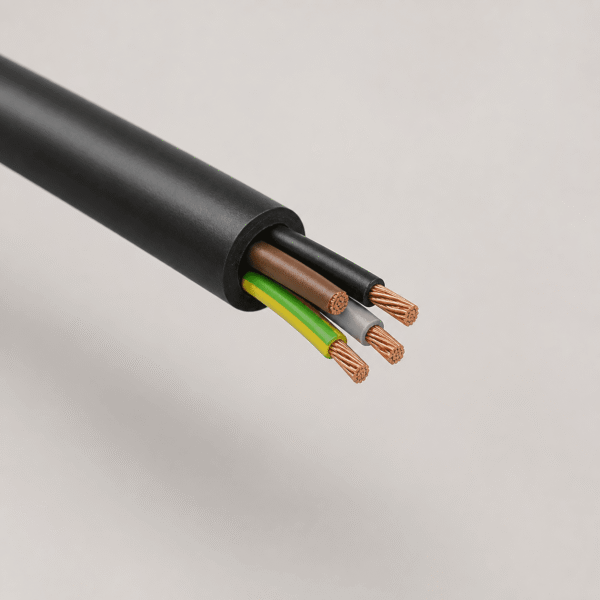

TEBAOFLEX PUR-HF Low Voltage Festoon Cable is a 0.6/1kV halogen-free PUR cable for crane festoon systems, cable chains and moving industrial equipment. It is designed for flexible power and control transmission where abrasion resistance, oil resistance and reliable movement performance are required.
PUR-HF Low Voltage Festoon Cable for Crane and Cable Chain Systems
TEBAOFLEX PUR-HF Low Voltage Festoon Cable is designed for flexible energy and control transmission in crane festoon systems, cable chains, hoists, transfer equipment and material-handling machinery.
The cable uses a halogen-free PUR outer sheath, giving it strong resistance to abrasion, oil, moisture, hydrolysis and many industrial chemicals. Compared with ordinary PVC festoon cable, PUR-HF cable is better suited for demanding moving applications, especially where the cable is exposed to repeated bending, outdoor conditions or mechanical stress.
This cable is suitable for low voltage power and control circuits in industrial environments. It can also be used as a chain cable or for moderate drum reeling applications, depending on the installation design and operating conditions.
Typical Construction
- Conductor: Flexible stranded copper conductor, Class 5
- Insulation: Halogen-free compound
- Core arrangement: Cores laid up for flexible movement
- Outer sheath: Halogen-free flame-retardant PUR-HF
- Sheath performance: Oil-resistant, abrasion-resistant and moisture-resistant
- Cable shape: Round flexible festoon cable
- Sheath color: Black or customized on request
Technical Parameters
| Item | Typical Value |
|---|---|
| Product type | PUR-HF Low Voltage Festoon Cable |
| Rated voltage | 0.6/1kV |
| Test voltage | Approx. 3.5kV AC |
| Conductor | Class 5 flexible copper |
| Insulation | Halogen-free compound |
| Outer sheath | PUR-HF, halogen-free and flame-retardant |
| Fixed temperature | -50°C to +80°C |
| Mobile temperature | -40°C to +80°C |
| Minimum bending radius | 6 x cable OD fixed, 8 x cable OD moving |
| Tensile load | Up to 15 N/mm², subject to cable design |
| Torsion reference | Approx. ±25°/m |
| Application | Festoon systems, cable chains, cranes, hoists and moving equipment |
Final core number, conductor size, sheath color and construction can be selected according to project requirements.
Applications
PUR-HF Low Voltage Festoon Cable is suitable for:
- Overhead crane festoon systems
- Hoists and lifting equipment
- Cable chains and drag chains
- Transfer cars and material-handling systems
- Machine tools and moving control circuits
- Indoor and outdoor industrial installations
- Moderate drum reeling applications
For applications requiring EMC shielding, the screened PUR-C-HF EMC version can be considered. For rubber festoon cable projects, you may also review NGRDGOU 0.6/1kV Rubber Festoon Cable.
FAQ
What is PUR-HF Low Voltage Festoon Cable used for?
It is used for flexible power and control transmission in crane festoon systems, cable chains, hoists and moving industrial machinery.
What is the difference between PUR-HF and PUR-C-HF EMC?
PUR-HF is the standard halogen-free PUR festoon cable. PUR-C-HF EMC adds an overall screen for applications where electromagnetic interference protection is required.
Can PUR-HF festoon cable be used outdoors?
Yes. The PUR-HF sheath offers good resistance to oil, moisture, abrasion and outdoor industrial conditions. Final suitability should be checked according to travel distance, bending radius and mechanical stress.
