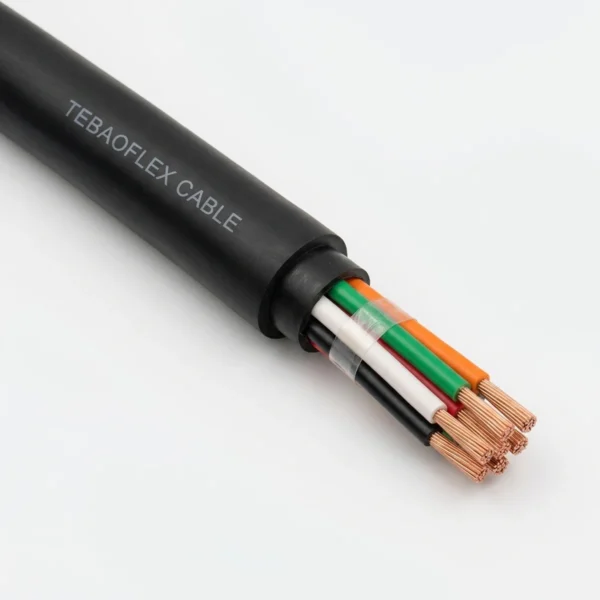

Application & Operating Conditions
110 V Flexible Underground Mine Lighting Cable is purpose-built for permissible 110 V / 120 V underground machine lighting harnesses (continuous miners, roof bolters, loading machines, longwall chock luminaires) as well as suspended tunnel, shaft-station, and belt-transfer point lighting strings. Its chemically cross-linked flame-retardant polyolefin insulation and extra-tough thermoplastic polyurethane (TPU) outer jacket resist rock-fall impact, coal abrasion, hydraulic emulsion, and repeated flexing through luminaire packing glands.
Permissible Face & Machine Luminaires
Tight ±5% outside diameter control ensures leak-tight sealing inside MSHA explosion-proof / permissible stuffing-box glands on continuous miners and roof bolters.
Longwall Chock & Drift String Lighting
Multi-core 2-conductor through 9-conductor builds allow switched multi-zone luminaire daisy-chaining, ground-fault monitoring, and pilot interlocks in a single cord.
Cut-Resistant TPU + Optional Cu Braid
Extra-tough black or optional safety-orange TPU resists rib snagging and boot traffic; optional full copper braid shielding adds mechanical and EMI protection.
50 V Signal vs. 110 V Lighting Circuits: For 12 V / 24 V / 50 V intrinsically safe longwall shield control and pull-cord E-stop lines, see our companion 50V Underground Longwall Mining Signal Cable.
Cable Construction (110 V Multi-Core XL-Polyolefin / Extra-Tough TPU)
Round gland-sealing lighting cable construction engineered with ASTM B-174 extra-flexible copper, cross-linked flame-retardant polyolefin, and mining-grade TPU.
| Layer / Component | Material & ASTM B-174 / Underground Mining TPU Engineering Specification |
|---|---|
| 1. Lighting Conductors (2–9×) | Extra-flexible bunch-stranded annealed copper conductors manufactured to ASTM B-174 in 18 AWG, 16 AWG, 14 AWG, 12 AWG, and 10 AWG. |
| 2. XL-FR Polyolefin Insulation | Chemically cross-linked, non-chlorinated thermosetting flame-retardant polyolefin rated +90°C continuous for superior thermal and pinch stability. |
| 3. Round Cabled Assembly | 2 to 9 color-coded conductors cabled into a concentric round profile with central filler (where needed) and low-friction separator tape for clean stripping. |
| 4. Optional Copper Braid Shield | Full-coverage flexible copper wire braid shield available upon request for enhanced crush/cut protection or grounded metallic screen requirements. |
| 5. Extra-Tough TPU Outer Jacket | Heavy-duty abrasion-, oil-, moisture-, and tear-resistant Thermoplastic Polyurethane (TPU) outer sheath in Black (standard) or Safety Orange (optional). |

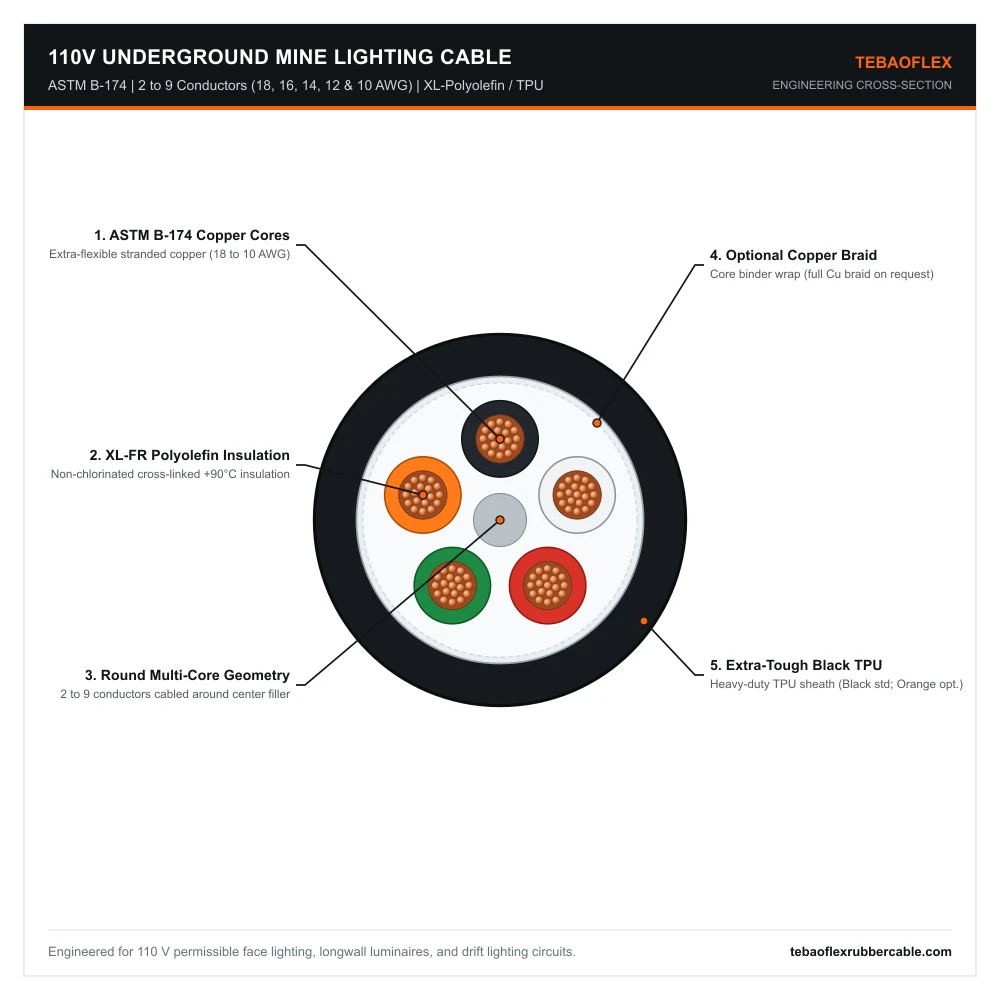

110V Underground Mine Lighting Cable cutaway (5-conductor example): ASTM B-174 flexible copper cores, cross-linked FR polyolefin insulation, binder tape (optional Cu braid), and black TPU jacket.
Technical Characteristics
Electrical, thermal, conductor stranding, and dimensional tolerance parameters for 110 V Underground Mine Lighting Cable.
| Parameter | ASTM B-174 / Underground Mining TPU Rated Value |
|---|---|
| Rated Voltage | 110 V AC / DC underground mine lighting systems and machine luminaire circuits |
| Conductor Counts & Sizes | 2 to 9 conductors across 18 AWG, 16 AWG, 14 AWG, 12 AWG, and 10 AWG (40 standard constructions) |
| Temperature Rating | +90°C maximum continuous conductor operating temperature |
| Conductor Standard | ASTM B-174 extra-flexible stranded copper |
| Shielding & Jacket Options | Unshielded standard or full copper braid on request | Black TPU standard; Orange TPU optional |
| Outside Diameter Tolerance | ±5% of nominal outside diameter for reliable luminaire gland sealing |
110 V Underground Mine Lighting Cable Dimensions & Weights (18–10 AWG, 2–9 Cores)
Complete 40-size dual-unit dimensional and weight specification tables covering 18, 16, 14, 12, and 10 AWG in 2-core through 9-core constructions.
Table 1: 18 AWG (0.82 mm²) & 16 AWG (1.31 mm²) — 110 V Underground Lighting Cable (2 to 9 Conductors)
| Construction | Core Area (mm²) | Conductors | Insulated Core OD (in / mm) | Nominal Cable OD (in / mm) | Approx. Weight (lb/kft / kg/km) |
|---|---|---|---|---|---|
| 2 × 18 AWG | 0.82 | 2 | 0.115 / 2.9 | 0.440 / 11.2 | 87 / 129 |
| 3 × 18 AWG | 0.82 | 3 | 0.115 / 2.9 | 0.460 / 11.7 | 100 / 149 |
| 4 × 18 AWG | 0.82 | 4 | 0.115 / 2.9 | 0.488 / 12.4 | 116 / 173 |
| 5 × 18 AWG | 0.82 | 5 | 0.115 / 2.9 | 0.520 / 13.2 | 135 / 201 |
| 6 × 18 AWG | 0.82 | 6 | 0.115 / 2.9 | 0.560 / 14.2 | 156 / 232 |
| 7 × 18 AWG | 0.82 | 7 | 0.115 / 2.9 | 0.560 / 14.2 | 163 / 243 |
| 8 × 18 AWG | 0.82 | 8 | 0.115 / 2.9 | 0.640 / 16.3 | 198 / 295 |
| 9 × 18 AWG | 0.82 | 9 | 0.115 / 2.9 | 0.660 / 16.8 | 215 / 320 |
| 2 × 16 AWG | 1.31 | 2 | 0.125 / 3.2 | 0.460 / 11.7 | 106 / 158 |
| 3 × 16 AWG | 1.31 | 3 | 0.125 / 3.2 | 0.480 / 12.2 | 114 / 170 |
| 4 × 16 AWG | 1.31 | 4 | 0.125 / 3.2 | 0.512 / 13.0 | 134 / 199 |
| 5 × 16 AWG | 1.31 | 5 | 0.125 / 3.2 | 0.550 / 14.0 | 158 / 235 |
| 6 × 16 AWG | 1.31 | 6 | 0.125 / 3.2 | 0.590 / 15.0 | 183 / 272 |
| 7 × 16 AWG | 1.31 | 7 | 0.125 / 3.2 | 0.590 / 15.0 | 191 / 284 |
| 8 × 16 AWG | 1.31 | 8 | 0.125 / 3.2 | 0.670 / 17.0 | 225 / 335 |
| 9 × 16 AWG | 1.31 | 9 | 0.125 / 3.2 | 0.690 / 17.5 | 247 / 368 |
Table 2: 14 AWG (2.08 mm²) & 12 AWG (3.31 mm²) — 110 V Underground Lighting Cable (2 to 9 Conductors)
| Construction | Core Area (mm²) | Conductors | Insulated Core OD (in / mm) | Nominal Cable OD (in / mm) | Approx. Weight (lb/kft / kg/km) |
|---|---|---|---|---|---|
| 2 × 14 AWG | 2.08 | 2 | 0.140 / 3.6 | 0.490 / 12.4 | 119 / 177 |
| 3 × 14 AWG | 2.08 | 3 | 0.140 / 3.6 | 0.510 / 13.0 | 138 / 205 |
| 4 × 14 AWG | 2.08 | 4 | 0.140 / 3.6 | 0.550 / 14.0 | 166 / 247 |
| 5 × 14 AWG | 2.08 | 5 | 0.140 / 3.6 | 0.588 / 14.9 | 195 / 290 |
| 6 × 14 AWG | 2.08 | 6 | 0.140 / 3.6 | 0.630 / 16.0 | 225 / 335 |
| 7 × 14 AWG | 2.08 | 7 | 0.140 / 3.6 | 0.630 / 16.0 | 238 / 354 |
| 8 × 14 AWG | 2.08 | 8 | 0.140 / 3.6 | 0.720 / 18.3 | 278 / 414 |
| 9 × 14 AWG | 2.08 | 9 | 0.140 / 3.6 | 0.755 / 19.2 | 302 / 449 |
| 2 × 12 AWG | 3.31 | 2 | 0.160 / 4.1 | 0.526 / 13.4 | 148 / 220 |
| 3 × 12 AWG | 3.31 | 3 | 0.160 / 4.1 | 0.555 / 14.1 | 177 / 263 |
| 4 × 12 AWG | 3.31 | 4 | 0.160 / 4.1 | 0.596 / 15.1 | 213 / 317 |
| 5 × 12 AWG | 3.31 | 5 | 0.160 / 4.1 | 0.642 / 16.3 | 254 / 378 |
| 6 × 12 AWG | 3.31 | 6 | 0.160 / 4.1 | 0.690 / 17.5 | 297 / 442 |
| 7 × 12 AWG | 3.31 | 7 | 0.160 / 4.1 | 0.690 / 17.5 | 316 / 470 |
| 8 × 12 AWG | 3.31 | 8 | 0.160 / 4.1 | 0.770 / 19.6 | 388 / 577 |
| 9 × 12 AWG | 3.31 | 9 | 0.160 / 4.1 | 0.815 / 20.7 | 426 / 634 |
Table 3: 10 AWG (5.26 mm²) Long-Run Trunk Lighting Series — 110 V Underground Lighting Cable (2 to 9 Conductors)
| Construction | Core Area (mm²) | Conductors | Insulated Core OD (in / mm) | Nominal Cable OD (in / mm) | Approx. Weight (lb/kft / kg/km) |
|---|---|---|---|---|---|
| 2 × 10 AWG | 5.26 | 2 | 0.180 / 4.6 | 0.570 / 14.5 | 186 / 277 |
| 3 × 10 AWG | 5.26 | 3 | 0.180 / 4.6 | 0.598 / 15.2 | 226 / 336 |
| 4 × 10 AWG | 5.26 | 4 | 0.180 / 4.6 | 0.645 / 16.4 | 276 / 411 |
| 5 × 10 AWG | 5.26 | 5 | 0.180 / 4.6 | 0.698 / 17.7 | 331 / 493 |
| 6 × 10 AWG | 5.26 | 6 | 0.180 / 4.6 | 0.750 / 19.0 | 401 / 597 |
| 7 × 10 AWG | 5.26 | 7 | 0.180 / 4.6 | 0.750 / 19.0 | 462 / 688 |
| 8 × 10 AWG | 5.26 | 8 | 0.180 / 4.6 | 0.835 / 21.2 | 519 / 772 |
| 9 × 10 AWG | 5.26 | 9 | 0.180 / 4.6 | 0.875 / 22.2 | 626 / 932 |
Underground Lighting vs. Signal, VFD & Power Cables
Compare 110 V Underground Mine Lighting Cable with 50 V Longwall Signal, 2 kV Mining VFD, and composite power-control cables.
| Mining Cable Model | Voltage Class, Ground / Shield Architecture & Primary Mining Duty |
|---|---|
| Mining VFD 2kV (3+3+GC) | Symmetrical 3 power + 3 green grounds + yellow GC (2 AWG–500 kcmil) with 100% Al/polyester foil + overall tinned copper braid EMC shield for AC variable-frequency mine drives. |
| Blast-Hole Drilling Mast (600–2000V) | High-flex round hybrid cable combining 2 EPR power cores (1/0–500 kcmil) + tinned ground + user-configurable multi-core control group for rotary drill masts, festoons, and loops. |
| Longwall Signal Cable (50V TPU) | Extra-flexible 50 V underground control & signal cable (2–9 cores, 18 to 10 AWG) with cross-linked FR polyolefin insulation, extra-tough TPU jacket, and optional copper braid. |
| Underground Lighting Cable (110V TPU) | Heavy-duty 110 V mine luminaire & drift lighting cable (2–9 cores, 18 to 10 AWG) with non-chlorinated cross-linked FR polyolefin insulation and cut-resistant TPU outer sheath. |
| Type SHD-PCG (2kV & 5kV) | Shielded 3-phase power + 2 integrated control/pilot cores + ground trailing cable for continuous miners and longwall face equipment. |
Frequently Asked Questions (FAQ)
Technical FAQs on luminaire stuffing-box compatibility, conductor gauge selection, and braided shielding.
Which core counts and gauges are most commonly used on permissible underground machine lighting systems?
3 × 14 AWG and 4 × 14 AWG (0.510 in and 0.550 in nominal OD) are the most popular harnesses for machine-mounted permissible LED and fluorescent headlights/area lights, providing hot, neutral, equipment ground, and an auxiliary switched control leg.
How does the extra-tough TPU jacket perform in wet coal-slurry and hydraulic-emulsion environments?
Mining-grade polyether/polycaprolactone TPU resists hydrolysis, high-water-based longwall hydraulic emulsions, diesel mist, and sharp roof-bolt plate edges without swelling, cracking, or stiffening.
Can TEBAOFLEX supply this 110V mine lighting cable with an overall copper braid shield or orange safety jacket?
Yes. Both full tinned/bare copper braid shielding beneath the jacket and high-visibility Safety Orange TPU outer sheaths are available on custom factory runs with short lead times.
Request a 110V Underground Mine Lighting Cable Quote
Provide your required AWG size (18, 16, 14, 12, or 10 AWG), conductor count (2 to 9 cores), black or orange TPU color, and reel footage for factory pricing.
