P1209 Braided Shielded Composite Power & Control Cable integrates larger-gauge Class 5 copper 3-phase/earth power conductors and smaller colour-coded control/signal cores inside one double-sheathed, overall tinned-copper-braided industrial cable. Engineered to replace dual-cable harness bundles on OEM machinery, mining auxiliary skids, and mobile electrical equipment, each P1209 build is configured to the exact power cross-section, control schedule, EMC objective, and sheath environment of your project.
1. Application Scope & Screened Cable Selection Guide
Running separate power and control cables into compact junction boxes or moving machine arms increases cable-gland count, tray fill, and assembly time. P1209 unifies power supply and control feedback in a single circular EMC-screened profile:
- OEM Industrial Machinery & Modular Process Skids: Single-drop umbilicals supplying 3-phase motor/heater power plus 24 V DC limit switches, solenoid valves, and safety interlocks.
- Mining Auxiliary Machinery & Tunneling Support Equipment: Dust-suppression skids, grouting pumps, hydraulic power packs, and belt-conveyor take-up stations requiring rugged PCP/CPE or PUR outer protection.
- Mobile Material-Handling & Hydraulic Boom Attachments: Protected flexible routing on electro-hydraulic grapples, work platforms, and automated guided sub-assemblies after movement duty is confirmed.
- Cabinet-to-Machine Interconnects in High-EMI Plants: Dense tinned copper braid (
≥80-85%coverage) shields control circuits from adjacent welding cells, induction heaters, and thyristor drives when terminated through 360-degree EMC glands.
| TEBAOFLEX Screened Series | Core Architecture | Shield / Armour Type | When to Select |
|---|---|---|---|
| P1209 Composite Power & Control (This Page) | Mixed power (1.5-35+ mm²) + multi-core control (0.5-2.5 mm²) | Inner bedding + ≥80-85% tinned Cu EMC braid | Custom single-cable power + control consolidation for OEM & mining auxiliary skids |
| 2YSLCY-JB 0.6/1 kV Low-Capacitance VFD Cable | 4 symmetrical power cores (3P+PE) or 3+3PE | Al-PET foil + tinned Cu braid (dual EMC screen) | Dedicated PWM VFD & servo motor power leads requiring low PE capacitance |
| OS / IS+OS Screened Instrumentation Cable | Twisted pairs / triads (0.5-2.5 mm²) | Individual & overall Al-PET foil (optional SWA) | Dedicated 4-20 mA, HART, thermocouple & PLC analog signal trunks |
| SY Galvanized Steel Wire Braided Control Cable | Uniform-gauge control cores (0.75-16 mm²) | Galvanized steel wire braid (GSWB) | Mechanical crush/swarf protection where RF transfer impedance is secondary |
Explore our Industrial & Control Cables and Mining & Tunneling Cables categories for additional screened constructions.
2. Cable Construction & Stepped Physical Anatomy

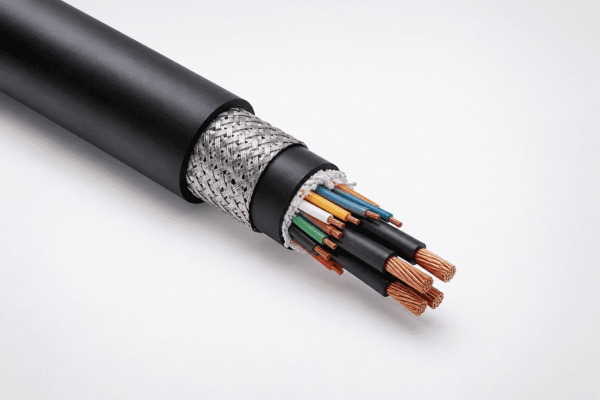

Matching the stepped studio cutaway above, P1209 uses a true double-sheath (inner bedding + braid + outer sheath) build rather than wrapping bare copper wire directly over uneven mixed cores:
450/750 V or 0.6/1 kV motor, heater, or actuator loads.≥80-85% optical coverage) providing low high-frequency transfer impedance, corrosion resistance, and radial cut protection when 360-degree bonded at both ends.3. Configurable Technical Envelope & Jacket Grade Selection
Because P1209 is a configurable composite family, final voltage, temperature, and cyclic bending life depend on the selected insulation/jacket compound package confirmed on your project drawing:
| Parameter | Oil-PVC Grade (P1209-Y) | Polyether PUR Grade (P1209-P) | Heavy PCP Rubber Grade (P1209-R) |
|---|---|---|---|
| Power / Control Voltage | 0.6/1 kV Power / 300/500 V Ctrl | 0.6/1 kV Power / 300/500 V Ctrl | 0.6/1 kV Power / 450/750 V Ctrl |
| Insulation / Outer Jacket | PVC or XLPE / Oil-resistant PVC-NBR | TPE-E or PP / Polyether PUR (11Y) | 3GI3 EPR / Heavy PCP or CPE rubber |
| Fixed Operating Temp | -30°C to +80°C | -50°C to +90°C | -40°C to +90°C |
| Flexing Operating Temp | -15°C to +70°C | -40°C to +80°C | -25°C to +80°C |
| Min. Bending Radius | 6 × OD fixed / 12 × OD flex | 5 × OD fixed / 7.5-10 × OD flex | 6 × OD fixed / 10 × OD mobile |
| Target Duty Profile | Machine tools, skids & indoor plant trays | Drag chains, coolant splash & high abrasion | Mining auxiliary machinery & rough trailing |
4. Representative P1209 Composite Power + Control Configurations
The 8 reference builds below illustrate typical outer diameters and weights for popular 4-power-core + multi-control-core combinations (calculated on the extruded inner-sheath + tinned-Cu braid + PUR/elastomer jacket baseline; custom schedules built from 500 m):
| Reference Code | Power Cores (0.6/1 kV) | Control / Signal Cores (300/500 V) | EMC Screen Architecture | Approx. OD (mm) | Copper Weight (kg/km) | Approx. Total Weight (kg/km) |
|---|---|---|---|---|---|---|
P1209-4G2.5-4C1.0 | 4 × 2.5 mm² | 4 × 1.0 mm² | Overall Tinned Cu Braid | 15.6 | 188 | 355 |
P1209-4G4-6C1.0 | 4 × 4.0 mm² | 6 × 1.0 mm² | Overall Tinned Cu Braid | 17.8 | 278 | 490 |
P1209-4G6-7C1.0 | 4 × 6.0 mm² | 7 × 1.0 mm² | Overall Tinned Cu Braid | 19.8 | 375 | 635 |
P1209-4G6-2ST1.0 | 4 × 6.0 mm² | 2 × (2 × 1.0 mm²) Screened Pairs | Pair Screens + Overall Braid | 20.4 | 362 | 650 |
P1209-4G10-8C1.5 | 4 × 10 mm² | 8 × 1.5 mm² | Overall Tinned Cu Braid | 23.6 | 610 | 955 |
P1209-4G16-8C1.5 | 4 × 16 mm² | 8 × 1.5 mm² | Overall Tinned Cu Braid | 26.8 | 865 | 1,290 |
P1209-4G25-12C1.5 | 4 × 25 mm² | 12 × 1.5 mm² | Overall Tinned Cu Braid | 31.5 | 1,310 | 1,870 |
P1209-4G35-8C1.5 | 4 × 35 mm² | 8 × 1.5 mm² | Overall Tinned Cu Braid | 34.6 | 1,680 | 2,310 |
Internal VFD Coupling Caution: An overall tinned copper braid protects the composite cable against external plant EMI, whereas unscreened control cores sharing the same inner bundle with PWM inverter (VFD) motor phases can pick up internal capacitive dV/dt noise. Whenever power cores are VFD-fed or control cores carry 4-20 mA / encoder signals, specify internal foil/braid sub-screening on the control pairs during inquiry.
5. Frequently Asked Engineering Questions
What engineering problem does the P1209 composite power and control cable solve?
On compact OEM machines, mobile hydraulic power packs, and mining auxiliary skids, routing separate 3-phase motor power cables alongside multi-core sensor/valve control cables doubles gland count, conduit width, and assembly labour. P1209 consolidates both power conductors and colour-coded or numbered control cores under one extruded inner sheath, overall tinned copper EMC braid, and heavy-duty outer jacket.
When is an overall tinned copper braid sufficient vs. individually screened control pairs inside P1209?
An overall ≥80-85% tinned copper braid over the extruded inner bedding sheath provides robust external EMI protection and mechanical cut resistance when power cores supply DOL AC motors, heaters, or hydraulic solenoids alongside 24 V DC digital I/O. If the power cores are driven by a PWM variable-frequency drive (VFD) or if control cores carry low-level analog (4-20 mA), encoder, or RS-485 signals, specify an internal foil/braid screen over the control sub-bundle to prevent internal capacitive coupling.
Why is there an extruded inner bedding sheath beneath the tinned copper braid on P1209?
Composite bundles combine large-diameter power cores with small-diameter signal cores, creating uneven interstitial valleys. Extruding a smooth circular inner bedding sheath over the non-woven binder tape locks mixed core sizes in position during flexing, prevents fine tinned-copper braid wires from cutting into thin control-core insulation, and provides a uniform 360-degree clamping surface for EMC cable glands.
Which outer jacket compound (PVC, PUR, or PCP Rubber) should I specify for my P1209 build?
Select oil-resistant flexible PVC/NBR for indoor machine tools and plant skids (-15°C to +70°C flexing). Select polyether PUR (11Y) for drag-chain, washdown, coolant splash, and high-abrasion mobile automation (-40°C to +80°C). Select flame-retardant polychloroprene / chlorinated polyethylene rubber (PCP / CPE) for mining auxiliary machinery and rough trailing environments.
What project inputs are required to confirm a P1209 composite cable datasheet and quotation?
Provide your power conductor count, cross-section (e.g., 4G4 to 4G35 mm²), voltage, and load type (DOL vs. VFD); control core count, cross-section (e.g., 0.5 to 1.5 mm²), and signal type (24 V DC digital vs. analog/bus); movement profile (fixed, occasional flexing, drag chain, or reeling with minimum bend radius); environment; and required continuous length.
Configure Your P1209 Composite Power & Control Cable
Share your power core schedule, control signal count, screening requirement, movement profile, and jacket environment. TEBAOFLEX will issue a confirmed composite cross-section datasheet and factory quote within 24 hours.
