Application & Operating Conditions
Type SHD Flat 2000 V trailing cable solves severe drum-capacity and low-seam clearance constraints on underground AC shuttle cars, continuous miners, roof bolters, and mobile face haulers where circuits require individual metallic phase shielding and grounding without an internal ground-check pilot wire. Its parallel flat profile stacks neatly across level-wind reels without cross-over pinching and flexes effortlessly around small-diameter guide sheaves.
AC Shuttle Cars & Reel Haulage
Flat H × W cross-section packs more linear footage onto compact shuttle-car reels while resisting run-over crushing better than tall round cables in low coal and potash seams.
Continuous Miners & Face Cutters
Individual tinned copper and textile composite phase shields contain phase-to-ground faults immediately in wet, conductive underground headings.
Mold-Cured Integral Web Stability
Vulcanized extra-heavy-duty CPE / Neoprene outer sheath bonds into the inter-core webs to prevent core rolling, corkscrewing, and jacket delamination under high reel tension.
Need Unshielded Flat Cables Instead? For DC shuttle cars or unshielded AC reels, TEBAOFLEX also manufactures 2 kV Type W Flat (2C & 4C) and Type G Flat (2C + Ground) trailing cables per ICEA S-75-381.

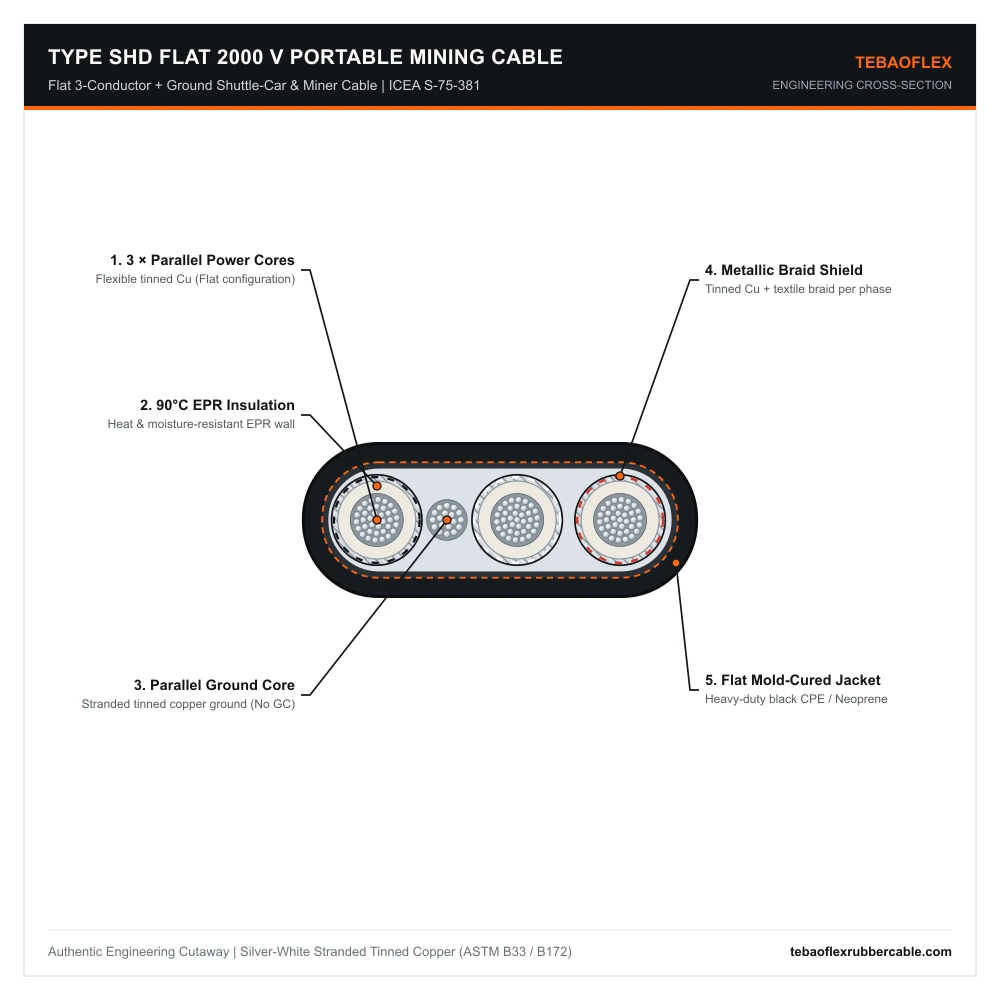

Cable Construction (ICEA S-75-381 Type SHD Flat 2000 V)
Parallel flat four-element assembly combining three individually shielded 90°C EPR power conductors and one stranded tinned copper ground conductor inside a vulcanized heavy-duty elastomer jacket.
| Layer / Component | Material & ICEA S-75-381 / NEMA WC 58 Engineering Specification |
|---|---|
| 1. Power Conductors (3×) | Three flexible rope-lay stranded annealed tinned copper conductors (e.g., 2/0 AWG built as 329 strands / 7×47 rope lay) per ASTM B172 and ASTM B33. |
| 2. Power Insulation | 90°C heat-, moisture-, and ozone-resistant Ethylene Propylene Rubber (EPR), nominal 0.070–0.080 in (1.78–2.03 mm) wall thickness. |
| 3. Individual Phase Shielding | Flexible tinned copper and reinforcing textile composite braid shield applied directly over each insulated power phase. |
| 4. Grounding Conductor (1×) | One flexible rope-lay stranded tinned copper grounding conductor (e.g., 3 AWG / 204 strands on 2/0 AWG cable) laid parallel between the shielded power cores in continuous shield contact. |
| 5. Binder / Separator Tape | Reinforcing separator tape applied over the parallel core assembly to maintain flat web alignment during mold curing. |
| 6. Flat Mold-Cured Jacket | Extra-heavy-duty black mold-cured thermosetting Chlorinated Polyethylene (CPE) or Polychloroprene (Neoprene) with permanent embossed identification. |

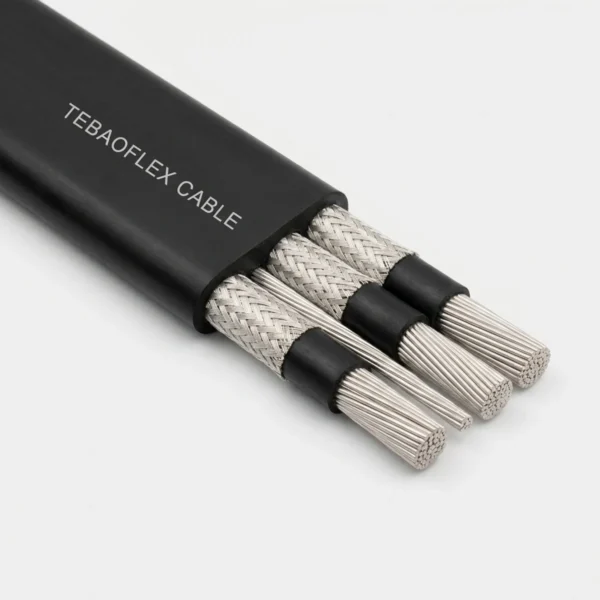

Type SHD Flat 2kV cutaway: 3 parallel EPR power cores with individual tinned copper/textile braid shields + 1 parallel bare tinned copper ground inside a mold-cured flat CPE/Neoprene sheath.
Technical Characteristics
Electrical, thermal, dimensional tolerance, and regulatory parameters for Type SHD Flat 2000 V service.
| Parameter | ICEA S-75-381 / NEMA WC 58 Rated Value |
|---|---|
| Rated Voltage | Up to 2,000 V AC phase-to-phase |
| Configuration | Flat parallel 3 shielded power conductors + 1 grounding conductor (no GC core) |
| Maximum Conductor Temperature | +90°C continuous operation | +250°C short-circuit rating |
| Minimum Bending Radius (Minor Axis) | 6 × minor flat cable thickness (H) over reels and guide rollers |
| Dimensional Tolerances | ±0.050 in (±1.27 mm) on minor height (H) | ±0.080 in (±2.03 mm) on major width (W) |
| Standards & Flame Compliance | ICEA S-75-381 / NEMA WC 58; ASTM B172 & ASTM B33; MSHA & Pennsylvania DEP flame-resistant reference |
Flat Profile Dimensions, Stranding, Weights & Ampacity (2000 V)
Verified flagship underground continuous-miner/shuttle-car build (2/0 AWG) alongside standard ICEA S-75-381 Type SHD Flat 2 kV series sizes from 6 AWG to 4/0 AWG.
Table 1: Type SHD Flat 3/C + Ground 2000 V — Dimensional & Ampacity Specifications
| Power + Ground Size | Power / Ground Strands | EPR Wall (in / mm) | Nominal H × W (in) | Nominal H × W (mm) | Approx. Weight (lb/kft / kg/km) | Ampacity 40°C (A) |
|---|---|---|---|---|---|---|
| 3 × 6 AWG + 8 AWG Gnd | 133 / 133 | 0.070 / 1.78 | 0.88 × 2.05 | 22.4 × 52.1 | 1,390 / 2,069 | 93 |
| 3 × 4 AWG + 7 AWG Gnd | 259 / 133 | 0.070 / 1.78 | 0.95 × 2.24 | 24.1 × 56.9 | 1,760 / 2,619 | 122 |
| 3 × 2 AWG + 5 AWG Gnd | 259 / 133 | 0.070 / 1.78 | 1.04 × 2.50 | 26.4 × 63.5 | 2,290 / 3,408 | 159 |
| 3 × 1 AWG + 4 AWG Gnd | 259 / 259 | 0.080 / 2.03 | 1.13 × 2.76 | 28.7 × 70.1 | 2,850 / 4,241 | 184 |
| 3 × 1/0 AWG + 3 AWG Gnd | 266 / 259 | 0.080 / 2.03 | 1.17 × 2.86 | 29.7 × 72.6 | 3,210 / 4,777 | 211 |
| 3 × 2/0 AWG + 3 AWG Gnd | 329 (7×47) / 204 (6×34) | 0.080 / 2.03 | 1.205 × 2.970 | 30.6 × 75.4 | 3,600 / 5,357 | 243 |
| 3 × 3/0 AWG + 2 AWG Gnd | 418 / 259 | 0.080 / 2.03 | 1.28 × 3.18 | 32.5 × 80.8 | 4,180 / 6,220 | 279 |
| 3 × 4/0 AWG + 1 AWG Gnd | 532 / 259 | 0.080 / 2.03 | 1.36 × 3.42 | 34.5 × 86.9 | 4,950 / 7,366 | 321 |
Flat vs. Round Shielded Mining Cable Selection
Compare Type SHD Flat against round Type SHD-GC, center-pilot Type SHD-CGC, and composite Type SHD-PCG.
| Mining Cable Model | Voltage Class, Ground / Shield Architecture & Primary Mining Duty |
|---|---|
| Type SHD-GC (2kV / 5kV / 8kV) | Round 3 shielded power cores + 2 interstitial bare tinned grounds + 1 interstitial yellow PP ground-check core for general trailing miners, drills, and pit shovels. |
| Type SHD-GC (15kV & 25kV) | High-voltage 210 mil (15kV) and 260 mil (25kV) EPR shielded trailing cable for ultra-class walking draglines, electric rope shovels, and mobile pit substations. |
| Type SHD Flat (2kV) | Flat parallel 3 shielded power cores + 1 grounding core (no GC monitor core) engineered for high-layer-count level-wind shuttle-car and continuous-miner reels. |
| Type SHD-CGC (2kV & 5kV) | Round longwall shearer cable with 16 AWG yellow Ground-Check positioned along the neutral geometric center axis + 3 symmetrical grounds to prevent dynamic S-bend pilot breakage. |
| Type SHD-PCG (2kV & 5kV) | Composite round cable integrating 3 shielded power cores + 2 insulated control/pilot cores + grounding for permissible remote-interlock underground mining equipment. |
Frequently Asked Questions (FAQ)
Technical FAQs on Type SHD Flat vs. Type SHD-GC and flat reel handling.
Why does Type SHD Flat omit the yellow Ground-Check (GC) conductor?
Per ICEA S-75-381, “Type SHD” (without the -GC suffix) designates a shielded heavy-duty cable with grounding conductors only—used on underground machines employing impedance/diode frame-ground monitoring over the power/ground conductors or where reel width restrictions favor a compact 4-element flat profile.
Can TEBAOFLEX supply Type SHD Flat in either black CPE or Polychloroprene (Neoprene)?
Yes. We vulcanize Type SHD Flat in heavy-duty mold-cured black CPE for superior oil, chemical, and thermal-aging resistance, as well as classic Polychloroprene (Neoprene) or extra-tough TPU for specialized shuttle-car fleets.
How is bending radius measured on a flat mining cable?
Bending radius on flat trailing cables is calculated across the minor dimension (thickness H), typically 6 × H over sheaves and reel drums—giving flat cables a much tighter allowable drum core diameter than equivalent-ampacity round cables.
Request a Type SHD Flat 2kV Shuttle-Car Cable Quote
Send your flat conductor size (e.g., 3 × 2/0 AWG + 3 AWG Ground), CPE or Neoprene jacket choice, and shuttle-car reel cut length for direct mill pricing.
