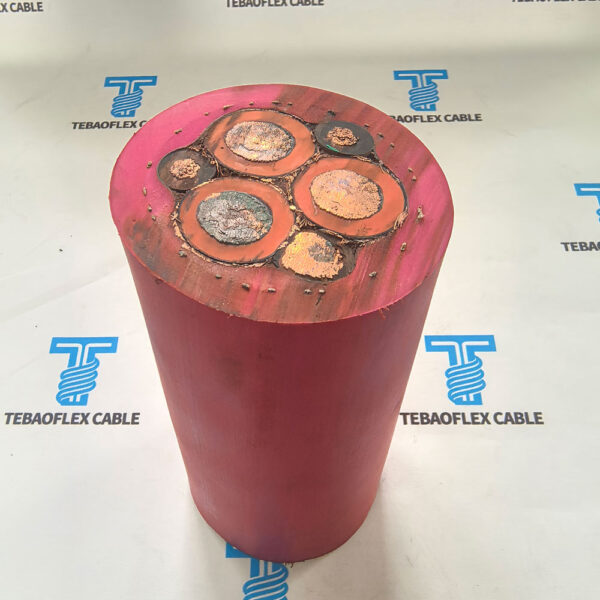

What Is SHD-GC Cable?
SHD-GC cable, also called Type SHD-GC mining cable, is a shielded heavy-duty trailing cable for mobile mining equipment that requires power conductors, grounding conductors and a dedicated ground-check conductor. The ground-check conductor works with a compatible monitoring system to supervise the grounding path; it does not replace the mine’s complete protection and inspection program. Available project configurations include 2 kV, 5 kV, 8 kV, 15 kV and 25 kV. Typical applications include continuous miners, longwall systems, electric mining shovels, draglines and mobile drills.
Selection starts with the operating voltage, load current, conductor size, ground and ground-check arrangement, movement method, route geometry, mechanical exposure, ambient conditions and required approvals. This portable mining power cable should not be selected by voltage alone because insulation thickness, shielding, jacket construction, finished diameter, bend radius and ampacity change with the confirmed design.
| Quick fact | Product information |
|---|---|
| Voltage range | 2 kV to 25 kV |
| Power system | Shielded, project-defined construction |
| Ground check | For compatible ground-continuity monitoring systems where required |
| Typical use | Heavy mobile mining equipment and mine power systems |
| Quotation basis | Confirmed cable design and project requirement |
TECHNICAL FOCUS
Typical SHD-GC Cable Construction
First, engineers define SHD-GC construction around the requested voltage, power-conductor sizes, grounding arrangement, ground-check circuit and mechanical service conditions. They then identify the insulation system, shielding method, ground conductors, ground-check conductor, any fillers or reinforcement, and outer jacket for the approved design.
CONSTRUCTION DIFFERENTIATION
Construction by Voltage Class
Type SHD-GC is not one identical construction across every voltage class. Shielding layers, insulation thickness, ground-check size, jacket thickness and finished dimensions change with the selected voltage and conductor size.
| Construction item | 2 kV supplied reference | 5 kV to 25 kV supplied reference |
|---|---|---|
| Power conductors | Flexible stranded annealed tinned copper | Flexible stranded annealed tinned copper |
| Conductor shield | Confirm against the approved order construction | Semi-conducting layer referenced for the supplied construction |
| Insulation | EPR | EPR |
| Insulation shield | Tinned copper/textile braid reference | Non-conducting tape plus tinned copper/textile braid reference |
| Ground-check conductor | Tinned copper with yellow polypropylene insulation | Tinned copper with yellow polypropylene insulation |
| Ground conductors | Tinned copper grounding conductors | Tinned copper grounding conductors |
| Outer jacket | CPE or TPU option according to approved construction | Reinforced heavy-duty CPE or TPU option according to approved construction |
JACKET SELECTION
Jacket Selection: CPE vs TPU
Jacket selection depends on dragging, flexing, reel and sheave conditions, oil or chemical exposure, temperature, moisture, abrasion and impact. Confirm the material in the approved order drawing.
5 KV PRODUCT REFERENCE

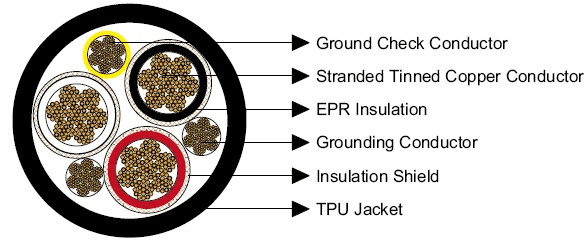

SHD-GC Cable Construction Diagram
This diagram shows the functional elements used in a representative Type SHD-GC arrangement. The three tinned-copper power conductors carry the electrical load, while the grounding conductors and insulated ground-check conductor support the equipment ground-continuity monitoring circuit. Final shielding, insulation and jacket construction are selected for the ordered voltage class and project duty.

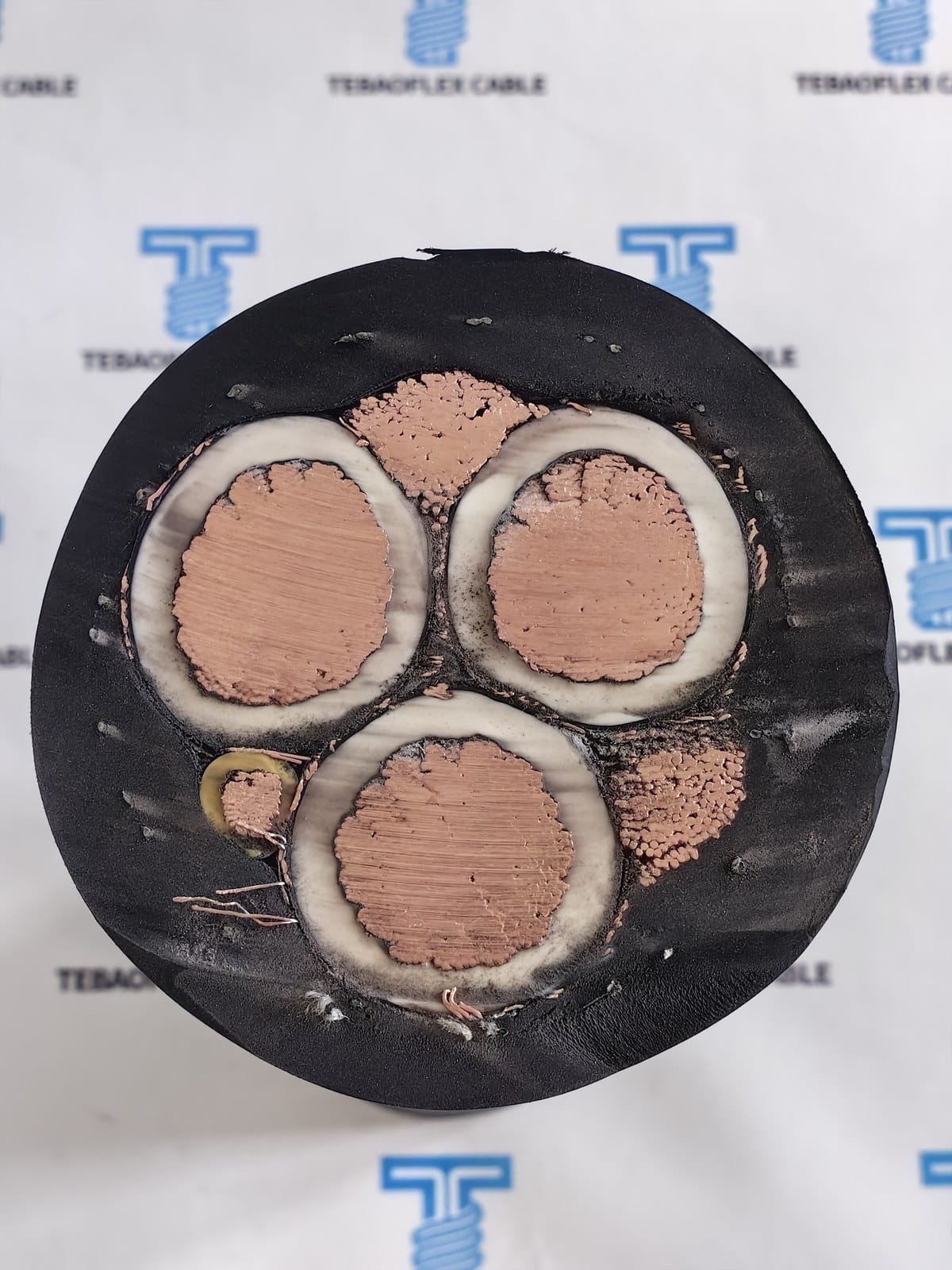

5 kV SHD-GC Actual Cross-Section
PRODUCT VIDEO
SHD-GC Mining Cable Product Video
PROJECT SELECTION
2 kV to 25 kV Voltage Options
Type SHD-GC cable can be configured from 2 kV through 25 kV. Select the voltage class, conductor size, grounding and ground-check arrangement, jacket material and route conditions together; a higher voltage class is not simply a different marking, because insulation and shielding construction can change.
Voltage-Class Construction and Selection Data
Use the following construction and selection data for preliminary engineering and quotation. Dimensions, weights, ampacity, conductor sizes, ground-check arrangements and compliance documents are configuration references; the approved project drawing and technical data sheet control the final supplied cable.
Choose the voltage class first, then confirm the power-conductor size, grounding and ground-check arrangement, outside diameter, installation route and mechanical duty.
2 kV supplied construction reference

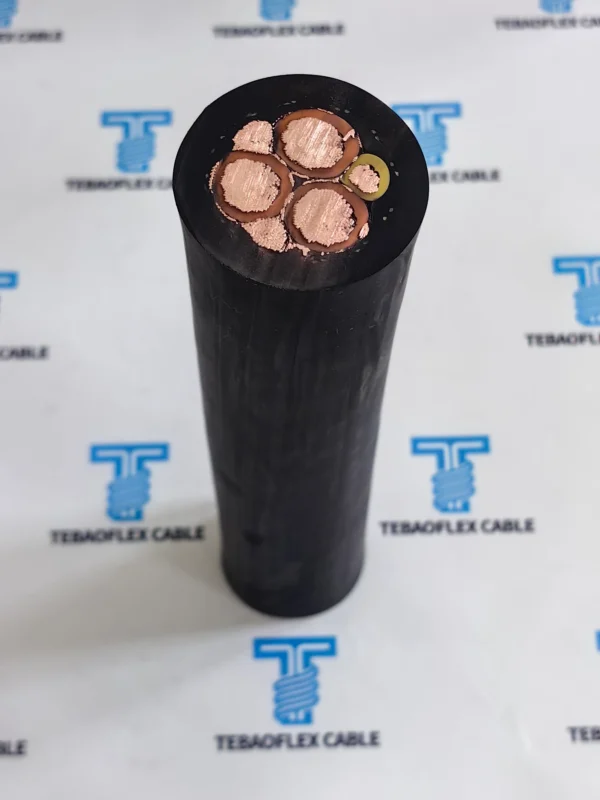

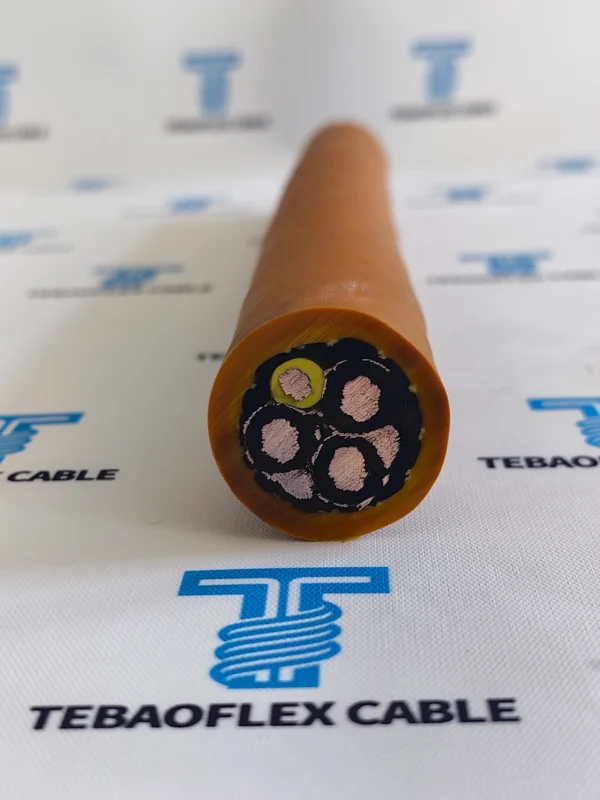

2 kV SHD-GC Cable Data
Nominal selection data from the supplied technical document. Confirm final drawing, derating, voltage drop, reel geometry, terminations and installation code before ordering.
| Power conductors | Ground AWG/kcmil | Ground-check AWG/kcmil | Insulation mm | Jacket mm | Nominal OD mm | Nominal weight kg/km | Reference ampacity A |
|---|---|---|---|---|---|---|---|
| 3 × 6 | 10 | 10 | 1.8 | 3.9 | 32.8 | 1,590 | 93 |
| 3 × 4 | 8 | 10 | 1.8 | 3.9 | 35.6 | 1,927 | 122 |
| 3 × 2 | 6 | 10 | 1.8 | 4.3 | 40.4 | 2,645 | 159 |
| 3 × 1 | 5 | 8 | 2.0 | 4.8 | 44.7 | 3,218 | 184 |
| 3 × 1/0 | 4 | 8 | 2.0 | 4.8 | 47.2 | 3,731 | 211 |
| 3 × 2/0 | 3 | 8 | 2.0 | 5.2 | 50.8 | 4,465 | 243 |
| 3 × 3/0 | 2 | 8 | 2.0 | 5.2 | 54.1 | 5,163 | 279 |
| 3 × 4/0 | 1 | 8 | 2.0 | 5.6 | 58.7 | 6,237 | 321 |
| 3 × 250 kcmil | 1/0 | 6 | 2.4 | 5.6 | 63.8 | 7,756 | 355 |
| 3 × 350 kcmil | 2/0 | 6 | 2.4 | 6.0 | 71.4 | 10,153 | 435 |
| 3 × 500 kcmil | 4/0 | 6 | 2.4 | 6.7 | 81.0 | 13,411 | 536 |
5 kV supplied construction reference

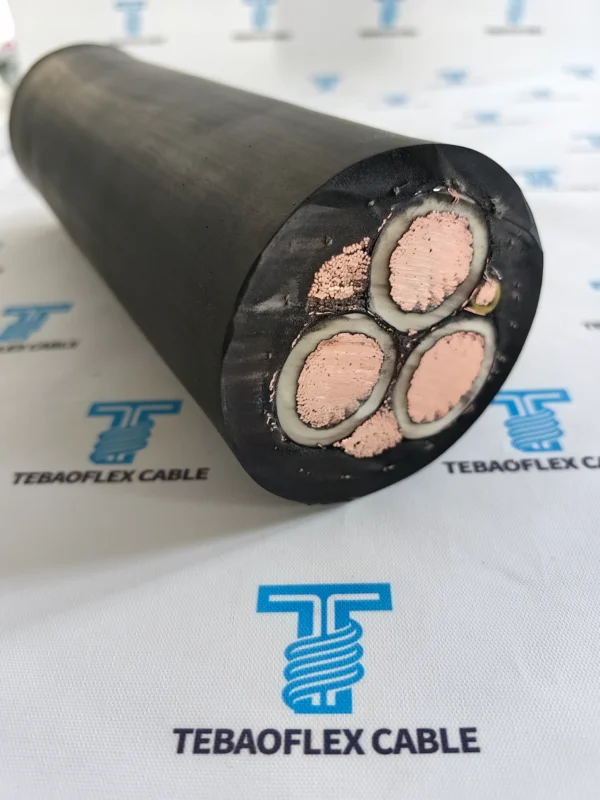

5 kV SHD-GC Cable Data
Nominal selection data from the supplied technical document. Confirm final drawing, derating, voltage drop, reel geometry, terminations and installation code before ordering.
| Power conductors | Ground AWG/kcmil | Ground-check AWG/kcmil | Insulation mm | Jacket mm | Nominal OD mm | Nominal weight kg/km | Reference ampacity A |
|---|---|---|---|---|---|---|---|
| 3 × 6 | 10 | 8 | 2.8 | 4.7 | 39.6 | 2,322 | 93 |
| 3 × 4 | 8 | 8 | 2.8 | 4.7 | 42.7 | 2,820 | 122 |
| 3 × 2 | 6 | 8 | 2.8 | 5.2 | 47.5 | 3,639 | 159 |
| 3 × 1 | 5 | 8 | 2.8 | 5.2 | 49.5 | 4,167 | 184 |
| 3 × 1/0 | 4 | 8 | 2.8 | 5.6 | 52.8 | 4,807 | 211 |
| 3 × 2/0 | 3 | 8 | 2.8 | 5.6 | 55.9 | 5,655 | 243 |
| 3 × 3/0 | 2 | 8 | 2.8 | 6.0 | 59.9 | 6,660 | 279 |
| 3 × 4/0 | 1 | 8 | 2.8 | 6.0 | 63.5 | 7,835 | 321 |
| 3 × 250 kcmil | 1/0 | 6 | 3.0 | 6.4 | 68.3 | 9,085 | 355 |
| 3 × 300 kcmil | 1/0 | 6 | 3.0 | 6.4 | 71.4 | 10,231 | 398 |
| 3 × 350 kcmil | 2/0 | 6 | 3.0 | 6.7 | 74.9 | 11,600 | 435 |
| 3 × 500 kcmil | 4/0 | 6 | 3.0 | 7.1 | 84.1 | 15,499 | 536 |
8 kV supplied construction reference
8 kV SHD-GC Cable Data
Nominal selection data from the supplied technical document. Confirm final drawing, derating, voltage drop, reel geometry, terminations and installation code before ordering.
| Power conductors | Ground AWG/kcmil | Ground-check AWG/kcmil | Insulation mm | Jacket mm | Nominal OD mm | Nominal weight kg/km | Reference ampacity A |
|---|---|---|---|---|---|---|---|
| 3 × 4 | 8 | 8 | 3.8 | 5.2 | 49.3 | 3,594 | 122 |
| 3 × 2 | 6 | 8 | 3.8 | 5.6 | 53.8 | 4,554 | 159 |
| 3 × 1 | 5 | 8 | 3.8 | 5.6 | 56.1 | 5,104 | 184 |
| 3 × 1/0 | 4 | 8 | 3.8 | 5.6 | 58.9 | 5,700 | 211 |
| 3 × 2/0 | 3 | 8 | 3.8 | 6.0 | 62.5 | 6,593 | 243 |
| 3 × 3/0 | 2 | 8 | 3.8 | 6.4 | 66.5 | 7,738 | 279 |
| 3 × 4/0 | 1 | 8 | 3.8 | 6.4 | 69.8 | 8,713 | 321 |
| 3 × 250 kcmil | 1/0 | 6 | 3.8 | 6.4 | 73.4 | 9,948 | 355 |
| 3 × 300 kcmil | 1/0 | 6 | 3.8 | 6.7 | 77.2 | 11,384 | 398 |
| 3 × 350 kcmil | 2/0 | 6 | 3.8 | 7.1 | 81.3 | 12,739 | 435 |
| 3 × 500 kcmil | 4/0 | 6 | 3.8 | 7.5 | 90.4 | 16,757 | 536 |
15 kV supplied construction reference
15 kV SHD-GC Cable Data
Nominal selection data from the supplied technical document. Confirm final drawing, derating, voltage drop, reel geometry, terminations and installation code before ordering.
| Power conductors | Ground AWG/kcmil | Ground-check AWG/kcmil | Insulation mm | Jacket mm | Nominal OD mm | Nominal weight kg/km | Reference ampacity A |
|---|---|---|---|---|---|---|---|
| 3 × 2 | 6 | 8 | 5.3 | 6.0 | 61.2 | 4,679 | 164 |
| 3 × 1 | 5 | 8 | 5.3 | 6.0 | 64.0 | 5,307 | 187 |
| 3 × 1/0 | 4 | 8 | 5.3 | 6.4 | 67.0 | 5,916 | 215 |
| 3 × 2/0 | 3 | 8 | 5.3 | 6.4 | 69.3 | 6,734 | 246 |
| 3 × 3/0 | 2 | 8 | 5.3 | 6.7 | 73.7 | 7,783 | 283 |
| 3 × 4/0 | 1 | 8 | 5.3 | 6.7 | 77.5 | 8,976 | 325 |
25 kV supplied construction reference
25 kV SHD-GC Cable Data
Nominal selection data from the supplied technical document. Confirm final drawing, derating, voltage drop, reel geometry, terminations and installation code before ordering.
| Power conductors | Ground AWG/kcmil | Ground-check AWG/kcmil | Insulation mm | Jacket mm | Nominal OD mm | Nominal weight kg/km | Reference ampacity A |
|---|---|---|---|---|---|---|---|
| 3 × 1 | 5 | 8 | 6.6 | 6.7 | 74.9 | 7,872 | 191 |
| 3 × 1/0 | 4 | 8 | 6.6 | 6.7 | 77.5 | 8,631 | 218 |
| 3 × 2/0 | 3 | 8 | 6.6 | 7.1 | 81.3 | 9,695 | 249 |
| 3 × 3/0 | 2 | 8 | 6.6 | 7.1 | 84.6 | 10,737 | 286 |
| 3 × 4/0 | 1 | 8 | 6.6 | 7.5 | 88.9 | 12,277 | 327 |
Ampacity note: apply ambient temperature, installation method, cable grouping, reel layers, duty cycle, voltage drop and applicable code requirements before final selection.
KEY DIFFERENTIATOR
Ground-Check Conductor for Ground-Continuity Monitoring
GC in SHD-GC means ground check. In a compatible mine electrical protection system, the insulated ground-check conductor helps the monitoring circuit supervise the grounding path to mobile equipment. Therefore, it distinguishes SHD-GC selection from shielded heavy-duty power construction without a ground-check conductor.
However, the ground-check conductor does not replace the complete site protection, grounding and inspection program. Before ordering, confirm the circuit arrangement, conductor size, terminations and project approval requirements against the equipment and mine electrical specification.
Send the voltage, conductor size, equipment type, route conditions and required approvals. Our team can review the applicable construction drawing and technical data for your project.
Request SHD-GC Technical Data
Technical Specifications
Electrical and dimensional data are configuration-specific. The following items are used to issue an accurate technical offer.
Product Specification Summary
| Product specification | Confirmed reference |
|---|---|
| Product type | Type SHD-GC shielded round portable mining power cable with ground check |
| Voltage classes | 2 kV, 5 kV, 8 kV, 15 kV and 25 kV |
| Power conductors | Three flexible stranded tinned-copper conductors |
| Insulation | EPR; typical maximum conductor temperature 90°C |
| Shielding | Conductor shield plus insulation shield/composite tinned-copper and polyamide braid according to selected construction |
| Ground system | Grounding conductors plus one insulated ground-check conductor |
| Jacket | Extra-heavy-duty CPE or project-specified TPU |
| Minimum bend radius | 6 × overall cable diameter in the current supplied data sheet; confirm the moving-route, reel, sheave and roller design separately |
| Low-temperature reference | -40°C for current rubber/CPE selections; TPU options may be reviewed for -50°C service |
| Packing | Project drum length; 1,000 ft and 500 m formats can be reviewed with the quotation |
| Specification item | Project-specific confirmation |
|---|---|
| Power conductor size | AWG or kcmil, power-core count and conductor material |
| Ground conductor | Required number, size and arrangement |
| Ground-check conductor | Required size and monitoring-system compatibility |
| Overall diameter and weight | Issued for the confirmed finished cable construction |
| Ampacity | Evaluated against conductor size, installation method, ambient temperature and applicable standard |
| Minimum bending radius | Confirmed for the selected construction and actual movement condition |
| Standards and approvals | ICEA, NEMA, MSHA or other requirements only where actually applicable and confirmed |
Selection note: Outside diameter, weight, ampacity and bending radius must not be assumed from voltage alone. They depend on the final conductor, shielding, ground-check, jacket and installation design.
RFQ CHECKLIST
How to Specify SHD-GC Cable for a Quote
Accurate SHD-GC cable selection starts with the electrical system and the actual cable route. Include the following information so the construction, cable size and project documentation can be reviewed together.
| Information to provide | Why it matters |
|---|---|
| Voltage class | Confirm 2 kV, 5 kV, 8 kV, 15 kV or 25 kV before selecting insulation and shielding construction. |
| Power conductor size | Provide AWG or kcmil size, required ampacity and circuit length for electrical review. |
| Grounding and ground-check arrangement | Confirm conductor sizes, monitoring-system compatibility and termination requirements. |
| Mining equipment | Identify the continuous miner, longwall machine, shovel, dragline, drill or other powered equipment. |
| Cable movement and route | Describe trailing, reeling, sheave, roller, dragging and bend-radius conditions. |
| Operating environment | State ambient temperature and exposure to abrasion, impact, oil, water or chemicals. |
| Compliance and delivery | List applicable ICEA, NEMA, MSHA or project requirements, together with cable length, quantity and drum format. |
INSTALLATION GUIDANCE
Installation Limits and Handling
| Engineering reference | Selection guidance |
|---|---|
| Maximum continuous conductor temperature | 90°C in the supplied construction references. |
| Minimum bending radius | 6 × finished overall cable diameter. Confirm moving route, reel, sheave and roller design separately. |
| Ampacity | Use the voltage-class table as a reference only; apply installation and environmental derating before final selection. |
| Ground-check circuit | Confirm monitor compatibility, terminations and protective relay logic as one system with the cable design. |
| Final construction | Verify conductor size, shield arrangement, jacket material, outside diameter, weight and marking against the approved technical data sheet. |
Do not select a portable mining cable by voltage or conductor size alone. Installation method, reel layers, route length, movement duty, mechanical exposure, ambient temperature and termination design affect the finished selection.
SHD vs SHD-GC Cable: What Is the Difference?
| SHD | SHD-GC |
|---|---|
| Shielded heavy-duty cable construction | Shielded heavy-duty construction with ground-check conductors |
| Selected around power and shielding requirements | Selection also considers compatible ground-continuity monitoring |
| Exact construction follows the project specification | Ground-check circuit arrangement requires project confirmation |
Choose SHD-GC when the mining power system requires a compatible ground-check circuit. Terminology and construction should always be confirmed against the applicable project specification.
TYPICAL EQUIPMENT
Mining Applications
First, engineers select Type SHD-GC cable for mobile mining equipment that needs flexible, shielded power together with a project-defined ground-continuity monitoring circuit. They then review the cable construction against equipment duty, travel path, reel or roller arrangement, ambient conditions and applicable project requirements.
| Equipment | Typical SHD-GC Cable Role |
|---|---|
| Longwall shearer | Flexible shielded trailing power for continuous underground movement and cable handling. |
| Continuous miner | Heavy-duty mobile power where the equipment protection system requires a compatible ground-check circuit. |
| Mining shovel or excavator | Medium-voltage flexible power for severe mechanical duty, route movement and outdoor exposure. |
| Dragline | Rugged trailing power for large mobile mining machinery, subject to the confirmed cable-management design. |
| Rotary blasthole drill | Flexible shielded power for mobile mine drilling systems and repeated positioning. |
| Dredger | Heavy-duty flexible power for demanding dredging equipment after route and environmental review. |
For surface mines, teams can review configurations for electrically driven shovels, excavators, draglines, rotary drills, crushers and mobile substations. Meanwhile, underground projects often involve continuous miners, longwall equipment, shuttle-car supply systems, roadheaders and face drills. The ground-check conductor supports the compatible monitoring circuit; however, mine operators must still apply the complete electrical protection and inspection program for the site and equipment.
For quotation, provide the equipment type, operating voltage, conductor size, route length, reel or sheave details, travel frequency, ambient temperature, exposure to oil or water, and required approvals. This allows the voltage class, grounding arrangement, jacket option, drum length and technical documentation to be reviewed against the actual duty.
Review the TRM-J 0.69/1.15 kV mining rubber cable for lower-voltage mining applications.
COMPLIANCE & PROJECT SUPPORT
Standards, Documentation & Manufacturing Capability
TEBAOFLEX reviews SHD-GC cable construction against the confirmed project specification. In addition, the team evaluates ICEA, NEMA, MSHA and other applicable requirements only for the selected voltage class, construction and order scope.
Important: applicable standards, tests and compliance documents are confirmed for the ordered cable configuration. Request the required documentation when submitting your project details.
Approval boundary: the supplied 2 kV construction references P-7K-184-MSHA marking. Confirm the marking, approval scope and documentation for the ordered voltage class and construction; this reference is not an approval statement for the complete 2 kV to 25 kV series.
ENGINEERING RESOURCES
SHD-GC Cable Selection Resources
Use these related technical resources to compare mining-cable types and prepare the information required for engineering review.
- SHD-GC cable selection guide — voltage class, shielding, grounding and ground-check selection.
- SHD-GC vs Type W cable — key differences in shielding, ground-check function and mining duty.
- Underground mining cable guide — route, movement, environmental and safety checks for cable selection.
Frequently Asked Questions
What is SHD-GC cable?
SHD-GC is a shielded heavy-duty mining trailing cable that combines three power conductors, grounding conductors and an insulated ground-check conductor in a project-specific construction. It is used for compatible mobile mining power systems where shielding, mechanical protection and ground-continuity monitoring are required.
What does GC mean in SHD-GC?
GC means ground check. The insulated ground-check conductor forms part of a compatible monitoring circuit that supervises continuity of the equipment grounding path. Cable configuration, terminations, monitoring equipment and protective logic must be confirmed together for the mining power system.
What is the difference between SHD and SHD-GC cable?
Both types use a shielded heavy-duty construction, but SHD-GC adds a dedicated ground-check conductor for compatible ground-continuity monitoring. Choose between SHD and SHD-GC from the equipment protection design and applicable project specification rather than treating the names as interchangeable.
What voltage ratings are available?
Project configurations are available for 2 kV, 5 kV, 8 kV, 15 kV and 25 kV systems. Each voltage class can require different insulation thickness, shielding, jacket thickness and finished dimensions, so the approved data sheet must identify the ordered construction.
Is SHD-GC suitable for underground mining?
SHD-GC cable can be specified for underground mining equipment when the voltage, movement route, mechanical duty, ground-check system, flame or environmental requirements and applicable approvals are confirmed for the project. Suitability is determined from the complete installation, not the cable name alone.
What is the minimum bending radius?
The current supplied construction reference uses 6 × the finished cable outside diameter. Reeling, sheave, roller and moving-route conditions require a separate review because repeated dynamic bending can need a different cable-management limit.
Can TEBAOFLEX customize SHD-GC cable?
Yes. TEBAOFLEX can review the voltage class, AWG or kcmil conductor size, grounding and ground-check arrangement, CPE or TPU jacket, printed marking, drum length, packing and required project documentation before issuing the production specification.
Explore the mining and tunneling cable range for related mobile mining, trailing and medium-voltage cable solutions.
QUOTATION SUPPORT
Request an SHD-GC Cable Quote
Send the voltage class, AWG or kcmil power-core size, ground and ground-check configuration, equipment type, trailing or reeling method, route conditions, required standard, cable length, quantity and destination country.
