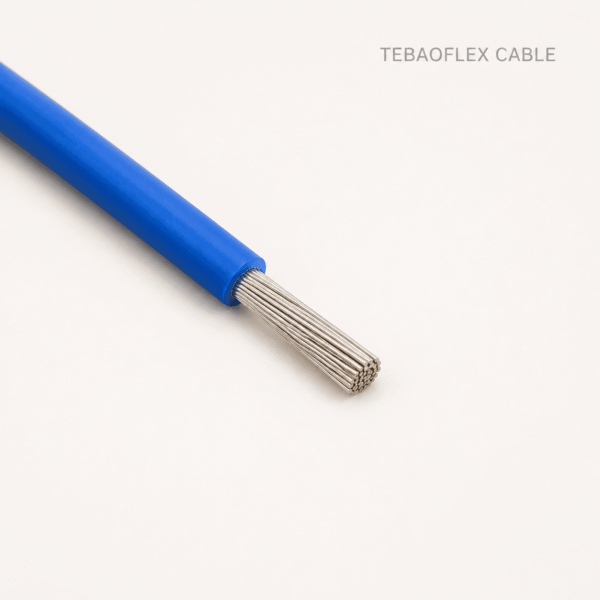

Style 3099 / 3132 / 3123 / 3133 150°C silicone wire is a single-core wire family for high-temperature equipment wiring. The styles provide 300 V and 600 V options with silicone rubber insulation and conductor-metal choices selected for the required design.
Key Features
- Continuous operating temperature from -60 °C to +150 °C.
- 300 V options for styles 3099 and 3132; 600 V options for styles 3123 and 3133.
- Silicone insulation with stated thermal-shock and UV resistance.
- Available with bare, tinned, nickel-plated, or silver-plated conductor options depending on style.
- Source data identifies UL 758, CSA C22.2 No. 210, horizontal flame test, FT2, and halogen-free references.
Applications
Used for household electrical heating appliances, rotating machines, lighting, and industrial equipment installed in hot atmospheres.
Technical Parameters
| Parameter | Specification |
|---|---|
| Product styles | 3099 / 3132 / 3123 / 3133 |
| Rated voltage | 300 V or 600 V by style |
| Test voltage | 10 × rated voltage |
| Operating temperature | -60 °C to +150 °C |
| Insulation | Silicone rubber |
| Listed conductor section range | 0.13 to 120 mm² across the style family |
| Typical insulation thickness | 0.38 mm or 0.76 mm by style and section |
| Standards and tests | UL 758; CSA C22.2 No. 210; IEC 60754-1 / EN 60754-1; FT2 |
What Is 150°C Silicone Wire?
Styles 3099, 3132, 3123 and 3133 are single-core silicone wires for equipment wiring from -60°C to +150°C. Styles 3099 and 3132 are listed at 300 V; Styles 3123 and 3133 are listed at 600 V. Available conductor finishes vary by style.
For procurement and engineering review, TEBAOFLEX can confirm the requested construction against the operating temperature, electrical load, installation space and project documentation before production.
Selection and Ordering Details
- Choose a 300 V or 600 V style according to the circuit requirement.
- Match conductor finish, insulation thickness and nominal section to the required style and termination.
- Provide the exact style or required performance, colour, length, quantity and approval requirement.
Engineering Notes and Usage Limits
- The broad 0.13 to 120 mm² range is distributed across the style family; not every size belongs to every style.
- Temperature capability of the finished assembly is limited by connectors and adjacent components.
- Current capacity must be calculated for ambient temperature, grouping and installation method.
Related High-Temperature Cable Options
- Style 3232 / 3243 / 3171 105°C Silicone Wire
- Style 3367 / 3135 / 3139 / 3143 200°C Silicone Wire
- View high-temperature and specialty cables
Frequently Asked Questions
Which styles are rated 300 V?
Styles 3099 and 3132 are listed for 300 V.
Which styles are rated 600 V?
Styles 3123 and 3133 are listed for 600 V.
What is the temperature range?
The listed operating range is -60°C to +150°C for the specified constructions.
Are all conductor materials available in every style?
No. Bare, tinned, nickel-plated or silver-plated options vary by style and should be confirmed with the requested section.
What should an RFQ include?
Specify style, voltage, conductor finish, section, insulation colour, temperature, quantity and applicable equipment approval.
Send Your Requirements
Send the model or style, conductor size, voltage, temperature, installation conditions, quantity and required test documentation. Our technical team will review the construction before quotation.
