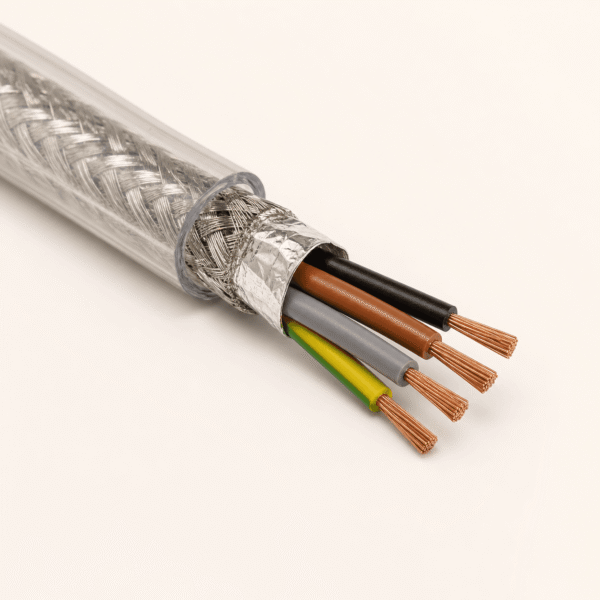

2YSLCY-JB shielded PE-PVC servo cable is a transparent-sheath motor power cable for frequency converter and servo drive connections where electromagnetic compatibility is required.
Applications
Suitable for industrial pumps, fans, conveyors, air-conditioning equipment and comparable drive systems.
Screened construction
- Fine-stranded bare copper conductors to EN 60228 Class 5
- PE core insulation with black, brown, grey and green-yellow core colours
- Foil screen and tinned copper braid
- Transparent special PVC outer sheath
Technical data
- Rated voltage: 600/1000 V
- Temperature range: -5°C to +70°C flexible; -30°C to +70°C fixed
- Minimum bending radius: 15 × D flexible; 4 × D fixed
- Test voltage: 4 kV core-to-core; 2 kV core-to-screen
- Flame retardant: EN 60332-1-2
Specify your cable
TEBAOFLEX can support configuration selection for your drive system. Request a Quote.
