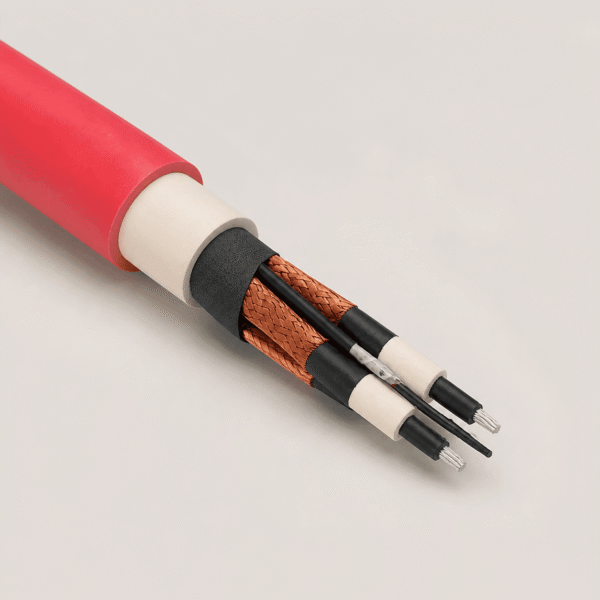

TEBAOFLEX (N)TSCGECEWOEU is designed for flexible medium voltage power transmission in mining, dredging and underwater applications.
The cable is suitable for connecting submersible pumps, dredgers, floating docks, open-pit mining equipment and other mobile electrical systems exposed to water and high mechanical stress. Its flexible construction allows the cable to move with equipment while maintaining stable electrical performance.
The cable uses EPR insulation with semi-conductive layers and concentric copper screening. The heavy-duty rubber outer sheath provides resistance to moisture, abrasion, oil, ozone and mechanical handling. Depending on the selected construction, the cable can be used in fresh water, salt water, brackish water and demanding mining environments.
Typical Construction
- Conductor: Flexible stranded tinned copper conductor
- Conductor class: Class 5 flexible conductor
- Insulation: EPR rubber insulation
- Electrical field control: Inner and outer semi-conductive layers
- Screen: Concentric copper wire screen
- Water resistance: Suitable for specified permanent immersion applications
- Outer sheath: Heavy-duty CR rubber compound
- Cable type: Flexible medium voltage submersible mining cable
- Standard reference: DIN VDE 0250-813
Technical Parameters
| Item | Typical Option |
|---|---|
| Product type | Flexible MV Submersible Mining Cable |
| Model | (N)TSCGECEWOEU |
| Voltage rating | 3.6/6kV, 6/10kV or customized |
| Conductor | Flexible tinned copper |
| Insulation | EPR rubber compound |
| Screen | Concentric copper screen |
| Outer sheath | CR rubber compound |
| Temperature rating | Approx. 90°C conductor temperature, subject to design |
| Application depth | Up to 300m for specified constructions |
| Application environment | Fresh water, salt water, brackish water and mining sites |
| Standard | DIN VDE 0250-813 |
Water depth, tensile load, cable diameter, bending radius and permissible water temperature must be confirmed according to the actual cable design and project conditions.
Applications
TEBAOFLEX (N)TSCGECEWOEU is suitable for:
- Submersible pump power supply
- Dredging equipment
- Floating docks
- Offshore and marine equipment
- Open-pit mining equipment
- Underground and surface mining systems
- Wet industrial power installations
- Water treatment and heavy-duty pumping systems
For related products, you can link to Submersible & Underwater Cables, Dredging Cable 3E MV Submersible Cable and Mining & Tunneling Cables.
FAQ
What is (N)TSCGECEWOEU cable used for?
It is used for flexible medium voltage power supply in submersible pumps, dredgers, floating docks, mining equipment and other wet industrial applications.
Can this cable be permanently submerged?
Yes, specified constructions are designed for permanent immersion. The permitted water depth and water temperature should be confirmed according to the selected cable specification.
What is the difference between this cable and a standard mining trailing cable?
The (N)TSCGECEWOEU version is designed for both high mechanical stress and underwater operation, with EPR insulation, concentric screening and a water-resistant heavy-duty rubber sheath.
Project Selection Support
To select the TEBAOFLEX (N)TSCGECEWOEU, confirm the operating conditions, conductor configuration, installation route and required performance criteria. Request a Quote
