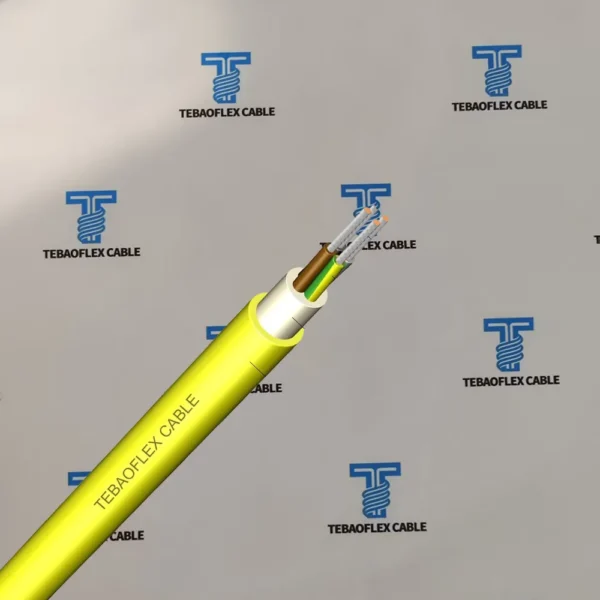

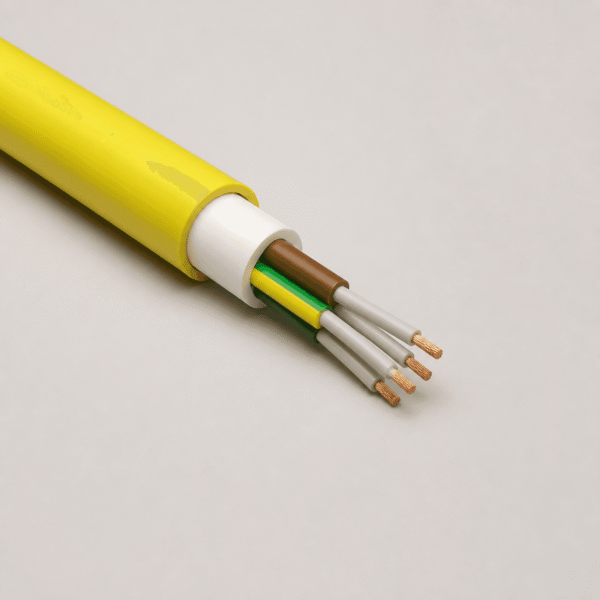

Product Overview: TEBAOFLEX (N)SHÖU-J and (N)SHÖU-O 0.6/1 kV is a heavy-duty flexible rubber-sheathed power cable engineered in reference to DIN VDE 0250-812, uniting Class 5 tinned copper conductors, 3GI3 EPR rubber insulation, GM1b inner rubber bedding, and an oil- and flame-resistant 5GM3 (black) or 5GM5 (yellow) elastomer outer sheath.
1. Application Scope & VDE Mining Duty Boundaries
(N)SHÖU serves heavy mechanical environments where standard H07RN-F cables lack voltage margin or double-sheath impact protection:
- Surface Quarries, Open-Pit Crushing & Tunnelling Support: Flexible 0.6/1 kV feeders for mobile crushers, screens, belt conveyors, dewatering skids, and temporary tunnel distribution boards.
- Heavy Construction, Steelworks & Generator Rentals: Single-core (
(N)SHÖU-O 1×25–300 mm²) and multi-core ((N)SHÖU-J 4G–5G) temporary load-bank, transformer, and festoon loops. - Harsh Wet, Oily & Abrasive Routes: Withstands mud, splash water, hydraulic oils, and sub-zero ambient temperatures down to -25°C mobile (-40°C fixed).
Critical VDE Mining Selection Boundary: Do not conflate unscreened trailing, screened underground coal/hard-rock trailing, and motorized drum reeling. If mine safety rules mandate an earth-fault concentric screen, specify (N)SSCHÖU-J 0.6/1 kV Screened Mining Cable; for continuous high-tension motorized reels, specify (N)SHTÖU-O/J Reeling Cable. See our Mining Cable Application Guide and Underground Mining Cable Selection Guide.

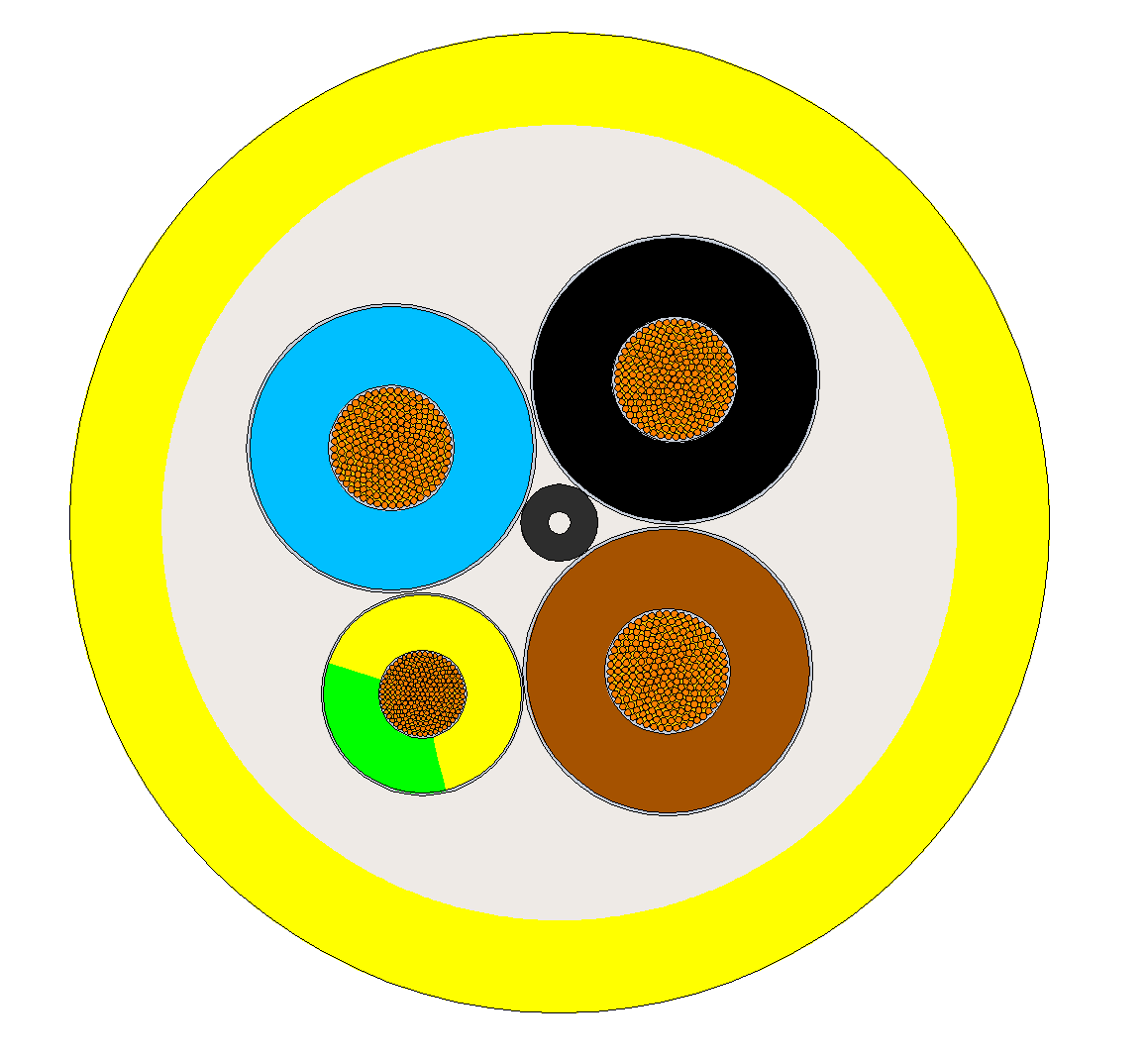

2. Cable Construction (DIN VDE 0250-812 Hierarchy)
Select suffix -J when a green/yellow protective-earth core is required (3G, 4G, 5G), or suffix -O without a green/yellow core (1× single-core or 3×/4× IT-network circuits):
3. Electrical, Thermal & Mechanical Parameters
Confirm specific submergence depth (e.g., AD7/AD8 pump duty) or mine authority test certificates on the project quotation before ordering:
| Technical Parameter | Reference Standard / Value |
|---|---|
| Standard Reference | DIN VDE 0250-812 (construction reference; request size-specific test/certificate scope on RFQ) |
| Rated & Max Operating Voltage | U0/U = 0.6/1 kV | Max. AC: 0.7/1.2 kV | Max. DC: 0.9/1.8 kV | AC Test: 3,000 V |
| Operating Temperature Range | Flexible/mobile: -25°C to +80°C | Fixed installation: -40°C to +80°C |
| Conductor Thermal Limits | Max. continuous: +90°C | Max. short-circuit (5 s): +250°C |
| Bending Radius & Tensile Load | Per DIN VDE 0298-3 (4–5 × OD fixed; 5–10 × OD mobile routing); max. static copper load 15 N/mm² |
| Oil, Flame & Weathering | Oil resistant to DIN EN 60811-404; flame retardant to IEC 60332-1-2; UV, ozone, and tear resistant |
4. DIN VDE 0250-812 Reference Configurations & Ordering SKU Table
Representative DIN VDE 0250-812 overall diameter windows and nominal copper indices across frequently ordered single-core (N)SHÖU-O and multi-core (N)SHÖU-J sizes (exact OD and cable weight confirmed on production datasheet):
| Part SKU | Variant & Core Size (mm²) | DIN VDE 0250-812 Ref. OD Window (mm) | Nominal Copper Index (kg/km) | Primary Field Application |
|---|---|---|---|---|
TF-NSH-1X25 | (N)SHÖU-O 1 × 25 | 12.5–15.5 | 240 | Single-core generator / load-bank lead |
TF-NSH-1X50 | (N)SHÖU-O 1 × 50 | 15.5–19.0 | 480 | Single-core temporary substation bus |
TF-NSH-1X95 | (N)SHÖU-O 1 × 95 | 20.0–24.0 | 912 | High-current mobile transformer lead |
TF-NSH-1X150 | (N)SHÖU-O 1 × 150 | 24.0–28.5 | 1,440 | Quarry & tunnel main single-phase feeder |
TF-NSH-1X240 | (N)SHÖU-O 1 × 240 | 29.5–34.5 | 2,304 | Heavy temporary power plant feeder |
TF-NSH-4G2.5 | (N)SHÖU-J 4G 2.5 | 13.0–16.0 | 96 | 3-phase site pump & auxiliary motor |
TF-NSH-4G6 | (N)SHÖU-J 4G 6 | 16.5–20.5 | 230 | Mobile conveyor & compressor supply |
TF-NSH-4G16 | (N)SHÖU-J 4G 16 | 23.5–28.0 | 614 | Quarry screen & tunnelling fan feeder |
TF-NSH-4G35 | (N)SHÖU-J 4G 35 | 31.0–36.5 | 1,344 | Mobile crusher & site distribution skid |
TF-NSH-4G70 | (N)SHÖU-J 4G 70 | 41.0–47.5 | 2,688 | Heavy 0.6/1 kV quarry main trunk |
TF-NSH-4G120 | (N)SHÖU-J 4G 120 | 51.0–58.0 | 4,608 | High-load industrial & dewatering feeder |
TF-NSH-5G6 | (N)SHÖU-J 5G 6 | 18.0–22.5 | 288 | 5-pin CEE 32A/63A site distribution |
TF-NSH-5G16 | (N)SHÖU-J 5G 16 | 26.0–31.0 | 768 | 5-wire 125A tunnel & event power panel |
TF-NSH-5G35 | (N)SHÖU-J 5G 35 | 34.5–40.5 | 1,680 | Heavy TN-S 3-phase + N + PE site trunk |
5. Frequently Asked Questions
What is the difference between (N)SHÖU-J and (N)SHÖU-O?
(N)SHÖU-J includes an insulated green/yellow protective-earth core (3G, 4G, 5G, etc.), whereas (N)SHÖU-O has no green/yellow core (used for single-core power leads or ungrounded IT/control circuits).
When should I specify (N)SSCHÖU-J or (N)SHTÖU-J instead of (N)SHÖU-J?
Specify (N)SSCHÖU-J when underground mine safety requires a concentric copper earth-monitoring screen, or (N)SHTÖU-O/J when the cable winds continuously on motorized crane or mine reels.
Should we order black 5GM3 or yellow 5GM5 outer rubber sheath?
Choose 5GM3 black for standard outdoor industrial/construction power, and 5GM5 yellow where high visibility and upgraded tear resistance are needed on quarry benches and dimly lit tunnel walls.
Can (N)SHÖU-O / -J be submerged continuously in mine sumps?
Standard VDE 0250-812 builds handle rain, mud, and splash water; if your pump cable remains permanently submerged, send immersion depth and water temperature so TEBAOFLEX can confirm a submersible-tested compound.
Why is (N) written in parentheses in (N)SHÖU?
Under German cable nomenclature, (N) indicates a construction adapted to DIN VDE 0250-812 (for example, incorporating enhanced 5GM5 yellow sheaths or custom core counts) rather than claiming a blanket VDE mark on every variant.
What details should I provide for a quotation?
Send -J or -O suffix, core count and mm² size, sheath compound/colour (black 5GM3 or yellow 5GM5), movement duty, drum lengths, total meterage, and destination port.
Request (N)SHÖU-J / (N)SHÖU-O 0.6/1 kV Factory Datasheet & Quote
Share your single-core or multi-core schedule, 5GM3 black or 5GM5 yellow sheath preference, and operating duty. TEBAOFLEX will confirm gland OD and factory pricing.
