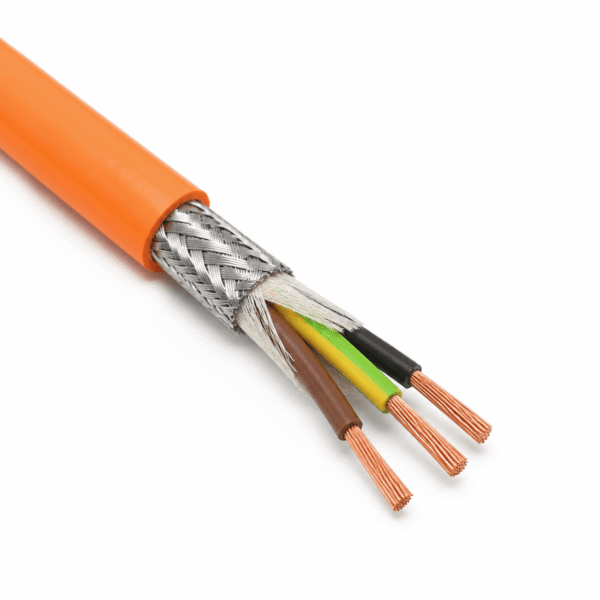

FD 75781-CY Shielded PP-PVC Servo Cable | TEBAOFLEX is a screened servo cable for machine wiring where durable control and power transmission is required.
Applications
Servo drives, automation and machine connections
Construction
- Fine-stranded bare copper conductors
- PP core insulation
- Tinned copper braided screen
- Orange PVC TM5 outer sheath
Technical data
- Rated voltage: 600/1000 V
- Screen: Tinned copper braid
- Outer sheath: PVC TM5, orange RAL 2003
- Temperature range: -5°C to +70°C flexible; -30°C to +70°C fixed
- Minimum bending radius: 7.5 × D flexible; 4 × D fixed
- Standards: EN 50525-2-51; EN 60332-1-2
Request a quote
Share the cable configuration and installation conditions with TEBAOFLEX. Request a Quote.
Servo and motion cable selection
FD 75781-CY Shielded PP-PVC Servo Cable is intended for industrial motion systems where conductor flexibility, screen design and sheath material must match the installation. Confirm the drive type, cable route, movement cycle, ambient temperature, bending radius and required EMC level before selection.
Technical specification
| Parameter | Specification |
|---|---|
| Model | FD-75781-CY |
| Rated Voltage | 600/1000 V |
| Screen | Tinned copper braid |
| Outer Sheath | PVC TM5, orange RAL 2003 |
| Temperature Range | -5°C to +70°C flexible; -30°C to +70°C fixed |
| Minimum Bending Radius | 7.5 × D flexible; 4 × D fixed |
| Standards | EN 50525-2-51; EN 60332-1-2 |
| Application | Servo drives, automation and machine connections |
Application limits and installation
Use this construction only when its voltage, screen arrangement and mechanical duty match the machine design. Screened versions help in EMC-sensitive installations; unshielded versions should not be selected where that protection is required. Maintain the listed bending radius and avoid torsion, crushing or unsupported travel beyond the verified duty.
Related servo cable options
Compare with 2YSLCY-JB Shielded PE-PVC Servo Cable when choosing between screen, insulation or sheath options. Send your requirements with voltage, cores, movement duty and installation conditions.
Servo and motion cable selection
Select this cable only after confirming voltage, EMC requirements, movement duty, temperature and bending radius. Its conductor, screen and sheath are intended for defined machine-cable conditions rather than unrestricted use.
Technical specification
| Parameter | Specification |
|---|---|
| Model | FD-75781-CY |
| Rated Voltage | 600/1000 V |
| Screen | Tinned copper braid |
| Outer Sheath | PVC TM5, orange RAL 2003 |
| Temperature Range | -5°C to +70°C flexible; -30°C to +70°C fixed |
| Minimum Bending Radius | 7.5 × D flexible; 4 × D fixed |
| Standards | EN 50525-2-51; EN 60332-1-2 |
| Application | Servo drives, automation and machine connections |
Installation guidance
Maintain the stated bending radius and confirm screen termination where electromagnetic compatibility is required. Review the cable route, cycle count and mechanical loading before installation.
