FD 30810 CP shielded PVC-PUR servo cable is designed for control, measurement and automation circuits that need reliable EMC protection in moving industrial equipment.
Applications
Use this cable in automation systems, machine tools, control cabinets and moving machine components where a flexible screened connection is required.

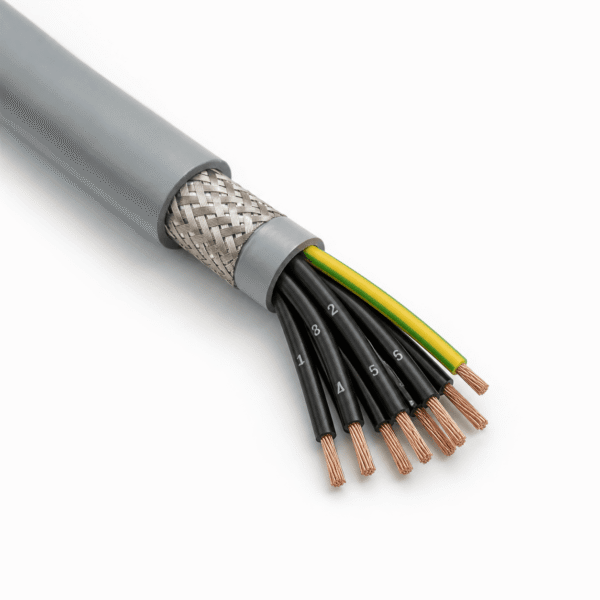

Shielded construction
- Fine-stranded bare copper conductors to EN 60228 Class 6
- Special PVC core insulation with a grey PVC inner sheath
- Tinned copper braided screen for electromagnetic compatibility
- Grey PUR outer sheath for oil, abrasion and notch resistance
Technical data
- Rated voltage: 300/500 V
- Test voltage: 4 kV core-to-core; 2 kV core-to-screen
- Temperature range: -5°C to +70°C flexible; -30°C to +70°C fixed
- Minimum bending radius: 7.5 × cable diameter flexible; 4 × cable diameter fixed
- Flame retardant: EN 60332-1-2
Specify your cable
Provide the core count, conductor size, movement profile and installation conditions. Request a Quote from TEBAOFLEX.
