Multi-cores Shielded High-temp Wire

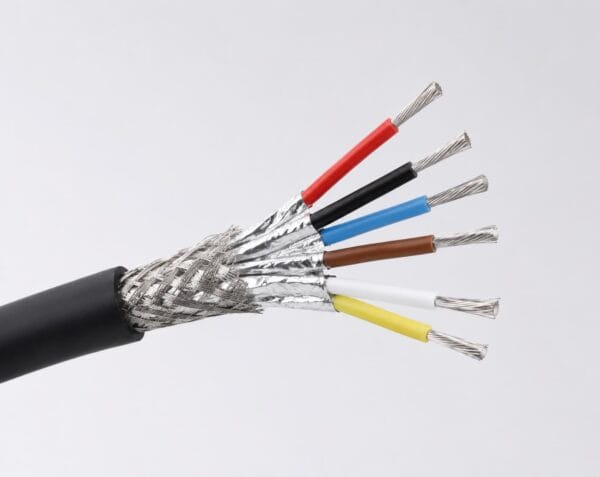

TEBAOFLEX Multi-cores Shielded High-temp Wire is a 600V high-temperature multicore wire for equipment wiring that requires heat resistance, signal protection and compact cable routing. The wire combines multiple insulated cores with a tinned copper wire braid shield and PTFE or PFA jacket options.
It is suitable for high-temperature connection wiring in industrial machines, electrothermal products, headlamp assemblies, home appliance equipment and compact electrical systems where shielding and temperature resistance are both important.
Key Features
- 600V rated voltage for high-temperature equipment wiring.
- Multi-core construction with 16-40 AWG PEP wire options.
- Conductor options include tinned copper, silver-plated copper and nickel-plated copper.
- PFA Teflon, FEP or ETFE insulation options.
- Tinned copper wire braid shield for signal protection and improved EMC performance.
- PTFE or PFA jacket for high-temperature and chemical-resistance requirements.
- Temperature rating options: 130-150 C, 180-200 C and 230-260 C.
- Multiple colors available, including white, black, red, brown, yellow, blue and green.
Technical Data
| Item | Specification |
|---|---|
| Product type | Multi-core shielded high-temperature wire |
| Rated voltage | 600V |
| Conductor | Tinned copper, silver-plated copper or nickel-plated copper |
| Cores | Multi-core, 16-40 AWG PEP wire |
| Insulation | PFA Teflon / FEP / ETFE |
| Braid shield | Tinned copper wire braid |
| Jacket | PTFE / PFA |
| Temperature rating | 130-150 C, 180-200 C, 230-260 C |
| Color | White, black, red, brown, yellow, blue, green and project-specific colors |
Applications
- Headlamp and lighting connection wires.
- Home appliance high-temperature wiring.
- Industrial machine internal wiring.
- Electrothermal products and heating equipment.
- Control wiring where shielding and heat resistance are required.
- Compact electrical systems using fluoropolymer insulated wire.
Shielded Construction Advantages
The tinned copper braid shield helps reduce electrical interference in equipment wiring and provides additional mechanical coverage around the insulated cores. Combined with FEP, ETFE, PFA, PTFE or PFA jacket materials, the cable can support demanding temperature and installation conditions.
For different projects, TEBAOFLEX can review core count, conductor size, insulation material, braid coverage, jacket material, temperature rating and color requirements before production.
Request a Quote
Please provide the required core count, AWG size, conductor material, insulation type, jacket material, temperature class, color, cable length and quantity. TEBAOFLEX can prepare a suitable multi-core shielded high-temp wire recommendation for your equipment wiring project.
Need a custom shielded high-temp wire? Submit your requirements to TEBAOFLEX technical support for a project-specific proposal.
