What Is H07RN-F Cable?
The H07RN-F cable is a heavy-duty rubber-insulated and rubber-sheathed flexible cable rated for 450/750V, manufactured to EN 50525-2-21 (formerly VDE 0282-4) standards. The designation breaks down as: H (harmonized), 07 (450/750V), R (rubber insulation – EPR), N (polychloroprene/neoprene sheath), F (fine-stranded flexible conductor, Class 5 per IEC 60228).
As one of the most widely used industrial power cables in the world, H07RN-F is specified across mining, construction, ports, manufacturing, and marine applications where reliability under harsh mechanical and environmental conditions is essential. TEBAOFLEX manufactures H07RN-F cable to full EN 50525 compliance with CE, VDE, and UL certifications. Contact us for a quotation.

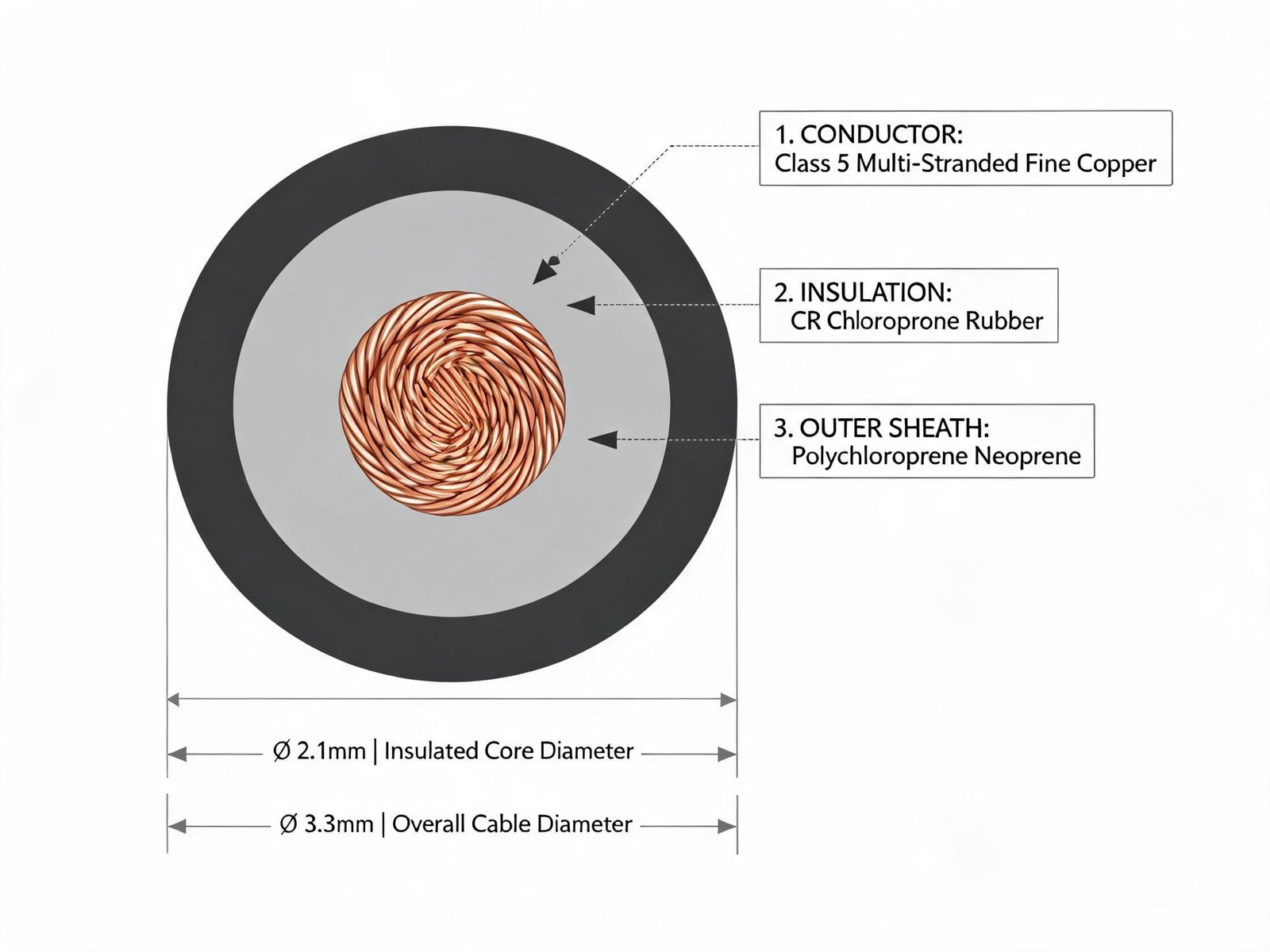

H07RN-F Cable Construction
The H07RN-F cable features a robust multi-layer construction designed for demanding industrial environments:
Conductor
- Material: Annealed copper (Class 5 per IEC 60228 / EN 60228)
- Type: Fine-stranded flexible copper conductor
- Construction: Multiple layers of fine wire strands providing excellent flexibility and fatigue resistance
- Color coding: Per HD 308S2 — brown (phase), blue (neutral), green-yellow (earth) for power cores; black with printed numbers for control configurations
Insulation
- Material: EPR (ethylene propylene rubber) or CR (chloroprene rubber), designated “R” in the harmonized code
- Temperature rating: 60°C continuous conductor operating temperature
- Dielectric strength: Typical 2.0-2.5 kV/mm
- Insulation thickness: Per EN 50525-2-21, varies by conductor size (0.8mm for 1.5mm² up to 2.0mm for larger sizes)
Outer Sheath
- Material: Polychloroprene (PCP/CR), designated “N” in the harmonized code — commonly known as neoprene
- Color: Black (standard)
- Properties: Excellent mechanical strength, abrasion resistance, weathering resistance, oil resistance, flame retardancy (self-extinguishing)
- Temperature range: -25°C to +60°C (fixed), -15°C to +60°C (flexing)
H07RN-F Technical Specifications Table
| Parameter | Specification |
|---|---|
| Standard | EN 50525-2-21 (VDE 0282-4) |
| Voltage Rating | 450/750V (U0/U) |
| Conductor | Class 5 fine-stranded copper per IEC 60228 |
| Insulation | EPR or CR rubber (Type RI2) |
| Sheath | Polychloroprene CR rubber (Type RM4) |
| Max Conductor Temperature | 60°C continuous |
| Min Operating Temperature | -25°C (fixed), -15°C (flexing) |
| Min Bending Radius | 6× overall diameter (fixed), 10× (flexing) |
| Flame Retardancy | IEC 60332-1-2 (self-extinguishing) |
| Oil Resistance | Good (IR2 per EN 50363-1) |
| UV Resistance | Good (carbon black filled sheath) |
| Water Resistance | Good |
| Tear Resistance | Excellent |
Available Configurations
TEBAOFLEX manufactures H07RN-F in a wide range of configurations:
| Cores × Cross-Section | Approx. OD (mm) | Approx. Weight (kg/km) | Conductor Class |
|---|---|---|---|
| 1 × 1.5 mm² | 5.5 | 55 | Class 5 |
| 1 × 2.5 mm² | 6.0 | 72 | Class 5 |
| 1 × 4 mm² | 7.0 | 100 | Class 5 |
| 1 × 6 mm² | 7.5 | 125 | Class 5 |
| 1 × 10 mm² | 8.5 | 175 | Class 5 |
| 1 × 16 mm² | 10.0 | 250 | Class 5 |
| 1 × 25 mm² | 12.0 | 365 | Class 5 |
| 1 × 35 mm² | 13.5 | 480 | Class 5 |
| 1 × 50 mm² | 15.5 | 650 | Class 5 |
| 1 × 70 mm² | 18.0 | 900 | Class 5 |
| 1 × 95 mm² | 20.0 | 1200 | Class 5 |
| 2G × 1.5 mm² | 10.0 | 135 | Class 5 |
| 3G × 1.5 mm² | 10.5 | 155 | Class 5 |
| 3G × 2.5 mm² | 11.5 | 190 | Class 5 |
| 3G × 4 mm² | 12.5 | 250 | Class 5 |
| 3G × 6 mm² | 14.0 | 320 | Class 5 |
| 3G × 10 mm² | 16.5 | 460 | Class 5 |
| 3G × 16 mm² | 19.0 | 670 | Class 5 |
| 3G × 25 mm² | 23.0 | 980 | Class 5 |
| 4G × 1.5 mm² | 11.0 | 175 | Class 5 |
| 4G × 2.5 mm² | 12.5 | 220 | Class 5 |
| 4G × 4 mm² | 14.0 | 290 | Class 5 |
| 4G × 6 mm² | 15.5 | 380 | Class 5 |
| 5G × 1.5 mm² | 12.0 | 200 | Class 5 |
| 5G × 2.5 mm² | 13.5 | 260 | Class 5 |
| 5G × 4 mm² | 15.5 | 350 | Class 5 |
| 5G × 6 mm² | 17.5 | 460 | Class 5 |
| 5G × 10 mm² | 21.0 | 680 | Class 5 |
| 7G × 1.5 mm² | 13.5 | 250 | Class 5 |
| 12G × 1.5 mm² | 17.0 | 400 | Class 5 |
Note: Values are approximate and for reference only. Contact TEBAOFLEX for detailed datasheets and project-specific configurations.
H07RN-F Ampacity (Current Carrying Capacity)
Approximate ampacity ratings for H07RN-F cable with copper conductors at 30°C ambient temperature:
| Cross-Section (mm²) | 1 Core (A) | 2 Cores (A) | 3 Cores (A) | 4-5 Cores (A) |
|---|---|---|---|---|
| 1.5 | 23 | 20 | 18 | 16 |
| 2.5 | 31 | 27 | 25 | 22 |
| 4 | 42 | 36 | 34 | 30 |
| 6 | 54 | 46 | 43 | 38 |
| 10 | 75 | 63 | 60 | 53 |
| 16 | 100 | 85 | 80 | 70 |
| 25 | 132 | 112 | 105 | 92 |
| 35 | 164 | 139 | 130 | 114 |
| 50 | 205 | 174 | 163 | 143 |
| 70 | 260 | 221 | 207 | 182 |
| 95 | 322 | 274 | 256 | 225 |
| 120 | 380 | 323 | 302 | 265 |
Values are for reference only based on EN 60364-5-52 installation method C (in conduit on wall). Actual ampacity must be calculated for specific installation conditions with appropriate derating factors. See our cable ampacity calculation guide for detailed methodology.

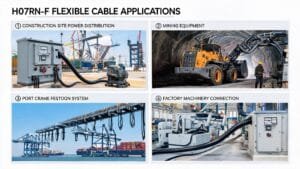

H07RN-F Cable Applications
The H07RN-F cable is used across a broad spectrum of industrial applications:
- Construction sites: Power distribution to temporary installations, tools, and equipment
- Mining and quarrying: Power supply to portable and mobile equipment (LV applications)
- Ports and cranes: Festoon and reeling cable for gantry cranes, hoists, and trolleys

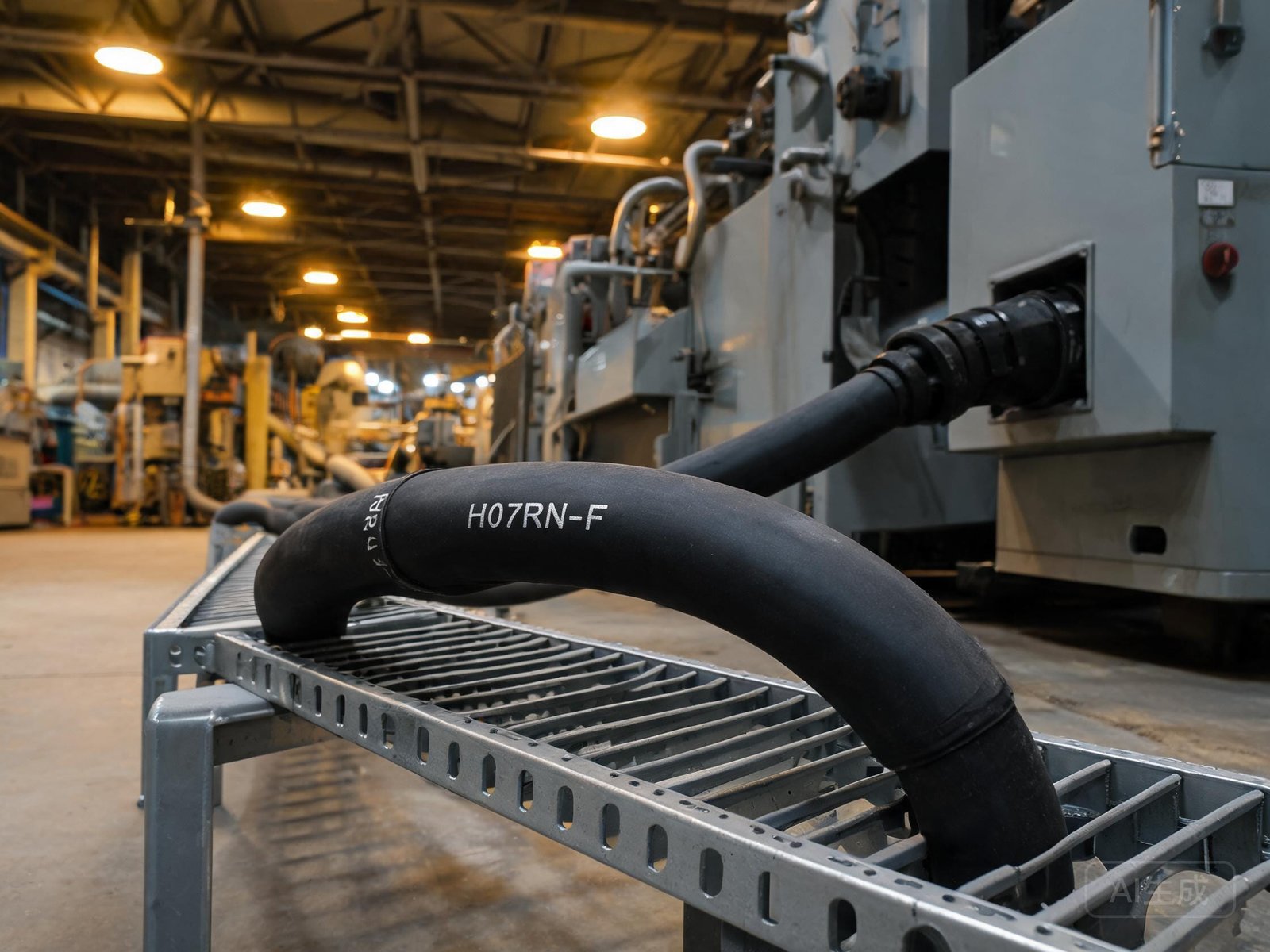

- Manufacturing: Machine tool wiring, robotics power supply, production line equipment
- Marine and shipbuilding: Onboard wiring for non-permanent installations, shore power connections
- Agriculture: Power supply to farm equipment, irrigation systems, and outdoor installations
- Events and entertainment: Stage lighting, sound systems, and temporary power distribution
- Welding equipment: Power supply to welding machines (primary side)
H07RN-F vs Other H07 Cable Types
The H07 series includes several variants with different sheath materials:
| Designation | Sheath Material | Key Properties | Best For |
|---|---|---|---|
| H07RN-F | Polychloroprene (CR) | Balanced performance: oil, weather, abrasion, flame | General industrial, construction, outdoor |
| H07BN4-F | Chlorosulfonated polyethylene (CSM) | Superior weathering, ozone, heat aging | Long-term outdoor, high UV exposure |
| H07RN8-F | PCP/CR with improved water resistance | Enhanced waterproofing for submersion | Aquaculture, underwater, wet environments |
| H07ZZ-F | LSZH (halogen-free) | Low smoke, no toxic gases in fire | Public buildings, transport, data centers |
| H07BQ-F | PUR (polyurethane) | Superior abrasion and cut resistance | Drag chains, high-wear applications |
For a detailed comparison, see our PVC vs rubber cable guide or contact TEBAOFLEX for model selection assistance.
H07RN-F Standards and Certifications
TEBAOFLEX H07RN-F cables are manufactured and tested to:
- EN 50525-2-21: Cables for rated voltages up to 450/750V — Part 2-21: Cables with rubber insulation
- EN 50363-1: Insulation and sheath materials — rubber compounds
- IEC 60228 / EN 60228: Conductors of insulated cables (Class 5)
- IEC 60332-1-2: Flame retardancy test for single cables
- IEC 60754-1/2: Gas evolution and acidity test (halogen content)
- RoHS / REACH: Compliance with EU environmental regulations
Certifications available: CE (European Union), VDE (Germany), UL/cUL (North America). View TEBAOFLEX certification documents.
H07RN-F Installation Guidelines
- Minimum bending radius: 6× cable outer diameter for fixed installation; 10× for continuous flexing
- Tension: Do not exceed maximum tensile load of 50 N/mm² of conductor cross-section
- Temperature during installation: Minimum -15°C for installation without risk of sheath cracking
- Cable glands: Use weatherproof PG or metric cable glands rated for CR rubber sheath
- Support spacing: Horizontal runs: maximum 0.5m; Vertical runs: maximum 1.0m
- Jointing: Use approved rubber cable splice kits. Maintain IP rating of the cable system.
For detailed installation instructions, see our cable installation best practices guide.
H07RN-F Cable Selection Checklist
- Determine voltage: 450/750V rated — suitable for most LV industrial applications
- Calculate current: Determine full-load current of the equipment
- Apply derating: Consider ambient temperature, grouping, and installation method
- Select core count: 1C for phase conductors, 3G for 3-phase + earth, 4G/5G for multi-circuit
- Verify environment: H07RN-F suits outdoor, wet, oil-exposed, and abrasive environments
- Check temperature range: -25°C to +60°C — for higher temps, consider silicone or FEP
- Confirm standards: EN 50525-2-21 / VDE 0282-4 compliance required
- Request quotation: Contact TEBAOFLEX with specifications for pricing
Why Choose TEBAOFLEX for H07RN-F Cable?
- Full compliance with EN 50525-2-21 harmonized cable standard
- CE, VDE, and UL/cUL certified manufacturing
- Class 5 fine-stranded copper conductors for maximum flexibility
- Premium CR rubber sheath for superior oil, abrasion, and weathering resistance
- Wide range: 1.5mm² to 400mm², 1 to 48 cores
- Custom configurations: shielded variants, reinforced constructions, OEM marking
- Competitive pricing with direct factory supply
- Global export experience with documented project references
Browse our product catalog or request a quotation for your H07RN-F cable requirements.
Request a Quote
Need H07RN-F cable for your project? Provide the following information and our technical team will respond within 24 hours:
- Core count and cross-section (e.g., 3G×2.5mm²)
- Total cable length required
- Application environment (indoor/outdoor, oil exposure, temperature)
- Required certifications (CE, VDE, UL)
- Delivery location and timeline
