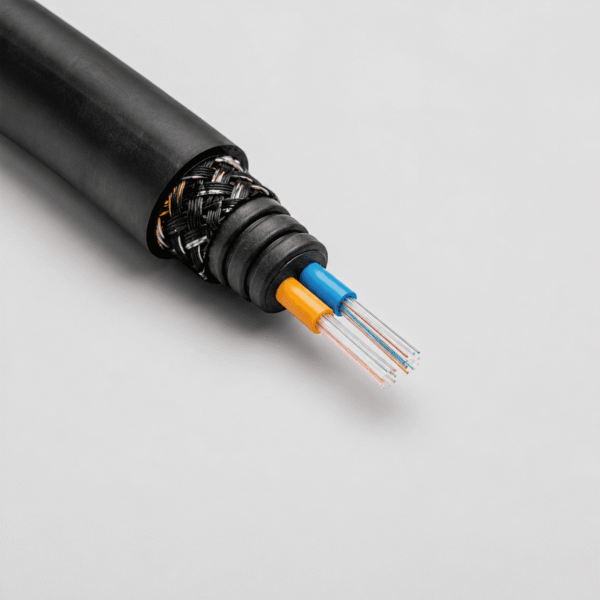

Rubber Crane FO 2×12/125 Fibre Optic Reeling Cable provides dependable optical signal and data transmission on mobile material-handling equipment. Its reinforced rubber construction is designed for small motor-driven and spring-driven reels where flexible movement, tensile performance and outdoor durability are required.
Applications
Use this cable for long-distance crane communication networks, including optical PROFIBUS-type installations, moving machinery and other reel-fed industrial systems. It is intended for indoor and outdoor use where resistance to ozone, UV exposure, moisture and oil is important.
Design and Performance
- Two 12-fibre tubes are available with E9/125 single-mode, G50/125 multimode or G62.5/125 multimode fibre options.
- Synthetic strain-relief elements and a high-tech multifilament reinforcement braid support repeated motion.
- The black type 5GM5 heavy-duty rubber outer sheath helps protect the cable in demanding industrial environments.
- The stated moving-use temperature range is -30°C to +80°C, with a maximum reeling speed of 120 m/min.
Technical Parameters
| Parameter | Value |
|---|---|
| Fibre element | 2 × 12 fibres; E9/125, G50/125 or G62.5/125 |
| Outer sheath | Heavy-duty rubber compound, type 5GM5, black |
| Moving-use temperature | -30°C to +80°C |
| Storage / transport temperature | -40°C to +80°C |
| Minimum bending radius | ≥ 250 mm |
| Maximum continuous load | 1500 N |
| Maximum dynamic tensile load | 2000 N |
| Maximum reeling speed | ≤ 120 m/min |
| Oil resistance | IEC 60811-404 |
| Flame behaviour | IEC 60332-1-2 |
| Outer diameter | 14–16 mm |
| Approximate weight | 210 kg/km |
Available Fibre Options
| Configuration | Fibre Type | Typical Use |
|---|---|---|
| 2 × 12 E9/125 | Single-mode OS2 | Long-distance optical links |
| 2 × 12 G50/125 | Multimode OM2–OM4 | Industrial Ethernet and data networks |
| 2 × 12 G62.5/125 | Multimode OM1 | Legacy industrial communication networks |
Specification Support
Share the required reel type, travel speed, fibre type, cable length and installation environment. TEBAOFLEX can help review the configuration before quotation.
