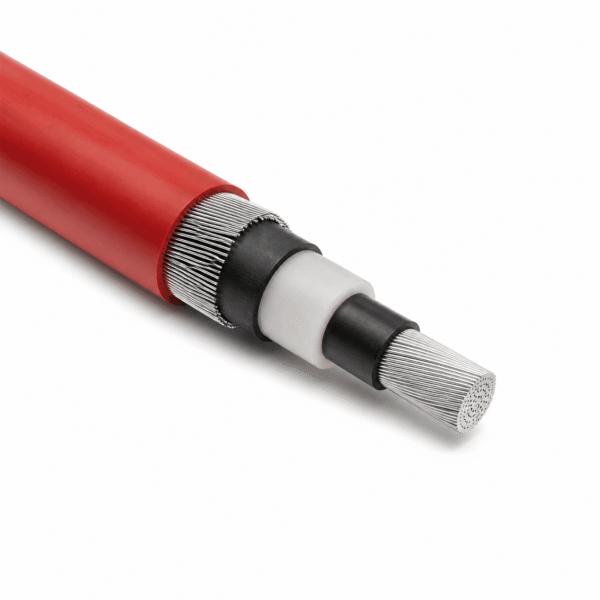

(N)TMCGC11Y Screened Single Core Medium Voltage PUR Cable is designed for flexible, short-length power connections in switchgear rooms and transformer houses where a compact bending radius is required. The documented construction combines a finely stranded tinned copper conductor, EPR insulation, semiconductive stress-control layers, a tinned copper wire screen and a red oil-resistant PUR outer sheath.
Applications
Use this medium voltage cable for indoor or outdoor fixed connections and controlled free movement in industrial power distribution. Confirm voltage class, conductor size, bending radius and installation conditions before selection.
Construction and Technical Data
| Parameter | Documented value |
|---|---|
| Conductor | Finely stranded tinned copper, Class 5 |
| Insulation | EPR compound with inner and outer semiconductive layers |
| Screen | Spirally applied tinned copper wires |
| Outer sheath | Oil-resistant PUR, red |
| Rated voltage range | 3.6/6 kV to 18/30 kV, depending on configuration |
| Maximum conductor temperature | 90°C |
| Short-circuit temperature | 250°C |
| Fixed / moving bending radius | ≥ 6 × OD / ≥ 10 × OD |
| Temperature range | Fixed: −40°C to +90°C; flexible: −35°C to +80°C |
| Maximum tensile load | 15 N/mm² per conductor |
Representative Cable Sizes
The figures below are representative values from the product documentation. Current-carrying capacities are based on a 30°C reference ambient temperature and the stated installation method; confirm the final design for the project.
| Voltage class | Construction | Outer diameter | Approx. weight | Current capacity |
|---|---|---|---|---|
| 6/10 kV | 1 × 25 / 16 mm² | 21–23 mm | 730 kg/km | 135 A |
| 6/10 kV | 1 × 70 / 16 mm² | 26–28 mm | 1290 kg/km | 268 A |
| 6/10 kV | 1 × 120 / 16 mm² | 29–31 mm | 1820 kg/km | 383 A |
| 6/10 kV | 1 × 240 / 25 mm² | 36–38 mm | 3085 kg/km | 607 A |
| 12/20 kV | 1 × 25 / 16 mm² | 25–27 mm | 925 kg/km | 135 A |
| 12/20 kV | 1 × 70 / 16 mm² | 29–31 mm | 1520 kg/km | 268 A |
| 12/20 kV | 1 × 120 / 16 mm² | 33–35 mm | 2075 kg/km | 383 A |
| 12/20 kV | 1 × 240 / 25 mm² | 39–41 mm | 3350 kg/km | 607 A |
Standards and Selection
The source documentation refers to DIN VDE 0250-813, IEC 60228, IEC 60332-1-2, EN 60811-404 and DIN VDE 0298-4. These references describe the source design; verify all applicable approvals and local installation rules for each project.
Request a Configuration
TEBAOFLEX can support a configuration review based on voltage, conductor size, bending requirements and installation environment. Request a Quote.
