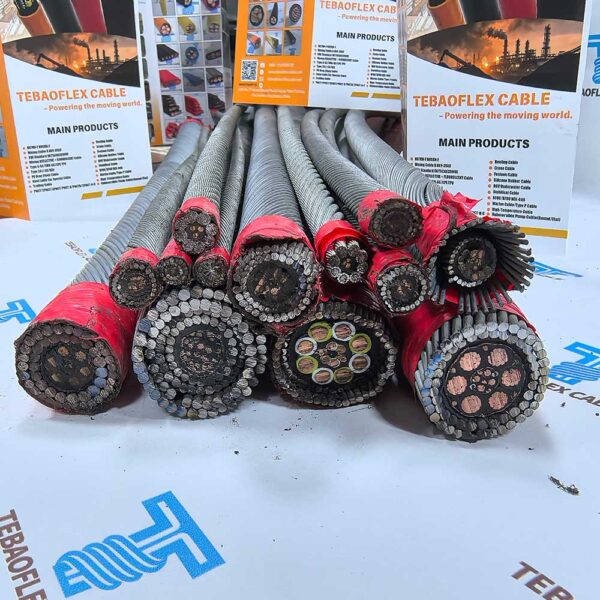

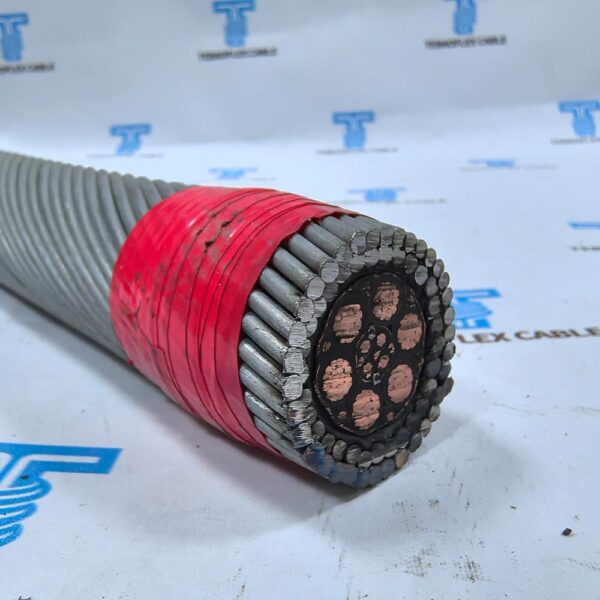

TEBAOFLEX Flexible Subsea Drilling & Exploration Cable is a configurable cable solution for offshore drilling support, subsea exploration equipment, ROV auxiliary devices and underwater monitoring systems. It can combine power, control, signal, data and optional fibre optic elements in one flexible construction for marine equipment connections.
Subsea systems frequently require more than a power link. Depending on the project, the cable can be designed with power conductors, control cores, twisted signal pairs, shielding, optical fibres and reinforcement elements. The final construction must be selected around the actual operating depth, tensile load, route, equipment interface and environmental conditions.
Flexible Subsea Drilling Cable Features
- Composite design options: power, control, signal and optional fibre optic elements can be combined as required.
- Flexible conductors: flexible copper or tinned-copper conductors can be selected for the electrical circuits.
- Optional screening: foil screening or tinned copper braid can be used where signal protection is required.
- Mechanical reinforcement: aramid yarn or steel wire can be specified for applications with tensile loading or repeated movement.
- Marine sheath options: PUR, TPU, rubber or other suitable marine-grade compounds can be selected for the application.
Configurable Construction
The product is designed as a project-specific subsea cable rather than a fixed one-size construction. TEBAOFLEX can review power demand, signal protocol, fibre requirement, expected movement, water conditions and connector interface to define the appropriate cable arrangement.
| Design Element | Typical Option |
|---|---|
| Product type | Flexible Subsea Drilling & Exploration Cable |
| Application | Subsea drilling, exploration, ROV support and monitoring equipment |
| Rated voltage | 300 V, 300/500 V, 450/750 V, 0.6/1 kV or customized |
| Conductor | Flexible copper or tinned copper |
| Core structure | Power, control, signal or composite design |
| Signal unit | Twisted pair, shielded pair or data unit |
| Fibre optic | Optional single-mode or multimode fibre |
| Screening | Optional foil screen or tinned copper braid |
| Reinforcement | Optional aramid yarn or steel wire |
| Outer sheath | PUR, TPU, rubber or customized marine compound |
Typical Applications
- Offshore drilling support equipment
- Subsea exploration and inspection systems
- ROV auxiliary equipment
- Underwater cameras, lighting and sensors
- Marine monitoring instruments and seabed inspection devices
- Subsea control, signal and power transmission assemblies
Selection Guidance
Please provide the operating depth, required voltage and current, signal or data type, fibre requirement, working length, cable route, minimum bend radius, expected tensile load, desired buoyancy and connector details. These inputs allow TEBAOFLEX to propose a Flexible Subsea Drilling & Exploration Cable construction for the actual equipment and operating environment.
Request a Quote for a Flexible Subsea Drilling & Exploration Cable
