Application & Operating Conditions
KYFLTFCY is a 300/500 V copper-shielded flat PVC power and control cable with integrated steel suspension elements (TF = Tragorgan Flachleitung), purpose-built for overhead cranes, container-handling hoists, high-bay stacker cranes, and deep vertical suspended drops requiring both single-plane bending and tensile strain relief.
Long-Drop Hoists & High-Bay Stackers
Dual outer galvanized steel suspension ropes carry the vertical suspended dead weight of long hanging loops so tensile strain never transfers onto the Class 5 copper conductors.
VFD-Driven Crane Festoon Systems
Braided copper EMC shielding around the internal core groups blocks high-dV/dt inverter noise from corrupting hoist encoder, limit-switch, and safety PLC circuits.
Compact Single-Plane Loop Stacking
Flat ribbon geometry bends cleanly in one plane to a tighter minimum radius than equivalent multi-core round cables, minimizing festoon parking-station length on indoor/covered beams.
Suspension Termination Requirement: Always anchor both outer steel support elements into mechanical strain-relief clamps at the fixed beam and moving trolley/hoist boxes before landing copper cores on terminal blocks—never allow copper conductors or EMC braids to bear tensile suspension load.

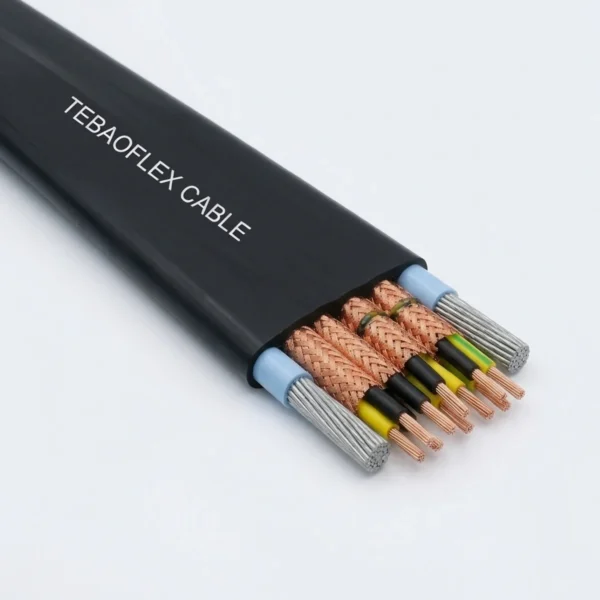

Cable Construction (KYFLTFCY Self-Supporting EMC Flat Design)
Built around a parallel flat web layout that isolates the two outer mechanical load-bearing steel wire ropes from the central copper-shielded electrical sub-bundles.
| Layer / Component | Material & DIN VDE 0281 Engineering Specification |
|---|---|
| 1. Conductors | Flexible fine-stranded bare copper conductors according to DIN VDE 0295 Category 5 / IEC 60228 Class 5 |
| 2. Core Insulation & Coding | Special flexible PVC core insulation; 5-, 20-, and 28-wire numbered/color-coded control cores plus one dedicated green/yellow (GN/YE) protective earth wire |
| 3. Core Sub-Bundle Lay-Up | Cores stranded in low-torsion four-core / multi-core groups arranged side-by-side in a single flat plane for strong unidirectional bends |
| 4. Copper EMC Shield (CY) | Braided copper screen over core sub-bundles providing high optical coverage against electromagnetic interference |
| 5. Integrated Suspension Elements (TF) | Two stranded galvanized steel wire ropes embedded symmetrically inside polymeric bedding along the left and right outer flanks of the flat cable |
| 6. Outer Sheath | Flexible black flat PVC compound per DIN VDE 0281 — suitable for dry, damp, and wet industrial halls |

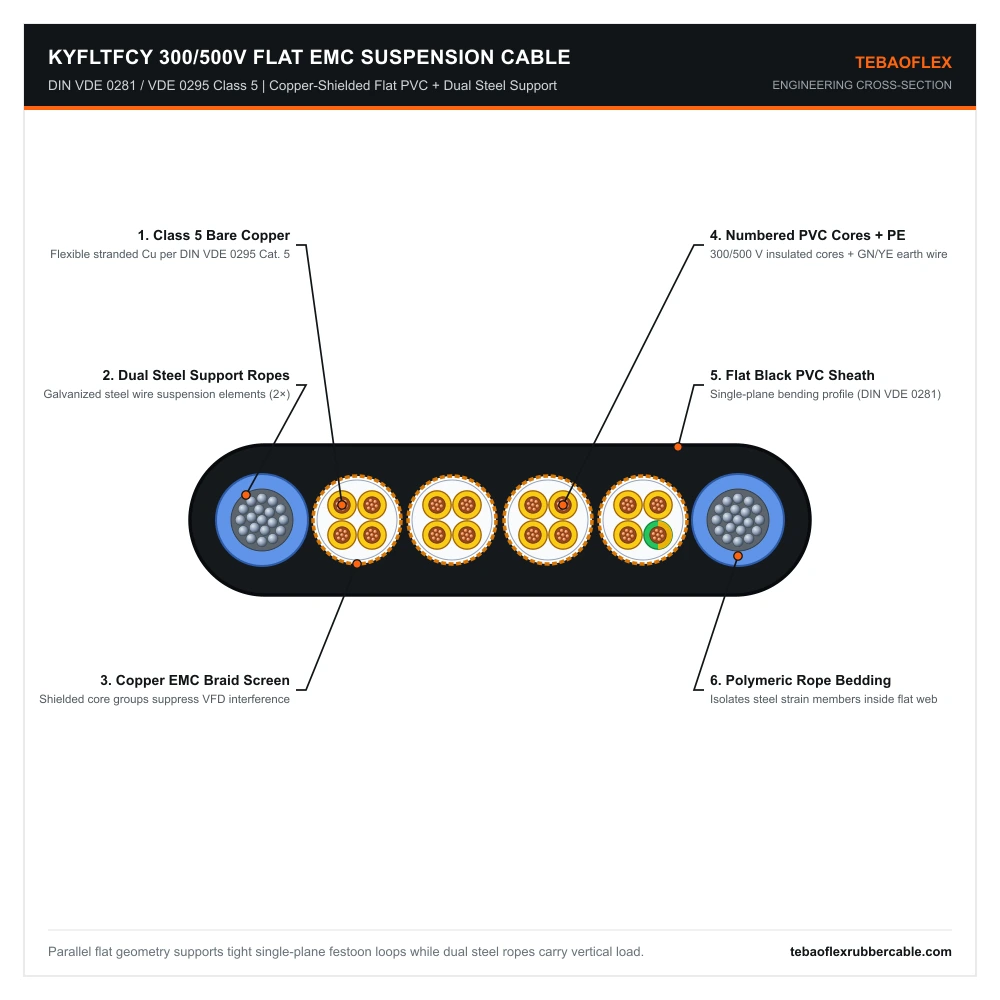

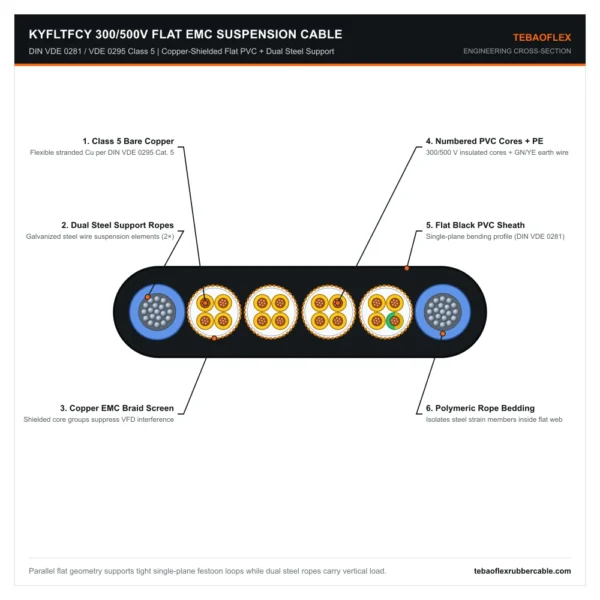

Flat single-plane bending profile integrating dual outer galvanized steel strain-relief ropes and copper-braided EMC core groups.
Technical Characteristics
Operating parameters in reference to DIN VDE 0281 and DIN VDE 0295 Category 5 for suspended crane, hoist, and trolley control duty.
| Parameter | DIN VDE 0281 Rated Value |
|---|---|
| Nominal Voltage (U0/U) | 300 / 500 V AC |
| Conductor Stranding | DIN VDE 0295 Category 5 (IEC 60228 Class 5 flexible bare copper) |
| Max. Conductor Operating Temp. | +70°C |
| Minimum Temperature (Mobile) | -25°C (dynamic single-plane festoon & vertical hoist flexing) |
| Minimum Temperature (Fixed) | -40°C |
| Bending Plane & Radius | Strong operational bends in one flat plane (typical ~10 × cable thickness H) |
| Operating Environment | Dry, damp, and wet indoor/covered industrial crane halls, machine tools, and hoists |
| Environmental Compliance | RoHS & REACH compliant; flame-retardant per IEC 60332-1-2 |
KYFLTFCY Specification & Custom Engineering Schedule
Reference production specification for the 28-core EMC-screened suspension build alongside standard 5-core and 20-core project series (mass units standardized to kg/km).
KYFLTFCY 300/500 V Flat EMC PVC Cable with Integrated Steel Suspension Elements
| Part Designation | Core & Support Architecture | Copper Weight (kg/km) | Total Weight (kg/km) | Outer Sheath |
|---|---|---|---|---|
| KYFLTFCY 28×1 | 28 × 1.0 mm² (numbered + GN/YE) + Cu EMC screen + 2 steel ropes | 462.00 | Project-specific* | Black PVC |
| KYFLTFCY 20×1 (Custom) | 20 × 1.0 mm² (numbered + GN/YE) + Cu EMC screen + 2 steel ropes | On request | On request | Black PVC |
| KYFLTFCY 5×1.5 / 2.5 (Custom) | 5-core power/control + Cu EMC screen + 2 steel ropes | On request | On request | Black PVC |
Flat Crane Festoon & Self-Supporting Pendant Cable Matrix
Select the exact flat PVC, flat rubber, or round steel-supported pendant construction required by your crane travel span, EMI environment, and vertical suspension drop.
| Crane Cable Model | Support / Shielding Architecture & Recommended Crane Duty |
|---|---|
| KYFLTFCY (This Page) | Flat PVC + Copper EMC Screen + Dual Steel Suspension Ropes (300/500 V) — for long vertical hoist loops and EMC-sensitive stacker/crane trolleys. |
| KYFLCY | Flat PVC + Copper EMC Screen without steel ropes (300/500 V & 0.6/1 kV) — for standard saddle-supported C-rail and I-beam crane festoons. |
| KYFLY (Sibling Flat PVC) | Unscreened flexible flat PVC festoon cable (300/500 V, DIN VDE 0281-403) — economical compact loops for standard contactor-controlled overhead cranes. |
| 2ST Crane Pendant Cable | Round PVC pendant cable with dual external steel support wires (300/500 V, 8G1.5–20G1.5) — dedicated for operator handheld pushbutton stations. |
| (N)GFLCGÖU | Screened flat EPR/PCP rubber festoon cable — upgrade choice for sub-zero outdoor port gantries (-35°C/+90°C) and heavy oil exposure. |
Frequently Asked Questions (FAQ)
Key technical questions when selecting KYFLTFCY steel-supported screened flat festoon cables.
How does KYFLTFCY differ from standard KYFLCY flat festoon cable?
Both KYFLTFCY and KYFLCY incorporate copper EMC shielding inside a flexible flat PVC jacket; however, KYFLTFCY adds integrated galvanized steel suspension elements (“TF”) along the outer edges of the flat web. Choose KYFLTFCY whenever long vertical drop loops or suspended hoist travel would otherwise place excessive tensile stress on the copper conductors.
Can KYFLTFCY be wound around two axes or twisted torsionally?
No. Like all flat ribbon crane cables, KYFLTFCY is engineered strictly for strong operational bends in a single plane perpendicular to its wide face. For torsional twisting or multi-plane basket coiling, specify a round aramid- or sisal-supported crane cable.
Is KYFLTFCY suitable for sub-zero outdoor port cranes?
KYFLTFCY is rated down to -25°C in mobile operation and -40°C fixed in dry, damp, and wet halls. For permanent uncovered coastal port cranes exposed to intense solar UV, salt spray, and +90°C conductor loading, specify our screened flat rubber (N)GFLCGÖU series.
What standard drum lengths and custom core combinations can TEBAOFLEX supply?
Standard export packing is 500 m on fumigated wooden drums, with custom cut lengths, 5-/20-/28-core control layouts, and project-rated steel rope diameters manufactured on short lead times.
Configure Your KYFLTFCY Self-Supporting Flat Crane Cable
Provide your required core count, vertical suspension height, tensile load, and drum length—TEBAOFLEX engineers will confirm dimensions and pricing within 24 hours.
