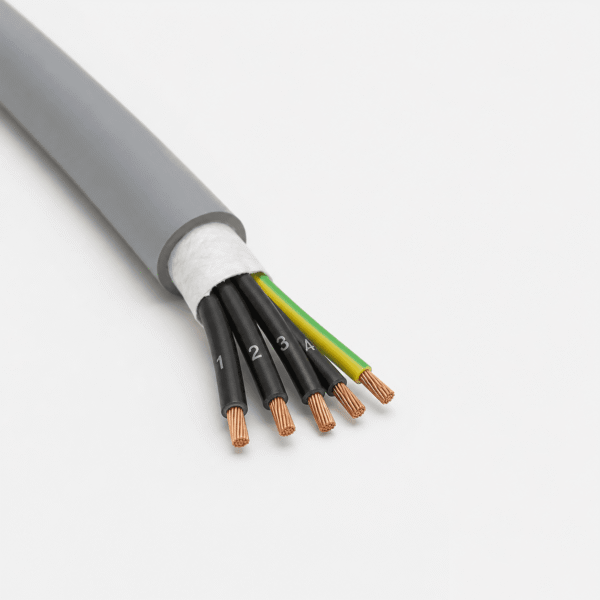

FD 80785 P TPE-PUR Servo Power Cable | TEBAOFLEX provides a flexible unshielded power connection where a robust PUR sheath is needed.
Applications
Servo power, power chains and moving machinery
Construction
- Fine-stranded bare copper conductors
- TPE core insulation
- Numbered black cores with green-yellow protective conductor
- Grey PUR outer sheath
Technical data
- Rated voltage: 600/1000 V
- Screen: No metallic screen
- Outer sheath: PUR, grey RAL 7001
- Temperature range: -40°C to +70°C flexible; -50°C to +70°C fixed
- Minimum bending radius: 5 × D flexible; 3 × D fixed
- Standards: EN 60332-1-2; halogen free
Request a quote
Share the cable configuration and installation conditions with TEBAOFLEX. Request a Quote.
Servo and motion cable selection
FD 80785 P TPE-PUR Servo Power Cable is intended for industrial motion systems where conductor flexibility, screen design and sheath material must match the installation. Confirm the drive type, cable route, movement cycle, ambient temperature, bending radius and required EMC level before selection.
Technical specification
| Parameter | Specification |
|---|---|
| Model | FD-80785-P |
| Rated Voltage | 600/1000 V |
| Screen | No metallic screen |
| Outer Sheath | PUR, grey RAL 7001 |
| Temperature Range | -40°C to +70°C flexible; -50°C to +70°C fixed |
| Minimum Bending Radius | 5 × D flexible; 3 × D fixed |
| Standards | EN 60332-1-2; halogen free |
| Application | Servo power, power chains and moving machinery |
Application limits and installation
Use this construction only when its voltage, screen arrangement and mechanical duty match the machine design. Screened versions help in EMC-sensitive installations; unshielded versions should not be selected where that protection is required. Maintain the listed bending radius and avoid torsion, crushing or unsupported travel beyond the verified duty.
Related servo cable options
Compare with FD 05855 P Unshielded TPE-PUR Servo Cable when choosing between screen, insulation or sheath options. Send your requirements with voltage, cores, movement duty and installation conditions.
