Introduction to Cable Maintenance
Regular cable maintenance prevents unexpected failures, extends service life, and ensures safe and reliable electrical system operation. While cables are generally low-maintenance components, they do degrade over time due to thermal aging, mechanical stress, moisture, chemical exposure, and other environmental factors. A proactive maintenance program can detect issues early, before they cause unplanned downtime or safety hazards.
This cable maintenance and troubleshooting FAQ addresses the most common questions about cable inspection, maintenance, and problem diagnosis. TEBAOFLEX provides technical support for cable performance issues — contact our engineering team for assistance.
Frequently Asked Questions: Cable Maintenance
Q1: How often should I inspect my cables?
A: Inspection frequency depends on the application and environment:
- Normal industrial (indoor, moderate conditions): Visual inspection annually. IR thermography every 2-3 years.
- Harsh environment (outdoor, chemical, high temperature): Visual inspection every 6 months. IR thermography annually.
- Critical circuits (emergency systems, process-critical): Visual inspection quarterly. IR thermography semi-annually. Insulation resistance testing annually.
- Mining, offshore, and heavy industrial: Monthly visual checks. Quarterly IR thermography. Annual insulation testing.
After any major event (short circuit, mechanical damage, flood, fire), inspect affected cables immediately.
Q2: What should I look for during a visual inspection?
A: Check for these common signs of cable degradation or damage:
- Jacket/sheath damage: Cracks, cuts, abrasions, swelling, or discoloration
- Deformation: Flattening, bulging, or kinking indicating internal damage
- Corrosion: Rust on armor or metallic components
- Oil or chemical contamination: Jacket swelling or softening from chemical exposure
- UV damage: Cracking or chalking on outdoor cables (especially non-black PVC)
- Animal/rodent damage: Gnaw marks on cable jackets

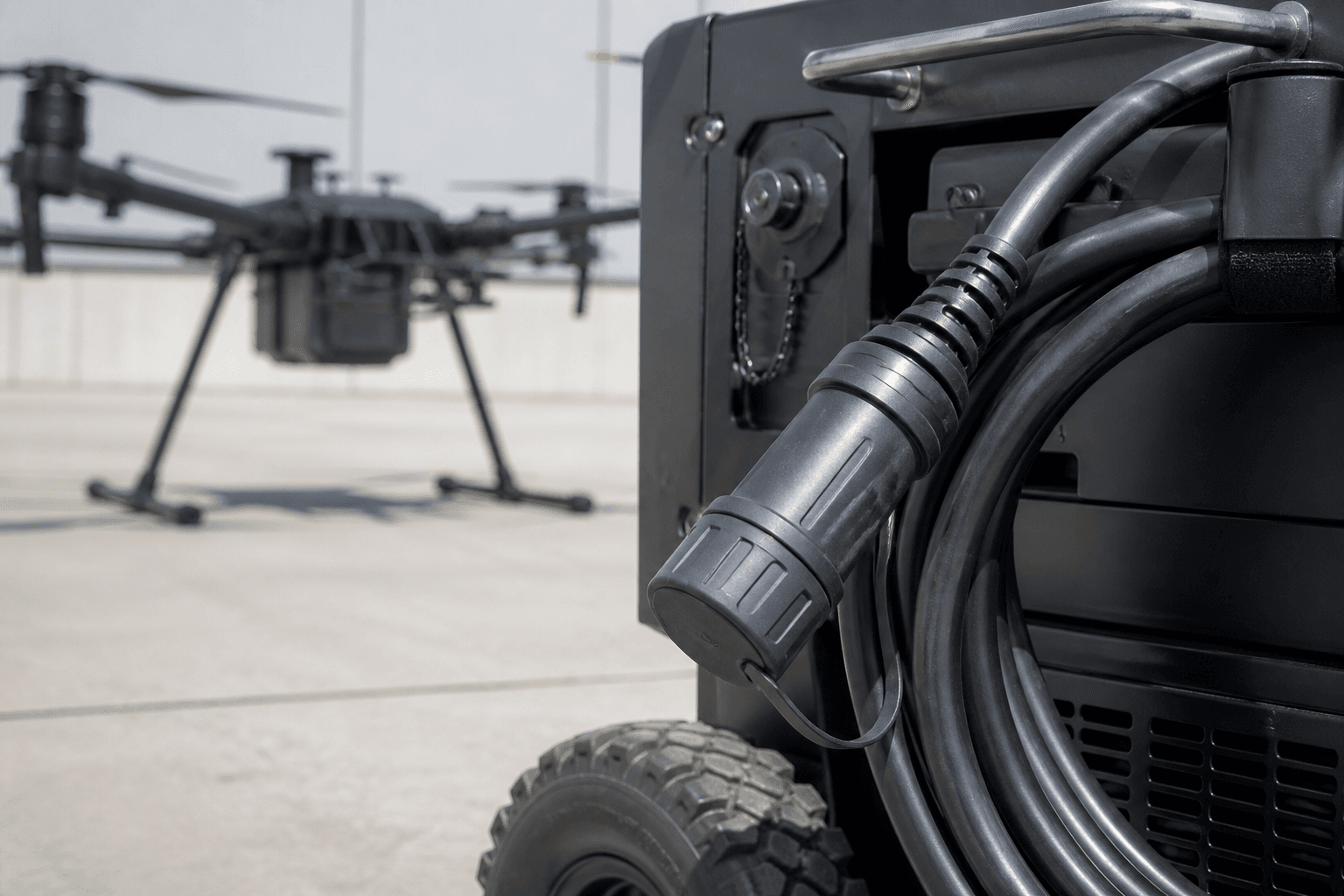

- Connector and termination issues: Discoloration, burnt marks, loose hardware, corrosion
- Cable support issues: Sagging cables, broken hangers, damaged tray
- Water/moisture: Water in conduit, condensation, dripping from cable ends
Q3: What is thermal imaging and why is it important?
A: Infrared (IR) thermography uses a thermal camera to detect hot spots on cables, connections, and equipment. It is the single most valuable diagnostic tool for cable maintenance because:
- It is non-contact and non-destructive — no need to shut down circuits
- It detects loose connections, overloaded conductors, and high-resistance joints before they cause failure
- It identifies problems invisible to visual inspection
- It can survey large areas (entire cable trays, switchgear rooms) quickly
Thermal surveys should be performed under maximum load conditions for best results. Compare temperatures across similar phases and circuits to identify anomalies. A temperature difference of more than 10-15°C between similar components typically indicates a problem.
Q4: How do I test cable insulation condition?
A: Insulation resistance testing (Megger test) is the standard method:
- LV cables: Use a 500V or 1000V DC Megger. Minimum acceptable insulation resistance varies by standard, but a general guideline is 1 MΩ per kV + 1 MΩ (e.g., 2 MΩ minimum for 1kV cable).
- MV cables: Use a 5kV or 10kV DC Megger or VLF tester. Minimum values typically 100-1000 MΩ/km depending on cable type and length.
- Test procedure: Disconnect both ends of the cable. Test each conductor to ground and between conductors. Apply voltage for 1 minute (or use the polarization index test with 1-minute and 10-minute readings).
- Trend analysis: Compare with previous readings. A sudden drop (50% or more) or a downward trend over time indicates insulation degradation.
Important: Always discharge the cable after testing. Capacitive cables can hold a dangerous charge.
Q5: What is partial discharge testing?
A: Partial discharge (PD) testing detects tiny electrical discharges within cable insulation that gradually erode the insulation and can lead to complete failure. PD testing is primarily used for:
- MV and HV cable systems (3kV and above)
- New installations to verify workmanship on terminations and joints
- Periodic assessment of critical cable circuits
- Condition-based maintenance programs
PD testing can be performed offline (with test voltage applied) or online (monitoring during normal operation). Online PD monitoring is increasingly used for critical cables to detect developing faults in real time.
Q6: How long do industrial cables last?
A: Cable service life depends heavily on operating conditions:
- Well-maintained, normal conditions: 25-40+ years for PVC/XLPE/EPR cables
- High temperature operation: Every 10°C above rated temperature roughly halves the insulation life (Arrhenius law)
- Outdoor/UV exposure: 15-25 years depending on sheath material (CSM longest, PVC shortest)
- Chemical/oil exposure: 10-20 years, potentially less with severe exposure
- Flexing/reeling cables: 5-15 years depending on flex cycles, bend radius, and load
- Mineral insulated (MI) cables: 50+ years in many applications
Properly installed cables operating within their rated parameters can last 30-40 years or more. The key is keeping conductors within the rated temperature and avoiding mechanical damage and moisture.
Frequently Asked Questions: Cable Troubleshooting
Q7: The circuit breaker trips intermittently. What could be wrong with the cable?
A: Intermittent tripping can indicate several cable-related issues:
- Insulation breakdown: Moisture or contamination in the cable causes occasional flashover, especially under high humidity or load conditions. Test with a Megger or insulation tester.
- Loose connection: A loose lug or terminal creates intermittent high resistance, causing overheating and erratic tripping. Check with thermal imaging.
- Intermittent ground fault: Damaged insulation that only contacts ground when the cable moves or when temperature/humidity changes. Common in flexible or moving cables.
- Overload: Load has increased beyond the cable’s capacity. Verify load current and compare with derated ampacity.
- Neutral/ground issue: On 3-phase systems, a damaged neutral conductor can cause voltage unbalance and tripping.
Start with visual inspection and thermal imaging, then perform insulation resistance testing to identify the fault location.
Q8: How do I find a cable fault (short circuit or open circuit)?
A: Several methods are available depending on cable type and fault type:
- Time Domain Reflectometry (TDR): The most common method. Sends a pulse down the cable and measures the time for the reflection to return. Can locate open circuits, short circuits, and impedance changes. Accuracy is typically 0.5-1% of cable length.
- Bridge method (Murray loop / Varley loop): Uses a Wheatstone bridge to locate ground faults and short circuits. Requires an unfaulted conductor for reference.
- Acoustic method: For high-resistance faults on MV cables. A surge generator creates an arc at the fault point, and the sound is detected with ground microphones.
- Cable radar / arc reflection: Combines TDR with a surge generator to locate high-resistance faults that TDR alone cannot see.
For critical cables, consider hiring a professional cable fault locating service with specialized equipment. Accurate fault location minimizes excavation and repair time.
Q9: Why is my cable overheating?
A: Cable overheating has several common causes:
- Overload: The cable is carrying more current than its rated ampacity. Verify load current and apply derating factors for installation conditions.
- Poor connections: Loose lugs, corroded terminals, or improperly crimped connectors create high resistance and localized heating. This is the most common cause of cable failures at terminations.
- Insulation degradation: Aged or damaged insulation increases dielectric losses (MV/HV) and reduces thermal capability.
- Harmonic currents: Variable frequency drives (VFDs), UPS systems, and other nonlinear loads generate harmonic currents that increase heating without showing on standard ammeters (which measure RMS current).
- Excessive ambient temperature: Cables near furnaces, boilers, or in hot environments run hotter. Verify ambient temperature and apply appropriate derating.
- Poor heat dissipation: Cables installed in overfilled conduit or tray, or covered by insulation, cannot dissipate heat properly.
Use thermal imaging to locate the hot spots, then determine if the cause is the cable itself, the installation, or the load.
Q10: Water got into the cable. What should I do?
A: Water ingress is a serious issue, especially for MV cables and cables with hygroscopic insulation:
- LV PVC cables: Some water exposure may be acceptable if the jacket is intact. Dry the cable ends thoroughly before terminating.
- MV XLPE/EPR cables: Water can cause water treeing, which degrades insulation over time and leads to premature failure. Water-damaged MV cable sections should be replaced.
- Paper-insulated cables: Paper insulation absorbs moisture rapidly. Wet sections must be cut back to dry insulation and spliced.
If water ingress is suspected:
- Inspect cable ends for signs of water (discolored insulation, water droplets)
- Perform insulation resistance and dielectric loss tests
- If water is confirmed, determine how far it has traveled by cutting back and testing
- Replace affected sections or install a splice at the dry point
- Identify and seal the entry point to prevent recurrence
Q11: Can damaged cables be repaired?
A: It depends on the type and extent of damage:
- Minor jacket damage (surface cuts, abrasions): Can be repaired with compatible repair tape or compound if the underlying insulation is undamaged. Use only repair materials approved for the cable jacket type.
- Insulation damage: LV cables can sometimes be repaired with an approved splice kit. MV cables generally require a factory-style joint — field repairs should be made with manufacturer-approved joint kits by qualified personnel.
- Conductor damage: Requires a splice or junction. The splice must have equivalent current-carrying capacity and insulation rating.
- Armor damage: Can sometimes be repaired by re-clamping or adding armor repair kits, but the mechanical protection may be compromised.
Always follow manufacturer guidelines and applicable electrical codes for cable repairs. When in doubt, replace the cable section — the cost of a failure usually far exceeds the cost of replacement.
Q12: How do I prevent cable failures?
A: Most cable failures are preventable with proper selection, installation, and maintenance:
- Select the right cable: Ensure correct voltage rating, current capacity, insulation type, armor, and environmental rating. See our cable selection guide.
- Install correctly: Follow proper pulling procedures, respect bending radius limits, use correct cable glands and terminations. See our installation guide.
- Maintain regularly: Periodic visual inspections, thermal imaging, and insulation testing detect problems early.
- Monitor load: Ensure cables are not overloaded. Add load monitoring for critical circuits.
- Protect from damage: Install guards, covers, or conduit where cables are exposed to mechanical damage, chemicals, or animals.
- Keep records: Track installation dates, test results, and maintenance activities for trend analysis and replacement planning.
When to Replace Cables
Consider cable replacement when:
- Insulation resistance is below acceptable minimum values and trending downward
- Thermal imaging shows persistent overheating that cannot be resolved by reducing load
- Multiple failures occur on the same cable or cable system
- Jacket or sheath is extensively cracked, brittle, or deteriorated
- The cable has experienced a significant overload or short-circuit event
- The cable is near the end of its expected service life (25-40 years depending on type and conditions)
- System upgrades require higher voltage or current capacity
- New regulations or safety standards require upgraded fire performance or LSZH materials
