Application & Operating Conditions
Type W Round 2000 V portable power cable is engineered for heavy-duty surface and underground mining machinery, mobile dewatering pumps, blast-hole drills, portable crushers, conveyors, AC shuttle cars, and industrial generator/shore-power drops where unshielded insulated conductors are specified without bare interstitial ground wires. In 4-conductor builds, the fourth green-insulated full-size core frequently serves as a dedicated insulated equipment ground alongside three phase conductors.
Mine Dewatering Pumps & Drills
Moisture- and ozone-resistant 90°C EPR insulation paired with a reinforced thermosetting CPE sheath withstands standing sump water, mud, oil, and rocky pit dragging.
3-Core vs. 4-Core Circuit Flexibility
Choose 3/C for ungrounded delta feeds or external ground circuits, or 4/C (Black, White, Red, Green) to carry three phases plus a full-gauge insulated green ground.
Optional Night-Visibility Luminous Sheath
Available in standard extra-heavy-duty black CPE, colored CPE/CSP/PCP compounds, or photo-luminescent / high-visibility finish for dark underground headings and night pits.
Need Monitored Ground-Check or Flat Reel Geometry? If your mine load center requires a ground-check pilot loop, select Type G-GC Round 2kV; for low-seam level-wind shuttle-car reels, see Type W Flat 2kV.

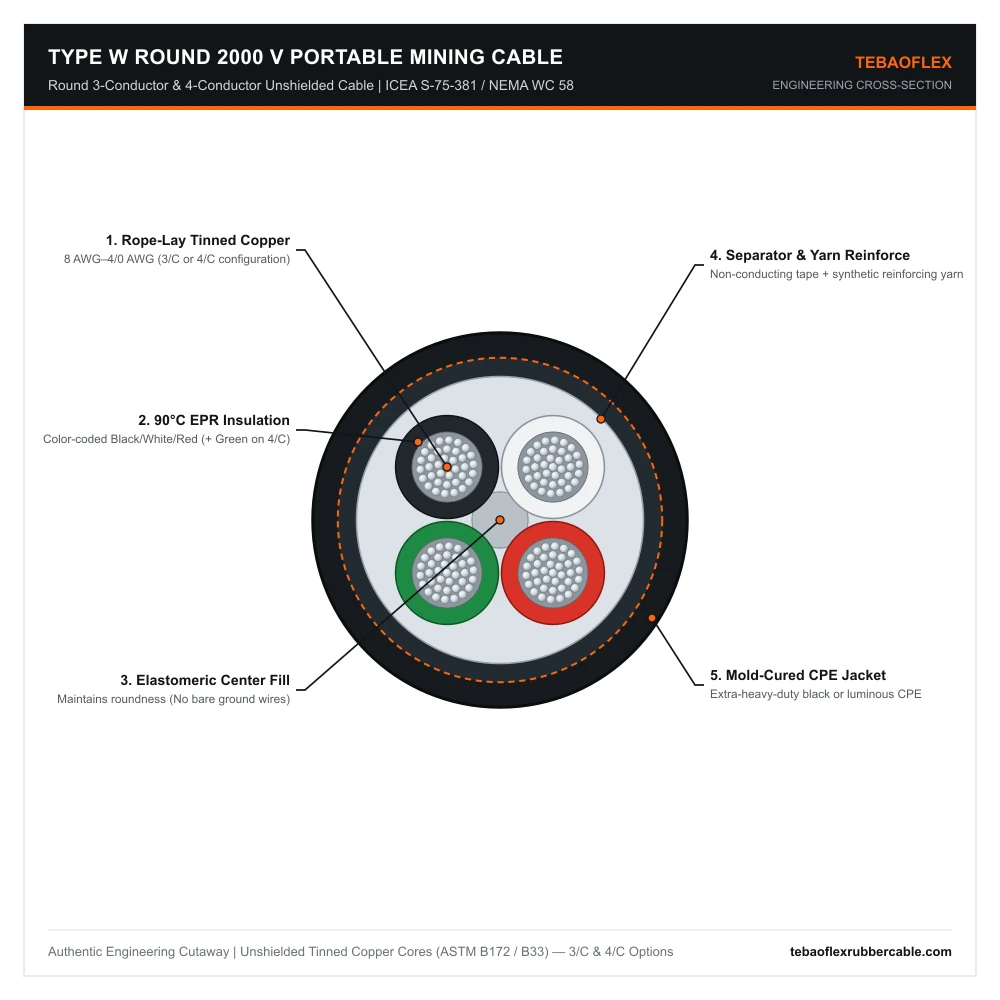

Cable Construction (ICEA S-75-381 Type W Round 3/C & 4/C)
Compact cabled round geometry reinforced with synthetic fiber yarn between dual-extruded mold-cured thermoset CPE layers for superior impact, tear, and torsion resistance.
| Layer / Component | Material & ICEA S-75-381 / NEMA WC 58 Engineering Specification |
|---|---|
| 1. Power Conductors (3× or 4×) | Flexible rope-lay stranded annealed tinned copper conductors (133 to 532 strands, 8 AWG to 4/0 AWG; up to 500 kcmil on request) per ASTM B172 and ASTM B33. |
| 2. 90°C EPR Insulation | Heat-, moisture-, and ozone-resistant Ethylene Propylene Rubber (EPR): 60 mil (1.52 mm) wall for 8–2 AWG and 80 mil (2.03 mm) wall for 1–4/0 AWG. |
| 3. Core Color Identification | 3-Conductor: Black, White, Red | 4-Conductor: Black, White, Red, Green (permanent color-coded insulation for rapid field phase/ground identification). |
| 4. Cabled Core & Separator | Insulated conductors cabled with elastomeric fillers into a round compact core and wrapped with a non-conducting separator tape. |
| 5. Synthetic Yarn Reinforcement | High-tenacity reinforcing fiber braid/wrap applied between inner and outer jacket layers to resist longitudinal stretching and rock-cut propagation. |
| 6. Outer Jacket (CPE / Luminous) | Reinforced mold-cured extra-heavy-duty thermosetting Chlorinated Polyethylene (CPE) in black, custom safety colors, or luminous visibility compound. |

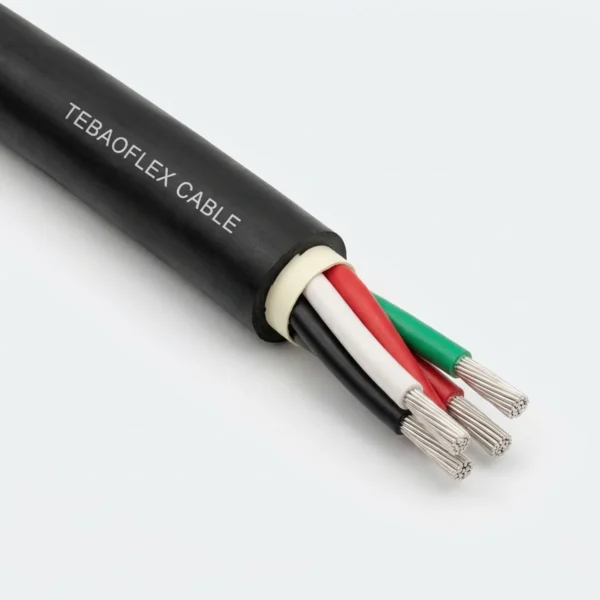

Type W Round 2kV 4/C cutaway: 4 color-coded 90°C EPR power cores (Black, White, Red, Green) with rope-lay tinned copper strands, central filler, reinforcing yarn, and black CPE sheath.
Technical Characteristics
Electrical, thermal, dimensional tolerance, and compliance parameters for Type W Round 2,000 V service.
| Parameter | ICEA S-75-381 / NEMA WC 58 Rated Value |
|---|---|
| Rated Voltage | Up to 2,000 V AC / DC (covers both 600 V and 2,000 V heavy industrial & mining ratings) |
| Maximum Conductor Temperature | +90°C continuous normal operation | +250°C short-circuit rating |
| Minimum Bending Radius | 6 × overall cable diameter for mobile trailing and reel service |
| Outside Diameter Tolerances | ±0.030 in (8–1 AWG) | ±0.040 in (1/0–2/0 AWG) | ±0.050 in (3/0–4/0 AWG) |
| Optional Jacket Compounds | Standard Black EHD CPE; optional Luminous CPE, CSP, PCP (Neoprene), or NBR |
| Standards & Flame Reference | ICEA S-75-381 / NEMA WC 58; ASTM B172 & ASTM B33; CAN/CSA-C22.2 No. 96; MSHA flame-resistant reference |
Round 3-Conductor & 4-Conductor Specifications (8 AWG to 4/0 AWG, 2000 V)
Complete dual-unit nominal outside diameters, insulation wall thicknesses, cable weights, and +90°C continuous ampacities for true round 3/C and 4/C Type W constructions.
Table 1: Type W Round 3-Conductor (3/C) — 2000 V Reinforced CPE (8 AWG to 4/0 AWG)
| Construction | Area (mm²) | Conductor Strands | EPR Wall (mil / mm) | Nominal Round OD (in / mm) | Approx. Weight (lb/kft / kg/km) | Ampacity 40°C (A) |
|---|---|---|---|---|---|---|
| 3 × 8 AWG | 8.37 | 133 | 60 / 1.52 | 0.91 / 23.1 | 550 / 818 | 59 |
| 3 × 6 AWG | 13.30 | 133 | 60 / 1.52 | 1.01 / 25.7 | 730 / 1,086 | 79 |
| 3 × 4 AWG | 21.15 | 259 | 60 / 1.52 | 1.17 / 29.7 | 1,020 / 1,518 | 104 |
| 3 × 2 AWG | 33.62 | 259 | 60 / 1.52 | 1.34 / 34.0 | 1,430 / 2,128 | 138 |
| 3 × 1 AWG | 42.41 | 259 | 80 / 2.03 | 1.51 / 38.4 | 1,800 / 2,679 | 161 |
| 3 × 1/0 AWG | 53.49 | 266 | 80 / 2.03 | 1.65 / 41.9 | 2,140 / 3,185 | 186 |
| 3 × 2/0 AWG | 67.43 | 323 | 80 / 2.03 | 1.75 / 44.5 | 2,580 / 3,839 | 215 |
| 3 × 3/0 AWG | 85.01 | 418 | 80 / 2.03 | 1.89 / 48.0 | 2,922 / 4,348 | 249 |
| 3 × 4/0 AWG | 107.2 | 532 | 80 / 2.03 | 2.04 / 51.8 | 3,800 / 5,655 | 287 |
Table 2: Type W Round 4-Conductor (4/C) — 2000 V Reinforced CPE & Luminous Option (8 AWG to 4/0 AWG)
| Construction | Area (mm²) | Conductor Strands | EPR Wall (mil / mm) | Nominal Round OD (in / mm) | Approx. Weight (lb/kft / kg/km) | Ampacity 40°C (A) |
|---|---|---|---|---|---|---|
| 4 × 8 AWG | 8.37 | 133 | 60 / 1.52 | 0.99 / 25.1 | 670 / 997 | 54 |
| 4 × 6 AWG | 13.30 | 133 | 60 / 1.52 | 1.10 / 27.9 | 890 / 1,324 | 72 |
| 4 × 4 AWG | 21.15 | 259 | 60 / 1.52 | 1.27 / 32.3 | 1,250 / 1,860 | 93 |
| 4 × 2 AWG | 33.62 | 259 | 60 / 1.52 | 1.48 / 37.6 | 1,800 / 2,679 | 122 |
| 4 × 1 AWG | 42.41 | 259 | 80 / 2.03 | 1.68 / 42.7 | 2,270 / 3,378 | 143 |
| 4 × 1/0 AWG | 53.49 | 266 | 80 / 2.03 | 1.79 / 45.5 | 2,680 / 3,988 | 165 |
| 4 × 2/0 AWG | 67.43 | 323 | 80 / 2.03 | 1.93 / 49.0 | 3,200 / 4,762 | 192 |
| 4 × 3/0 AWG | 85.01 | 418 | 80 / 2.03 | 2.07 / 52.6 | 3,627 / 5,398 | 221 |
| 4 × 4/0 AWG | 107.2 | 532 | 80 / 2.03 | 2.26 / 57.4 | 4,650 / 6,920 | 255 |
Unshielded Portable & Stationary Mine Cable Comparison
Compare Type W Round against Type W Flat, Type G Flat, Type G-GC Round, and stationary Type MP-GC feeders.
| Mining Cable Model | Voltage Class, Ground / Shield Architecture & Primary Mining Duty |
|---|---|
| Type W Round 2kV (3C & 4C) | Round unshielded portable power cable (no bare ground wires) with 3 or 4 flexible tinned copper EPR cores inside a reinforced black or luminous CPE jacket. |
| Type W Flat 2kV (2C & 4C) | Low-profile parallel flat unshielded cable (2-core DC or 4-core AC, no bare grounds) engineered for tight multi-layer shuttle-car and roof-bolter reels. |
| Type G Flat 2kV (2C + Ground) | Parallel flat DC shuttle-car cable adding a centered stranded tinned copper equipment grounding conductor between the two 90°C EPR power cores. |
| Type G-GC Round 2kV (3C + 2G + GC) | Round unshielded 3-phase portable mining cable with 2 interstitial bare tinned copper grounds and 1 yellow PP ground-check pilot conductor. |
| Type MP-GC Feeder (2kV–15kV) | Stationary 3-core mine power feeder cable (Class B bare copper, copper-tape phase screens, 2 grounds + GC, EPR/CPE or XLPE/PVC) for shafts, boreholes, and trays. |
Frequently Asked Questions (FAQ)
Engineering FAQs on Type W vs. SOOW, 4-core grounding, and 2,000 V voltage rating.
How does Type W Round 2kV differ from standard 600V SOOW portable cord?
Type W is built to ICEA S-75-381 mining standards with rope-lay tinned copper, heavy 60–80 mil 90°C EPR insulation rated up to 2,000 V, and a two-layer yarn-reinforced mold-cured CPE jacket—providing vastly higher crush, cut-through, oil, and submerged abrasion survival than 600 V commercial SOOW cord.
Does Type W Round contain bare interstitial ground wires?
No. By ICEA S-75-381 definition, Type W contains insulated conductors only (no bare interstitial ground or GC wires). When equipment grounding is required without a pilot monitor wire, buyers typically specify 4-Conductor Type W and assign the green-insulated conductor as the equipment ground.
Can Type W Round 4/C be supplied with a luminous high-visibility outer jacket?
Yes. Both 3-core and 4-core Type W Round cables can be vulcanized with our luminous / high-visibility outer jacket compound to reduce run-over incidents in dark underground drifts and night-shift surface operations.
Request a Type W Round 2kV (3C or 4C) Cable Quote
Specify 3-conductor or 4-conductor build, gauge (8 AWG to 4/0 AWG), black or luminous CPE jacket, and required reel lengths for direct factory pricing.
