Application & Operating Conditions
AS/NZS 2802 Type 409 is a heavy-duty Class 2 composite screened trailing and reeling cable (1.1 kV to 22 kV, 6–300 mm²) built for severe open-cut mining duty on electric rope shovels, walking draglines, rotary blasthole drills, pit dewatering pumps, and mobile crusher skids.
Electric Shovels, Draglines & Drills
Heavy Class 2 R-EP-90 EPR insulation radials (up to 10.5 mm at 22 kV) and thick HD-85-PCP sheathing resist haul-road rock impact, bench dragging, and solar UV weathering across open-pit benches.
Composite Earth Fault Screening
Individual tinned-copper wire and polyester yarn braids around all three phase cores deliver 8.2–77 mm² collective earth-fault conductivity without requiring separate outer interstitial earth cores.
Central Pilot & Immersion Resilience
A single central extensible pilot lies along the neutral bending axis for earth-continuity tripping, while polyaramid yarn braid reinforcement and C1 PCP sheathing handle flooded pit sumps.
Need 3 Interstitial Pilots or Lighter Class 1 Reeling Radials? Compare Type 440 (Class 2, 3 Pilots) for multi-pilot circuits, or Type 450 (Class 1 Reeling) for reduced diameter on crane and excavator cable reels.

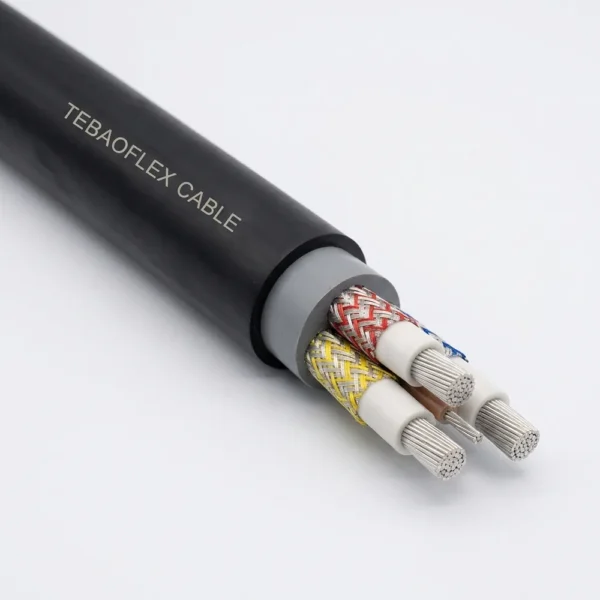

Cable Construction (AS/NZS 2802 Type 409)
Type 409 features symmetrical three-core trefoil geometry around a single central extensible pilot, utilizing heavy Class 2 EPR insulation walls and polyaramid-reinforced HD-85-PCP sheathing.
| Layer / Component | Material & AS/NZS 2802 Specification |
|---|---|
| 1. Phase Conductors | Flexible finely stranded tinned annealed copper, three phase cores (6 mm² to 300 mm²) |
| 2. Conductor Barrier / Screen | Polyester barrier tape for 1.1/1.1 kV; extruded semiconductive conductor screen for 3.3 kV and above |
| 3. Class 2 Insulation | Class 2 R-EP-90 EPR thermosetting compound (1.5–3.0 mm @ 1.1 kV; 3.0 mm @ 3.3 kV; 5.0 mm @ 6.6 kV; 7.6 mm @ 11 kV; 10.5 mm @ 22 kV) |
| 4. Insulation Screen / Tape | Proofed textile tape for 1.1/1.1 kV; extruded semiconductive insulation screen for 3.3 kV and above |
| 5. Composite Earth Screen | Composite braid of tinned annealed copper wire and polyester yarn over each phase core (Red, White, and Blue core identification; 8.2–77 mm² total earth area) |
| 6. Central Pilot Core | Single central extensible pilot core positioned along the cable neutral axis |
| 7. Reinforced Outer Sheath | Heavy-duty black HD-85-PCP sheath (3.8–11.3 mm wall) with polyaramid yarn braid reinforcement where applicable |

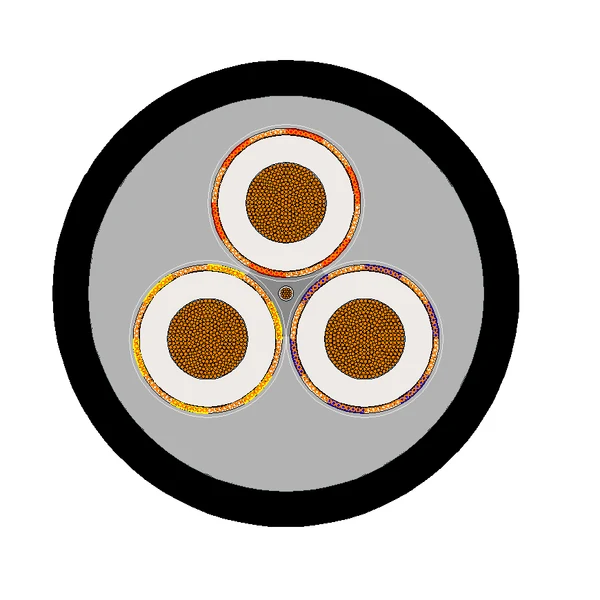

Type 409 Cross-Section Geometry: Three composite-screened Class 2 EPR phase cores laid around a single central extensible pilot inside a moulded elastomeric cradle and heavy-duty HD-85-PCP outer sheath.
Technical Characteristics
Manufactured to AS/NZS 2802 for surface and general mining reeling/trailing applications, Type 409 spans five voltage ratings from 1.1/1.1 kV up to 22/22 kV.
| Parameter | AS/NZS 2802 Rated Value |
|---|---|
| Manufacturing Standard | AS/NZS 2802 (Electric cables — Reeling and trailing — For mining and general use, other than underground coal mining) |
| Voltage Grades & Sub-Types | 409.1 (1.1 kV) | 409.3 (3.3 kV) | 409.6 (6.6 kV) | 409.11 (11 kV) | 409.22 (22 kV) |
| Insulation Thickness Class | Class 2 Heavy Radial EPR (designed for rough open-cut ground trailing, rock impact & high dielectric safety factor) |
| Max. Continuous Conductor Temp. | +90 °C |
| Minimum Installation Temperature | −25 °C |
| Installation Conditions | In free air for mobile equipment, open-cut mine trailing, and drum reeling service |
| Oil, Water & Flame Performance | Very good water/oil immersion performance, high abrasion resistance, and C1 flame retardancy |
Specification & Electrical Data (48 Standard Sizes, 1.1 kV – 22 kV)
Complete conductor diameter, Class 2 EPR insulation wall, AC resistance, 50 Hz reactance, voltage drop, capacitance, earth screen area, overall diameter, and mass tables across all five Type 409 voltage classes.
Type 409.1 — Rated Voltage: 1.1/1.1 kV (6 mm² to 300 mm² | 13 Sizes)
| Area (mm²) | Cond. Dia. (mm) | Insul. (mm) | Max AC Res. (Ω/km) | React. (Ω/km) | Volt Drop (mV/A·m) | Cap. (μF/km) | Earth Screen (mm²) | Sheath (mm) | Cable Dia. (mm) | Mass (kg/100m) |
|---|---|---|---|---|---|---|---|---|---|---|
| 3 × 6 | 3.5 | 1.5 | 4.32 | 0.145 | 7.49 | 0.259 | 8.2 | 3.8 | 32.2 | 160 |
| 3 × 10 | 4.6 | 1.5 | 2.58 | 0.133 | 4.47 | 0.314 | 8.2 | 3.8 | 34.3 | 185 |
| 3 × 16 | 6.2 | 1.6 | 1.58 | 0.120 | 2.74 | 0.379 | 10 | 4.0 | 38.1 | 235 |
| 3 × 25 | 7.2 | 1.6 | 0.951 | 0.113 | 1.66 | 0.432 | 12 | 4.3 | 40.9 | 290 |
| 3 × 35 | 8.4 | 1.6 | 0.698 | 0.108 | 1.22 | 0.493 | 14 | 4.6 | 44.0 | 345 |
| 3 × 50 | 9.7 | 1.7 | 0.523 | 0.107 | 0.925 | 0.526 | 14 | 5.0 | 49.1 | 430 |
| 3 × 70 | 12.0 | 1.8 | 0.346 | 0.0997 | 0.624 | 0.599 | 16 | 5.4 | 54.8 | 550 |
| 3 × 95 | 13.3 | 2.0 | 0.271 | 0.0971 | 0.499 | 0.591 | 22 | 6.0 | 60.0 | 675 |
| 3 × 120 | 15.3 | 2.1 | 0.210 | 0.0932 | 0.398 | 0.640 | 25 | 6.4 | 65.2 | 815 |
| 3 × 150 | 17.2 | 2.3 | 0.166 | 0.0928 | 0.329 | 0.652 | 37 | 6.9 | 72.3 | 1025 |
| 3 × 185 | 18.8 | 2.5 | 0.137 | 0.0915 | 0.285 | 0.657 | 40 | 7.4 | 77.8 | 1200 |
| 3 × 240 | 21.7 | 2.8 | 0.106 | 0.0905 | 0.241 | 0.672 | 58 | 8.2 | 88.3 | 1555 |
| 3 × 300 | 24.3 | 3.0 | 0.0849 | 0.0883 | 0.212 | 0.719 | 63 | 8.8 | 95.7 | 1860 |
Type 409.3 — Rated Voltage: 3.3/3.3 kV (16 mm² to 300 mm² | 11 Sizes)
| Area (mm²) | Cond. Dia. (mm) | Insul. (mm) | Max AC Res. (Ω/km) | React. (Ω/km) | Volt Drop (mV/A·m) | Cap. (μF/km) | Earth Screen (mm²) | Sheath (mm) | Cable Dia. (mm) | Mass (kg/100m) |
|---|---|---|---|---|---|---|---|---|---|---|
| 3 × 16 | 6.2 | 3.0 | 1.58 | 0.131 | 2.75 | 0.255 | 14 | 5.3 | 47.4 | 335 |
| 3 × 25 | 7.2 | 3.0 | 0.951 | 0.125 | 1.66 | 0.280 | 15 | 5.6 | 50.5 | 400 |
| 3 × 35 | 8.4 | 3.0 | 0.698 | 0.119 | 1.23 | 0.311 | 16 | 5.9 | 53.6 | 460 |
| 3 × 50 | 9.7 | 3.0 | 0.523 | 0.115 | 0.928 | 0.347 | 17 | 6.3 | 57.8 | 545 |
| 3 × 70 | 12.0 | 3.0 | 0.346 | 0.107 | 0.627 | 0.408 | 19 | 6.6 | 62.8 | 665 |
| 3 × 95 | 13.3 | 3.0 | 0.271 | 0.102 | 0.502 | 0.439 | 21 | 7.1 | 66.5 | 765 |
| 3 × 120 | 15.3 | 3.0 | 0.210 | 0.0985 | 0.402 | 0.492 | 28 | 7.4 | 72.0 | 935 |
| 3 × 150 | 17.2 | 3.0 | 0.166 | 0.0954 | 0.332 | 0.541 | 32 | 7.8 | 76.7 | 1095 |
| 3 × 185 | 18.8 | 3.0 | 0.137 | 0.0942 | 0.288 | 0.584 | 42 | 8.2 | 82.5 | 1290 |
| 3 × 240 | 21.7 | 3.0 | 0.106 | 0.0906 | 0.242 | 0.659 | 48 | 8.8 | 89.8 | 1560 |
| 3 × 300 | 24.3 | 3.0 | 0.0849 | 0.0890 | 0.213 | 0.727 | 63 | 9.4 | 97.8 | 1900 |
Type 409.6 — Rated Voltage: 6.6/6.6 kV (16 mm² to 300 mm² | 11 Sizes)
| Area (mm²) | Cond. Dia. (mm) | Insul. (mm) | Max AC Res. (Ω/km) | React. (Ω/km) | Volt Drop (mV/A·m) | Cap. (μF/km) | Earth Screen (mm²) | Sheath (mm) | Cable Dia. (mm) | Mass (kg/100m) |
|---|---|---|---|---|---|---|---|---|---|---|
| 3 × 16 | 6.2 | 5.0 | 1.58 | 0.143 | 2.75 | 0.181 | 17 | 6.4 | 58.2 | 475 |
| 3 × 25 | 7.2 | 5.0 | 0.951 | 0.137 | 1.66 | 0.193 | 19 | 6.7 | 61.7 | 560 |
| 3 × 35 | 8.4 | 5.0 | 0.698 | 0.130 | 1.23 | 0.212 | 21 | 7.0 | 64.7 | 625 |
| 3 × 50 | 9.7 | 5.0 | 0.523 | 0.124 | 0.931 | 0.234 | 22 | 7.3 | 68.3 | 715 |
| 3 × 70 | 12.0 | 5.0 | 0.346 | 0.116 | 0.632 | 0.271 | 23 | 7.7 | 73.9 | 860 |
| 3 × 95 | 13.3 | 5.0 | 0.271 | 0.113 | 0.509 | 0.292 | 30 | 8.1 | 78.2 | 1005 |
| 3 × 120 | 15.3 | 5.0 | 0.210 | 0.108 | 0.409 | 0.325 | 32 | 8.5 | 83.4 | 1160 |
| 3 × 150 | 17.2 | 5.0 | 0.166 | 0.105 | 0.340 | 0.354 | 46 | 8.9 | 89.4 | 1380 |
| 3 × 185 | 18.8 | 5.0 | 0.136 | 0.102 | 0.294 | 0.381 | 49 | 9.3 | 93.7 | 1545 |
| 3 × 240 | 21.7 | 5.0 | 0.106 | 0.0981 | 0.250 | 0.426 | 53 | 9.9 | 101 | 1830 |
| 3 × 300 | 24.3 | 5.0 | 0.0845 | 0.0959 | 0.221 | 0.467 | 71 | 10.4 | 109 | 2195 |
Type 409.11 — Rated Voltage: 11/11 kV (25 mm² to 240 mm² | 9 Sizes)
| Area (mm²) | Cond. Dia. (mm) | Insul. (mm) | Max AC Res. (Ω/km) | React. (Ω/km) | Volt Drop (mV/A·m) | Cap. (μF/km) | Earth Screen (mm²) | Sheath (mm) | Cable Dia. (mm) | Mass (kg/100m) |
|---|---|---|---|---|---|---|---|---|---|---|
| 3 × 25 | 7.2 | 7.6 | 0.951 | 0.150 | 1.67 | 0.150 | 24 | 8.1 | 76.1 | 810 |
| 3 × 35 | 8.4 | 7.6 | 0.698 | 0.143 | 1.23 | 0.163 | 30 | 8.4 | 79.8 | 920 |
| 3 × 50 | 9.7 | 7.6 | 0.523 | 0.136 | 0.936 | 0.178 | 32 | 8.7 | 83.2 | 1020 |
| 3 × 70 | 12.0 | 7.6 | 0.346 | 0.127 | 0.638 | 0.204 | 35 | 9.1 | 88.8 | 1185 |
| 3 × 95 | 13.3 | 7.6 | 0.271 | 0.124 | 0.516 | 0.219 | 48 | 9.6 | 93.9 | 1365 |
| 3 × 120 | 15.3 | 7.6 | 0.210 | 0.119 | 0.418 | 0.241 | 53 | 9.9 | 98.8 | 1540 |
| 3 × 150 | 17.2 | 7.6 | 0.165 | 0.114 | 0.347 | 0.261 | 56 | 10.3 | 104 | 1730 |
| 3 × 185 | 18.8 | 7.6 | 0.136 | 0.111 | 0.304 | 0.279 | 56 | 10.7 | 108 | 1900 |
| 3 × 240 | 21.7 | 7.6 | 0.106 | 0.107 | 0.261 | 0.309 | 77 | 11.3 | 116 | 2280 |
Type 409.22 — Rated Voltage: 22/22 kV (35 mm² to 95 mm² | 4 Sizes)
| Area (mm²) | Cond. Dia. (mm) | Insul. (mm) | Max AC Res. (Ω/km) | React. (Ω/km) | Volt Drop (mV/A·m) | Cap. (μF/km) | Earth Screen (mm²) | Sheath (mm) | Cable Dia. (mm) | Mass (kg/100m) |
|---|---|---|---|---|---|---|---|---|---|---|
| 3 × 35 | 8.4 | 10.5 | 0.698 | 0.160 | 1.24 | 0.147 | 53 | 10.0 | 102 | 1420 |
| 3 × 50 | 9.7 | 10.5 | 0.523 | 0.153 | 0.944 | 0.159 | 56 | 10.3 | 106 | 1540 |
| 3 × 70 | 12.0 | 10.5 | 0.346 | 0.143 | 0.648 | 0.178 | 60 | 10.7 | 111 | 1735 |
| 3 × 95 | 13.3 | 10.5 | 0.271 | 0.138 | 0.527 | 0.189 | 62 | 11.1 | 115 | 1870 |
Selection: Type 409 (AS/NZS 2802 Class 2) vs. Type 450 (Class 1) vs. Type 209 (AS/NZS 1802)
Choosing between AS/NZS 2802 Class 2, Class 1, and AS/NZS 1802 cables depends on whether the machine operates in an open-cut pit, on a constrained crane/reclaimer drum, or in an underground coal mine.
| Cable Model | Standard, Insulation Radial & Primary Duty |
|---|---|
| Type 409 (This Product) | AS/NZS 2802 Class 2 (heavy insulation & sheath radials, 1.1–22 kV, 1 central pilot). Engineered for rough open-cut ground trailing behind draglines, electric shovels, drills, and pit pumps. |
| Type 450 / Type 451 | AS/NZS 2802 Class 1 (Type 450 / Type 451, 3.3–33 kV) uses reduced Class 1 EPR radials + 2 interstitial earths + 1 interstitial pilot for smaller OD and lower weight on stacker-reclaimers, wharf cranes, and reeling drums. |
| Type 209 (AS/NZS 1802) | For underground gassy coal mines governed by AS/NZS 1802 (1.1–11 kV), specify AS/NZS 1802 Type 209. |
