Servo 60700 CY shielded PVC servo cable combines power and control circuits in one flexible connection between frequency converters, servo controllers and motors.
Applications
Use it for machine engineering and multi-circuit drive connections in dry, damp or wet indoor industrial areas.

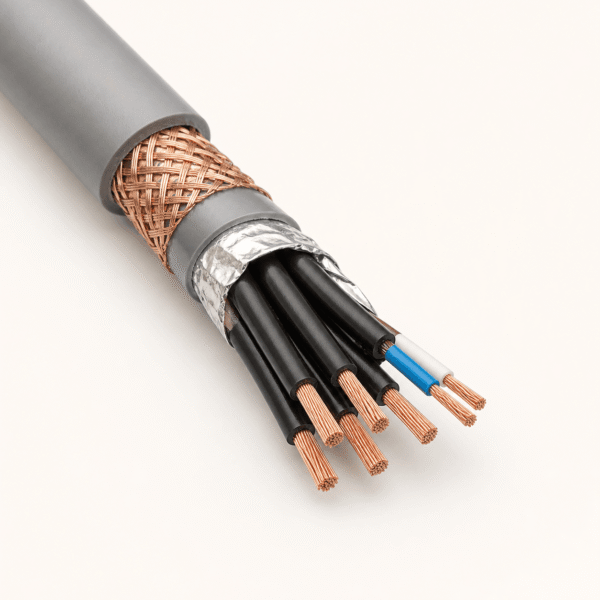

Composite screened construction
- Fine-stranded bare copper conductors to EN 60228 Class 5
- Numbered power cores with green-yellow protective conductor where specified
- Control pairs with laminated aluminium foil and tinned copper braid
- Grey PVC outer sheath
Technical data
- Supply cores: 600/1000 V
- Control pairs: 250 V AC
- Temperature range: -5°C to +70°C flexible; -30°C to +70°C fixed
- Minimum bending radius: 20 × D flexible; 6 × D fixed
- Flame retardant: EN 60332-1-2
Request a quote
Send TEBAOFLEX your core configuration and movement requirements. Request a Quote.
Servo and motion cable selection
Servo 60700 CY Shielded PVC Servo VFD Cable is intended for industrial motion systems where conductor flexibility, screen design and sheath material must match the installation. Confirm the drive type, cable route, movement cycle, ambient temperature, bending radius and required EMC level before selection.
Technical specification
| Parameter | Specification |
|---|---|
| Model | Servo 60700 CY |
| Rated Voltage | 600/1000 V supply; 250 V AC control pairs |
| Conductor | Fine-stranded bare copper, EN 60228 Class 5 |
| Screen | Laminated foil and tinned copper braid |
| Outer Sheath | PVC, grey RAL 7001 |
| Temperature Range | -5°C to +70°C flexible; -30°C to +70°C fixed |
| Minimum Bending Radius | 20 × D flexible; 6 × D fixed |
| Standards | EN 60228; EN 60332-1-2 |
| Application | Servo drives and frequency converters |
Application limits and installation
Use this construction only when its voltage, screen arrangement and mechanical duty match the machine design. Screened versions help in EMC-sensitive installations; unshielded versions should not be selected where that protection is required. Maintain the listed bending radius and avoid torsion, crushing or unsupported travel beyond the verified duty.
Related servo cable options
Compare with Servo 55700 Composite PVC Servo Cable when choosing between screen, insulation or sheath options. Send your requirements with voltage, cores, movement duty and installation conditions.
