Anti-torsion medium-voltage reeling cable
This yellow ATB cable combines screened medium-voltage power cores with a polyester braid between the inner and outer sheaths. It is intended for moving mining equipment and reel duty where torsion and abrasion need to be assessed together.
Where it is used
Reel-fed and trailing power for draglines, shovels, dredges and other mobile open-cast mining equipment.

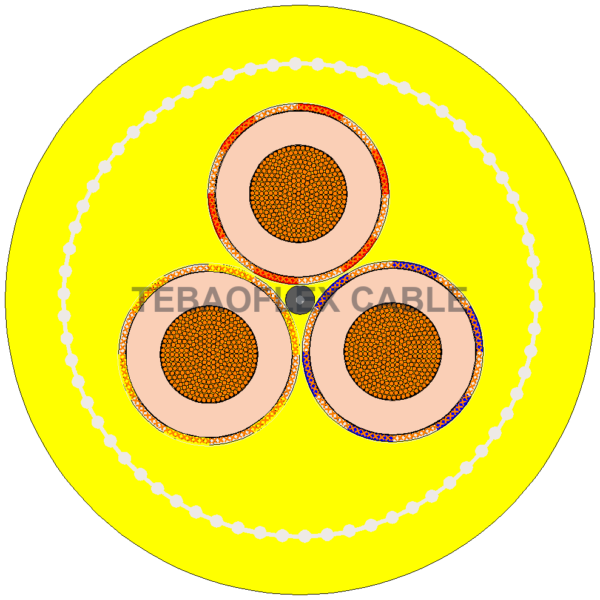

Cable construction
| Component | Specification |
|---|---|
| Phase conductor | Class 5 tinned copper |
| Earth conductor | Individual copper-wire braid |
| Insulation | Rubber compound with semi-conductive layers |
| Anti-torsion layer | Polyester braid |
| Outer sheath | Yellow abrasion-resistant rubber compound |
Operating and selection data
| Parameter | Documented value / selection note |
|---|---|
| Rated voltage | 3.6/6, 6/10, 8.7/15 and 12/20 kV |
| Minimum bending radius | 6 × OD fixed; 10 × OD flexed |
| Temperature | The source reverses fixed and flexed limits; confirm the approved ranges with engineering |
Dimensions by voltage and configuration
Nominal values from the company datasheet. Dimensions and weights may vary within manufacturing tolerances; electrical ratings depend on the stated installation conditions.
| Voltage (kV) | Core arrangement | Phase (mm²) | Earth (mm²) | Conductor Ø (mm) | OD min (mm) | OD max (mm) | Tensile (N) | Weight (kg/km) |
|---|---|---|---|---|---|---|---|---|
| 3.6/6 | 3+3 | 25 | 25/3E | 6.8 | 43.4 | 45.1 | 1125 | 2850 |
| 3.6/6 | 3+3 | 35 | 25/3E | 7.8 | 45 | 46.7 | 1575 | 3200 |
| 3.6/6 | 3+3 | 50 | 25/3E | 9.4 | 48.1 | 49.8 | 2250 | 3850 |
| 3.6/6 | 3+3 | 70 | 35/3E | 11.2 | 53.7 | 55.5 | 3150 | 4980 |
| 3.6/6 | 3+3 | 95 | 50/3E | 12.7 | 58.4 | 60.2 | 4275 | 6200 |
| 3.6/6 | 3+3 | 120 | 70/3E | 14.4 | 62.9 | 65.2 | 5400 | 7580 |
| 3.6/6 | 3+3 | 150 | 70/3E | 16.3 | 69.3 | 71.7 | 6750 | 9090 |
| 6/10 | 3+3 | 25 | 25/3E | 6.8 | 43.4 | 45.7 | 1125 | 2890 |
| 6/10 | 3+3 | 35 | 25/3E | 7.8 | 45 | 47.3 | 1575 | 3240 |
| 6/10 | 3+3 | 50 | 25/3E | 9.4 | 48.1 | 50.4 | 2250 | 3890 |
| 6/10 | 3+3 | 70 | 35/3E | 11.2 | 53.7 | 56.1 | 3150 | 5020 |
| 6/10 | 3+3 | 95 | 50/3E | 12.7 | 58.4 | 60.8 | 4275 | 6240 |
| 6/10 | 3+3 | 120 | 70/3E | 14.4 | 62.9 | 65.9 | 5400 | 7620 |
| 6/10 | 3+3 | 150 | 70/3E | 16.3 | 69.3 | 72.4 | 6750 | 9130 |
| 8.7/15 | 3+3 | 25 | 25/3E | 6.8 | 46.9 | 48.6 | 1125 | 3180 |
| 8.7/15 | 3+3 | 35 | 25/3E | 7.8 | 48.3 | 50 | 1575 | 3570 |
| 8.7/15 | 3+3 | 50 | 25/3E | 9.4 | 53.3 | 55.1 | 2250 | 4420 |
| 8.7/15 | 3+3 | 70 | 35/3E | 11.2 | 57.1 | 58.9 | 3150 | 5410 |
| 8.7/15 | 3+3 | 95 | 50/3E | 12.7 | 60.8 | 63.1 | 4257 | 6500 |
| 8.7/15 | 3+3 | 120 | 70/3E | 14.4 | 67.2 | 69.5 | 5400 | 8150 |
| 12/20 | 3+3 | 25 | 25/3E | 6.8 | 49.4 | 51.2 | 1125 | 3450 |
| 12/20 | 3+3 | 35 | 25/3E | 7.8 | 50.9 | 52.7 | 1575 | 3820 |
| 12/20 | 3+3 | 50 | 25/3E | 9.4 | 55.8 | 57.6 | 2250 | 4720 |
| 12/20 | 3+3 | 70 | 35/3E | 11.2 | 59.6 | 61.4 | 3150 | 5690 |
| 12/20 | 3+3 | 95 | 50/3E | 12.7 | 63.3 | 65.6 | 4257 | 6860 |
Installation limits
This ATB version has no dedicated ground-check conductor; choose the GCC version when earth-continuity monitoring is required. Source temperature ranges need clarification before quotation.
Technical datasheets
- (N)TSCGECEWÖU-ATB Anti-Torsion Reeling Cable | 3.6/6–6/10 kV Technical Datasheet
- (N)TSCGECEWÖU-ATB Anti-Torsion Reeling Cable | 8.7/15–12/20 kV Technical Datasheet
Standards named in the datasheets are design or test references; request the applicable certificate and test evidence for the exact product configuration.
Request a configuration review
Send the voltage, conductor size, core arrangement, moving or fixed duty, bend radius, environment, required length and quantity to TEBAOFLEX. We will confirm the construction and commercial details for the project.
