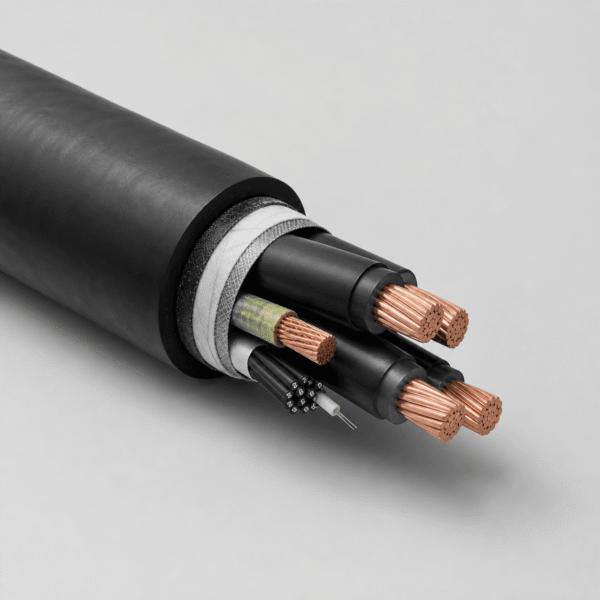

(N)TSCGEW11Y 6/10 kV Shore Power Reeling Cable combines medium-voltage power transmission, screened pilot cores and an integrated optical fibre element in one heavy-duty reeling construction. It is specified for high-voltage shore connection systems that connect vessels to the grid at harbour berths.
Shore Power Applications
This cable is suitable for shore connection installations serving container vessels, cruise vessels and other ship types at berth. It supports single-operator cable cranes and mobile carrier systems where controlled reeling, mechanical strength and reliable communications are required.
Construction and Reliability
- Fine-stranded tinned-copper Class 5 main conductors use triple-extruded EPR insulation with inner and outer semi-conductive layers.
- Screened pilot cores are colour-identified in white with black numerals 1–8.
- The integrated fibre-optic element contains 12 G62.5/125 µm OM1 fibres.
- A thermoplastic inner sheath and black TPU outer sheath provide high tensile, abrasion and tear resistance.
Technical Parameters
| Parameter | Value |
|---|---|
| Rated voltage U0/U | 6/10 kV |
| Maximum AC operating voltage | 6.9/12 kV |
| Maximum DC operating voltage | 9/18 kV |
| AC test voltage | 21 kV |
| Main conductors | Fine-stranded tinned copper, IEC 60228 Class 5 |
| Main-core insulation | Triple-extruded EPR with semi-conductive layers |
| Pilot cores | 8 × 2.5 mm², screened |
| Fibre optic element | 12 × G62.5/125 µm OM1 |
| Fixed / reeling temperature | -40°C to +90°C / -30°C to +90°C |
| Maximum conductor temperature | 90°C |
| Bending radius | 6 × Ø fixed; 10 × Ø free movement; 12 × Ø reeling |
| Tensile load | 25 N/mm² per conductor |
| Outer sheath | Black TPU |
| Flame behaviour | IEC 60332-1-2 |
| Oil resistance | IEC 60811-404 |
Available Configurations
| Power / Control / FO Configuration | Outer Diameter | Approx. Weight |
|---|---|---|
| 3×70 + 2×35/2 + 1×(8×2.5)C + FO | 66–69 mm | 6505 kg/km |
| 3×95 + 2×50/2 + 1×(8×2.5)C + FO | 68–71 mm | 7440 kg/km |
| 3×120 + 2×70/2 + 1×(8×2.5)C + FO | 71–74 mm | 8465 kg/km |
| 3×185 + 2×95/2 + 1×(8×2.5)C + FO | 74–77 mm | 10000 kg/km |
Project Configuration
Provide the berth system, voltage, cable length, handling method and vessel interface requirements. TEBAOFLEX can review the required power, control and fibre configuration before quotation.
