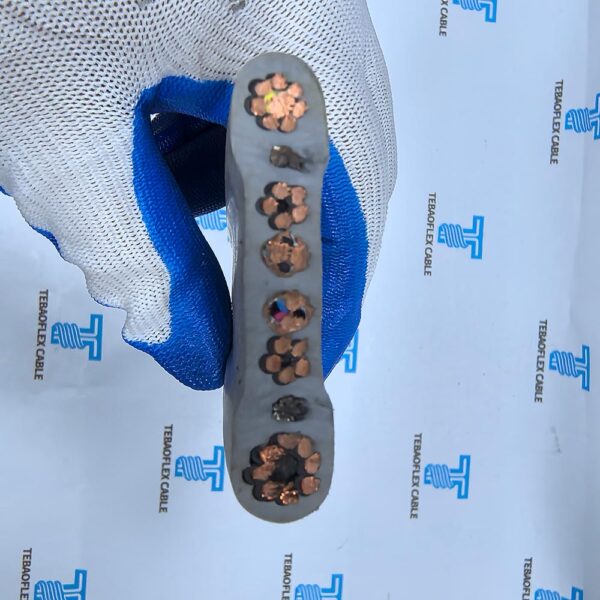

TEBAOFLEX Flat Elevator Travelling Cable 25 x 0.75 mm² is a grey-sheath flat cable for control and signal connections between the elevator car, control panel and shaft equipment. Its flat profile supports orderly vertical movement in lift systems and helps reduce twisting during normal travelling operation.
This 25-core travelling cable is designed for passenger lifts, freight elevators, lift control circuits, signal wiring and low-voltage auxiliary connections. The grey flexible PVC sheath provides a practical finish for indoor elevator installations.
Flat Elevator Travelling Cable Features
- 25 x 0.75 mm² construction: provides multiple control and signal circuits in one flat cable.
- Flat cable profile: supports vertical travel in an elevator shaft.
- Flexible copper conductors: suitable for repeated travelling movement in the specified lift application.
- Grey flexible PVC sheath: designed for indoor lift and elevator equipment installations.
- Custom options: core identification, marking, flame-retardant requirements and dimensions can be confirmed for a project.
Construction
The cable uses flexible stranded copper conductors, PVC or customized core insulation, and a grey flexible PVC outer sheath. Cores can be numbered or colour coded to support practical installation and connection work. Confirm the suspension arrangement, travel length and operating conditions for the elevator system before final selection.
Technical Overview
| Parameter | Specification |
|---|---|
| Product type | Flat Elevator Travelling Cable |
| Core configuration | 25 x 0.75 mm² |
| Rated voltage | 300/500 V |
| Conductor | Flexible stranded copper |
| Insulation | PVC or customized compound |
| Outer sheath | Grey flexible PVC |
| Cable shape | Flat |
| Temperature range | Approximately -15 °C to +70 °C |
| Installation | Indoor lift shaft and elevator equipment connection |
Typical Applications
- Passenger elevators
- Freight elevators
- Elevator car travelling connections
- Lift control and signal systems
- Building vertical transportation equipment
Selection Guidance
For an elevator travelling cable, confirm the number of circuits, control voltage, travel distance, suspension configuration, speed, required core identification and local installation requirements. TEBAOFLEX can review these inputs and provide a suitable flat elevator cable specification.
Request a Quote for Flat Elevator Travelling Cable 25 x 0.75 mm²
