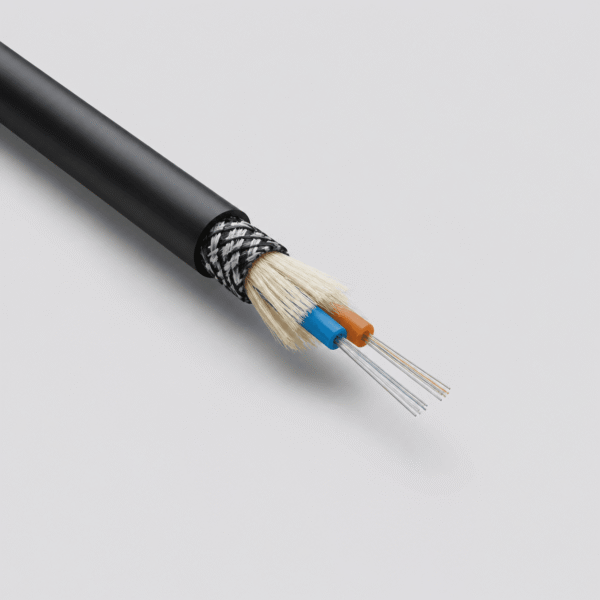

FESTOON PUR FO 2×12/125 Fibre Optic Cable is a flexible data-transmission cable for heavy-duty crane trolley and festoon systems. It combines two 12-fibre optical elements with dielectric reinforcement and a black matte PUR outer sheath for moving industrial installations.
Crane Trolley and Festoon Applications
Use this cable on motor-driven festoon trolleys that carry round or flat cables on crane systems. It supports optical-signal transmission in material-handling installations where fast travel, flexible movement and outdoor durability are important.
Flexible PUR Construction
- Two 12-fibre tubes can be supplied with E9/125, G50/125 or G62.5/125 fibre designs.
- Synthetic strain-relief elements and a low-shrinkage multifilament braid support dynamic motion.
- The reinforced thermoplastic PUR outer sheath is halogen-free, matte black and reinforced with dielectric yarns.
- The specified trolley travel speed is up to 240 m/min.
Technical Parameters
| Parameter | Value |
|---|---|
| Fibre element | 2 × 12 fibres; E9/125, G50/125 or G62.5/125 |
| Outer sheath | Halogen-free thermoplastic PUR with dielectric yarn reinforcement |
| Sheath colour | Black matt |
| Festoon-use temperature | -30°C to +80°C |
| Storage / transport temperature | -40°C to +80°C |
| Minimum bending radius | ≥ 150 mm |
| Maximum continuous load | 1000 N |
| Maximum dynamic tensile load | 1500 N |
| Maximum motor-driven trolley speed | ≤ 240 m/min |
| Oil resistance | IEC 60811-404 |
| Flame behaviour | IEC 60332-1-2 |
| Outer diameter | 13–15 mm |
| Approximate weight | 180 kg/km |
Available Fibre Options
| Configuration | Fibre Type | Typical Use |
|---|---|---|
| 2 × 12 E9/125 | Single-mode OS2 | Long-distance optical links |
| 2 × 12 G50/125 | Multimode OM2–OM4 | Industrial Ethernet and data networks |
| 2 × 12 G62.5/125 | Multimode OM1 | Legacy industrial communication networks |
Specify Your Festoon Cable
For a suitable configuration, share the trolley speed, travel length, fibre type, bend path and installation environment. TEBAOFLEX can support selection for the required crane communication system.
