Fixed-installation medium-voltage mining cable
A screened EPR medium-voltage cable for fixed feeds along conveyor systems, material-handling equipment and industrial pump connections. Both source files have the same technical text, so one PDF download represents this product series.
Where it is used
Supported fixed power routes at mines and industrial sites; assess any submerged connection or occasional movement separately.

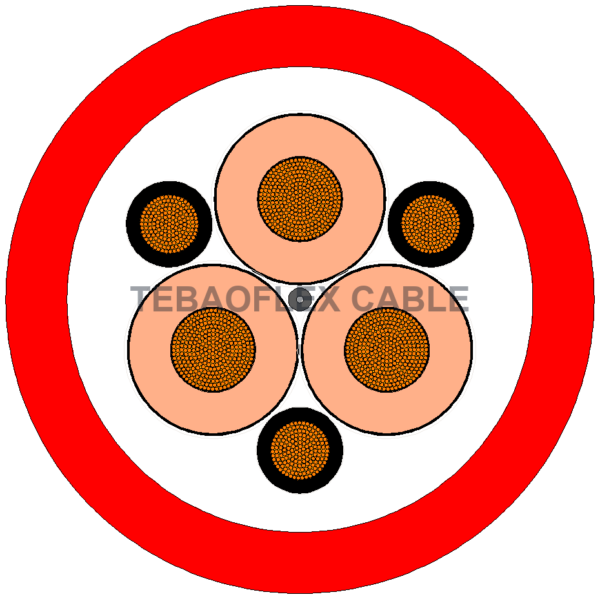

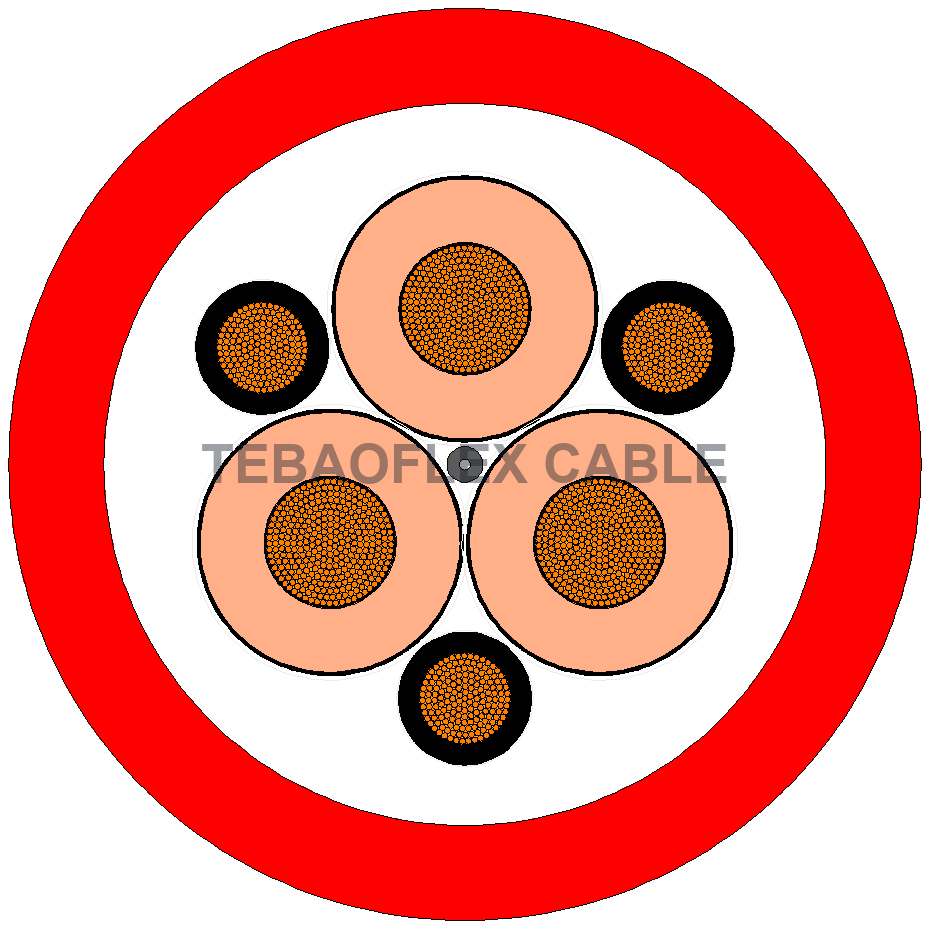

Cable construction
| Component | Specification |
|---|---|
| Conductor | Class 5 flexible copper; tinned or bare options stated in the datasheet |
| Insulation | High-grade EPR thermosetting compound with semi-conductive screens |
| Inner sheath | Synthetic thermosetting compound |
| Outer sheath | 5GM5 or 5GM3 synthetic thermosetting compound; red or other colours by configuration |
Operating and selection data
| Parameter | Documented value / selection note |
|---|---|
| Rated voltage | 3.6/6, 6/10, 8.7/15, 12/20 and 18/30 kV dimensional tables |
| Fixed-installation temperature | −40 to +90 °C |
| Minimum bending radius | 6 × OD fixed |
| Tensile load | Up to 20 N/mm² stated in the datasheet |
Dimensions by voltage and configuration
Nominal values from the company datasheet. Dimensions and weights may vary within manufacturing tolerances; electrical ratings depend on the stated installation conditions.
| Voltage (kV) | Configuration (mm²) | Conductor Ø (mm) | OD (mm) | Weight (kg/km) | DC resistance (Ω/km) | Current (A) |
|---|---|---|---|---|---|---|
| 3.6/6 | 3×25+3×25/3 | 6.30 | 40.3 | 2492 | 0.795 | 132 |
| 3.6/6 | 3×25+3×50/3 | 6.30 | 40.3 | 2613 | 0.795 | 132 |
| 3.6/6 | 3×35+3×25/3 | 7.00 | 41.8 | 2858 | 0.565 | 161 |
| 3.6/6 | 3×35+3×50/3 | 7.00 | 41.8 | 2979 | 0.565 | 161 |
| 3.6/6 | 3×50+3×25/3 | 9.00 | 46.2 | 3557 | 0.393 | 202 |
| 3.6/6 | 3×50+3×50/3 | 9.00 | 46.2 | 3677 | 0.393 | 202 |
| 3.6/6 | 3×70+3×35/3 | 10.80 | 51.8 | 4593 | 0.277 | 251 |
| 3.6/6 | 3×70+3×50/3 | 10.80 | 51.8 | 4714 | 0.277 | 251 |
| 3.6/6 | 3×95+3×50/3 | 12.90 | 56.4 | 5665 | 0.210 | 301 |
| 3.6/6 | 3×120+3×70/3 | 14.00 | 58.7 | 6718 | 0.164 | 351 |
| 3.6/6 | 3×150+3×70/3 | 15.80 | 64.0 | 7968 | 0.132 | 405 |
| 3.6/6 | 3×185+3×95/3 | 18.10 | 68.0 | 9415 | 0.108 | 462 |
| 3.6/6 | 3×240+3×120/3 | 19.60 | 72.0 | 11395 | 0.0817 | 540 |
| 3.6/6 | 3×300+3×150/3 | 23.20 | 82.2 | 14350 | 0.0654 | 620 |
| 6/10 | 3×25+3×25/3 | 6.30 | 42.0 | 2649 | 0.795 | 132 |
| 6/10 | 3×25+3×50/3 | 6.30 | 42.0 | 2769 | 0.795 | 132 |
| 6/10 | 3×35+3×25/3 | 7.00 | 43.6 | 3021 | 0.565 | 161 |
| 6/10 | 3×35+3×50/3 | 7.00 | 43.6 | 3141 | 0.565 | 161 |
| 6/10 | 3×50+3×25/3 | 9.00 | 47.9 | 3735 | 0.393 | 202 |
| 6/10 | 3×50+3×50/3 | 9.00 | 47.9 | 3856 | 0.393 | 202 |
| 6/10 | 3×70+3×35/3 | 10.80 | 53.6 | 4794 | 0.277 | 251 |
| 6/10 | 3×70+3×50/3 | 10.80 | 53.6 | 4914 | 0.277 | 251 |
| 6/10 | 3×95+3×50/3 | 12.90 | 58.1 | 5882 | 0.210 | 301 |
| 6/10 | 3×120+3×70/3 | 14.00 | 60.4 | 6944 | 0.164 | 351 |
| 6/10 | 3×150+3×70/3 | 15.80 | 66.2 | 8342 | 0.132 | 405 |
| 6/10 | 3×185+3×95/3 | 18.10 | 71.0 | 9873 | 0.108 | 462 |
| 6/10 | 3×240+3×120/3 | 19.60 | 76.0 | 11989 | 0.0817 | 540 |
| 6/10 | 3×300+3×150/3 | 23.20 | 83.9 | 14665 | 0.0654 | 620 |
| 8.7/15 | 3×25+3×25/3 | 6.30 | 45.4 | 2981 | 0.795 | 138 |
| 8.7/15 | 3×25+3×50/3 | 6.30 | 45.4 | 3101 | 0.795 | 138 |
| 8.7/15 | 3×35+3×25/3 | 7.00 | 47.0 | 3365 | 0.565 | 173 |
| 8.7/15 | 3×35+3×50/3 | 7.00 | 47.0 | 3485 | 0.565 | 173 |
| 8.7/15 | 3×50+3×25/3 | 9.00 | 53.1 | 4330 | 0.393 | 216 |
| 8.7/15 | 3×50+3×50/3 | 9.00 | 53.1 | 4450 | 0.393 | 216 |
| 8.7/15 | 3×70+3×35/3 | 10.80 | 57.0 | 5214 | 0.277 | 265 |
| 8.7/15 | 3×70+3×50/3 | 10.80 | 57.0 | 5335 | 0.277 | 265 |
| 8.7/15 | 3×95+3×50/3 | 12.90 | 63.3 | 6597 | 0.210 | 320 |
| 8.7/15 | 3×120+3×70/3 | 14.00 | 67.1 | 7919 | 0.164 | 370 |
| 8.7/15 | 3×150+3×70/3 | 15.80 | 69.7 | 8859 | 0.132 | 428 |
| 8.7/15 | 3×185+3×95/3 | 18.10 | 76.2 | 10740 | 0.108 | 489 |
| 8.7/15 | 3×240+3×120/3 | 19.60 | 79.5 | 12581 | 0.0817 | 574 |
| 8.7/15 | 3×300+3×150/3 | 23.20 | 89.2 | 15684 | 0.0654 | 665 |
| 12/20 | 3×25+3×25/3 | 6.30 | 48.5 | 3294 | 0.795 | 138 |
| 12/20 | 3×25+3×50/3 | 6.30 | 48.5 | 3414 | 0.795 | 138 |
| 12/20 | 3×35+3×25/3 | 7.00 | 51.8 | 3900 | 0.565 | 173 |
| 12/20 | 3×35+3×50/3 | 7.00 | 51.8 | 4021 | 0.565 | 173 |
| 12/20 | 3×50+3×25/3 | 9.00 | 56.1 | 4693 | 0.393 | 216 |
| 12/20 | 3×50+3×50/3 | 9.00 | 56.1 | 4814 | 0.393 | 216 |
| 12/20 | 3×70+3×35/3 | 10.80 | 60.0 | 5604 | 0.277 | 265 |
| 12/20 | 3×70+3×50/3 | 10.80 | 60.0 | 5724 | 0.277 | 265 |
| 12/20 | 3×95+3×50/3 | 12.90 | 66.3 | 7029 | 0.210 | 320 |
| 12/20 | 3×120+3×70/3 | 14.00 | 70.1 | 8377 | 0.164 | 370 |
| 12/20 | 3×150+3×70/3 | 15.80 | 72.7 | 9332 | 0.132 | 428 |
| 12/20 | 3×185+3×95/3 | 18.10 | 79.3 | 11258 | 0.108 | 489 |
| 12/20 | 3×240+3×120/3 | 19.60 | 82.5 | 13120 | 0.0817 | 574 |
| 12/20 | 3×300+3×150/3 | 23.20 | 92.2 | 16288 | 0.0654 | 665 |
| 18/30 | 3×25+3×25/3 | 6.30 | 58.0 | 4426 | 0.795 | 138 |
| 18/30 | 3×25+3×50/3 | 6.30 | 58.0 | 4546 | 0.795 | 138 |
| 18/30 | 3×35+3×25/3 | 7.00 | 59.6 | 4853 | 0.565 | 173 |
| 18/30 | 3×35+3×50/3 | 7.00 | 59.6 | 4974 | 0.565 | 173 |
| 18/30 | 3×50+3×25/3 | 9.00 | 65.7 | 5990 | 0.393 | 216 |
| 18/30 | 3×50+3×50/3 | 9.00 | 65.7 | 6110 | 0.393 | 216 |
| 18/30 | 3×70+3×35/3 | 10.80 | 69.6 | 6982 | 0.277 | 265 |
| 18/30 | 3×70+3×50/3 | 10.80 | 69.6 | 7103 | 0.277 | 265 |
| 18/30 | 3×95+3×50/6 | 12.90 | 75.9 | 8543 | 0.210 | 320 |
| 18/30 | 3×120+3×70/3 | 14.00 | 78.2 | 9695 | 0.164 | 370 |
| 18/30 | 3×150+3×70/3 | 15.80 | 82.2 | 10981 | 0.132 | 428 |
| 18/30 | 3×185+3×95/3 | 18.10 | 88.8 | 13046 | 0.108 | 489 |
| 18/30 | 3×240+3×120/3 | 19.60 | 92.0 | 14977 | 0.0817 | 574 |
Installation limits
This is the fixed-installation series; do not treat it as a continuous reeling cable. Select the conductor finish and sheath compound for the confirmed quotation.
Technical datasheets
Standards named in the datasheets are design or test references; request the applicable certificate and test evidence for the exact product configuration.
Request a configuration review
Send the voltage, conductor size, core arrangement, moving or fixed duty, bend radius, environment, required length and quantity to TEBAOFLEX. We will confirm the construction and commercial details for the project.
