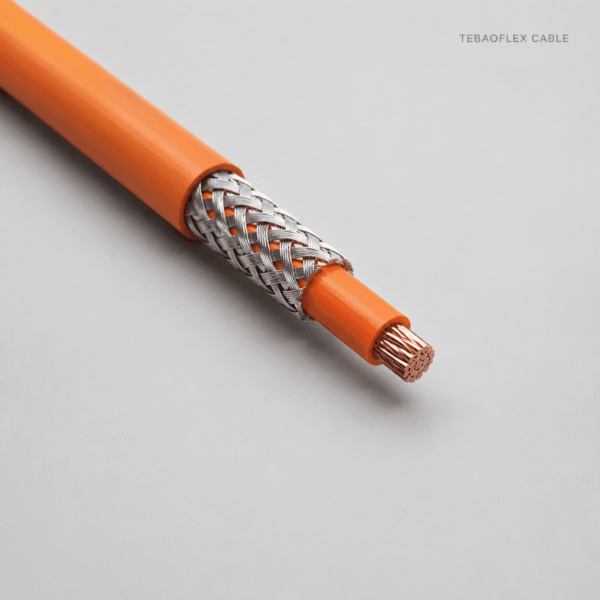

S200XL ISO 19642-9 shielded XLFE cable is a thin-wall, single-core high-voltage cable for applications that require the thermal performance of XLFE insulation together with a copper shield. The source data specifies 1000 VAC / 1500 VDC operation and 85% minimum shield coverage.
Key Features
- 1000 VAC / 1500 VDC rated high-voltage construction.
- Copper screen with 85% minimum shield coverage in the listed data.
- XLFE insulation for a stated 200 °C, 3,000-hour heat rating.
- Bare copper conductor options in ISO flexible or standard stranding.
- Source data identifies UV resistance, fluid resistance, high current capability, and cut-through resistance.
Applications
Appropriate for high-power and long-life cable connections that require a shielded thin-wall single-core high-voltage design.
Technical Parameters
| Parameter | Specification |
|---|---|
| Standard | ISO 19642-9 |
| Rated voltage | 1000 VAC / 1500 VDC |
| Conductor | Bare copper; ISO flexible or standard stranding |
| Insulation | XLFE crosslinked fluoroelastomer |
| Shield coverage | 85% minimum |
| Operating temperature | 200 °C for 3,000 h |
| Nominal conductor sizes | 3 to 150 mm²; larger sizes up to 250 mm² available |
| Finished diameter | 4.64 to 25.40 mm for listed flexible sizes |
What Is S200XL ISO 19642-9 Shielded XLFE Cable?
S200XL ISO 19642-9 is a shielded, thin-wall, single-core high-voltage cable with bare copper, XLFE insulation and at least 85% listed shield coverage. It is rated 1000 V AC / 1500 V DC and covers listed conductor sizes from 3 to 150 mm², with larger sizes available for review.
For procurement and engineering review, TEBAOFLEX can confirm the requested construction against the operating temperature, electrical load, installation space and project documentation before production.
Selection and Ordering Details
- Confirm the conductor section using electrical load, voltage-drop and temperature calculations.
- Review shield termination, grounding architecture and connector compatibility as part of the complete EMC design.
- State stranding, bend radius, cable length, temperature profile, fluid exposure and required validation.
Engineering Notes and Usage Limits
- Shield coverage alone does not define total system EMC performance; termination and routing are equally important.
- The 200°C/3,000-hour value is a stated thermal rating and should be evaluated against the real duty cycle.
- Finished diameter varies by conductor size and must be confirmed before choosing glands, clips and connectors.
Related High-Temperature Cable Options
- S200XL ISO 19642-5 200°C Unshielded XLFE Cable
- Style 3253 / 30144 / 30145 250°C Silicone Wire
- View high-temperature and specialty cables
Frequently Asked Questions
What is S200XL ISO 19642-9 cable?
It is a shielded thin-wall single-core high-voltage cable with bare copper, XLFE insulation and at least 85% listed shield coverage.
How does it differ from ISO 19642-5 S200XL?
The ISO 19642-9 product is shielded, while the ISO 19642-5 product is unshielded. Select according to the system EMC design.
What is the voltage rating?
The listed rating is 1000 V AC / 1500 V DC. Connector, clearance and complete-system requirements must also be checked.
What conductor size range is available?
The listed range is 3 to 150 mm², with larger sizes up to 250 mm² available for technical review.
What information is required for an RFQ?
Provide section, stranding, cable length, shield termination, bend radius, temperature profile, fluid exposure, quantity and validation requirements.
Send Your Requirements
Send the model or style, conductor size, voltage, temperature, installation conditions, quantity and required test documentation. Our technical team will review the construction before quotation.
