Screened medium-voltage mining power cable
This red rubber mining cable is specified for fixed medium-voltage energy distribution along material-handling equipment. It uses screened phase cores and individual braided earth conductors, without the additional anti-torsion layer of the ATB version.
Where it is used
Fixed energy distribution in mines and alongside material-handling equipment, subject to installation-specific cable support and protection.

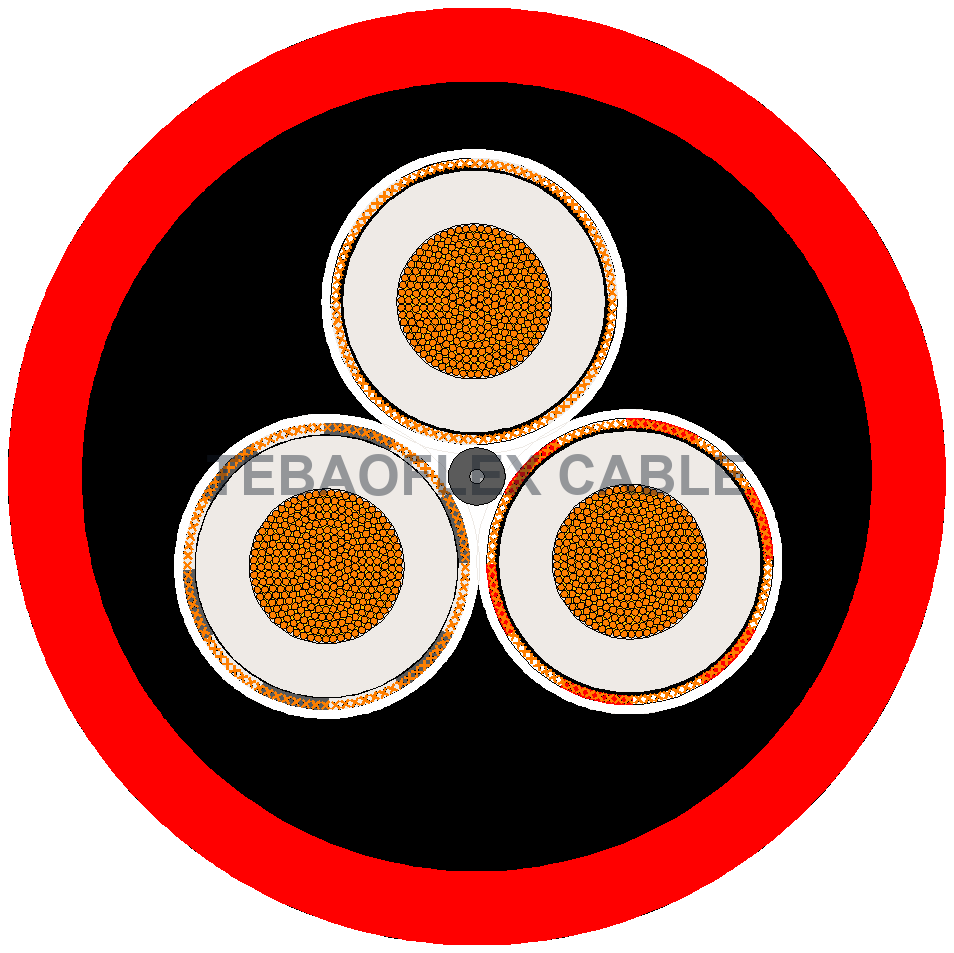

Cable construction
| Component | Specification |
|---|---|
| Phase conductor | Class 5 tinned copper |
| Insulation | Rubber compound with semi-conductive layers |
| Earth conductor | Individual copper-wire braid |
| Inner sheath | GM1b rubber compound |
| Outer sheath | Red 5GM3 rubber compound |
Operating and selection data
| Parameter | Documented value / selection note |
|---|---|
| Rated voltage | 3.6/6, 6/10, 8.7/15 and 12/20 kV |
| Minimum bending radius | 6 × OD for fixed installation |
| Temperature | One source lists an implausible fixed-temperature value; confirm the approved range before ordering |
Dimensions by voltage and configuration
Nominal values from the company datasheet. Dimensions and weights may vary within manufacturing tolerances; electrical ratings depend on the stated installation conditions.
| Voltage (kV) | Core arrangement | Phase (mm²) | Earth (mm²) | Conductor Ø (mm) | OD min (mm) | OD max (mm) | Tensile (N) | Weight (kg/km) |
|---|---|---|---|---|---|---|---|---|
| 3.6/6 | 3+3 | 25 | 25/3E | 6.8 | 43.9 | 45.6 | 1125 | 2870 |
| 3.6/6 | 3+3 | 35 | 25/3E | 7.8 | 45.4 | 47.1 | 1575 | 3230 |
| 3.6/6 | 3+3 | 50 | 25/3E | 9.4 | 48.5 | 50.3 | 2250 | 3860 |
| 3.6/6 | 3+3 | 70 | 35/3E | 11.2 | 54.1 | 55.9 | 3150 | 5010 |
| 3.6/6 | 3+3 | 95 | 50/3E | 12.7 | 58.4 | 60.2 | 4257 | 6150 |
| 3.6/6 | 3+3 | 120 | 70/3E | 14.4 | 62.5 | 64.8 | 5400 | 7450 |
| 3.6/6 | 3+3 | 150 | 70/3E | 16.3 | 68.9 | 71.3 | 6750 | 8980 |
| 3.6/6 | 3+3 | 185 | 90/3E | 17.6 | 71.9 | 74.3 | 8325 | 10290 |
| 6/10 | 3+3 | 25 | 25/3E | 6.8 | 43.9 | 46.2 | 1125 | 2910 |
| 6/10 | 3+3 | 35 | 25/3E | 7.8 | 45.4 | 47.7 | 1575 | 3270 |
| 6/10 | 3+3 | 50 | 25/3E | 9.4 | 48.5 | 50.9 | 2250 | 3900 |
| 6/10 | 3+3 | 70 | 35/3E | 11.2 | 54.1 | 56.5 | 3150 | 5050 |
| 6/10 | 3+3 | 95 | 50/3E | 12.7 | 58.4 | 60.8 | 4257 | 6190 |
| 6/10 | 3+3 | 120 | 70/3E | 14.4 | 62.5 | 65.5 | 5400 | 7490 |
| 6/10 | 3+3 | 150 | 70/3E | 16.3 | 68.9 | 72 | 6750 | 9020 |
| 6/10 | 3+3 | 185 | 90/3E | 17.6 | 71.9 | 75 | 8325 | 10330 |
| 8.7/15 | 3+3 | 25 | 25/3E | 6.8 | 47.3 | 49 | 1125 | 3200 |
| 8.7/15 | 3+3 | 35 | 25/3E | 7.8 | 48.8 | 50.6 | 1575 | 3570 |
| 8.7/15 | 3+3 | 50 | 25/3E | 9.4 | 53.7 | 55.5 | 2250 | 4440 |
| 8.7/15 | 3+3 | 70 | 35/3E | 11.2 | 57.5 | 59.3 | 3150 | 5410 |
| 8.7/15 | 3+3 | 95 | 50/3E | 12.7 | 60.8 | 63.1 | 4275 | 6480 |
| 8.7/15 | 3+3 | 120 | 70/3E | 14.4 | 66.8 | 69.1 | 5400 | 8060 |
| 8.7/15 | 3+3 | 150 | 70/3E | 16.3 | 71.5 | 73.9 | 6750 | 9370 |
| 12/20 | 3+3 | 25 | 25/3E | 6.8 | 49.8 | 51.6 | 1125 | 3450 |
| 12/20 | 3+3 | 35 | 25/3E | 7.8 | 51.3 | 53.1 | 1575 | 3810 |
| 12/20 | 3+3 | 50 | 25/3E | 9.4 | 56.3 | 58.1 | 2250 | 4740 |
| 12/20 | 3+3 | 70 | 35/3E | 11.2 | 60.1 | 61.9 | 3150 | 5730 |
| 12/20 | 3+3 | 95 | 50/3E | 12.7 | 63.3 | 65.6 | 4275 | 6810 |
| 12/20 | 3+3 | 120 | 70/3E | 14.4 | 69.3 | 71.7 | 5400 | 8420 |
Installation limits
Use as a fixed power feed only unless a project-specific moving-duty design is confirmed. The source temperature value is held for engineering review and is not advertised as a rating here.
Technical datasheets
- (N)TSCGECEWÖU Medium-Voltage Mining Cable | 3.6/6–6/10 kV Technical Datasheet
- (N)TSCGECEWÖU Medium-Voltage Mining Cable | 8.7/15–12/20 kV Technical Datasheet
Standards named in the datasheets are design or test references; request the applicable certificate and test evidence for the exact product configuration.
Request a configuration review
Send the voltage, conductor size, core arrangement, moving or fixed duty, bend radius, environment, required length and quantity to TEBAOFLEX. We will confirm the construction and commercial details for the project.
