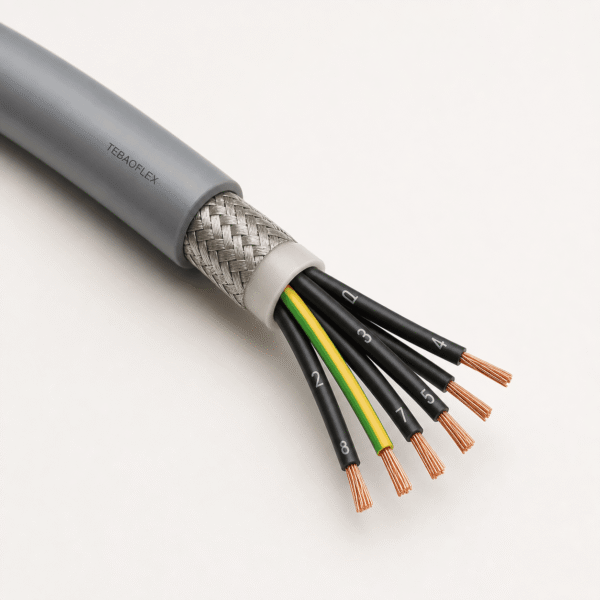

JZ-602-C Screened PUR Control Cable 600 V is a flexible polyurethane control cable for industrial connections, control circuits and moving machinery. Its finely stranded copper conductors and abrasion-resistant PUR outer sheath support dependable cable routing in machine tools, plant engineering and automation equipment.
Its overall tinned-copper braid is designed for EMC-conscious control and connection applications in moving industrial machinery, including outdoor and wet-area installations.
Construction and Performance
- Conductor: bare fine-stranded copper to IEC 60228 Class 5.
- Screen: tinned copper wire braid with approximately 85% coverage.
- Core system: black PVC cores with continuous white numbers and a green-yellow protective conductor from 3 cores upward.
- Outer sheath: grey full polyurethane for abrasion, cut and notch resistance.
Technical Parameters
| Parameter | Value |
|---|---|
| Nominal voltage | 600 V AC |
| Test voltage core/core | 3,000 V |
| Breakdown voltage | 6,000 V |
| Coupling resistance | Approx. 250 Ω/km at 30 MHz |
| Flexible operating temperature | -5 °C to +80 °C |
| Fixed installation temperature | -40 °C to +80 °C |
| Minimum bend radius, flexible | 10 × outer diameter |
| Minimum bend radius, fixed | 5 × outer diameter |
| Flame behaviour | IEC 60332-1-2 / UL VW-1 / CSA FT1 |
Selected Configurations
The values below are representative nominal options from the product range. Confirm the final core count, conductor size, movement type and installation conditions before ordering.
| Configuration | Approx. outer diameter | Copper weight | Approx. cable weight |
|---|---|---|---|
| 2 × 0.5 mm² | 7.6 mm | 41 kg/km | 93 kg/km |
| 3G × 1 mm² | 9.0 mm | 64 kg/km | 130 kg/km |
| 4G × 1.5 mm² | 10.8 mm | 99 kg/km | 192 kg/km |
| 5G × 2.5 mm² | 13.1 mm | 220 kg/km | 329 kg/km |
| 4G × 6 mm² | 15.4 mm | 316 kg/km | 572 kg/km |
Selection Guidance
Specify the required EMC environment, core count and motion duty so that screening and bending requirements can be verified. Submit the required core count, cross-section, cable length and application conditions to request a quote from TEBAOFLEX.
Applications
Typical applications include machine tools, automated production equipment, control systems and installations exposed to oils, coolants or outdoor weather. For more solutions, see our industrial control cable range.
