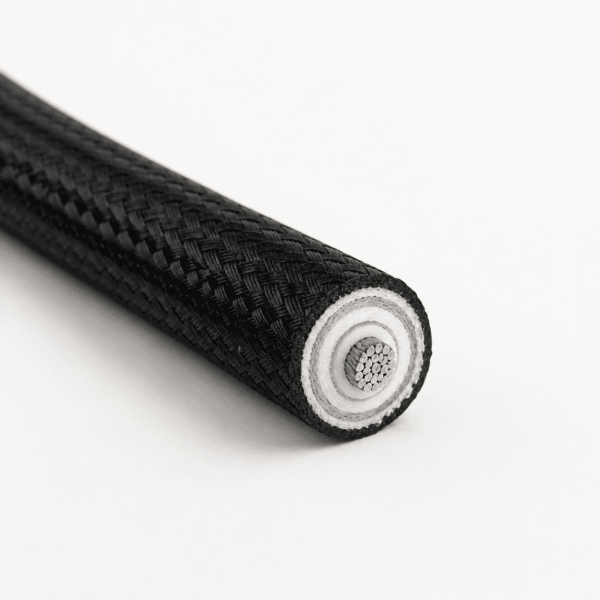

25kV High-Temperature Igniter Wire with Fiberglass Jacket
TEBAOFLEX high-temperature igniter wire serves ignition circuits that operate near burners, flare systems and process equipment. The listed single-core construction combines nickel-plated copper conductors, multilayer mica tape, a PTFE moisture barrier and a fluoropolymer-coated fibreglass jacket.
Consequently, the wire supports high-voltage connections in applications that require heat resistance and installation flexibility. Before ordering, confirm the ignition voltage, ambient temperature, routing and required cable length with TEBAOFLEX.
Key Construction Features
- Nickel-plated copper conductor: The conductor supports high-temperature service and maintains flexibility through fine stranding.
- Multilayer mica tape: Mica tape adds a heat-resistant insulation layer and supports long-term durability.
- PTFE moisture barrier: The moisture barrier forms part of the listed multilayer insulation construction.
- Fibreglass braid jacket: The braid provides a mechanical layer that resists abrasion and high-temperature exposure.
- Fluoropolymer coating: The coating protects the fibreglass braid and assists installation in weathered or chemical-exposure environments.
In addition, the wire uses a layered construction to combine thermal performance with a flexible installation profile.
Ratings and Performance Characteristics
| Parameter | Listed value |
|---|---|
| Voltage rating | 25 kV DC / 17 kV AC |
| Maximum conductor temperature | 538°C / 1,000°F |
| Minimum bend radius, static | 6 × cable overall diameter |
| Minimum bend radius, dynamic | 8 × cable overall diameter |
| Conductor | Nickel-plated copper |
| Insulation system | Multilayer mica tape with PTFE moisture barrier |
| Jacket | Fluoropolymer-coated fibreglass braid |
| Compliance | RoHS compliant |
However, the final bend radius depends on the actual installed cable diameter and route. Therefore, use these values as an initial engineering guide and verify the complete installation with TEBAOFLEX.
Typical Applications
- Industrial igniters and burner ignition circuits
- Flare stack and combustion-system ignition wiring
- High-temperature process equipment
- Oil, gas and petrochemical facilities
- Applications that combine flexing with elevated temperature exposure
Moreover, this construction helps buyers specify a single-core ignition wire where a standard polymer-jacketed cable cannot meet the required temperature conditions.
Listed 18 AWG Configuration
| Specification | Value |
|---|---|
| Configuration | 18 AWG single conductor |
| Nominal overall diameter | 0.527 in |
| Approximate weight | 50 lb per 1,000 ft |
| Jacket construction | Fluoropolymer-coated fibreglass braid |
Igniter Wire Selection Checklist
First, provide the required voltage and conductor size. Next, identify the maximum temperature, bending requirements, chemical exposure and installation route. Finally, send your high-temperature igniter wire requirements to TEBAOFLEX for a configuration review and quotation.
Related Cable Solutions
For more specialist products, see our High-Temp & Specialty Cables and Oil, Gas & Marine Cables categories.
FAQ
What is a high-temperature igniter wire used for?
It connects ignition circuits for burners, flare systems and industrial equipment that operate in high-temperature environments.
What voltage does this igniter wire support?
The listed rating is 25 kV DC and 17 kV AC. Confirm the final circuit requirements before ordering.
What conductor size is listed?
This product page lists an 18 AWG single-conductor configuration with a nominal overall diameter of 0.527 in.
