TEBAOFLEX Li12YC11Y-JZ (also supplied in PVC-insulated YSLCY11Y-JZ builds) is an all-weather, inner-sheathed 300/500 V copper-braided EMC control cable adapted to EN 50525-2-51. By placing an extruded elastomer inner bedding sheath between fine-stranded Class 5 conductors and the concentric copper wire braid, and armouring the exterior with a notch-, oil-, hydrolysis-, and UV-resistant Silver Grey (RAL 7001) 11YM1 PUR sheath, it maintains noise-free signal and valve control from -40°C to +90°C flexing (-50°C fixed).
1. Application Scope & PUR Control Cable Selection Matrix
Standard PVC-sheathed YSLCY-JZ control cables stiffen in cold weather, swell in ester machining fluids, and tear easily against metal swarf. Upgrading to an inner-sheathed Li12YC11Y-JZ / YSLCY11Y-JZ polyurethane control cable provides full 360° braided electromagnetic compatibility alongside harsh-environment mechanical and chemical durability.
- CNC Machine Tools, Grinding & Transfer Lines: Proportional hydraulic valve, PLC I/O, limit-switch, and spindle sensor interconnects drenched in cutting emulsions, mineral oils, and metal chips.
- All-Weather Outdoor, Construction & Agricultural Machinery: Mobile cranes, concrete batching plants, timber harvesters, and port yard equipment exposed to UV sunlight, ozone, mud, and sub-zero
-40°Ccold flexing. - Food, Washdown & Cold-Storage Automation: Hydrolysis- and microbe-resistant ether-grade PUR jacket withstands damp washdown zones and freezer-warehouse conveyors without plasticizer leaching.
| TEBAOFLEX PUR Control Series | Voltage & EMC Screen | Core / Inner / Outer Layers | Flexing Temp. & Bend | Primary Machine Duty |
|---|---|---|---|---|
| Li12YC11Y-JZ (This Page) | 300/500 V + Cu Wire Braid | TPE (or PVC) / Inner Sheath / PUR | -40°C to +90°C | 15 × OD | All-weather machine tools & oily EMC control |
| YSL11Y-JZ / LiY11Y-JZ | 300/500 V, Unshielded | PVC / No Inner Sheath / PUR | -5°C to +80°C | 12.5 × OD | General oil-resistant unshielded machine wiring |
| Y11Y-JZ 600V Class 6 | 600 V (UL/CSA), Unshielded/C | Special PVC-TPE / Fleece / PUR | -30°C to +80°C | 7.5 × OD | High-speed multi-million-cycle drag chains |
| D12YC11Y-J 0.6/1 kV | 0.6/1 kV + Tinned Cu Braid | 12Y TPE-E / PUR Bedding / PUR | -40°C to +80°C | 6 × OD | 0.6/1 kV VFD crane festoons & heavy chains |
TPE Halogen-Free vs PVC-Core Supply Options: Our standard all-weather Li12YC11Y-JZ build uses 100% halogen-free TPE core and inner-sheath compounds for -40°C to +90°C flexing. Where customer BOMs specify conventional PVC-insulated YSLCY11Y-JZ (-5°C to +70°C flexing, -40°C fixed), TEBAOFLEX manufactures that exact construction to order.
2. Cable Construction (5-Layer Inner-Sheathed EMC Architecture)

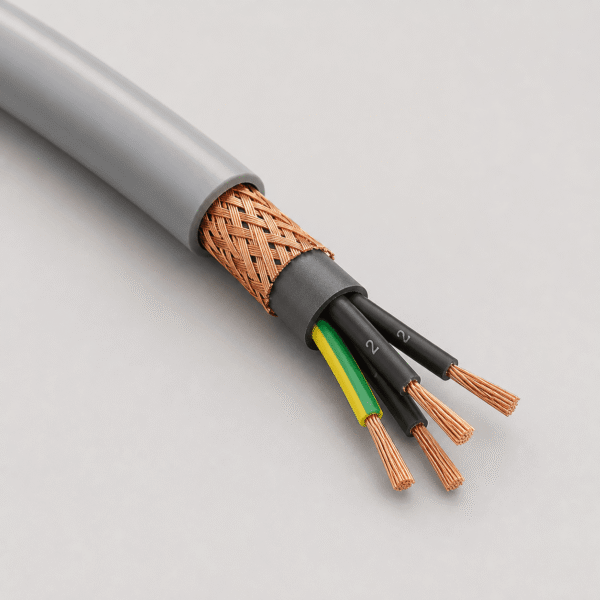

As shown directly in the stepped product cutaway, the cable features five distinct concentric engineering layers from conductor to outer polyurethane jacket:
YSLCY11Y builds). Black cores carry crisp sequential white numbers per DIN VDE 0293-308, with a green/yellow protective earth in the outer layer on 3-core and above (-JZ; 2-core supplied as -OZ without earth).360° interference suppression.EN 60332-1-2), and resistant to mineral oils, synthetic coolants, hydrolysis, microbes, and UV.3. Technical & Environmental Characteristics
Electrical, mechanical, and environmental parameters for TEBAOFLEX Li12YC11Y-JZ / Li12YC11Y-OZ screened PUR control cables:
| Parameter | Engineering Rating | Standard / Test Condition |
|---|---|---|
| Nominal Voltage (U0/U) | 300 / 500 V | Control, measurement, valve, and industrial instrumentation circuits |
| AC Dielectric Test Voltage | 4,000 V AC (core/core) | 2,000 V AC (core/screen) | 50 Hz routine high-voltage factory verification |
| Flexing Temperature Range | -40°C to +90°C (TPE build) | -5°C to +70°C/+80°C on optional PVC-core YSLCY11Y-JZ builds |
| Fixed Installation Temp. | -50°C to +90°C | All-weather arctic, cold-store, and high-ambient plant service |
| Minimum Bending Radius | 15 × OD (flexing) | 6 × OD (fixed) | 12.5 × OD permissible in guided occasional linear motion |
| EMC Transfer Impedance | ≤ 250 mΩ/m at 30 MHz | Concentric braided copper wire screen (≥ 80-85% coverage) |
| Halogen-Free & Flame Rating | Halogen-free, self-extinguishing | IEC 60754-1 / EN 50267-2-1 (Li12YC11Y); flame per EN 60332-1-2 |
| Oil, UV & Hydrolysis Resistance | Indoor, wet washdown & outdoor | EN 60811-404 oil resistant; UV, ozone, and microbe resistant PUR |
4. Specification & SKU Schedule (0.50 mm² to 16 mm², 2 to 25 Cores)
Representative inner-sheathed configurations across 0.50 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm², and 4-16 mm² cross-sections (OZ = without green/yellow earth; G = JZ with green/yellow protective earth):
| Part No. / SKU | Core Configuration | Nominal Outer OD (mm) | Min. Flex Bend 15×OD (mm) | Copper Index (kg/km) | Max. 20°C DC Res. (Ω/km) | Approx. Total Weight (kg/km) |
|---|---|---|---|---|---|---|
LI12YC11Y-2X0.5 | 2 × 0.5 mm² (OZ) | 6.9 | 104 | 29 | 39.0 | 64 |
LI12YC11Y-3G0.5 | 3 G 0.5 mm² | 7.2 | 108 | 35 | 39.0 | 74 |
LI12YC11Y-5G0.5 | 5 G 0.5 mm² | 8.4 | 126 | 52 | 39.0 | 105 |
LI12YC11Y-12G0.5 | 12 G 0.5 mm² | 11.5 | 173 | 108 | 39.0 | 198 |
LI12YC11Y-3G0.75 | 3 G 0.75 mm² | 7.7 | 116 | 46 | 26.0 | 88 |
LI12YC11Y-4G0.75 | 4 G 0.75 mm² | 8.3 | 125 | 58 | 26.0 | 106 |
LI12YC11Y-7G0.75 | 7 G 0.75 mm² | 9.9 | 149 | 92 | 26.0 | 158 |
LI12YC11Y-18G0.75 | 18 G 0.75 mm² | 14.2 | 213 | 205 | 26.0 | 335 |
LI12YC11Y-3G1.0 | 3 G 1.0 mm² | 8.1 | 122 | 56 | 19.5 | 102 |
LI12YC11Y-4G1.0 | 4 G 1.0 mm² | 8.8 | 132 | 72 | 19.5 | 124 |
LI12YC11Y-7G1.0 | 7 G 1.0 mm² | 10.6 | 159 | 114 | 19.5 | 186 |
LI12YC11Y-4G1.5 | 4 G 1.5 mm² | 9.8 | 147 | 99 | 13.3 | 162 |
LI12YC11Y-12G1.5 | 12 G 1.5 mm² | 15.1 | 227 | 258 | 13.3 | 395 |
LI12YC11Y-25G1.5 | 25 G 1.5 mm² | 20.8 | 312 | 512 | 13.3 | 740 |
LI12YC11Y-4G2.5 | 4 G 2.5 mm² | 11.6 | 174 | 154 | 7.98 | 242 |
LI12YC11Y-4G6.0 | 4 G 6.0 mm² | 15.4 | 231 | 318 | 3.30 | 465 |
Additional core counts up to 42 G 1.5 mm², heavy 4 G 10 mm² and 4 G 16 mm² machine feeders, and colour-coded JB/OB core assemblies are manufactured to order. Explore our complete Industrial & Control Cables catalog or view our PUR Multi-Core Control Cable overview.
5. Frequently Asked Questions (Shielded TPE/PVC-PUR Control Cable)
What is the structural difference between Li12YC11Y-JZ and YSLCY11Y-JZ screened PUR control cables?
Both constructions combine Class 5 fine-stranded bare copper conductors, black white-numbered cores with a green/yellow earth (-JZ), a concentric copper wire EMC braid (C), and an oil-resistant 11YM1 polyurethane (PUR) outer sheath. Li12YC11Y-JZ uses 100% halogen-free thermoplastic elastomer (TPE / 12Y) core insulation and an extruded TPE inner sheath to achieve a wider -40°C to +90°C flexing range, whereas YSLCY11Y-JZ uses flexible PVC core insulation (-5°C to +70°C/+80°C flexing) for standard indoor machine-tool wiring.
Why does this cable include an extruded inner bedding sheath beneath the copper wire braid?
Unlike foil-taped economy control cables, the extruded elastomer inner sheath fills the valleys between stranded cores and provides a smooth cylindrical cushion beneath the braided copper screen. That prevents copper braid wires from cutting into core insulation during repeated flexing, maintains 360° roundness inside IP68 EMC cable glands, and raises core-to-core test voltage stability to 4,000 V AC.
Can Li12YC11Y-JZ be used outdoors and in sub-zero cold-storage automation?
Yes. The UV-stabilized, hydrolysis- and microbe-resistant 11YM1 PUR outer sheath combined with low-temperature TPE core/inner-sheath compounds remains supple down to -40°C in flexing service and -50°C in fixed routing, making it suitable for mobile construction machinery, agricultural implements, wind-turbine nacelles, and cold-store conveyors.
When should I upgrade from Class 5 Li12YC11Y-JZ (15 × OD) to a Class 6 robotic drag-chain PUR cable?
Li12YC11Y-JZ (Class 5 conductor, 15 × OD flexing radius) is engineered for machine-tool harnesses, occasional/medium-cycle linear drag chains, and vibrating equipment. For high-acceleration, multi-million-cycle tight-radius energy chains (7.5 × OD) or robotic dress packs, specify our Class 6 Y11Y-JZ 600V PUR Robotic Drag-Chain Control Cable.
Specify Li12YC11Y-JZ / YSLCY11Y-JZ Shielded PUR Control Cable
Share your core count, cross-section, insulation preference (halogen-free TPE -40°C/+90°C vs PVC core), screen finish (bare or tinned copper braid), and drum lengths for factory datasheet and pricing.
